Description
Most Affordable mATX Intel B760 PRO DDR4 Motherboard — PCIe 4.0, DDR4 4800+, Dual M.2 Gen4 with M.2 Shield Frozr for Intel Core 12th, 13th & 14th Gen.

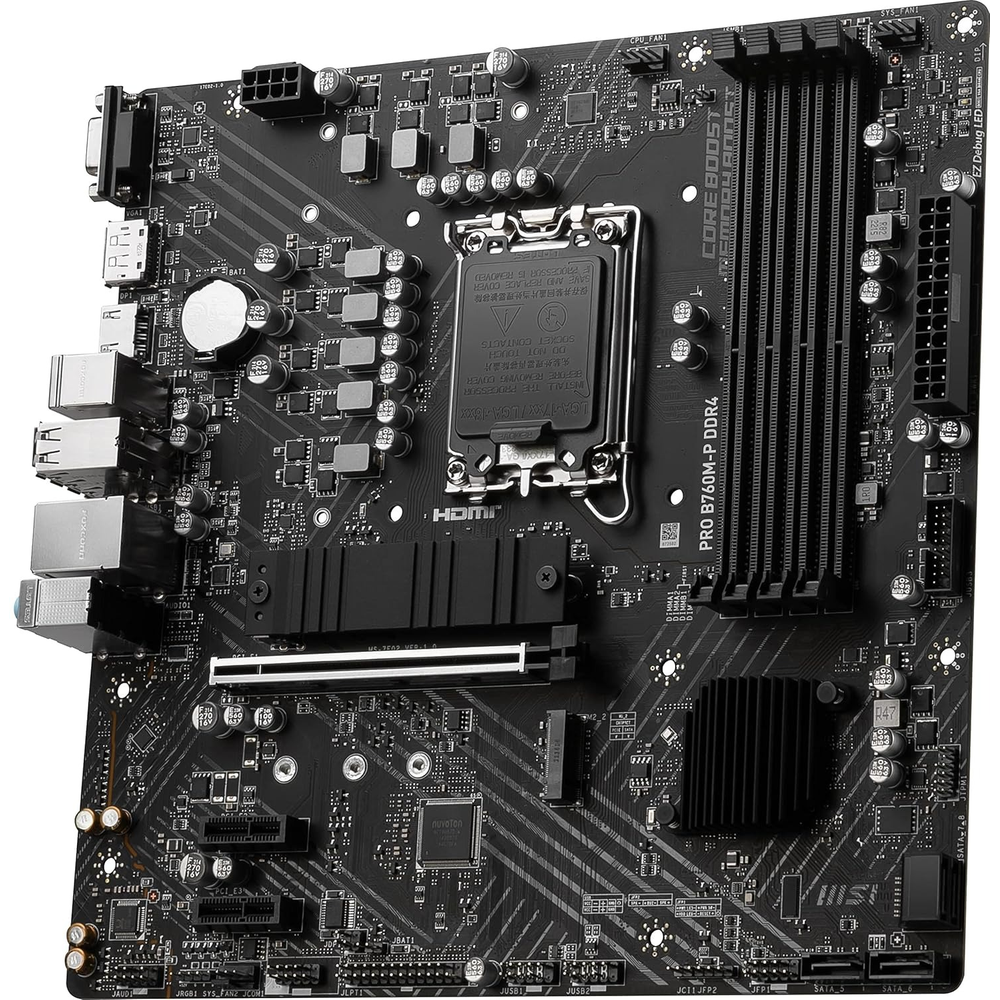

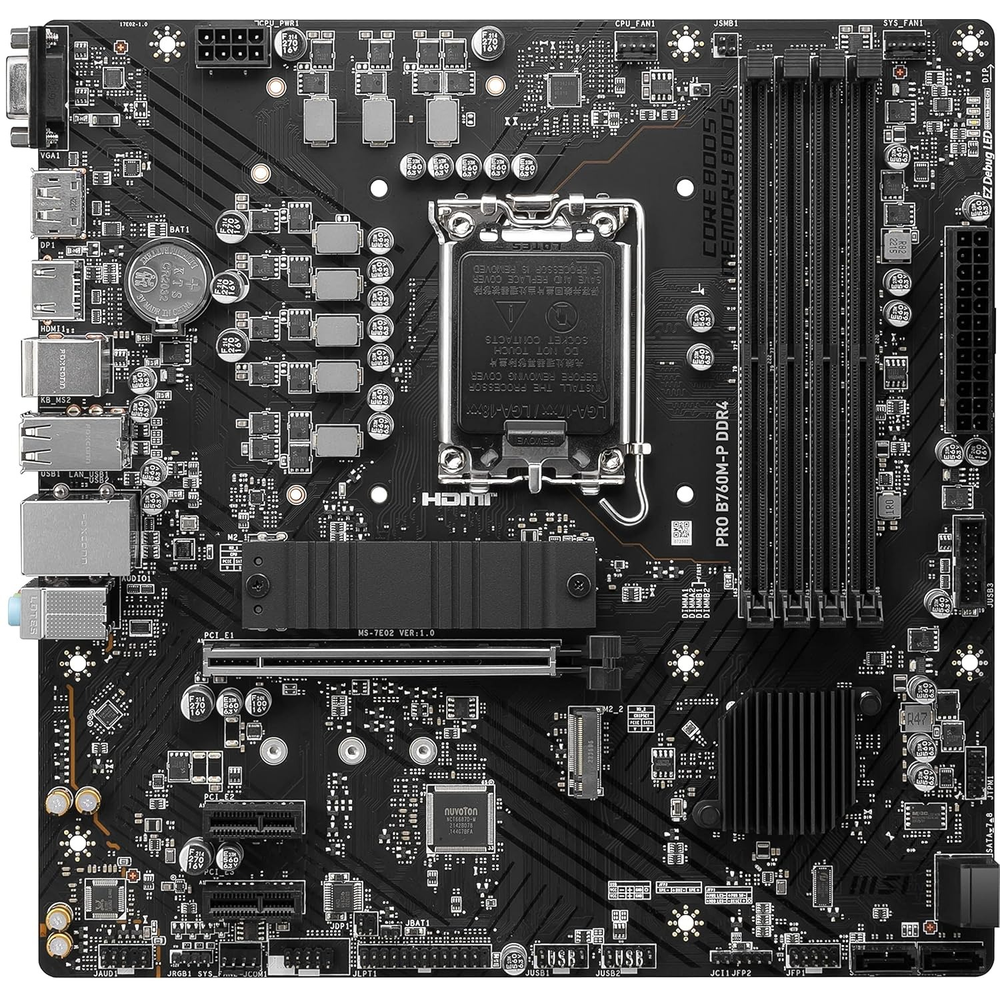

The MSI PRO B760M-P DDR4 is the most accessible B760 mATX board in MSI's PRO series for builders on a DDR4 platform. It features Core Boost, Memory Boost, Steel Armor PCIe slot, PCIe 4.0 x16, 2x M.2 PCIe 4.0 slots with M.2 Shield Frozr, DDR4 4800+ OC, and Gigabit LAN — a rock-solid foundation for budget Intel builds upgrading from older platforms without the need to buy new DDR5 memory.
-
>CPU Support: Intel Core 14th / 13th / 12th Gen + Pentium Gold / Celeron, LGA 1700 socket
>Power Delivery: Single 8-pin CPU connector, Core Boost, Memory Boost
>Storage: 2x M.2 — M.2_1: PCIe 4.0 x4 (CPU, 2280/2260/2242); M.2_2: PCIe 4.0 x4 / SATA (Chipset, 2280/2260/2242); 4x SATA 6G | RAID 0/1/5/10 — M.2 Shield Frozr on both slots
>Connectivity: Realtek RTL8111H Gigabit LAN — no built-in Wi-Fi
>USB: Rear — 1x USB 10Gbps Type-C, 1x USB 5Gbps Type-A, 4x USB 2.0; Front — 2x USB 5Gbps Type-A, 4x USB 2.0
>Video Output: 1x HDMI 1.4 (4K@30Hz), 1x DisplayPort 1.4 (4K@60Hz), 1x VGA
>Audio: Realtek ALC897, 7.1-Channel HD Audio
| Specification | Details |
|---|---|
| Chipset | Intel B760 |
| Socket | LGA 1700 |
| Form Factor | mATX (243.84 x 243.84 mm) |
| Memory | 4x DDR4 UDIMM, up to 128GB, DDR4 4800+ MT/s (OC) / 3200–2133 MT/s (JEDEC) |
| Memory Standard | Intel XMP, Dual Channel, non-ECC unbuffered |
| PCIe Slots | PCI_E1: PCIe 4.0 x16 (CPU, Steel Armor); PCI_E2: PCIe 4.0 x1 (Chipset); PCI_E3: PCIe 4.0 x1 (Chipset) |
| M.2 Slots | M.2_1: PCIe 4.0 x4 (CPU, 2280/2260/2242); M.2_2: PCIe 4.0 x4 / SATA (Chipset, 2280/2260/2242); M.2 Shield Frozr on both |
| SATA | 4x SATA 6G | RAID 0, 1, 5, 10 |
| LAN | Realtek RTL8111H Gigabit LAN |
| Wireless | Not included |
| Thunderbolt | Not included |
| Rear USB | 1x USB 10Gbps Type-C, 1x USB 5Gbps Type-A, 4x USB 2.0 |
| Front USB Headers | 2x USB 5Gbps Type-A, 4x USB 2.0 |
| Video Output | 1x HDMI 1.4 (4K@30Hz), 1x DisplayPort 1.4 (4K@60Hz), 1x VGA |
| Audio | Realtek ALC897, 7.1-CH HD Audio |
| Fan Headers | 1x CPU Fan, 2x System Fan |
| RGB | 1x RGB header, 4x EZ Debug LED |
| OS Support | Windows 11 / 10 64-bit |
