Description
Entry-Level mATX Intel B760 PRO Motherboard — PCIe 4.0, DDR5 6800+, Dual M.2 Gen4, and M.2 Shield Frozr for Intel Core 12th, 13th & 14th Gen.

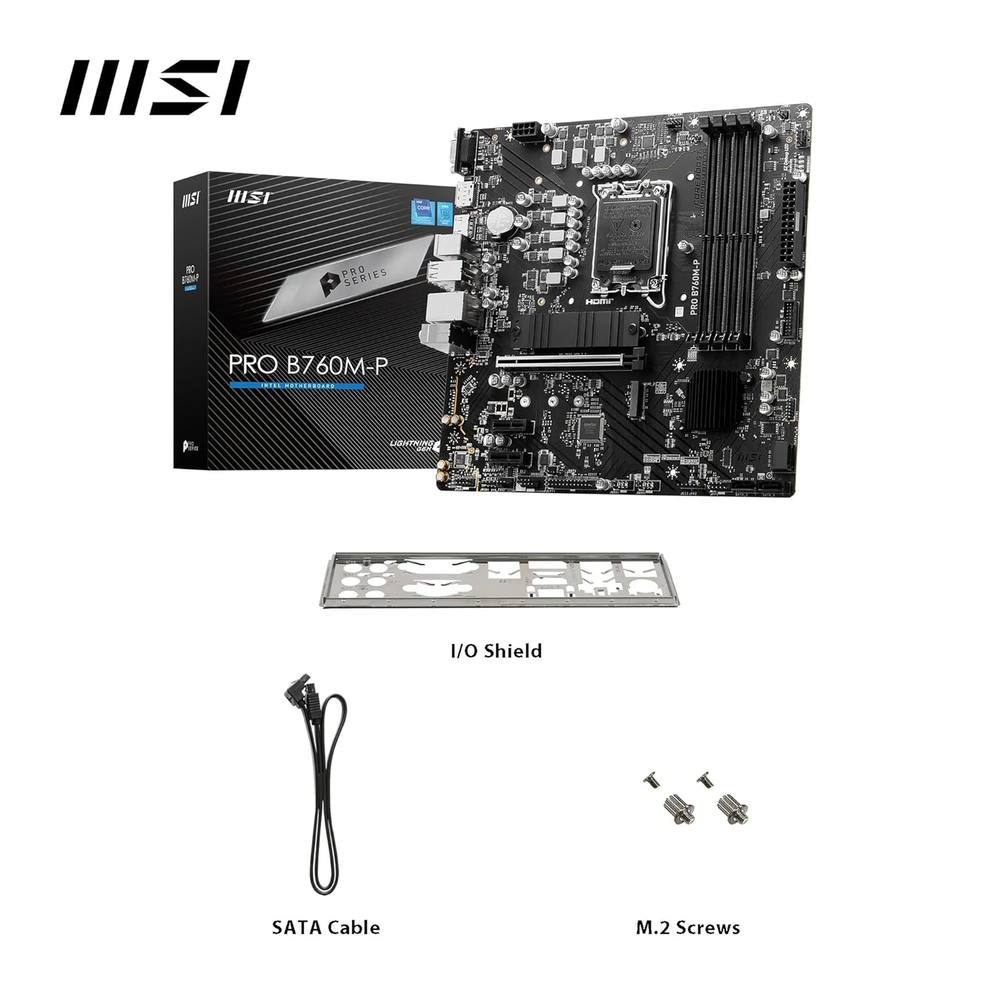

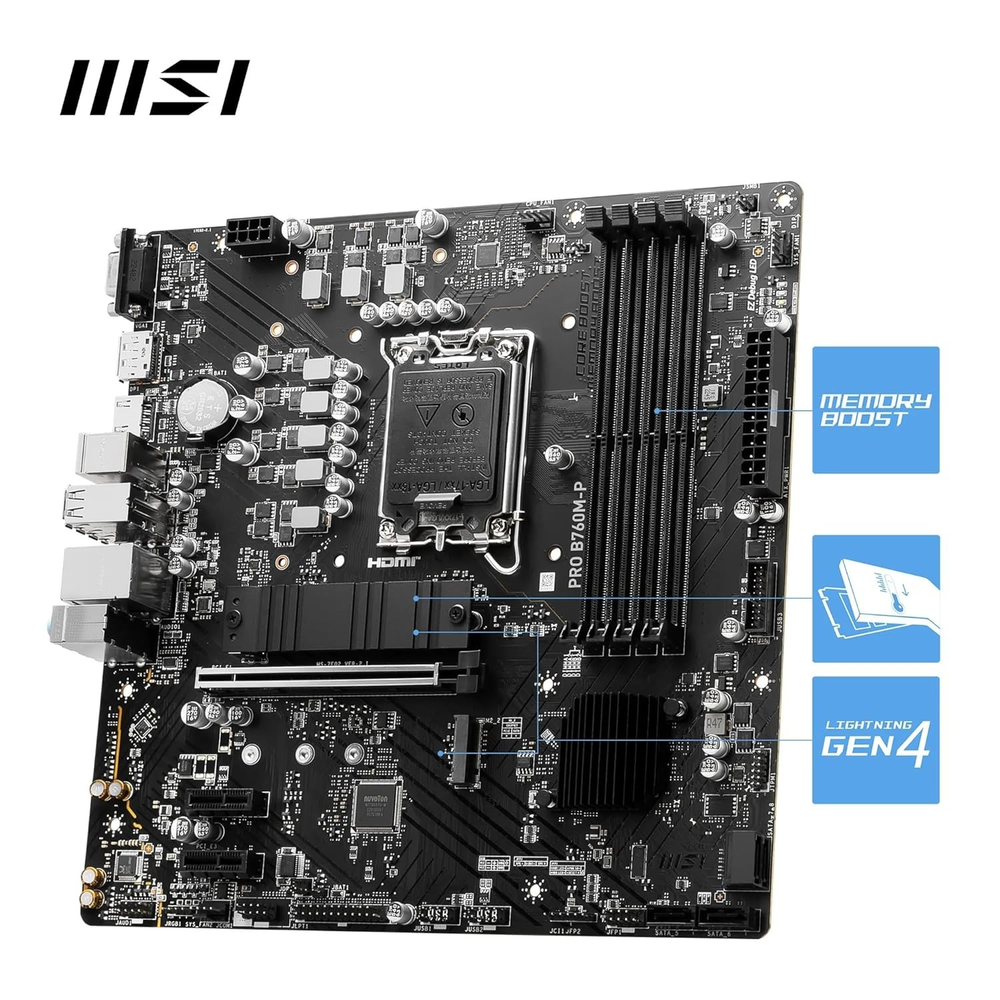

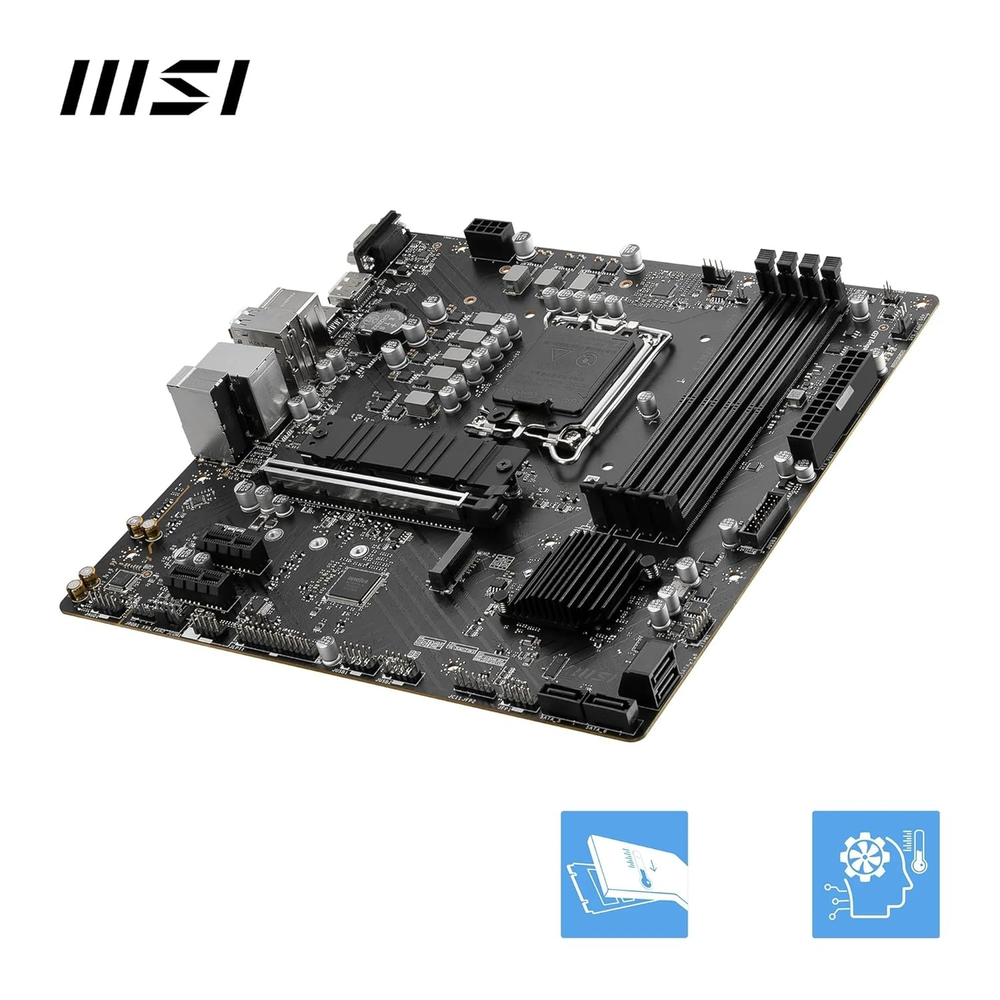

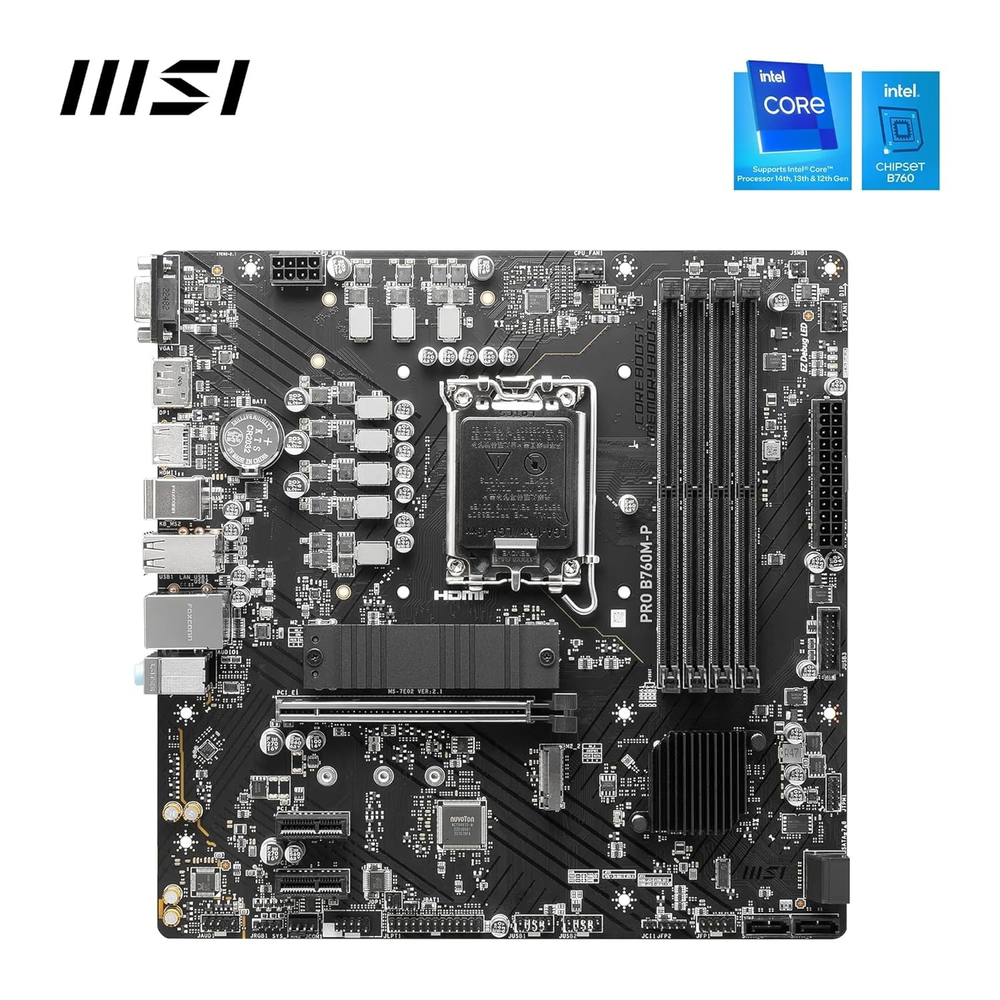

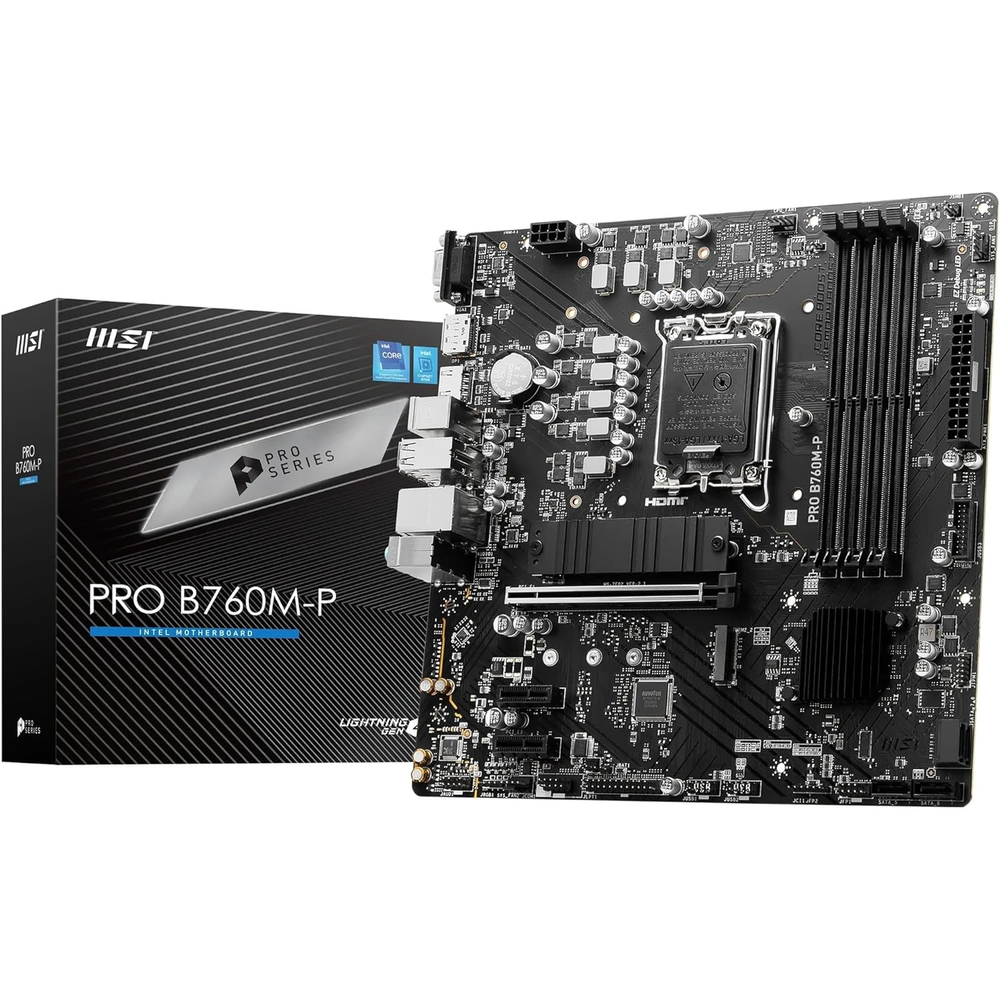

The MSI PRO B760M-P (DDR5) is a no-frills Micro-ATX motherboard for Intel Core 12th, 13th, and 14th Gen processors on the LGA 1700 socket. It offers MSI's trusted PRO series reliability with Core Boost, Memory Boost, PCIe 4.0 x16, 2x M.2 PCIe 4.0 slots with M.2 Shield Frozr, DDR5 6800+ OC, and Gigabit LAN — making it the most affordable B760 mATX option for productivity and entry builds.
-
>CPU Support: Intel Core 14th / 13th / 12th Gen + Pentium Gold / Celeron, LGA 1700 socket
>Power Delivery: Single 8-pin CPU connector, Core Boost, Memory Boost, SMT DDR5 slots
>Storage: 2x M.2 PCIe 4.0 x4 — M.2_1: CPU (2280/2260/2242); M.2_2: Chipset PCIe/SATA (2280/2260/2242); 4x SATA 6G | RAID 0/1/5/10 — M.2 Shield Frozr on both slots
>Connectivity: Realtek RTL8111H Gigabit LAN — no built-in Wi-Fi
>USB: Rear — 1x USB 10Gbps Type-C, 1x USB 5Gbps Type-A, 4x USB 2.0; Front — 2x USB 5Gbps Type-A, 4x USB 2.0
>Video Output: 1x HDMI 1.4, 1x DisplayPort 1.4, 1x VGA
>Audio: Realtek ALC897, 7.1-Channel HD Audio
| Specification | Details |
|---|---|
| Chipset | Intel B760 |
| Socket | LGA 1700 |
| Form Factor | mATX (243.84 x 243.84 mm) |
| Memory | 4x DDR5 UDIMM, up to 256GB, DDR5 6800+ MT/s (OC) / 5600–4800 MT/s (JEDEC) |
| Memory Standard | XMP 3.0, Dual Channel, SMT DDR5 slots, non-ECC unbuffered |

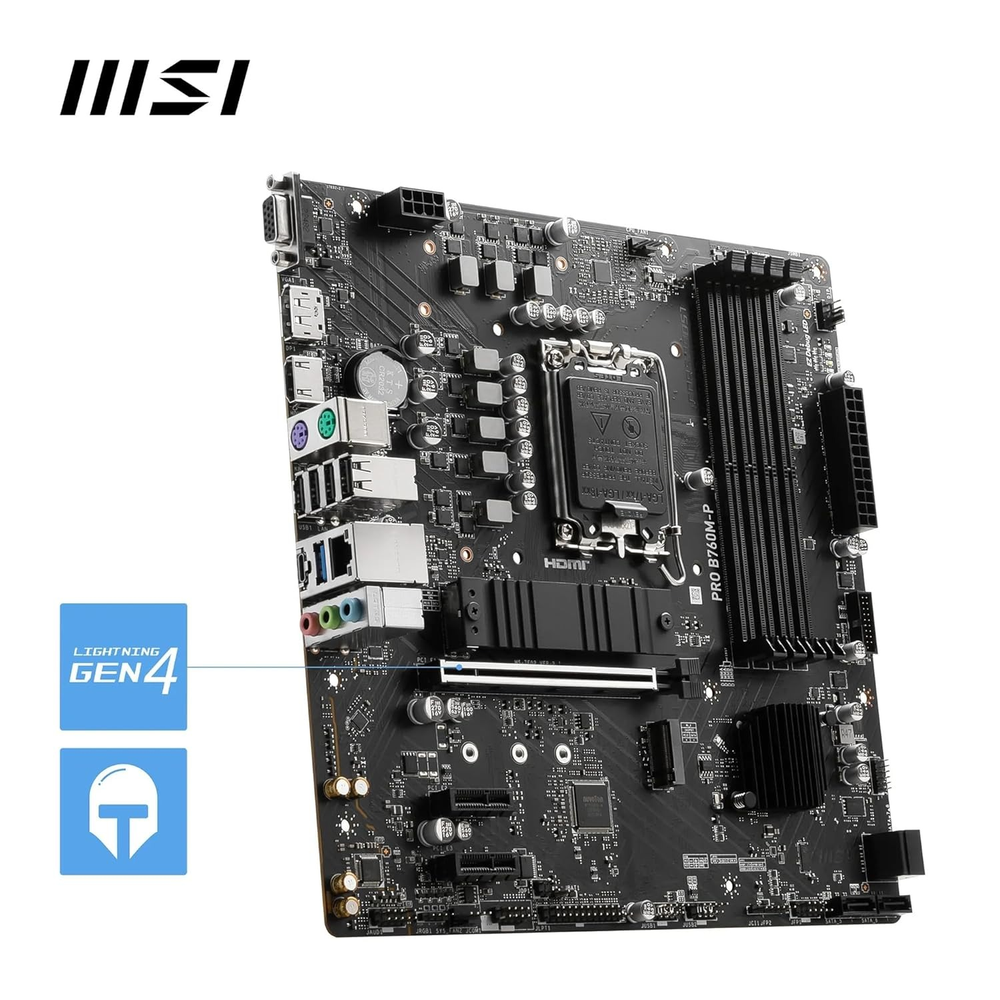

| PCIe Slots | PCI_E1: PCIe 4.0 x16 (CPU); PCI_E2: PCIe 4.0 x1 (Chipset); PCI_E3: PCIe 4.0 x1 (Chipset) |
| M.2 Slots | 2x M.2 PCIe 4.0 x4 — M.2_1: CPU (2280/2260/2242); M.2_2: Chipset PCIe/SATA (2280/2260/2242); M.2 Shield Frozr on both |
| SATA | 4x SATA 6G | RAID 0, 1, 5, 10 |
| LAN | Realtek RTL8111H Gigabit LAN |
| Wireless | Not included |
| Thunderbolt | Not included |
| Rear USB | 1x USB 10Gbps Type-C, 1x USB 5Gbps Type-A, 4x USB 2.0 |
| Front USB Headers | 2x USB 5Gbps Type-A, 4x USB 2.0 |
| Video Output | 1x HDMI 1.4 (4K@30Hz), 1x DisplayPort 1.4 (4K@60Hz), 1x VGA |
| Audio | Realtek ALC897, 7.1-CH HD Audio |
| Fan Headers | 1x CPU Fan, 2x System Fan |
| RGB | 1x ARGB V2 header, 1x RGB header, 4x EZ Debug LED |
| OS Support | Windows 11 / 10 64-bit |
