MSI PRO B860M-B WIFI Motherboard

MSI PRO B860M-B WIFI Motherboard

Entry-Level Silver mATX Intel B860 Motherboard — Wi-Fi 7, 5G LAN, PCIe 5.0, and M.2 Gen5 for Intel Core Ultra Series 2. The MSI PRO B860M-B WIFI is a compact...

Rs. 13,999.00
Rs. 13,999.00
OFF Sold out
Tax included. Shipping calculated at checkout.

Vendor:

MSI

Type:

Motherboard

Estimated deliver 5-7 days

People are viewing this right now

View full details
Let us know abour your query!
Description
Reviews

Entry-Level Silver mATX Intel B860 Motherboard — Wi-Fi 7, 5G LAN, PCIe 5.0, and M.2 Gen5 for Intel Core Ultra Series 2.

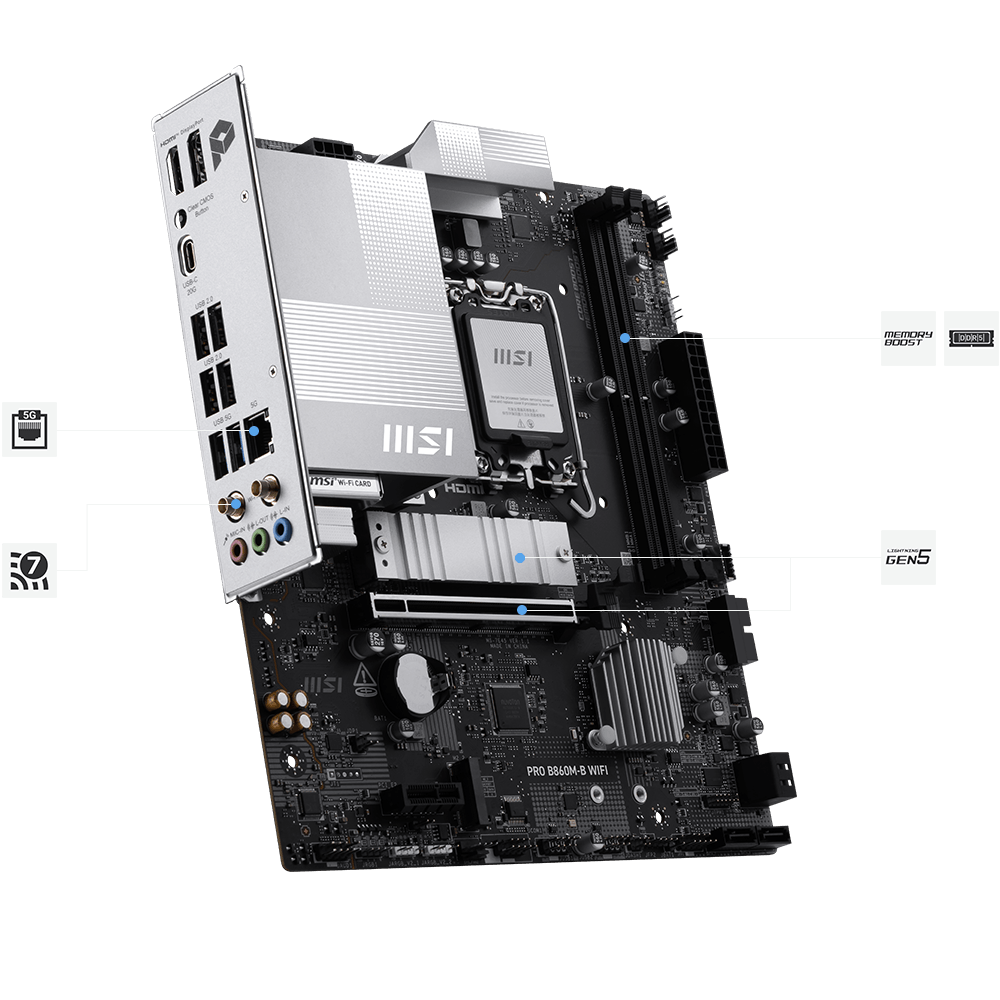

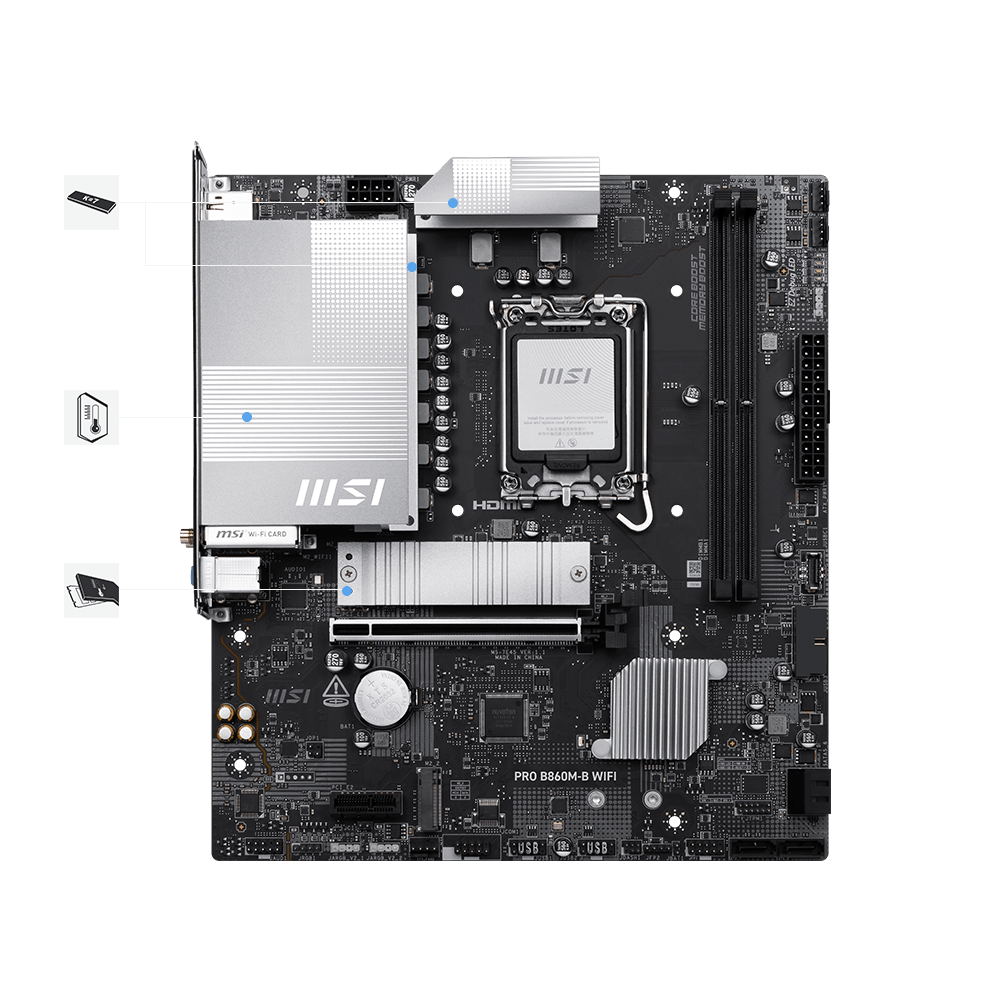

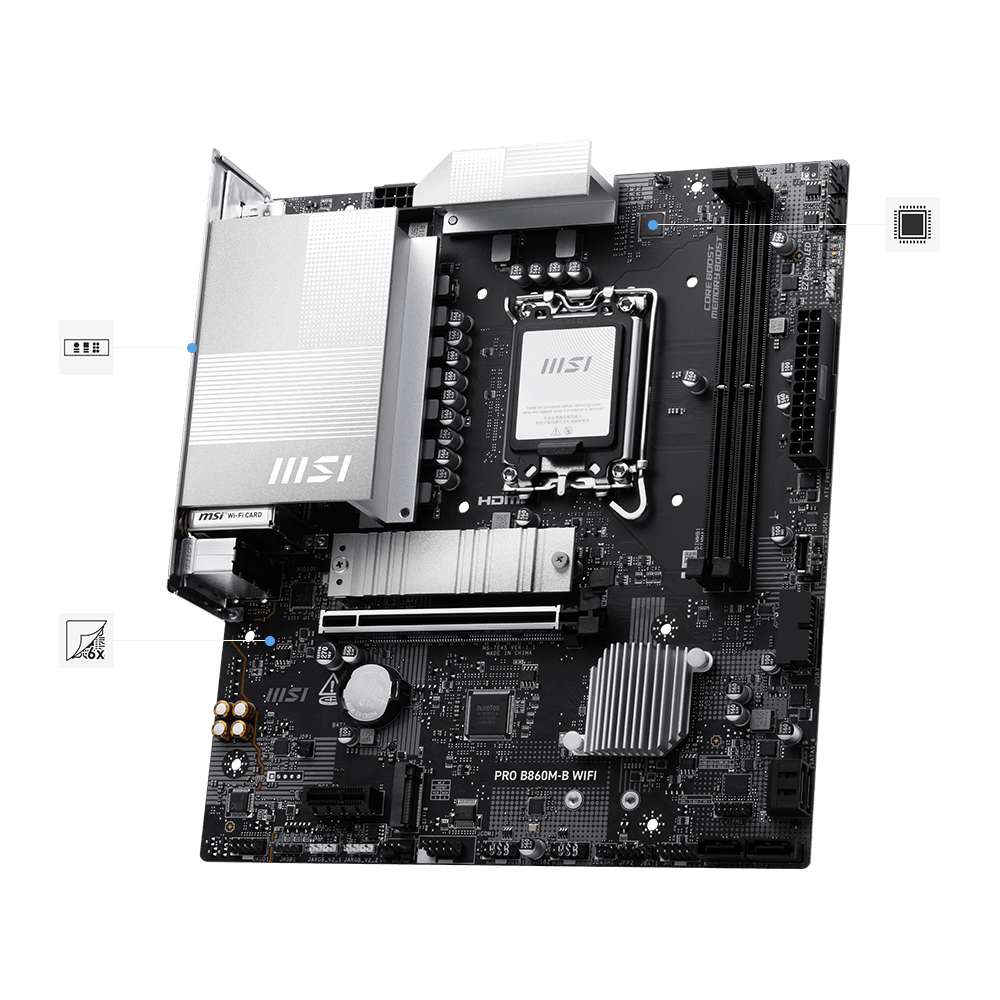

The MSI PRO B860M-B WIFI is a compact and affordable Micro-ATX motherboard for Intel Core Ultra Series 2 processors on the LGA 1851 socket. It offers a harmonious silver color scheme that pairs with both black and white builds, featuring Wi-Fi 7 (up to 2.9Gbps), Realtek 5G LAN, PCIe 5.0 x16, 3x M.2 slots with M.2 Gen5, Supplemental PCIe Power, and a 6+1+1+1 Duet Rail power system on a 6-layer server-grade PCB.

  • CPU Support: Intel Core Ultra Series 2, LGA 1851 socket
  • Power Delivery: 6+1+1+1 Duet Rail Power System with P-PAK, single 8-pin CPU connector, Core Boost, Memory Boost, 6-layer server-grade PCB
  • Storage: 3x M.2 — M.2_1: PCIe 5.0 x4 (CPU); M.2_2: PCIe 4.0 x4 (Chipset); M.2_3: PCIe 4.0 x4 / SATA (Chipset); 4x SATA 6G
  • Connectivity: Wi-Fi 7 (802.11be, 2.4/5/6GHz, 160MHz, up to 2.9Gbps), Realtek 8126 5G LAN, Bluetooth 5.4
  • USB: Rear — 1x USB 10Gbps Type-A, 1x USB 5Gbps Type-C, 2x USB 5Gbps Type-A, 2x USB 2.0; Front — 2x USB 5Gbps, 1x USB 10Gbps Type-C, 4x USB 2.0
  • Note: 2x DDR5 slots (up to 128GB) — ideal for value and compact builds
  • Audio: Realtek ALC897, 7.1-Channel HD Audio
Specification Details
Chipset Intel B860
Socket LGA 1851
Form Factor mATX (220 x 243.84 mm)
Memory 2x DDR5 UDIMM, up to 128GB, DDR5 9066+ MT/s (OC) / 6400–4800 MT/s (JEDEC)
Memory Standard XMP 3.0, CUDIMM supported, Dual Channel, single-sided DIMM latches
PCIe Slots PCI_E1: PCIe 5.0 x16 (CPU); PCI_E2: PCIe 4.0 x1 (Chipset); PCI_E3: PCIe 4.0 x4 (Chipset)
M.2 Slots 3x M.2 — M.2_1: PCIe 5.0 x4 (CPU, 2280/2260); M.2_2: PCIe 4.0 x4 (Chipset, up to 22110); M.2_3: PCIe 4.0 x4 / SATA (Chipset, 2280/2260/2242)
SATA 4x SATA 6G
LAN Realtek 8126 5G LAN
Wireless Wi-Fi 7 (802.11be, 2.4/5/6GHz, 160MHz, up to 2.9Gbps), Bluetooth 5.4
Thunderbolt Not included
Rear USB 1x USB 10Gbps Type-A, 1x USB 5Gbps Type-C, 2x USB 5Gbps Type-A, 2x USB 2.0
Front USB Headers 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C, 4x USB 2.0
Video Output 1x HDMI 2.1 (4K@60Hz), 1x DisplayPort 1.4 (4K@60Hz)
Audio Realtek ALC897, 7.1-CH HD Audio
Fan Headers 1x CPU Fan, 1x Combo Fan (Pump/SYS), 3x System Fan
RGB 1x ARGB V2 header, 1x RGB header, 4x EZ Debug LED
OS Support Windows 11 64-bit
