MSI PRO B860M-VC WIFI6E Motherboard

MSI PRO B860M-VC WIFI6E Motherboard

Compact mATX Intel B860 Motherboard — Wi-Fi 6E, 5G LAN, Thunderbolt 4, and PCIe 5.0 M.2 Gen5 for AI-PC Builds. The MSI PRO B860M-VC WIFI6E is a clean silver Micro-ATX...

Rs. 15,999.00
Rs. 15,999.00
OFF Sold out
Tax included. Shipping calculated at checkout.

Vendor:

MSI

Type:

Motherboard

Estimated deliver 5-7 days

People are viewing this right now

View full details
Let us know abour your query!
Description
Reviews

Compact mATX Intel B860 Motherboard — Wi-Fi 6E, 5G LAN, Thunderbolt 4, and PCIe 5.0 M.2 Gen5 for AI-PC Builds.

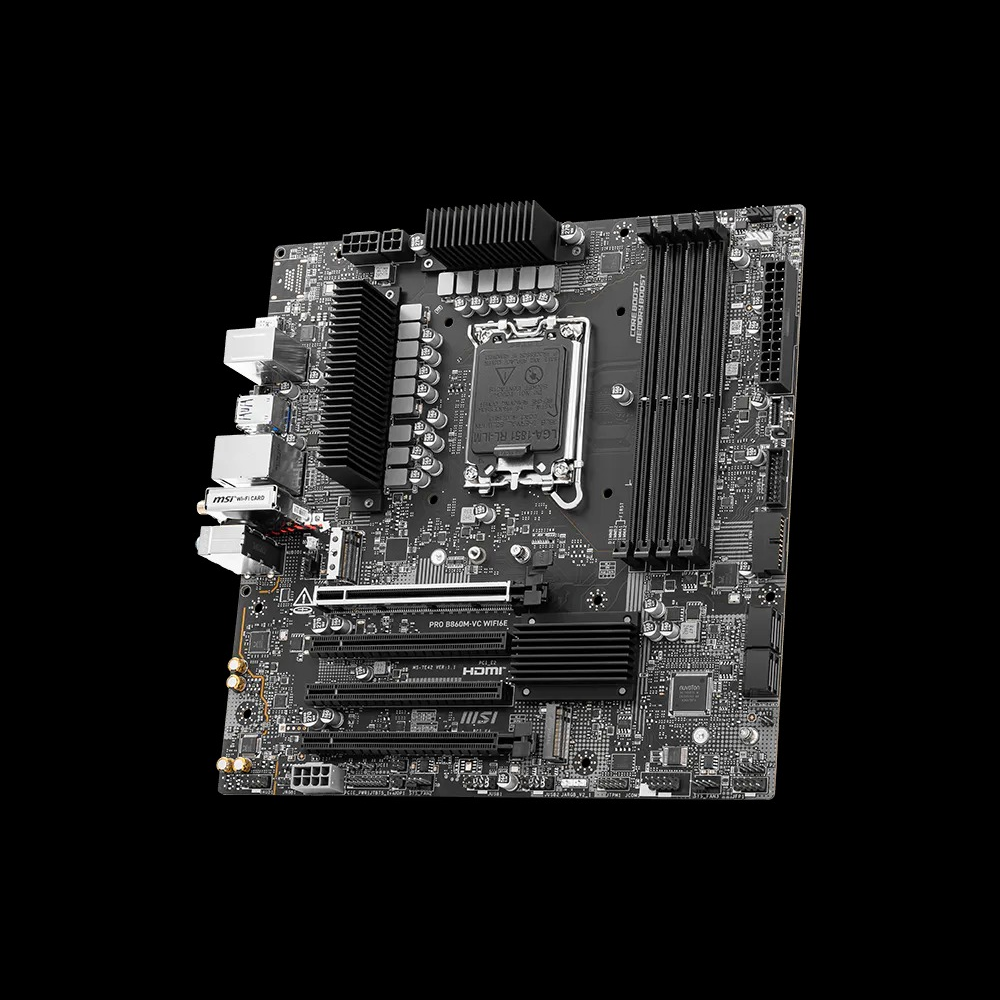

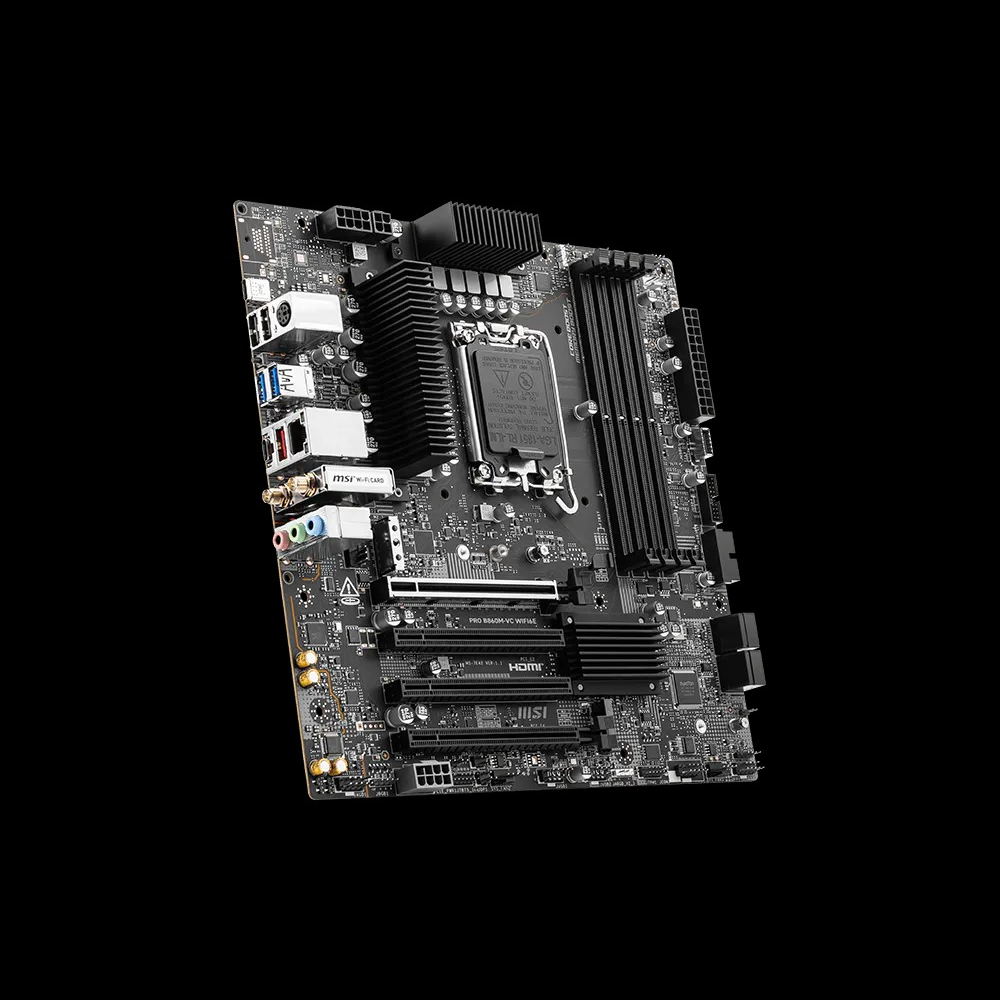

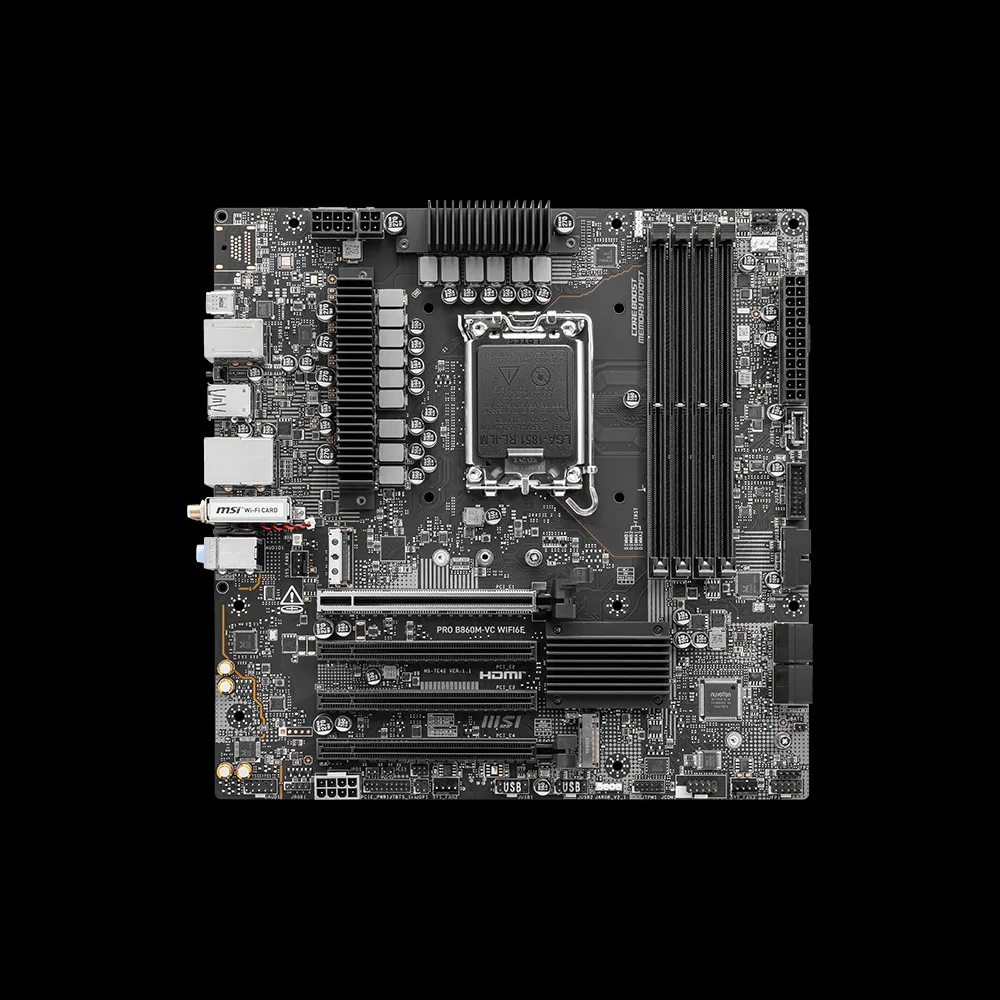

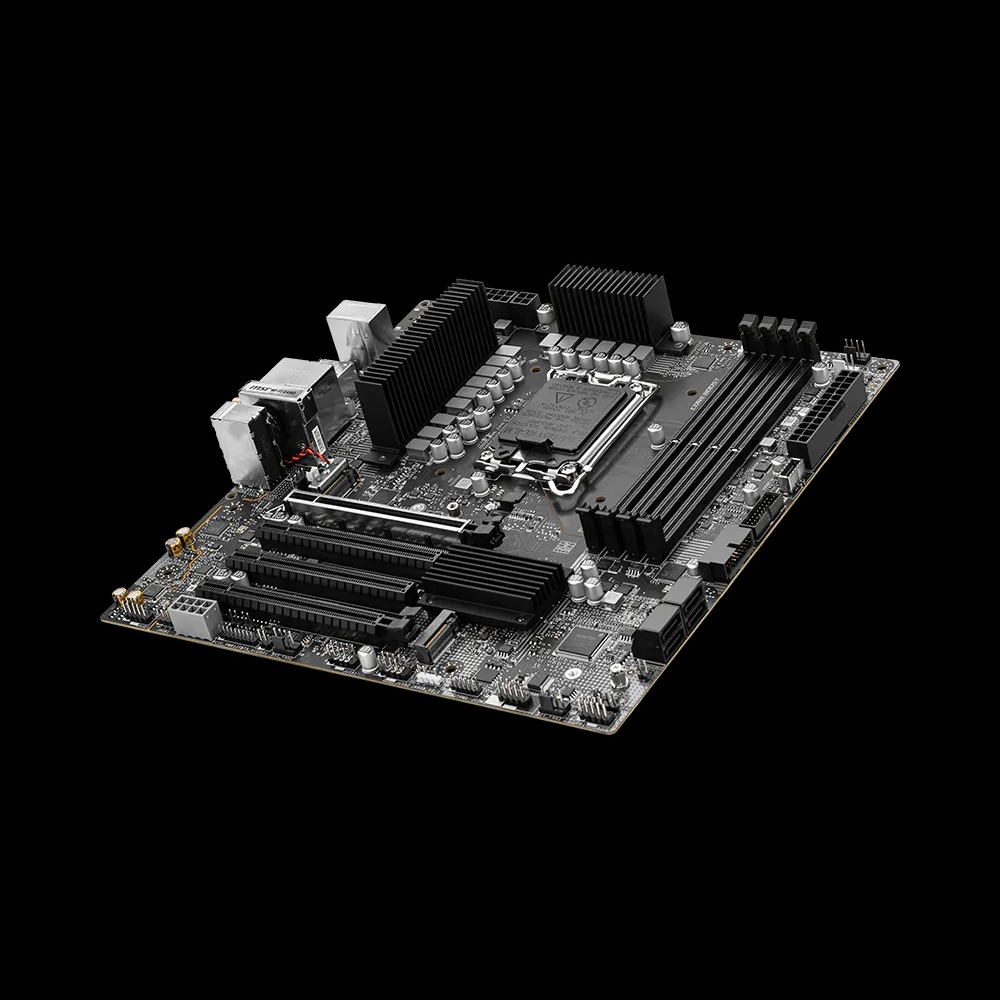

The MSI PRO B860M-VC WIFI6E is a clean silver Micro-ATX motherboard for Intel Core Ultra Series 2 processors on the LGA 1851 socket. It is the mATX variant of the PRO B860-VC WIFI6E, sharing an identical spec set — Realtek 5G LAN, Wi-Fi 6E (up to 2.4Gbps), Thunderbolt 4, PCIe 5.0 x16, 3x M.2 slots with M.2 Gen5, Supplemental PCIe Power, and a 12+1+1+1 Duet Rail power system on a 6-layer server-grade PCB — in a compact mATX footprint perfect for space-constrained AI-PC builds.

  • CPU Support: Intel Core Ultra Series 2, LGA 1851 socket
  • Power Delivery: 12+1+1+1 Duet Rail Power System with P-PAK, 8+4-pin CPU connectors, supplemental PCIe power (8-pin), 6-layer server-grade PCB
  • Storage: 3x M.2 — M.2_1: PCIe 5.0 x4 (CPU, 2280/2260/2242); M.2_2: PCIe 4.0 x4 (Chipset, 2280/2260); M.2_3: PCIe 4.0 x2 (Chipset, 2280); 4x SATA 6G
  • Connectivity: Wi-Fi 6E (802.11ax, 2.4/5/6GHz, 160MHz, up to 2.4Gbps), Realtek 8126 5G LAN, 1x Thunderbolt 4 rear, Bluetooth 5.3
  • USB: Rear — 1x USB 10Gbps Type-A, 1x USB 5Gbps Type-C, 2x USB 5Gbps Type-A, 2x USB 2.0; Front — 4x USB 5Gbps Type-A, 1x USB 10Gbps Type-C, 4x USB 2.0
  • EZ Features: EZ Debug LED, single-sided DIMM latches, Thunderbolt 5 expansion card header (JTBT5), pre-installed I/O shield
  • Audio: Realtek ALC897, 7.1-Channel HD Audio
Specification Details
Chipset Intel B860
Socket LGA 1851
Form Factor mATX (243.84 x 243.84 mm)
Memory 4x DDR5 UDIMM, up to 256GB, DDR5 8800+ MT/s (OC) / 6400–4800 MT/s (JEDEC)
Memory Standard XMP 3.0, CUDIMM supported, Dual Channel, single-sided DIMM latches
PCIe Slots PCI_E1: PCIe 5.0 x16 (CPU); PCI_E2: PCIe 4.0 x1 (Chipset); PCI_E3: PCIe 4.0 x1 (Chipset); PCI_E4: PCIe 4.0 x4 (Chipset)
M.2 Slots 3x M.2 — M.2_1: PCIe 5.0 x4 (CPU, 2280/2260/2242); M.2_2: PCIe 4.0 x4 (Chipset, 2280/2260); M.2_3: PCIe 4.0 x2 (Chipset, 2280)
SATA 4x SATA 6G
LAN Realtek 8126 5G LAN
Wireless Wi-Fi 6E (802.11a/b/g/n/ac/ax, 2.4/5/6GHz, 160MHz, up to 2.4Gbps), Bluetooth 5.3
Thunderbolt 1x Thunderbolt 4 rear (40Gbps, DP 2.1, up to 8K display); 1x TB5 expansion card header (JTBT5)

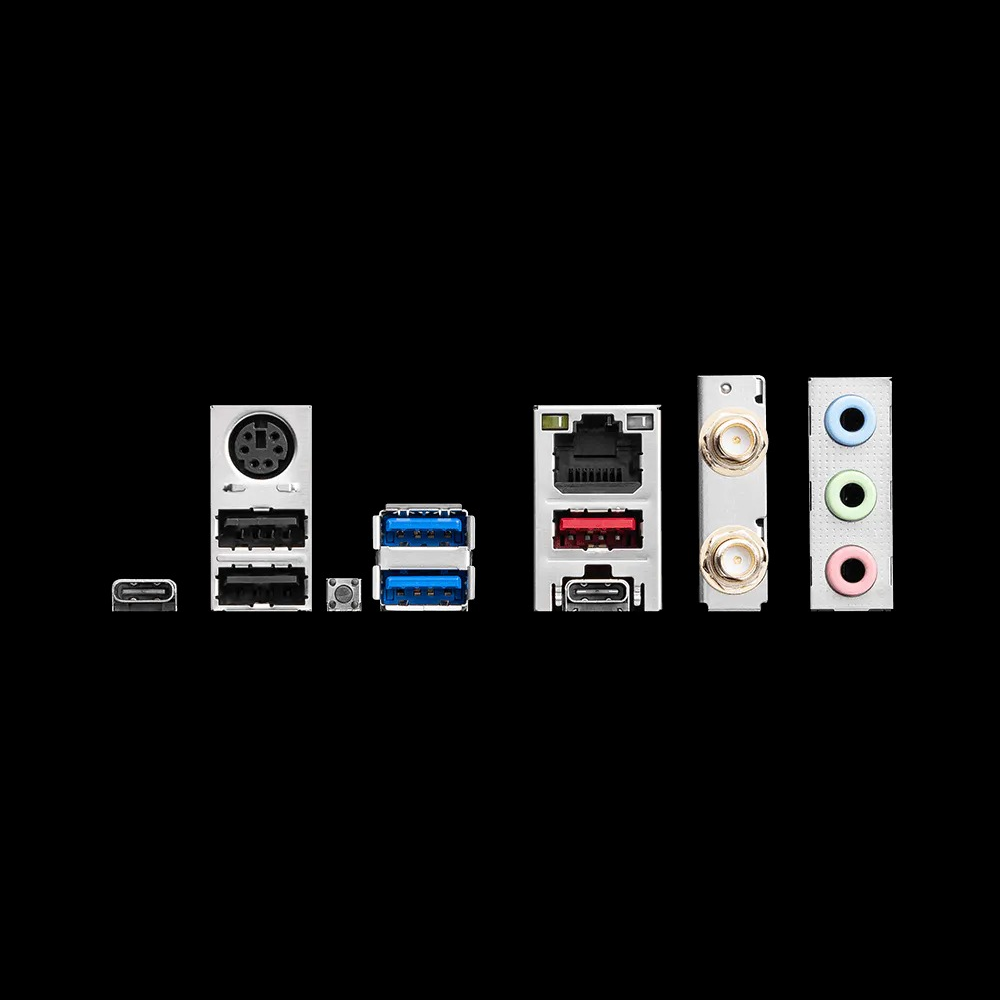

Rear USB 1x USB 10Gbps Type-A, 1x USB 5Gbps Type-C, 2x USB 5Gbps Type-A, 2x USB 2.0
Front USB Headers 4x USB 5Gbps Type-A, 1x USB 10Gbps Type-C, 4x USB 2.0
Video Output 1x HDMI 2.1, 1x DisplayPort 1.4, 1x Thunderbolt 4 Type-C (DP 2.1)
Audio Realtek ALC897, 7.1-CH HD Audio
Fan Headers 1x CPU Fan, 1x Combo Fan (Pump/SYS), 3x System Fan
RGB 2x ARGB V2 headers, 1x RGB header, 4x EZ Debug LED
OS Support Windows 11 64-bit
