Micro-ATX Mini Tower Case — Tempered Glass Side Panel, 4× 120mm Auto-RGB Fans Pre-Installed (3 Front, 1 Rear), Supports GPUs up to 300mm and CPU Coolers up to 160mm, 240mm Top Radiator Support, Front USB 5Gbps (Type-A).

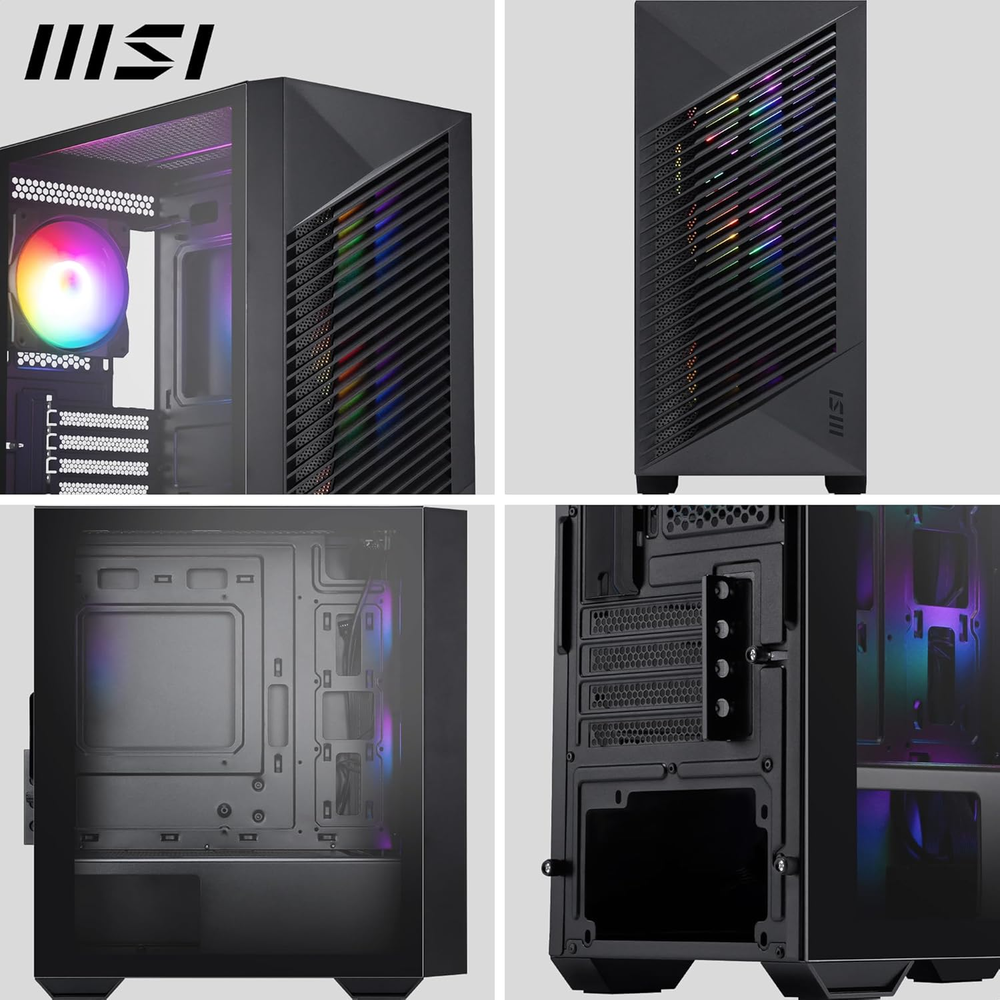

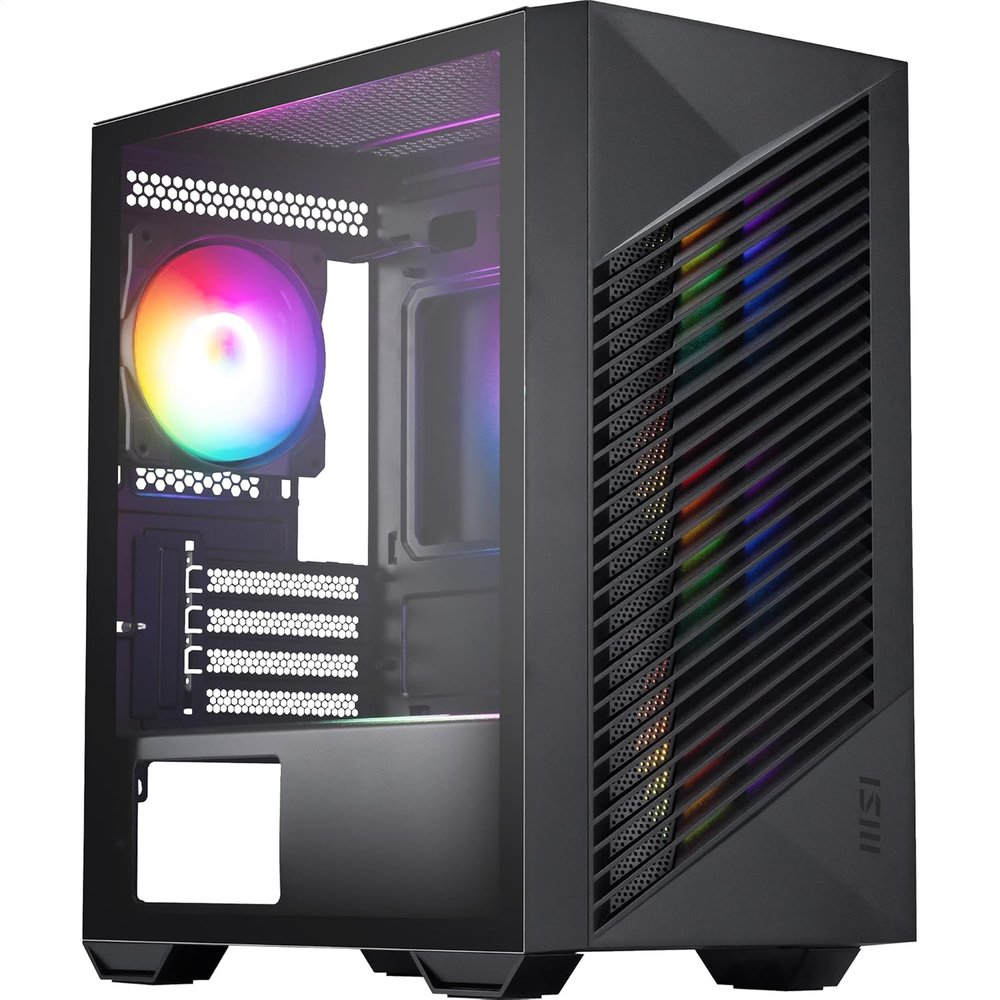

The MSI PRO FORGE M050A is a compact micro-ATX mini tower PC case designed for clean office builds and entry-level gaming systems. It comes with four pre-installed 120mm Auto-RGB fans (three front intake and one rear exhaust), a 3mm tempered glass side panel, and a built-in fan control board that supports up to six 12V Auto-RGB fans. With support for micro-ATX and mini-ITX motherboards, GPUs up to 300mm, CPU coolers up to 160mm, and a 240mm radiator on top, the PRO FORGE M050A offers a balanced mix of airflow, aesthetics, and practicality in a budget-friendly form factor.[web:149][web:153][web:155]
- Compact Mini Tower — Micro-ATX / Mini-ITX support in a 388 × 200 × 423 mm footprint, ideal for desks and small workspaces.[web:149][web:156]
- Four Pre‑Installed Auto-RGB Fans — 3 × 120mm front intake + 1 × 120mm rear exhaust with built-in rainbow Auto-RGB lighting out of the box.[web:149][web:154]

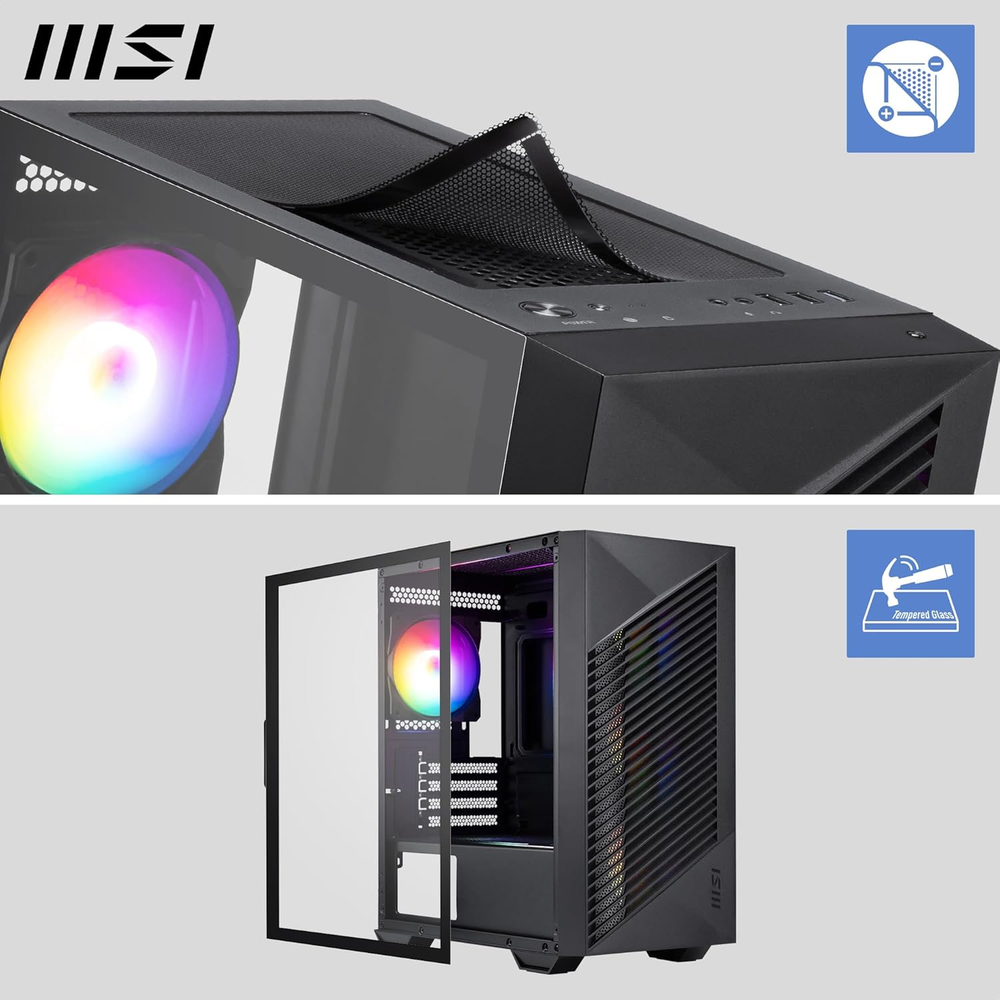

- Tempered Glass Side Panel — 3mm thick tempered glass showcases your components while providing added durability.[web:149][web:158]
- Fan Control Board (1–6) — Included hub supports up to 6 × 12V Auto-RGB fans, powered by SATA and controlled via LED On/Off button on the front panel.[web:149][web:153]
- Dust Filters — Removable dust filters on the top and bottom help keep your system clean and maintain airflow.[web:149][web:153]

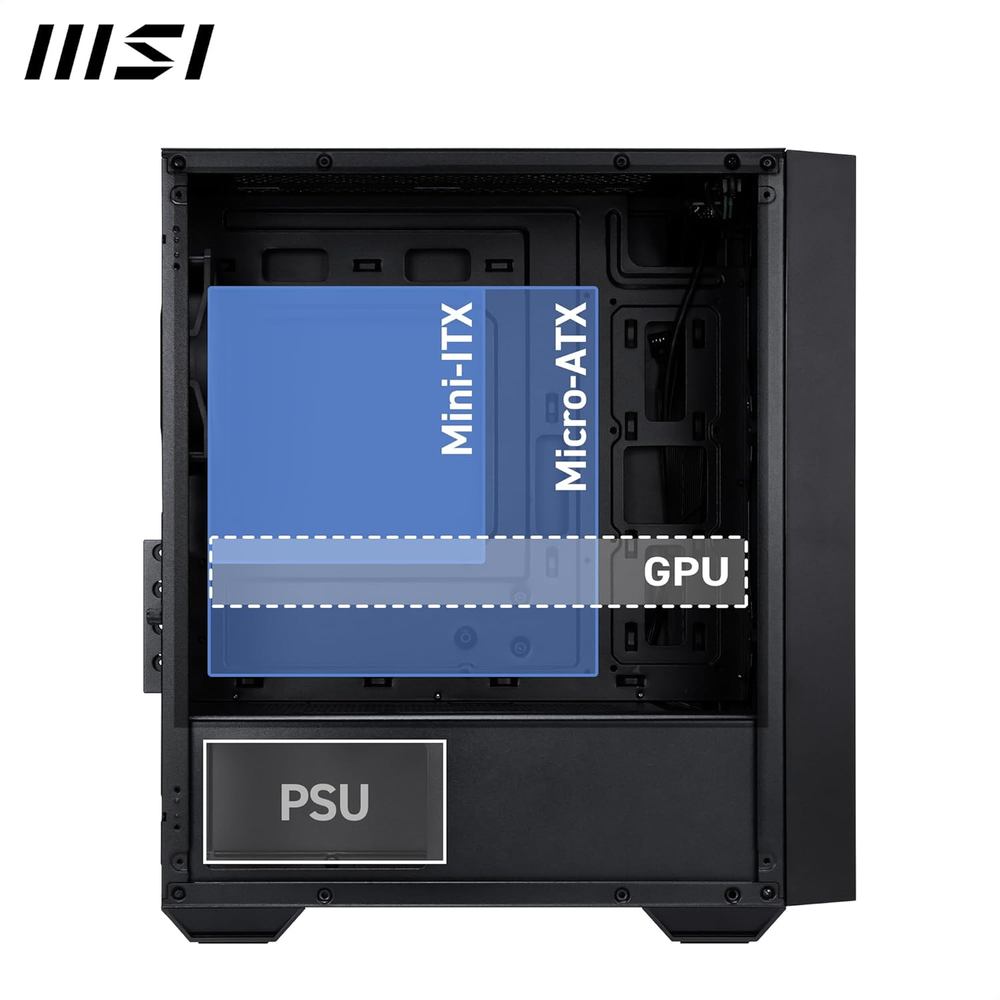

- Good Hardware Compatibility — Supports GPUs up to 300mm, CPU coolers up to 160mm, and PSUs up to 170mm (200mm without 3.5" HDD tray).[web:153][web:154][web:156]
- 240mm Radiator Support — Top mount supports 120/240mm radiators; rear supports 120mm AIO for compact water-cooled builds.[web:153][web:156]
- Easy DIY Features — Tool-free EZ-release side panel and uni-front-panel cable make building and cable management quicker and cleaner.[web:149][web:153]

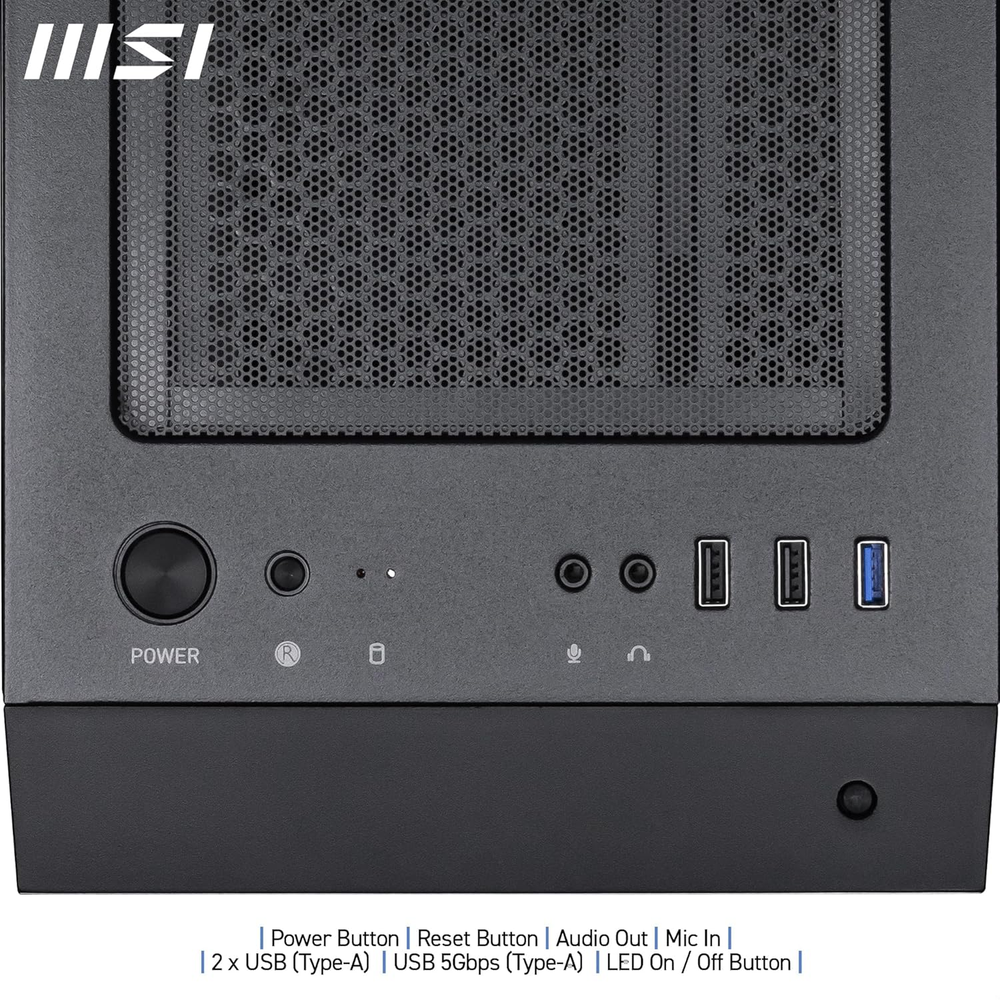

- Front I/O with USB 5Gbps — Includes USB 5Gbps (Type-A), two standard USB Type-A, audio out, mic in, LED button, and power/reset.[web:149][web:156][web:154]
- Business & Gaming Ready — Designed for modern business users and light gaming builds who want efficient airflow and clean aesthetics with minimal setup.[web:149][web:157]
| Spec | Detail |
|---|---|
| Product Name | MSI PRO FORGE M050A[web:155] |
| Case Type | Mini Tower (Micro-ATX / Mini-ITX)[web:155][web:154] |
| Motherboard Support | Micro-ATX, Mini-ITX[web:155][web:156] |
| Side Panel | 3mm Tempered Glass[web:149][web:158] |

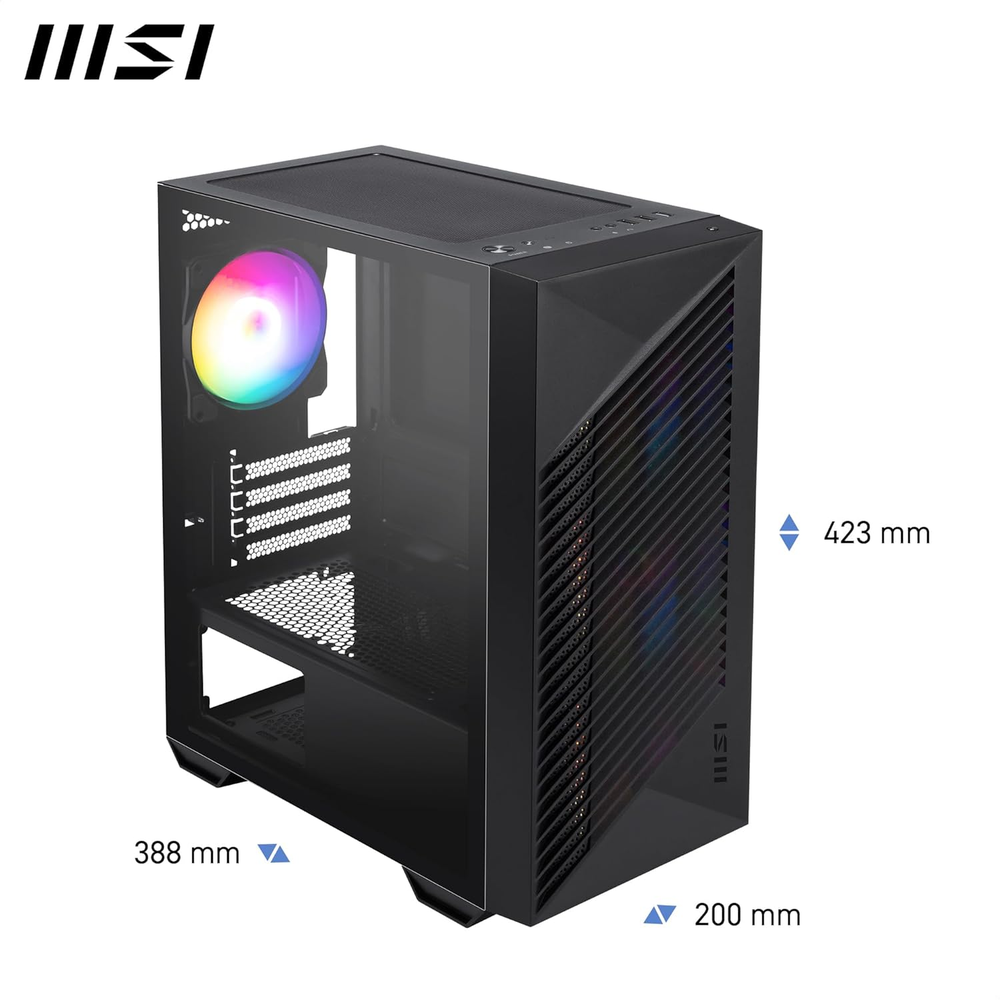

| Dimensions (D × W × H) | 388 × 200 × 423 mm[web:154][web:156] |
| Net Weight | 4.40 kg[web:154][web:155] |
| Gross Weight | 5.23 kg[web:154][web:153] |
| Expansion Slots | 4[web:154][web:155] |

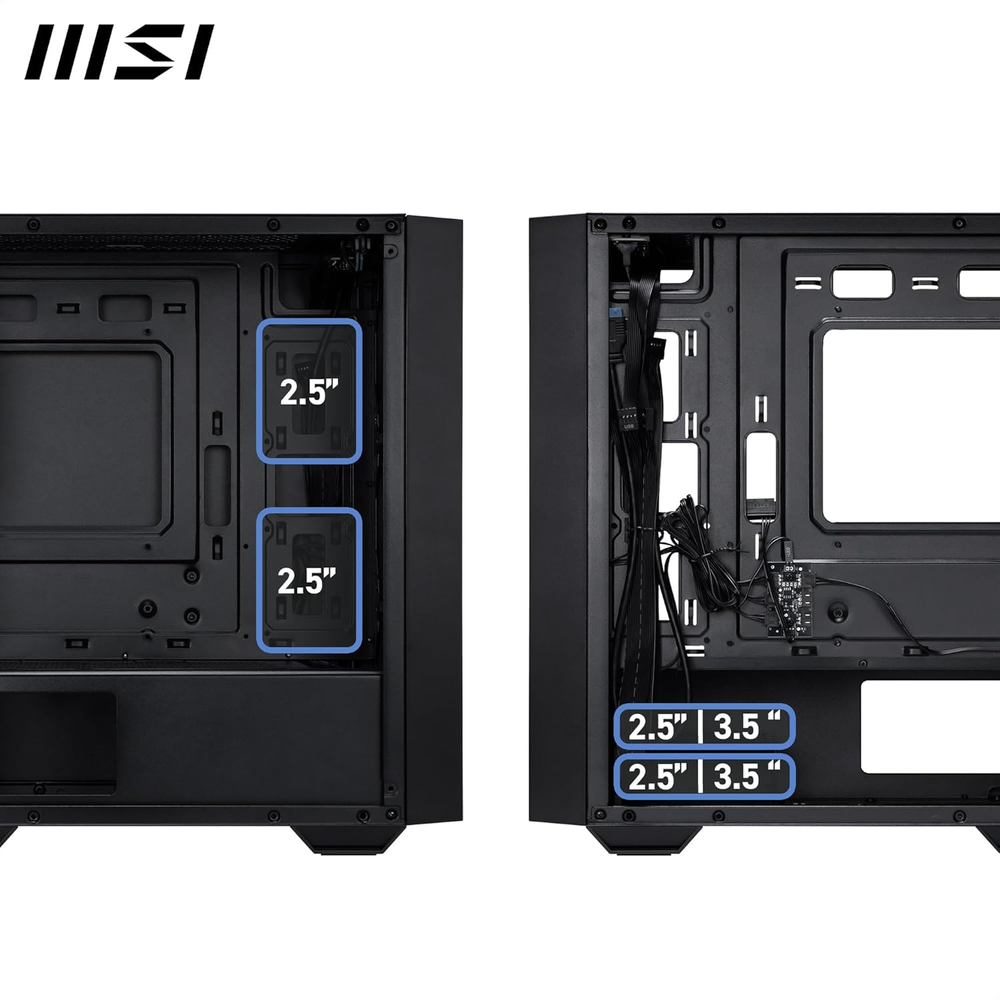

| Drive Bays | 2 × 2.5" + 2 × 2.5"/3.5" combo tray[web:154][web:153] |
| Max GPU Length | 300 mm / 11.81 inches[web:154][web:156] |
| Max CPU Cooler Height | 160 mm / 6.30 inches[web:154][web:156] |
| PSU Support | Micro-ATX PSU[web:156] |
| Max PSU Length | 170 mm (up to 200 mm without 3.5" HDD tray)[web:149][web:153][web:154] |
| Front I/O Ports | 1 × Power Button, 1 × Reset, 1 × Audio Out, 1 × Mic In, 2 × USB Type-A, 1 × USB 5Gbps (Type-A), 1 × LED On/Off Button[web:149][web:156][web:154] |
| Front Fan Support | 3 × 120mm or 2 × 140mm[web:154][web:155] |
| Top Fan Support | 2 × 120mm[web:154][web:156] |
| Rear Fan Support | 1 × 120mm[web:154][web:156] |
| Pre-installed Fans | Front: 3 × 120mm Auto-RGB, Rear: 1 × 120mm Auto-RGB[web:149][web:154][web:153] |
| Radiator Support | Top: 120/240mm, Rear: 120mm (no front radiator support)[web:156][web:153] |
| Fan Control Board | 1–6 fan hub for 12V Auto-RGB fans, SATA-powered, LED On/Off front button[web:149][web:153] |
| Dust Filters | Top & Bottom removable dust filters[web:149][web:153] |
| Lighting | Auto RGB fans (front ×3, rear ×1) with front LED On/Off control[web:149][web:151] |
| Warranty | 2 Years MSI India (cabinet)[web:153] |
