Motherboard // MSI

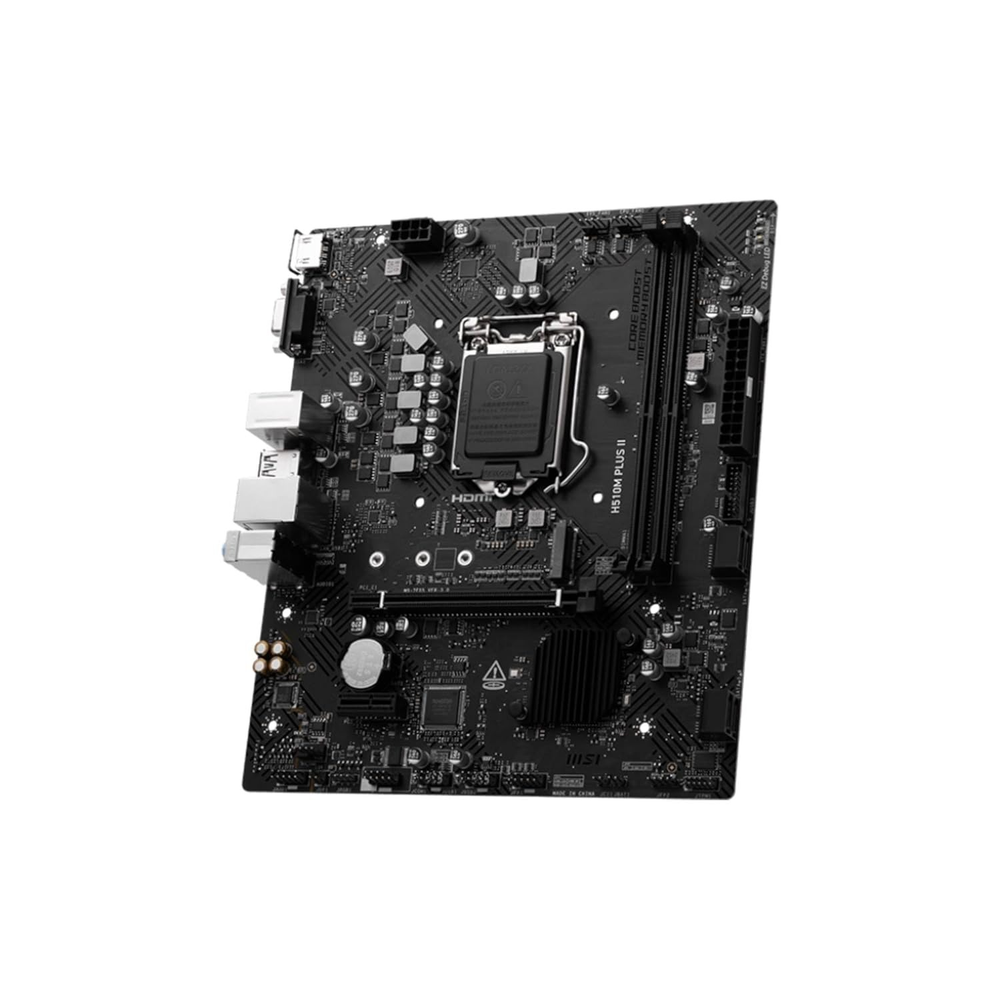

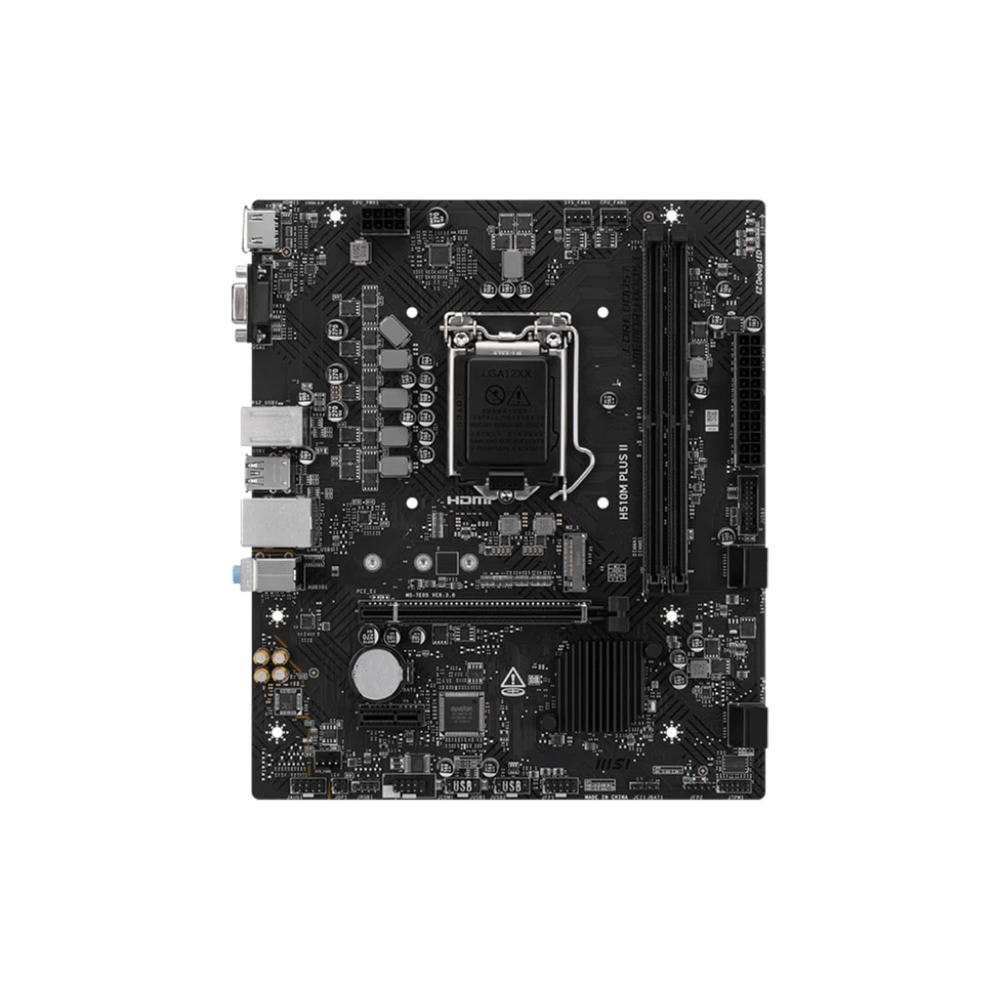

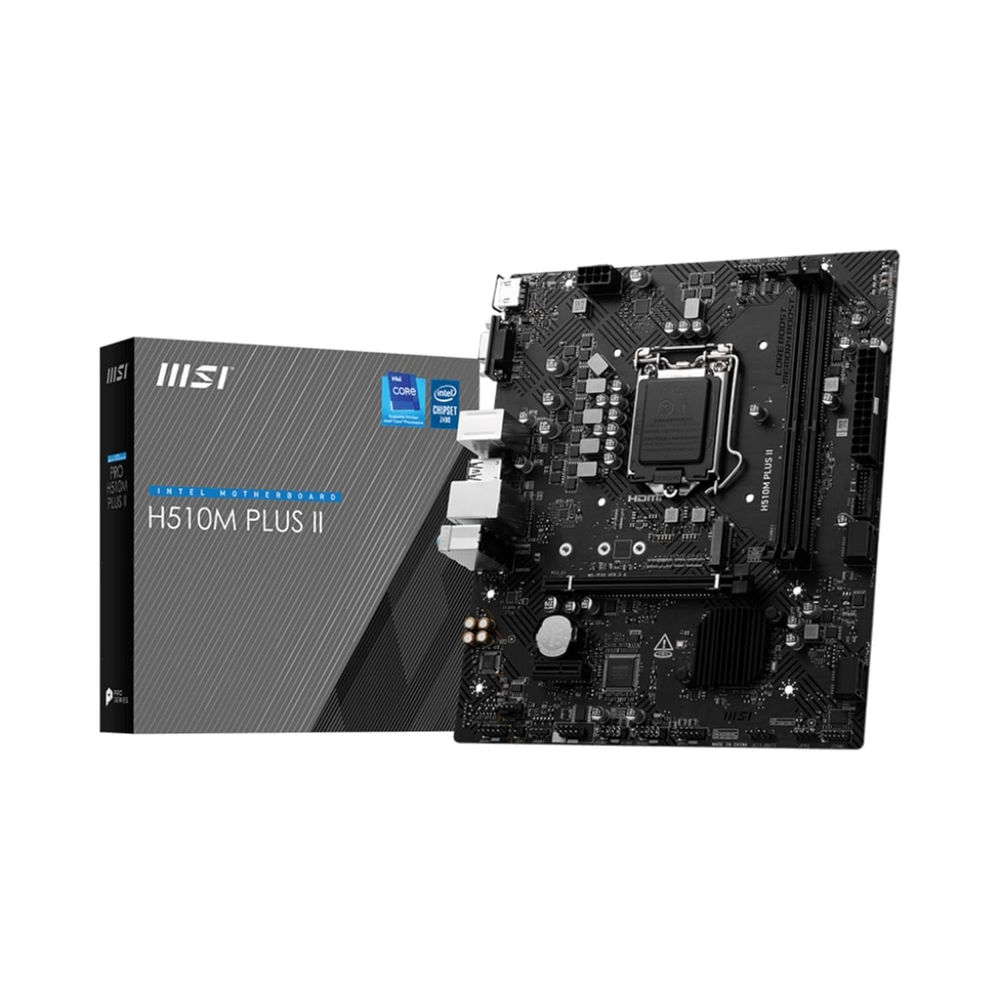

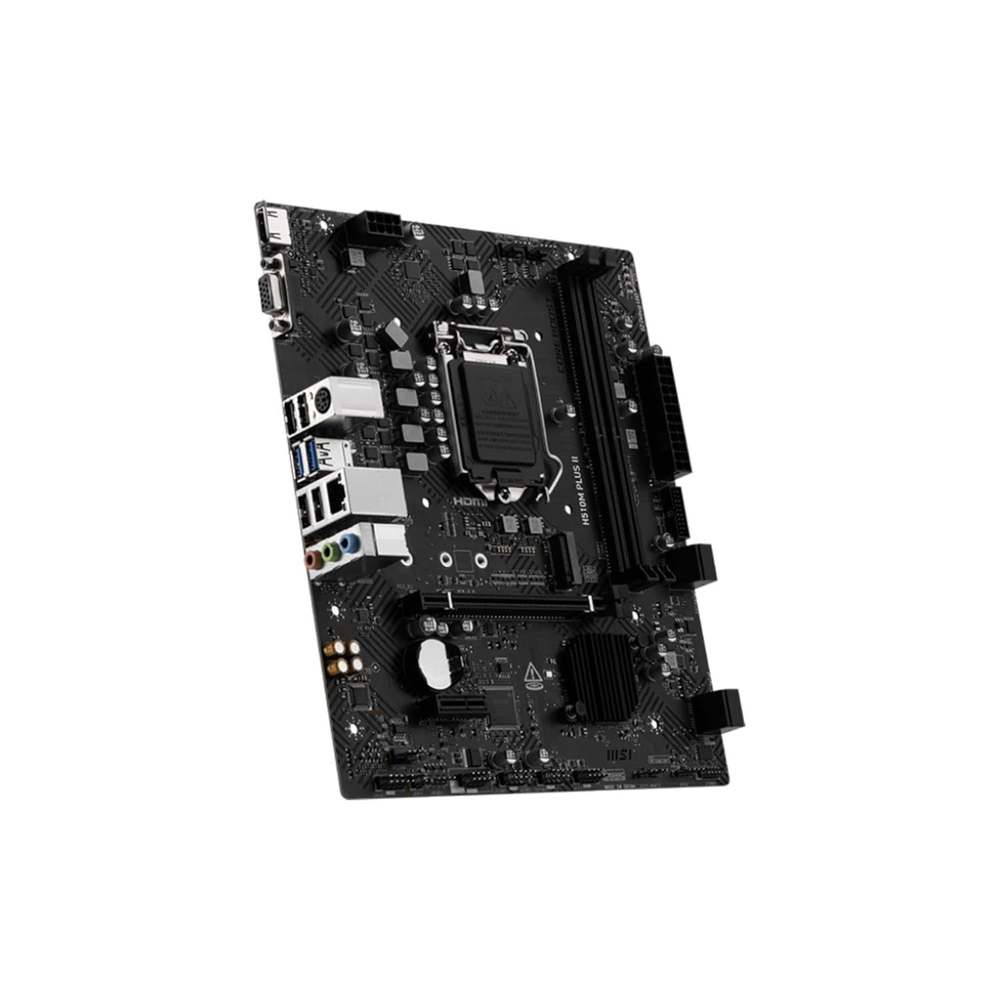

MSI PRO H510M PLUS II Motherboard
Technical specification
Intel H510 mATX Motherboard for LGA 1200 — DDR4 up to 2933MHz, No Wi-Fi, 1G LAN, PCIe 3.0 x4 M.2 (Chipset), PCIe 3.0 x16, Steel Armor PCIe, HDMI 1.4 + VGA, COM Port, RGB Header, USB 5Gbps, 10th / 11th Gen Intel Core Ready.
The MSI PRO H510M PLUS II is a clean, affordable LGA 1200 mATX for Intel 10th and 11th Gen builds — bringing Core Boost VRM, Steel Armor PCIe slot, M.2 Gen3, HDMI + VGA, Audio Boost 7.1-CH, USB 5Gbps, RGB header, COM port, and TPM 2.0 in a compact, reliable package. Ideal for upgrading or building a budget home, office, or light gaming system on Intel's proven LGA 1200 platform.
- CPU Support: Intel Core 11th / 10th Gen, Pentium Gold, Celeron — LGA 1200 socket
- Power Delivery: Core Boost, Memory Boost, 1x 8-pin CPU connector
- Storage: M2_1: PCIe 3.0 x4 + SATA (Chipset, 2242/2260/2280); 4x SATA 6G
- Connectivity: No Wi-Fi; Realtek 8111H 1G LAN
- USB: Rear — 4x USB 2.0, 2x USB 5Gbps Gen 1 Type-A; Front — 4x USB 2.0, 2x USB 5Gbps Gen 1 Type-A
- PCIe: PCI_E1: PCIe 3.0 x16 (CPU, Steel Armor); PCI_E2: PCIe 3.0 x1 (Chipset)
- Audio: Realtek ALC897, 7.1-CH, Audio Boost, up to 192kHz
| Specification | Details |
|---|---|
| Chipset | Intel H510 |
| Socket | LGA 1200 |
| Form Factor | mATX (202 x 236 mm) |
| Memory | 2x DDR4 UDIMM, up to 64GB; DDR4 2933 / 2666 / 2400 / 2133 MHz (JEDEC); Intel XMP; Dual Channel, Non-ECC Unbuffered |
| Memory Standard | Intel XMP, Non-ECC Unbuffered DDR4, Dual Channel |
| PCIe Slots | PCI_E1: PCIe 3.0 x16 (CPU, Steel Armor); PCI_E2: PCIe 3.0 x1 (Chipset) |
| M.2 Slots | M2_1: PCIe 3.0 x4 + SATA (Chipset, 2242/2260/2280) — 1 slot only |
| SATA | 4x SATA 6G (no RAID on H510) |
| LAN | Realtek 8111H 1G LAN (no Wi-Fi) |
| Wireless | None |

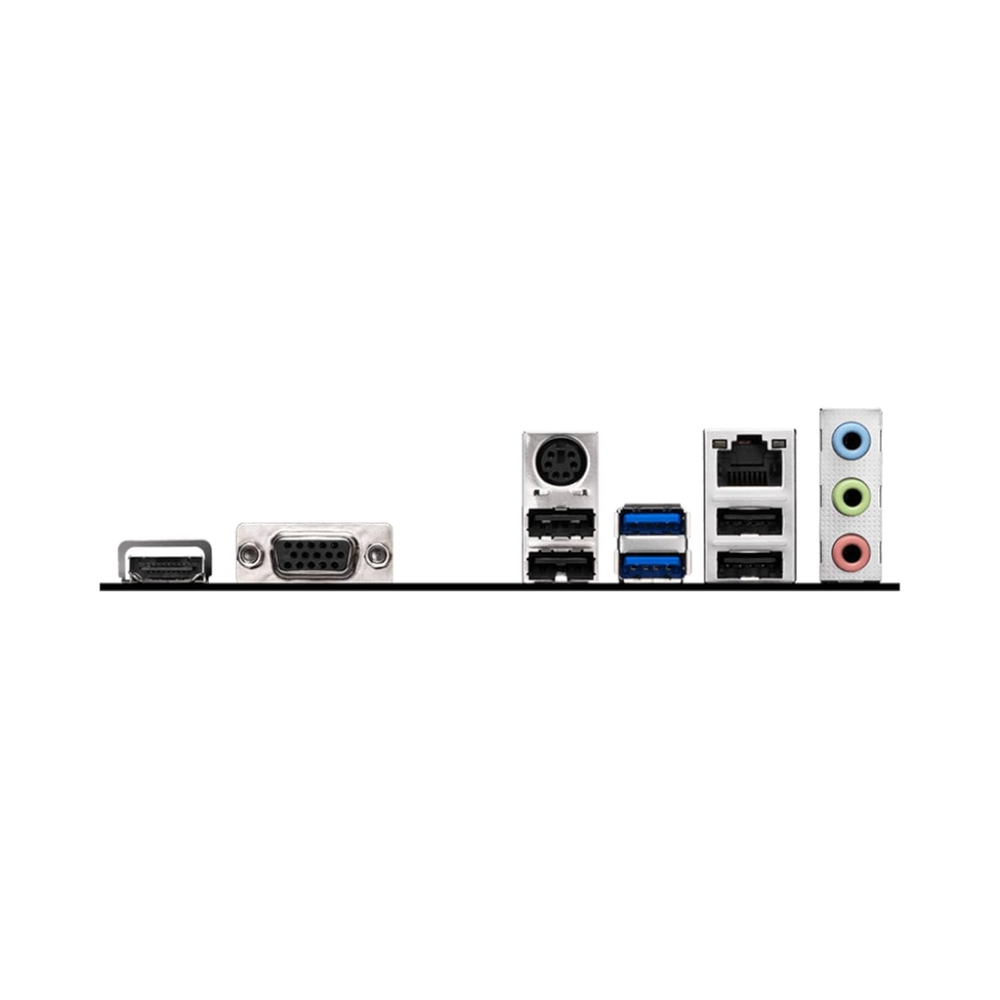

| Rear USB | 4x USB 2.0, 2x USB 5Gbps Gen 1 Type-A |
| Front USB Headers | 4x USB 2.0, 2x USB 5Gbps Gen 1 Type-A |
| Video Output | 1x HDMI 1.4 (4K@30Hz) + 1x VGA (2048x1536@50Hz / 1920x1200@60Hz) — iGPU only |
| Audio | Realtek ALC897, Audio Boost, 7.1-CH, up to 192kHz |
| Fan Headers | 1x CPU Fan, 2x System Fan |
| RGB | 1x RGB header (JRGB), 4x EZ Debug LED |
| Extras | Steel Armor PCIe, COM port (JCOM), Click BIOS 5, TPM 2.0 header, Chassis Intrusion header, PS/2 Keyboard/Mouse, I/O shield included |
| OS Support | Windows 11 64-bit, Windows 10 64-bit |
