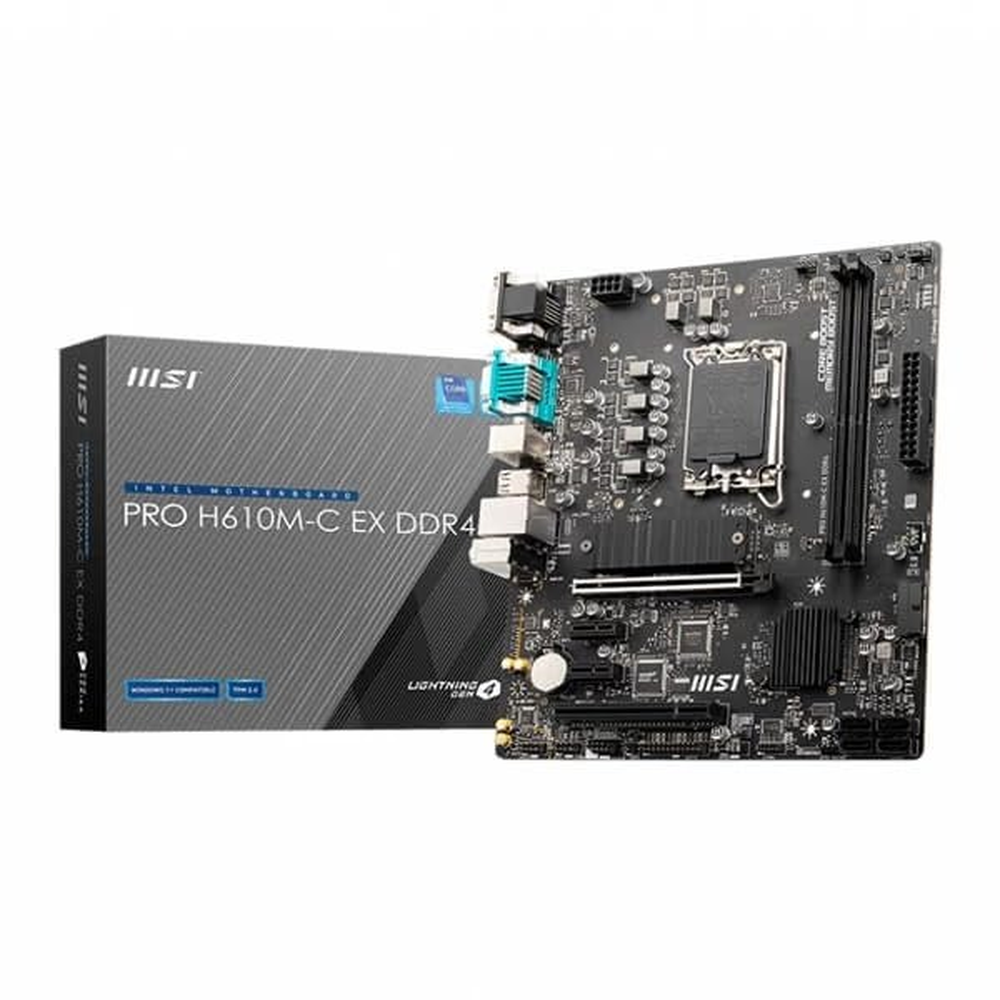

MSI PRO H610M-C EX DDR4 Motherboard
Technical specification
Intel H610 mATX Motherboard for LGA 1700 — DDR4 up to 3200MHz, No Wi-Fi, 1G LAN, PCIe 3.0 x4 M.2 (Chipset), PCIe 4.0 x16, Steel Armor PCIe, HDMI 2.1 + DisplayPort + VGA + DVI-D, COM Port, PCI Legacy Slot, USB 5Gbps, 12th / 13th / 14th Gen Intel Core Ready.
The MSI PRO H610M-C EX DDR4 is the ultimate H610 business mATX for DDR4 environments — equipped with every industrial and professional interface needed for POS, automation, and enterprise use. It features Core Boost VRM, Intel H610 chipset, PCIe 4.0 x16 with Steel Armor, PCIe 3.0 x4 M.2, four video outputs (HDMI 2.1 + DisplayPort 1.4 + VGA + DVI-D), COM port, PCI legacy slot, Realtek 1G LAN, Audio Boost 7.1-CH, USB 5Gbps — the most feature-complete H610 DDR4 board for professional and commercial environments.
- CPU Support: Intel Core 14th / 13th / 12th Gen, Pentium Gold, Celeron — LGA 1700 socket
- Power Delivery: Core Boost, Memory Boost, 1x 8-pin CPU connector
- Storage: M2_1: PCIe 3.0 x4 + SATA (Chipset, 2242/2260/2280); 4x SATA 6G — Note: SATA5 disabled when M.2 SATA SSD installed
- Connectivity: No Wi-Fi; Realtek RTL8111H 1G LAN
- USB: Rear — 2x USB 2.0, 2x USB 5Gbps Gen 1 Type-A; Front — 4x USB 2.0, 2x USB 5Gbps Gen 1 Type-A
- PCIe: PCI_E1: PCIe 4.0 x16 (CPU, Steel Armor); 2x PCIe 3.0 x1 (Chipset); 1x PCI legacy slot (Chipset)
- Audio: Realtek ALC897, 7.1-CH, Audio Boost, up to 192kHz
| Specification | Details |
|---|---|
| Chipset | Intel H610 |
| Socket | LGA 1700 |
| Form Factor | mATX (244 x 220 mm) |
| Memory | 2x DDR4 UDIMM, up to 64GB; DDR4 3200(MAX) / 2666 / 2133 MHz (JEDEC); Dual Channel, Non-ECC Unbuffered |
| Memory Standard | Non-ECC Unbuffered DDR4, Dual Channel |
| PCIe Slots | PCI_E1: PCIe 4.0 x16 (CPU, Steel Armor); 2x PCIe 3.0 x1 (Chipset); 1x PCI legacy slot (Chipset) |
| M.2 Slots | M2_1: PCIe 3.0 x4 + SATA (Chipset, 2242/2260/2280) — 1 slot only; No PCIe 4.0 M.2 |
| SATA | 4x SATA 6G (no RAID on H610); SATA5 disabled when M.2 SATA used |
| LAN | Realtek RTL8111H 1G LAN (no Wi-Fi) |
| Wireless | None |
| Rear USB | 2x USB 2.0, 2x USB 5Gbps Gen 1 Type-A |
| Front USB Headers | 4x USB 2.0, 2x USB 5Gbps Gen 1 Type-A |

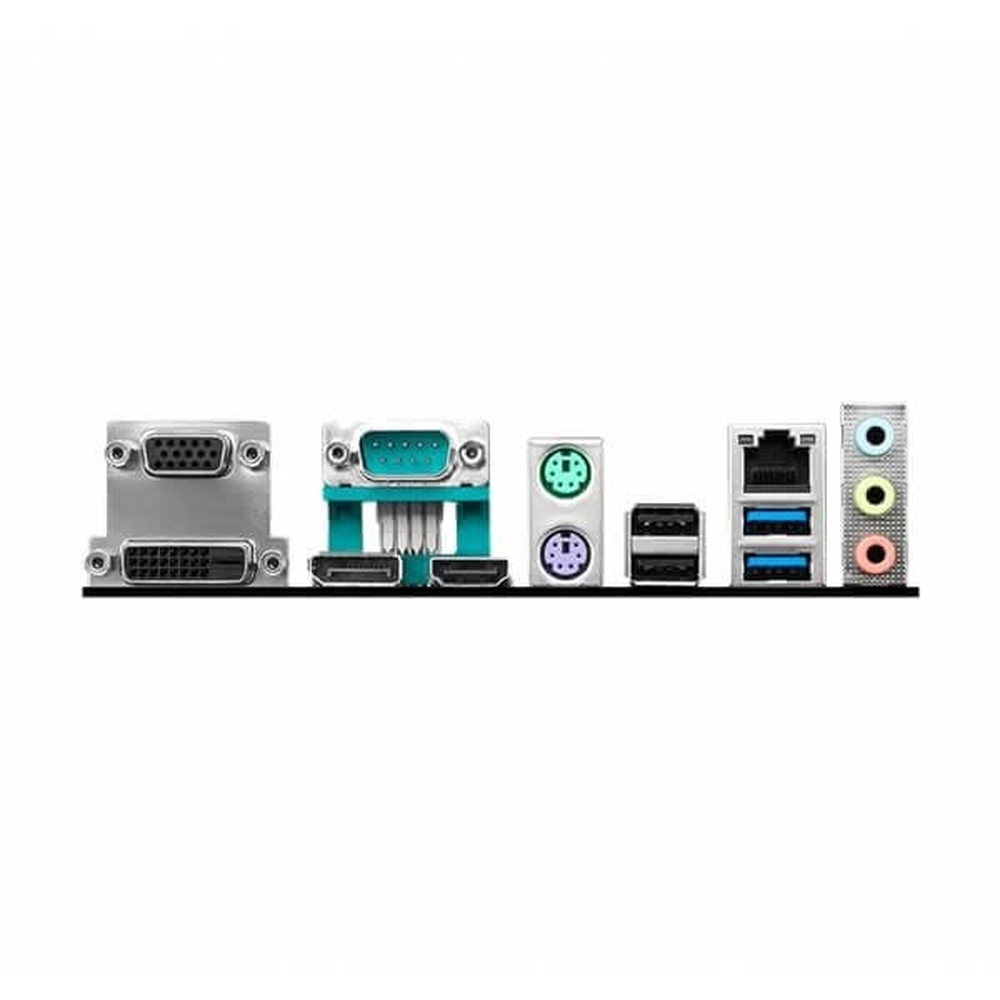

| Video Output | 1x HDMI 2.1 (4K@60Hz) + 1x DisplayPort 1.4 (4K@60Hz) + 1x VGA (1920x1200@60Hz) + 1x DVI-D (1920x1200@60Hz) — iGPU only |
| Audio | Realtek ALC897, Audio Boost, 7.1-CH, up to 192kHz |
| Fan Headers | 1x CPU Fan, 1x System Fan |
| RGB | None |
| Extras | Steel Armor PCIe, COM port (JCOM), Parallel port (LPT), PCI legacy slot, Security BIOS, Click BIOS 5, TPM 2.0 header, Chassis Intrusion header, I/O shield included, NUVOTON NCT6687 Controller |
| OS Support | Windows 10 64-bit |
