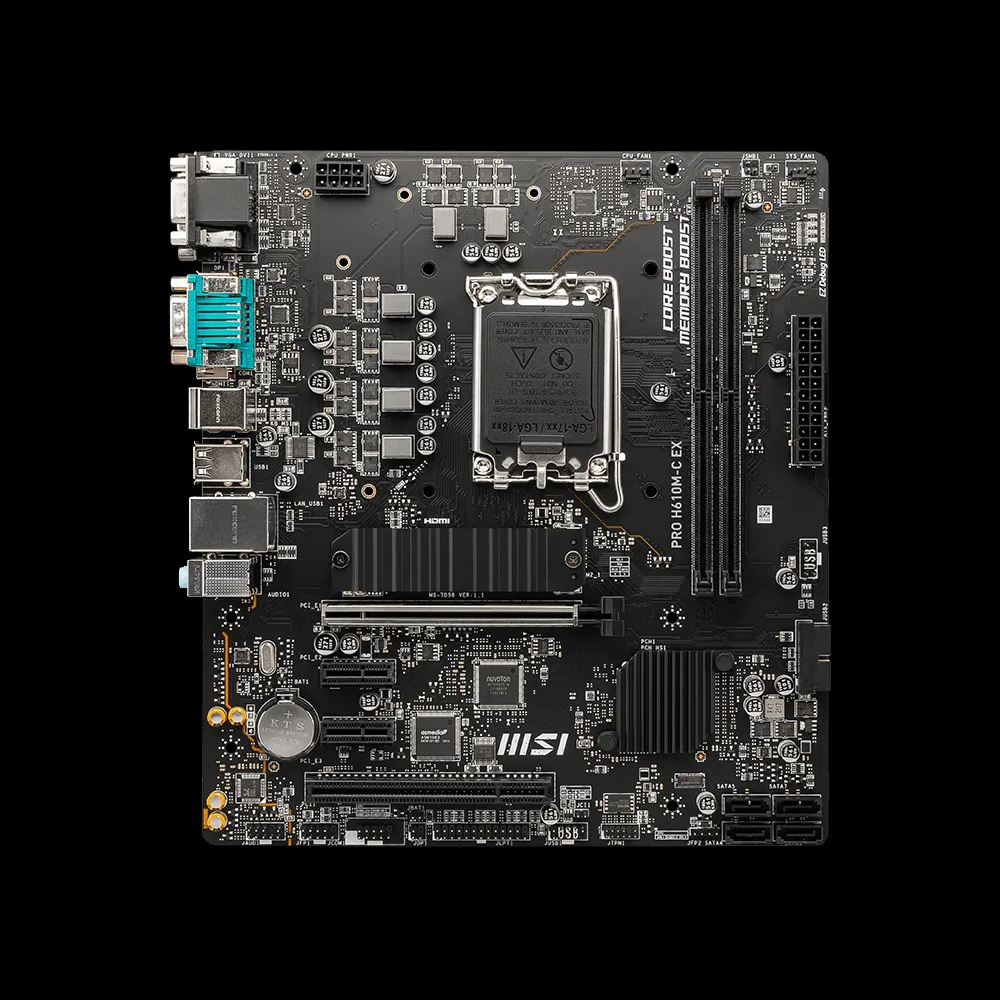

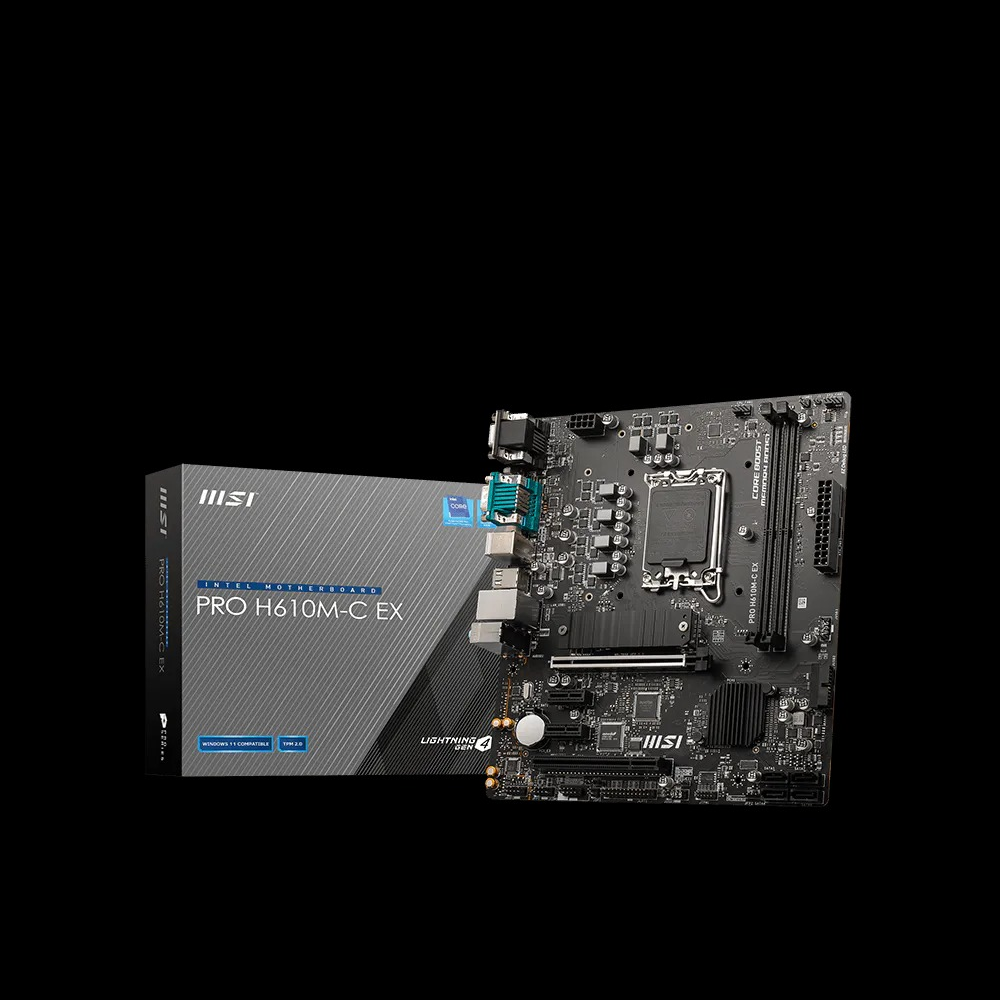

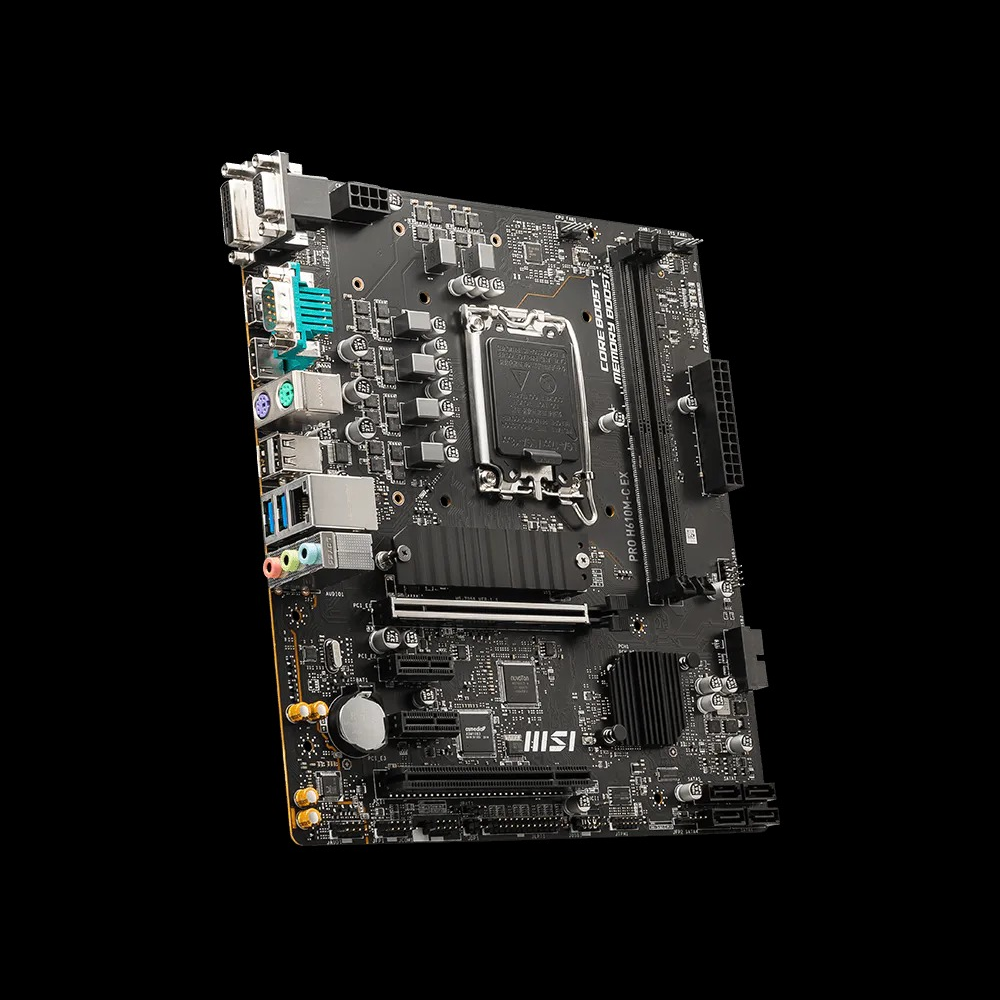

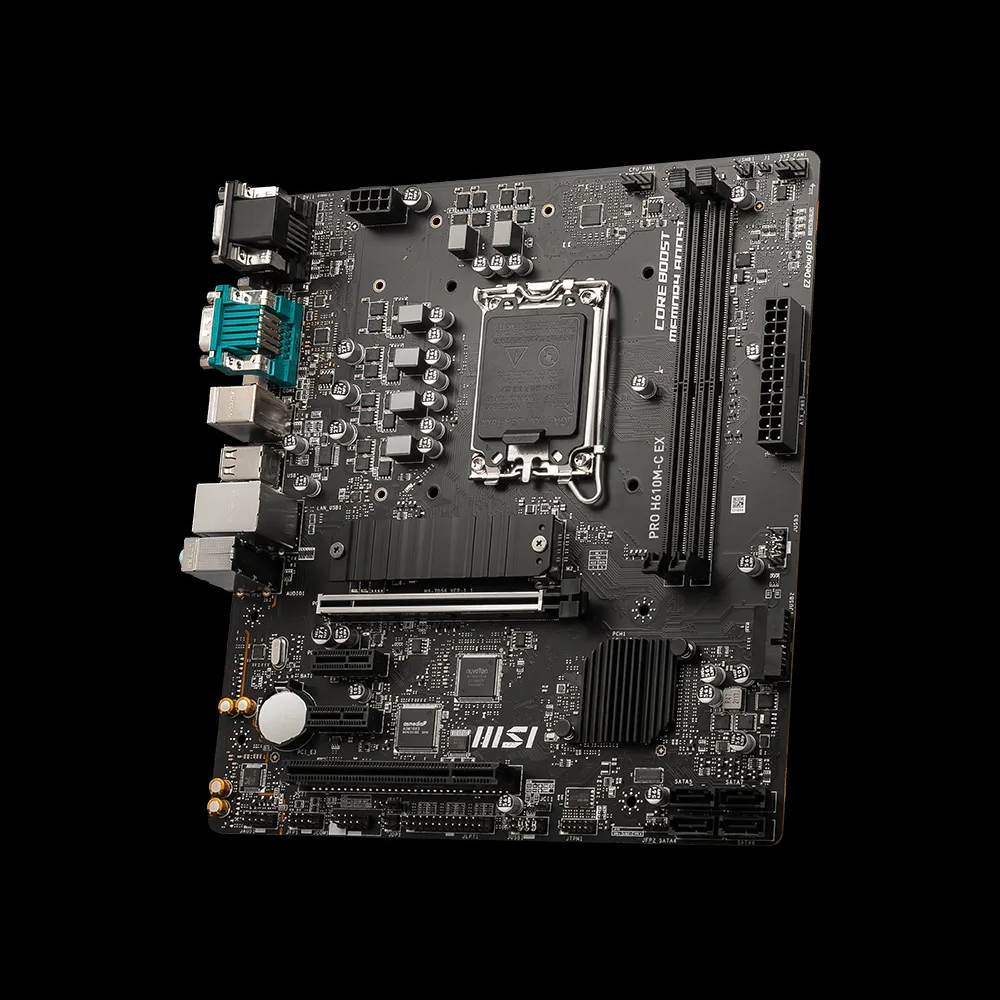

MSI PRO H610M-C EX Motherboard
MSI PRO H610M-C EX Motherboard
Intel H610 mATX Motherboard for LGA 1700 — DDR5 up to 5600MHz, No Wi-Fi, Intel 1G LAN, PCIe 3.0 x4 M.2, M.2 Shield Frozr, Steel Armor PCIe, PCI + PCIe...
Vendor:
MSIType:
MotherboardCouldn't load pickup availability
Estimated deliver 5-7 days
People are viewing this right now
Description
Intel H610 mATX Motherboard for LGA 1700 — DDR5 up to 5600MHz, No Wi-Fi, Intel 1G LAN, PCIe 3.0 x4 M.2, M.2 Shield Frozr, Steel Armor PCIe, PCI + PCIe 3.0 x1 slots, HDMI 2.1 + DisplayPort + VGA, COM Port, USB 5Gbps, 12th / 13th / 14th Gen Intel Core Ready.
The MSI PRO H610M-C EX is a business-first H610 mATX — designed for professional, commercial, and industrial deployments that need COM port support, PCI legacy slot, and security BIOS features. It packs Core Boost VRM, Memory Boost DDR5 up to 5600MHz, M.2 Shield Frozr, PCIe 4.0 x16 Steel Armor, Realtek 1G LAN, triple video output (HDMI 2.1 + DisplayPort + VGA), Audio Boost 7.1-CH, USB 5Gbps, COM port, and TPM 2.0 — the most complete H610 business board for enterprise, POS, and automation environments.
- CPU Support: Intel Core 14th / 13th / 12th Gen, Pentium Gold, Celeron — LGA 1700 socket
- Power Delivery: Core Boost, Memory Boost, 1x 8-pin CPU connector
- Storage: M2_1: PCIe 3.0 x4 (Chipset, 2280/2260/2242) — M.2 Shield Frozr; 4x SATA 6G
- Connectivity: No Wi-Fi; Realtek RTL8111H 1G LAN
- USB: Rear — 2x USB 2.0, 2x USB 5Gbps Gen 1 Type-A; Front — 4x USB 2.0, 2x USB 5Gbps Gen 1 Type-A
- PCIe: PCI_E1: PCIe 4.0 x16 (CPU, Steel Armor); 2x PCIe 3.0 x1 (Chipset); 1x PCI slot (Chipset)
- Audio: Realtek ALC897, 7.1-CH, Audio Boost, up to 192kHz
| Specification | Details |
|---|---|
| Chipset | Intel H610 |
| Socket | LGA 1700 |
| Form Factor | mATX (244 x 221 mm) |
| Memory | 2x DDR5 UDIMM, up to 96GB; DDR5 5600(MAX) / 4800(JEDEC) MHz; Dual Channel, Non-ECC Unbuffered |
| Memory Standard | Non-ECC Unbuffered DDR5, Dual Channel |
| PCIe Slots | PCI_E1: PCIe 4.0 x16 (CPU, Steel Armor); 2x PCIe 3.0 x1 (Chipset); 1x PCI slot (Chipset, legacy) |
| M.2 Slots | M2_1: PCIe 3.0 x4 (Chipset, 2280/2260/2242) — M.2 Shield Frozr; 1 slot only; No PCIe 4.0 M.2 |
| SATA | 4x SATA 6G (no RAID on H610) |
| LAN | Realtek RTL8111H 1G LAN (no Wi-Fi) |
| Wireless | None |

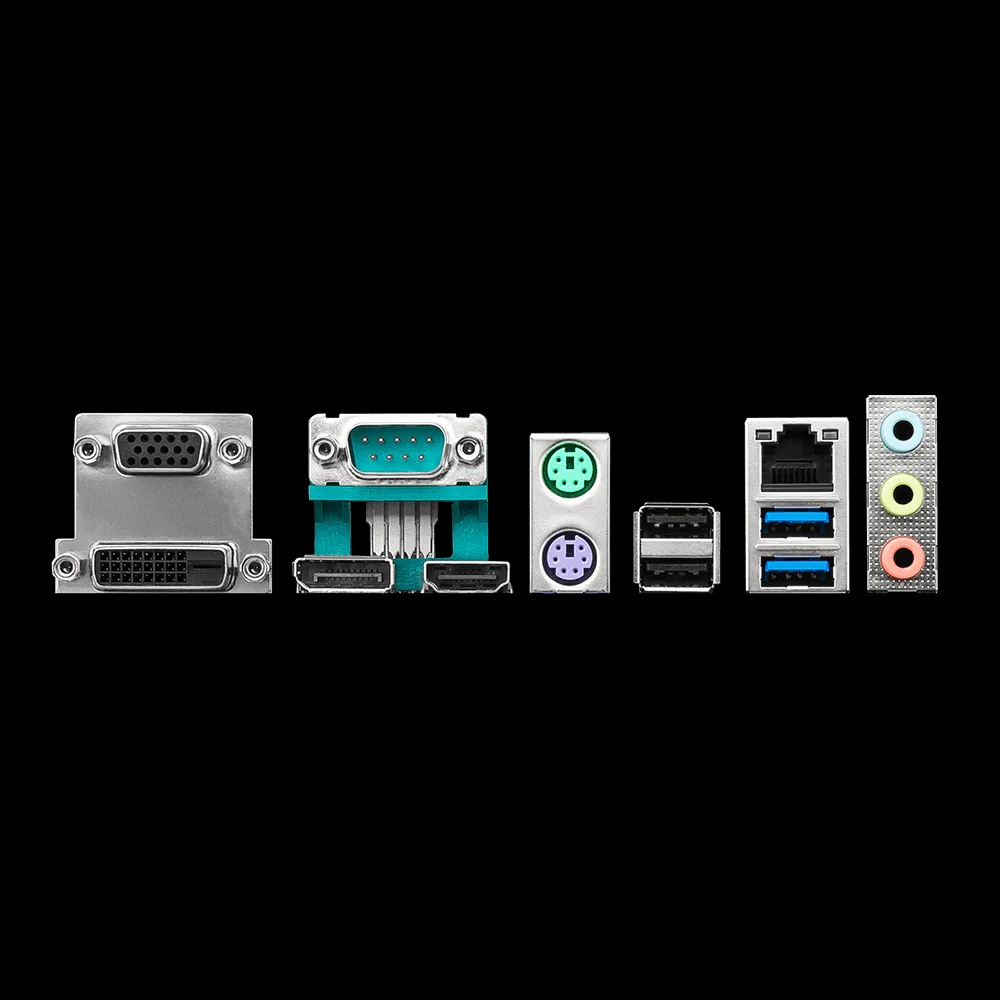

| Rear USB | 2x USB 2.0, 2x USB 5Gbps Gen 1 Type-A |
| Front USB Headers | 4x USB 2.0, 2x USB 5Gbps Gen 1 Type-A |
| Video Output | 1x HDMI 2.1 (4K@60Hz) + 1x DisplayPort + 1x VGA — iGPU only |
| Audio | Realtek ALC897, Audio Boost, 7.1-CH, up to 192kHz |
| Fan Headers | 1x CPU Fan, 1x System Fan |
| RGB | None |
| Extras | M.2 Shield Frozr, Steel Armor PCIe, COM port (JCOM), Parallel port (LPT), PCI legacy slot, Security BIOS, Click BIOS 5, TPM 2.0 header, Chassis Intrusion header, I/O shield included |
| OS Support | Windows 11 64-bit, Windows 10 64-bit |
