MSI PRO H610M-E DDR4 Motherboard
MSI PRO H610M-E DDR4 Motherboard
Intel H610 mATX Motherboard for LGA 1700 — DDR4 up to 3200MHz, No Wi-Fi, 1G LAN, PCIe 3.0 x4 M.2 (Chipset), PCIe 4.0 x16, HDMI 1.4 + VGA, COM Port,...
Vendor:
MSIType:
MotherboardCouldn't load pickup availability
Estimated deliver 5-7 days
People are viewing this right now
Description
Intel H610 mATX Motherboard for LGA 1700 — DDR4 up to 3200MHz, No Wi-Fi, 1G LAN, PCIe 3.0 x4 M.2 (Chipset), PCIe 4.0 x16, HDMI 1.4 + VGA, COM Port, RGB Header, USB 5Gbps, Frozr AI Cooling, 12th / 13th / 14th Gen Intel Core Ready.
The MSI PRO H610M-E DDR4 is the most affordable Intel H610 DDR4 mATX — bringing PCIe 4.0 x16, M.2 Gen3, and Intel 14th/13th/12th Gen Core support to the lowest price point. It features Core Boost VRM, Frozr AI Cooling, Realtek 1G LAN, PCIe 3.0 x4 M.2 from chipset, HDMI 1.4 + VGA output, Audio Boost 7.1-CH, USB 5Gbps on both rear and front, RGB header, COM port, EZ Debug LED, and TPM 2.0 — the definitive budget H610 DDR4 board for office, home, and entry-level Intel builds.
-
>CPU Support: Intel Core 14th / 13th / 12th Gen, Pentium Gold, Celeron — LGA 1700 socket

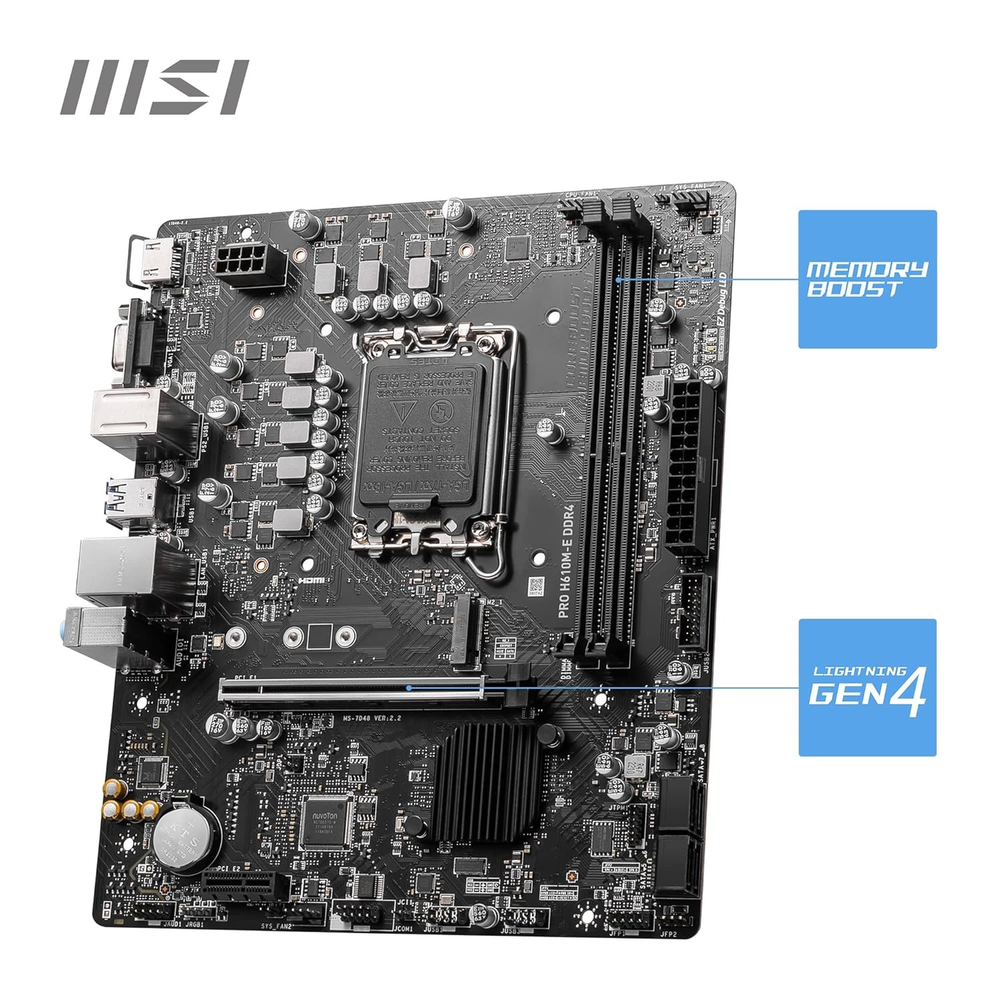

>Power Delivery: Core Boost, Memory Boost, Frozr AI Cooling, 1x 8-pin CPU connector
>Storage: M2_1: PCIe 3.0 x4 + SATA (Chipset, 2242/2260/2280); 4x SATA 6G — Note: SATA5 disabled when M.2 SATA SSD installed
>Connectivity: No Wi-Fi; Realtek RTL8111H 1G LAN

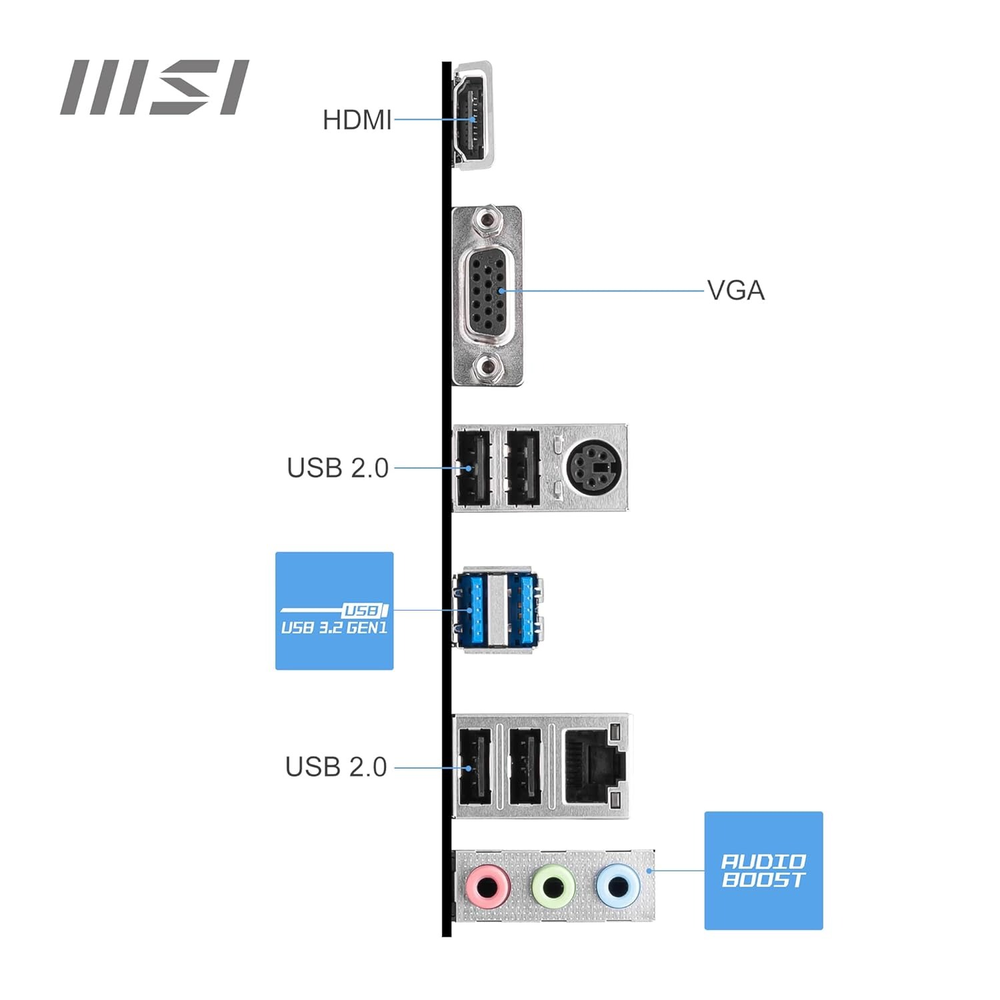

>USB: Rear — 4x USB 2.0, 4x USB 5Gbps Gen 1 Type-A; Front — 4x USB 2.0, 2x USB 5Gbps Gen 1 Type-A
>PCIe: PCI_E1: PCIe 4.0 x16 (CPU); PCI_E2: PCIe 3.0 x1 (Chipset)
>Audio: Realtek ALC897, 7.1-CH, Audio Boost, up to 192kHz
| Specification | Details |
|---|---|
| Chipset | Intel H610 |
| Socket | LGA 1700 |
| Form Factor | mATX (236 x 202 mm) |
| Memory | 2x DDR4 UDIMM, up to 64GB; DDR4 3200(MAX) / 2933 / 2666 / 2133 MHz (JEDEC); Dual Channel, Non-ECC Unbuffered |
| Memory Standard | Non-ECC Unbuffered DDR4, Dual Channel |
| PCIe Slots | PCI_E1: PCIe 4.0 x16 (CPU); PCI_E2: PCIe 3.0 x1 (Chipset) |
| M.2 Slots | M2_1: PCIe 3.0 x4 + SATA (Chipset, 2242/2260/2280) — 1 slot only; No PCIe 4.0 M.2 |
| SATA | 4x SATA 6G (no RAID on H610); SATA5 disabled when M.2 SATA used |
| LAN | Realtek RTL8111H 1G LAN (no Wi-Fi) |
| Wireless | None |
| Rear USB | 4x USB 2.0, 4x USB 5Gbps Gen 1 Type-A |
| Front USB Headers | 4x USB 2.0, 2x USB 5Gbps Gen 1 Type-A |
| Video Output | 1x HDMI 1.4 (4K@60Hz) + 1x VGA (1920x1200@60Hz) — iGPU only |
| Audio | Realtek ALC897, Audio Boost, 7.1-CH, up to 192kHz |
| Fan Headers | 1x CPU Fan, 2x System Fan |
| RGB | 1x RGB header (JRGB), 4x EZ Debug LED |

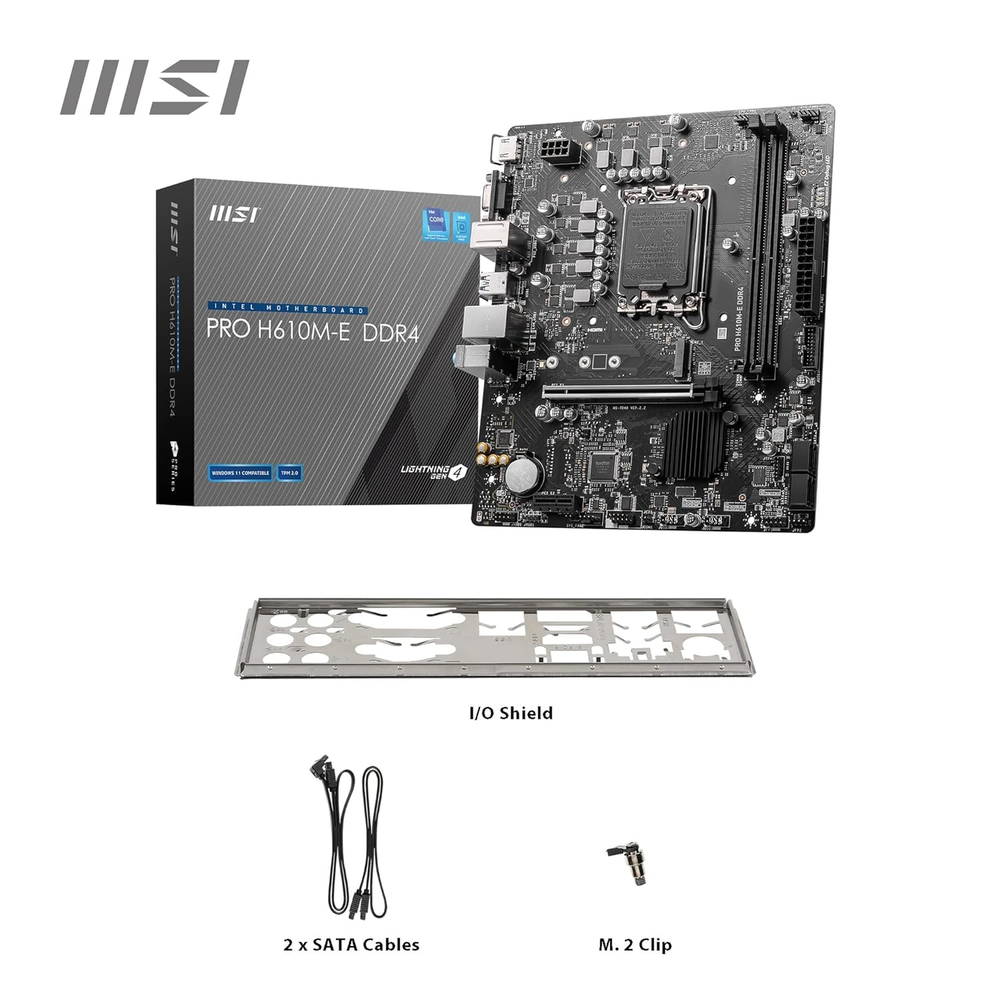

| Extras | Frozr AI Cooling, COM port (JCOM), Click BIOS 5, TPM 2.0 header, Chassis Intrusion header, PS/2 Keyboard/Mouse, I/O shield included |
| OS Support | Windows 11 64-bit, Windows 10 64-bit |
