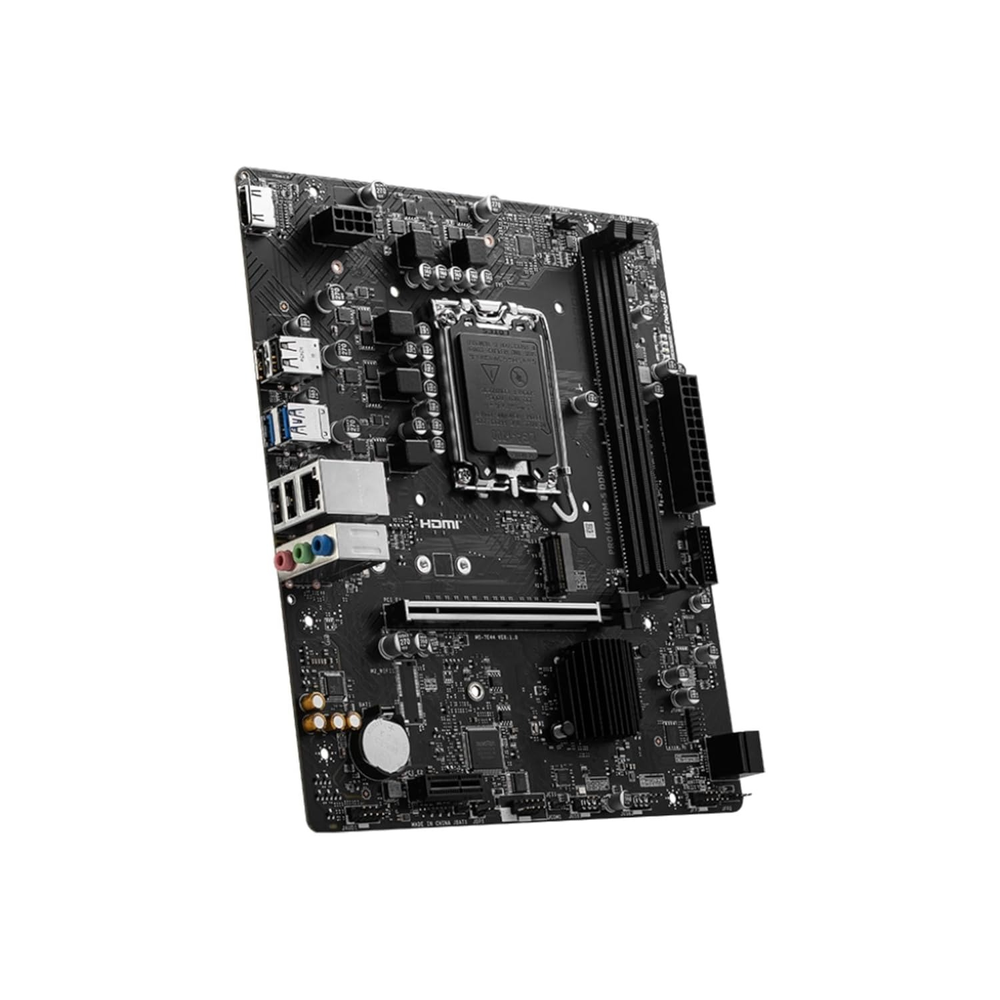

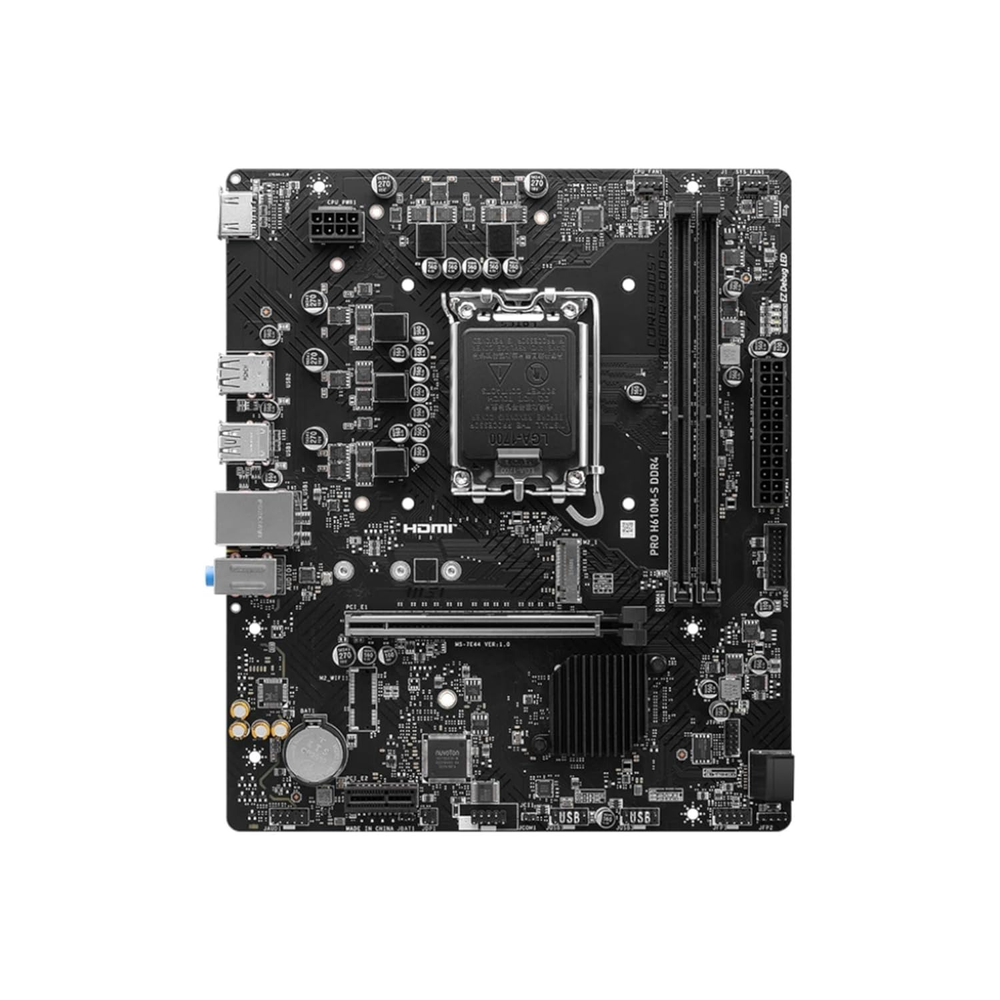

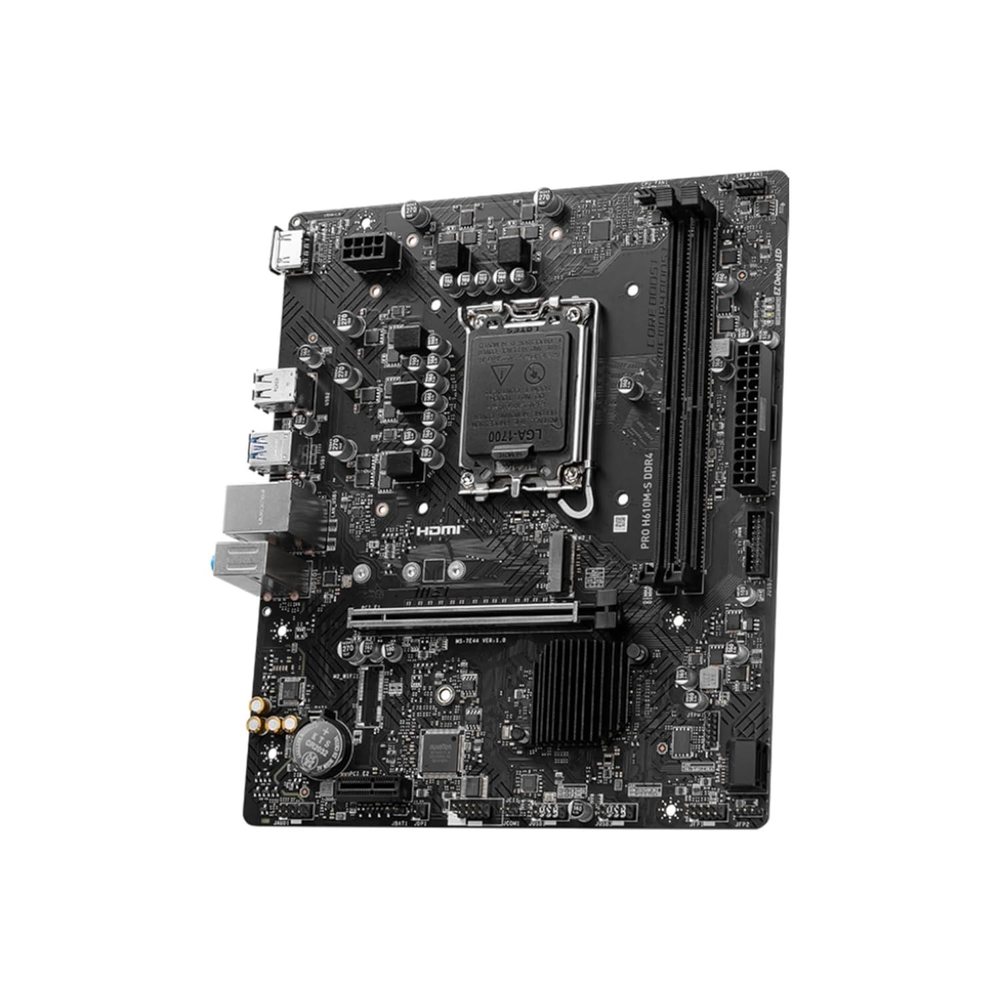

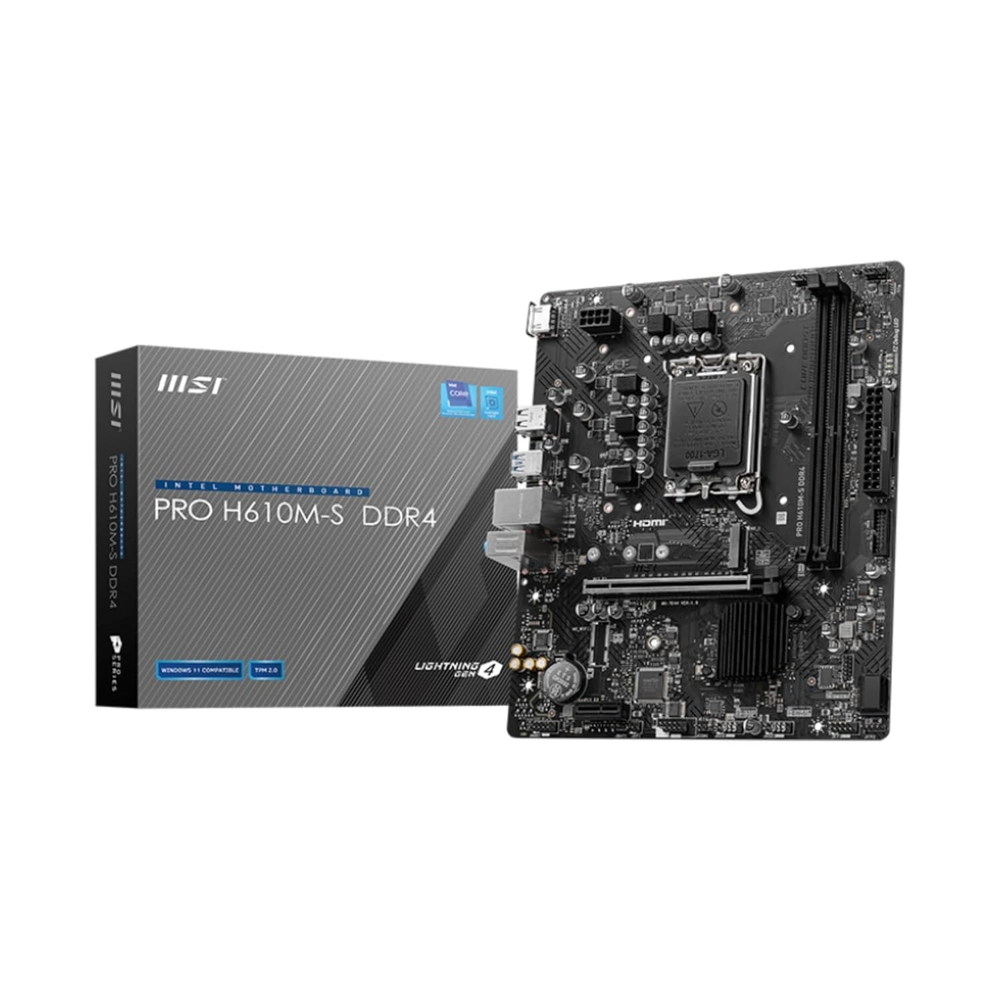

MSI PRO H610M-S DDR4 Motherboard
MSI PRO H610M-S DDR4 Motherboard
Intel H610 mATX Motherboard for LGA 1700 — DDR4 up to 3200MHz, No Wi-Fi, 1G LAN, PCIe 3.0 x4 M.2 (Chipset), PCIe 4.0 x16, HDMI 1.4, COM Port, USB 5Gbps,...
Vendor:
MSIType:
MotherboardCouldn't load pickup availability
Estimated deliver 5-7 days
People are viewing this right now
Description
Intel H610 mATX Motherboard for LGA 1700 — DDR4 up to 3200MHz, No Wi-Fi, 1G LAN, PCIe 3.0 x4 M.2 (Chipset), PCIe 4.0 x16, HDMI 1.4, COM Port, USB 5Gbps, 12th / 13th / 14th Gen Intel Core Ready.
The MSI PRO H610M-S DDR4 is the most affordable H610 DDR4 business mATX — stripped to the essentials for reliable, compact professional and office deployments. It features Core Boost VRM, Memory Boost DDR4 3200MHz, PCIe 4.0 x16, PCIe 3.0 x4 M.2 from chipset, Realtek 1G LAN, HDMI 1.4 output, Audio Boost 7.1-CH, USB 5Gbps on rear and front, COM port, and TPM 2.0 — everything needed for a no-fuss Intel DDR4 build at the lowest entry price.
-
>CPU Support: Intel Core 14th / 13th / 12th Gen, Pentium Gold, Celeron — LGA 1700 socket
>Power Delivery: Core Boost, Memory Boost, 1x 8-pin CPU connector
>Storage: M2_1: PCIe 3.0 x4 (Chipset, 2242/2260/2280); 2x SATA 6G
>Connectivity: No Wi-Fi; Realtek RTL8111H 1G LAN
>USB: Rear — 4x USB 2.0, 2x USB 5Gbps Gen 1 Type-A; Front — 4x USB 2.0, 2x USB 5Gbps Gen 1 Type-A
>PCIe: PCI_E1: PCIe 4.0 x16 (CPU); PCI_E2: PCIe 3.0 x1 (Chipset)
>Audio: Realtek ALC897, 7.1-CH, up to 192kHz
| Specification | Details |
|---|---|
| Chipset | Intel H610 |
| Socket | LGA 1700 |
| Form Factor | mATX (200 x 236.16 mm) |
| Memory | 2x DDR4 UDIMM, up to 64GB; DDR4 1866/2133/2400/2667/2800/2933/3000/3066/3200 MHz (JEDEC); Dual Channel, Non-ECC Unbuffered |
| Memory Standard | Non-ECC Unbuffered DDR4, Dual Channel |
| PCIe Slots | PCI_E1: PCIe 4.0 x16 (CPU); PCI_E2: PCIe 3.0 x1 (Chipset) |
| M.2 Slots | M2_1: PCIe 3.0 x4 (Chipset, 2242/2260/2280) — 1 slot only; No PCIe 4.0 M.2 |
| SATA | 2x SATA 6G (no RAID on H610) |
| LAN | Realtek RTL8111H 1G LAN (no Wi-Fi) |
| Wireless | None |

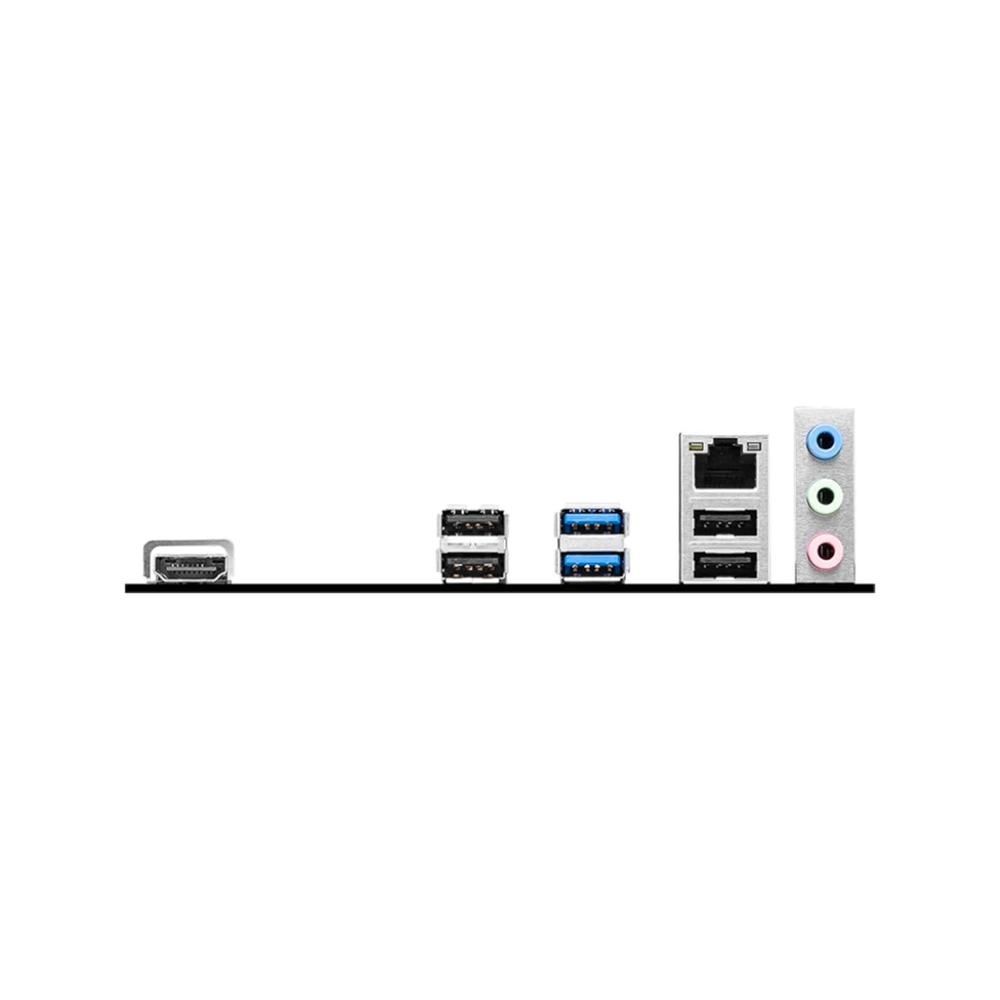

| Rear USB | 4x USB 2.0, 2x USB 5Gbps Gen 1 Type-A |
| Front USB Headers | 4x USB 2.0, 2x USB 5Gbps Gen 1 Type-A |
| Video Output | 1x HDMI 1.4 (4K@30Hz) — iGPU only |
| Audio | Realtek ALC897, 7.1-CH, up to 192kHz |
| Fan Headers | 1x CPU Fan, 1x System Fan |
| RGB | 4x EZ Debug LED |
| Extras | COM port (JCOM), Click BIOS 5, TPM 2.0 header, Chassis Intrusion header, I/O shield included |
| OS Support | Windows 11 64-bit, Windows 10 64-bit |
