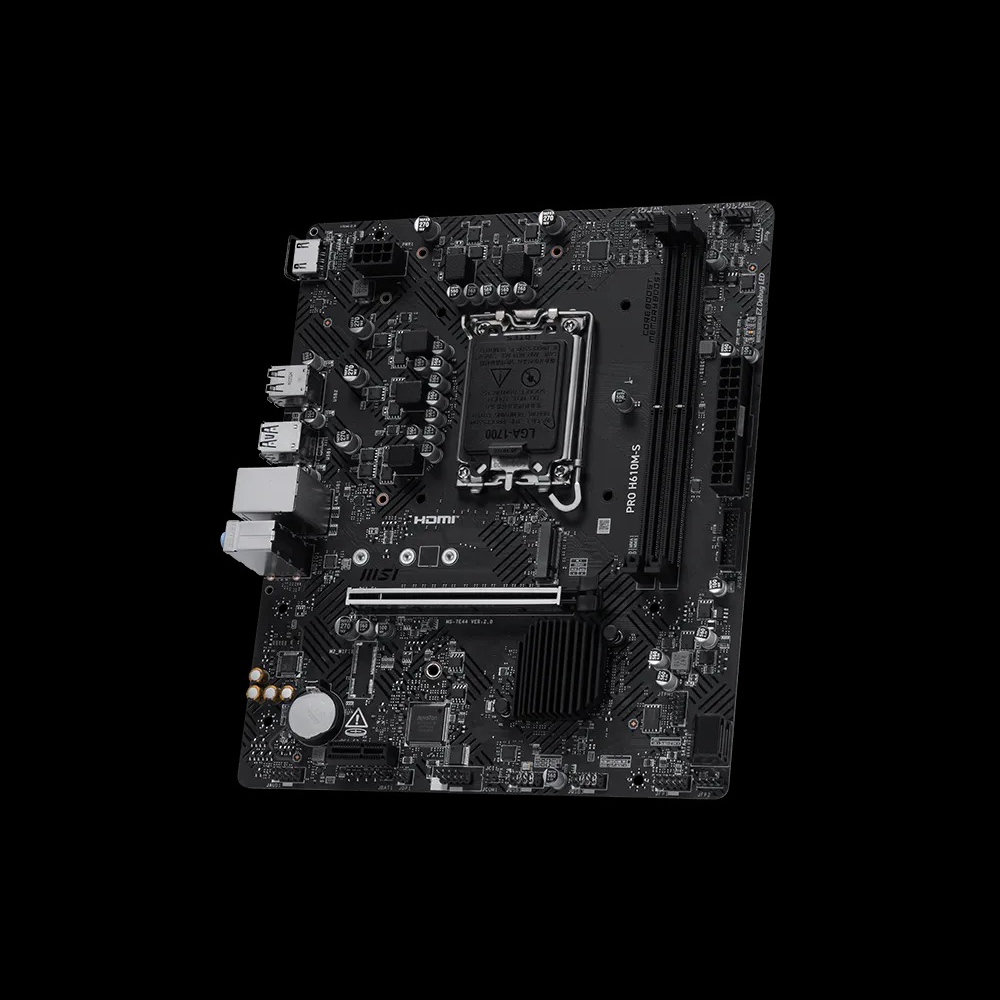

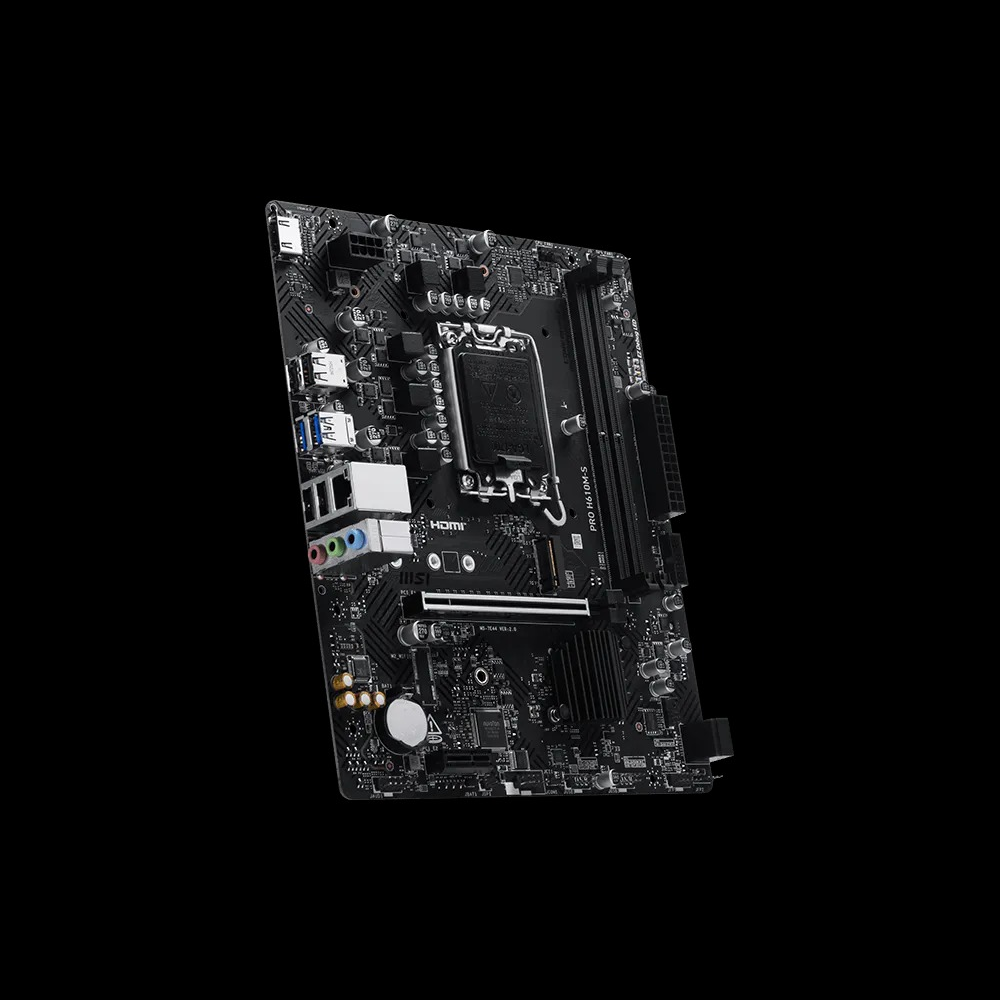

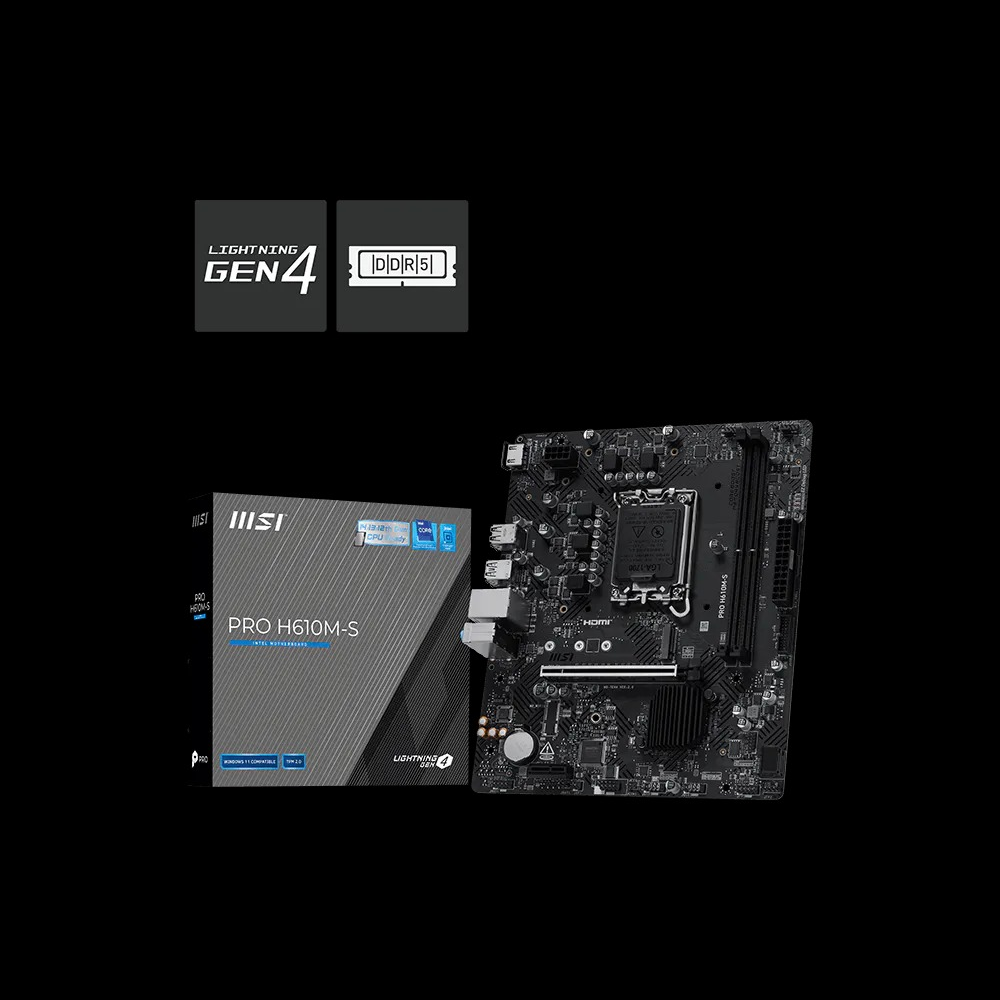

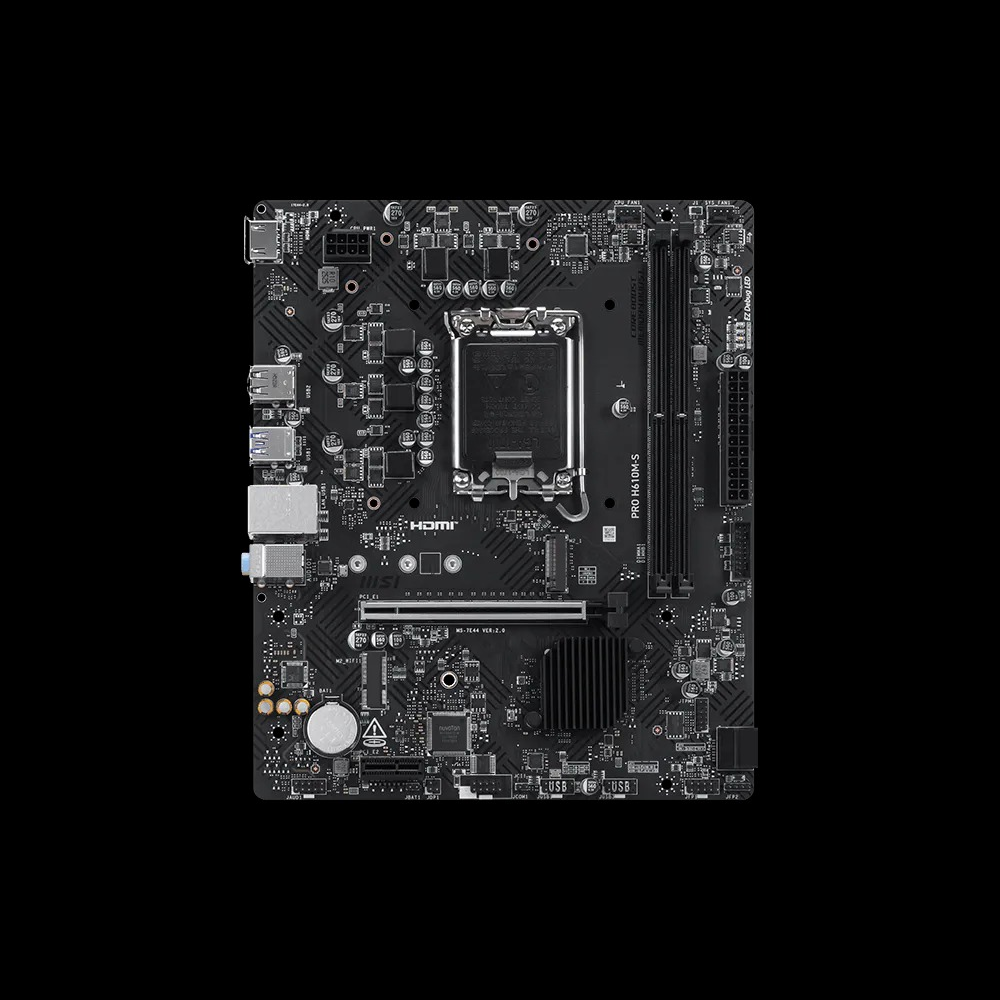

MSI PRO H610M-S Motherboard
MSI PRO H610M-S Motherboard
Intel H610 mATX Motherboard for LGA 1700 — DDR5 up to 5600MHz, No Wi-Fi, 1G LAN, PCIe 3.0 x4 M.2 (Chipset), PCIe 4.0 x16, HDMI 1.4, COM Port, USB 5Gbps,...
Vendor:
StudbudpcType:
MotherboardCouldn't load pickup availability
Estimated deliver 5-7 days
People are viewing this right now
Description
Intel H610 mATX Motherboard for LGA 1700 — DDR5 up to 5600MHz, No Wi-Fi, 1G LAN, PCIe 3.0 x4 M.2 (Chipset), PCIe 4.0 x16, HDMI 1.4, COM Port, USB 5Gbps, XMP 3.0, 12th / 13th / 14th Gen Intel Core Ready.
The MSI PRO H610M-S is a slim, no-frills DDR5 business mATX — the most stripped-back H610 DDR5 board for compact professional deployments. It packs Core Boost VRM, Memory Boost DDR5 5600MHz XMP 3.0, PCIe 4.0 x16, PCIe 3.0 x4 M.2, Realtek 1G LAN, HDMI 1.4, Audio Boost 7.1-CH, USB 5Gbps on rear and front, COM port, and TPM 2.0 — everything a business or office build needs at the lowest DDR5 H610 price.
-
>CPU Support: Intel Core 14th / 13th / 12th Gen, Pentium Gold, Celeron — LGA 1700 socket
>Power Delivery: Core Boost, Memory Boost, 1x 8-pin CPU connector
>Storage: M2_1: PCIe 3.0 x4 (Chipset, 2242/2260/2280); 2x SATA 6G
>Connectivity: No Wi-Fi; Realtek RTL8111H 1G LAN
>USB: Rear — 4x USB 2.0, 2x USB 5Gbps Gen 1 Type-A; Front — 4x USB 2.0, 2x USB 5Gbps Gen 1 Type-A
>PCIe: PCI_E1: PCIe 4.0 x16 (CPU); PCI_E2: PCIe 3.0 x1 (Chipset)
>Audio: Realtek ALC897, 7.1-CH, up to 192kHz
| Specification | Details |
|---|---|
| Chipset | Intel H610 |
| Socket | LGA 1700 |
| Form Factor | mATX (200 x 236.16 mm) |
| Memory | 2x DDR5 UDIMM, up to 128GB; DDR5 5600(JEDEC & POR) MHz; Intel XMP 3.0; Dual-Controller Dual-Channel, Non-ECC Unbuffered |
| Memory Standard | Intel XMP 3.0, Non-ECC Unbuffered DDR5, Dual Channel |
| PCIe Slots | PCI_E1: PCIe 4.0 x16 (CPU); PCI_E2: PCIe 3.0 x1 (Chipset) |
| M.2 Slots | M2_1: PCIe 3.0 x4 (Chipset, 2242/2260/2280) — 1 slot only; No PCIe 4.0 M.2 |
| SATA | 2x SATA 6G (no RAID on H610) |
| LAN | Realtek RTL8111H 1G LAN (no Wi-Fi) |
| Wireless | None |

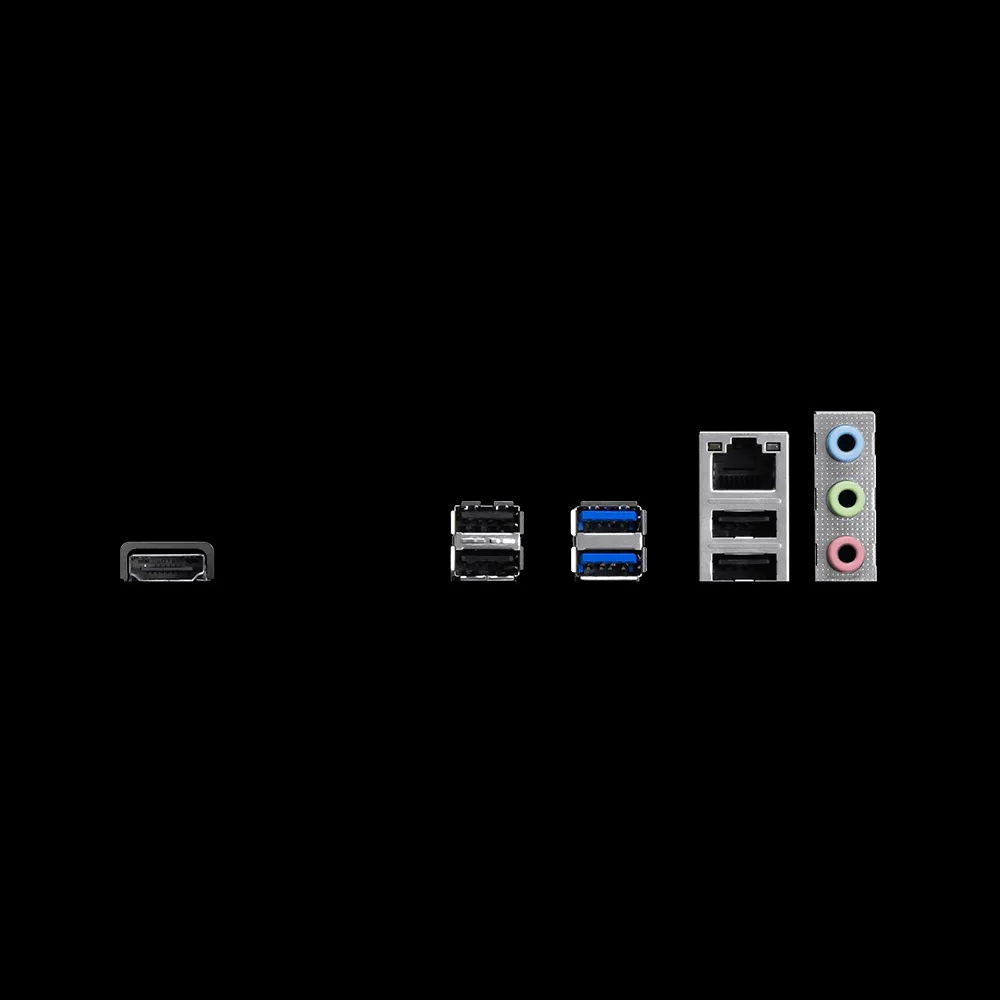

| Rear USB | 4x USB 2.0, 2x USB 5Gbps Gen 1 Type-A |
| Front USB Headers | 4x USB 2.0, 2x USB 5Gbps Gen 1 Type-A |
| Video Output | 1x HDMI 1.4 (4K@30Hz) — iGPU only |
| Audio | Realtek ALC897, 7.1-CH, up to 192kHz |
| Fan Headers | 1x CPU Fan, 1x System Fan |
| RGB | 4x EZ Debug LED |
| Extras | COM port (JCOM), Click BIOS 5, TPM 2.0 header, Chassis Intrusion header, I/O shield included |
| OS Support | Windows 11 64-bit, Windows 10 64-bit |
