Motherboard // MSI

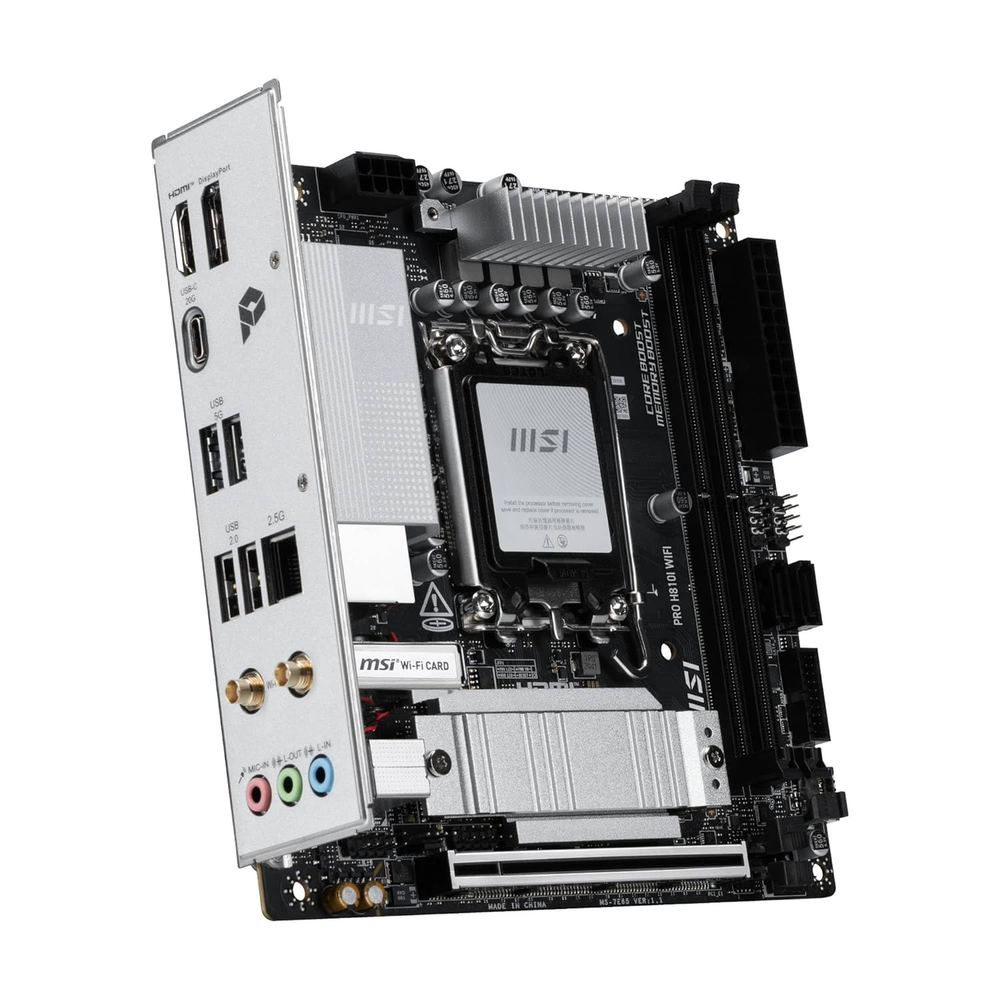

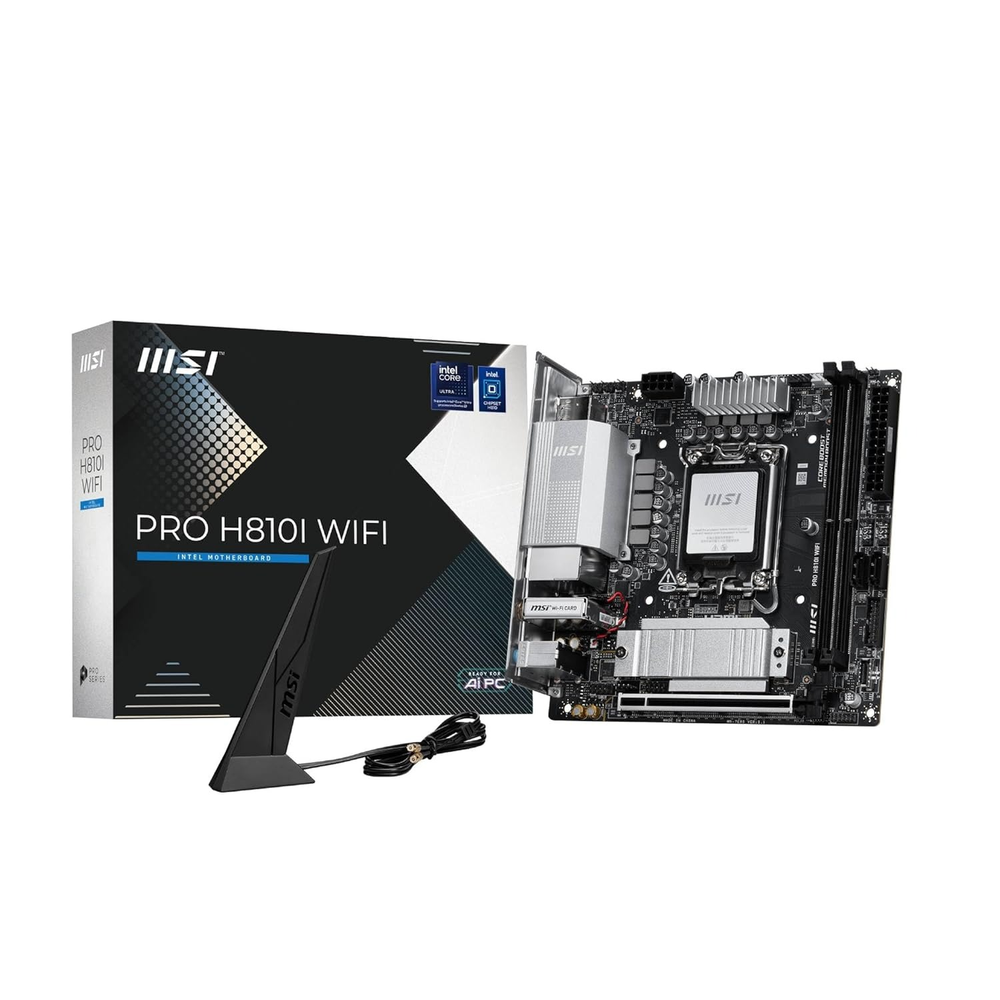

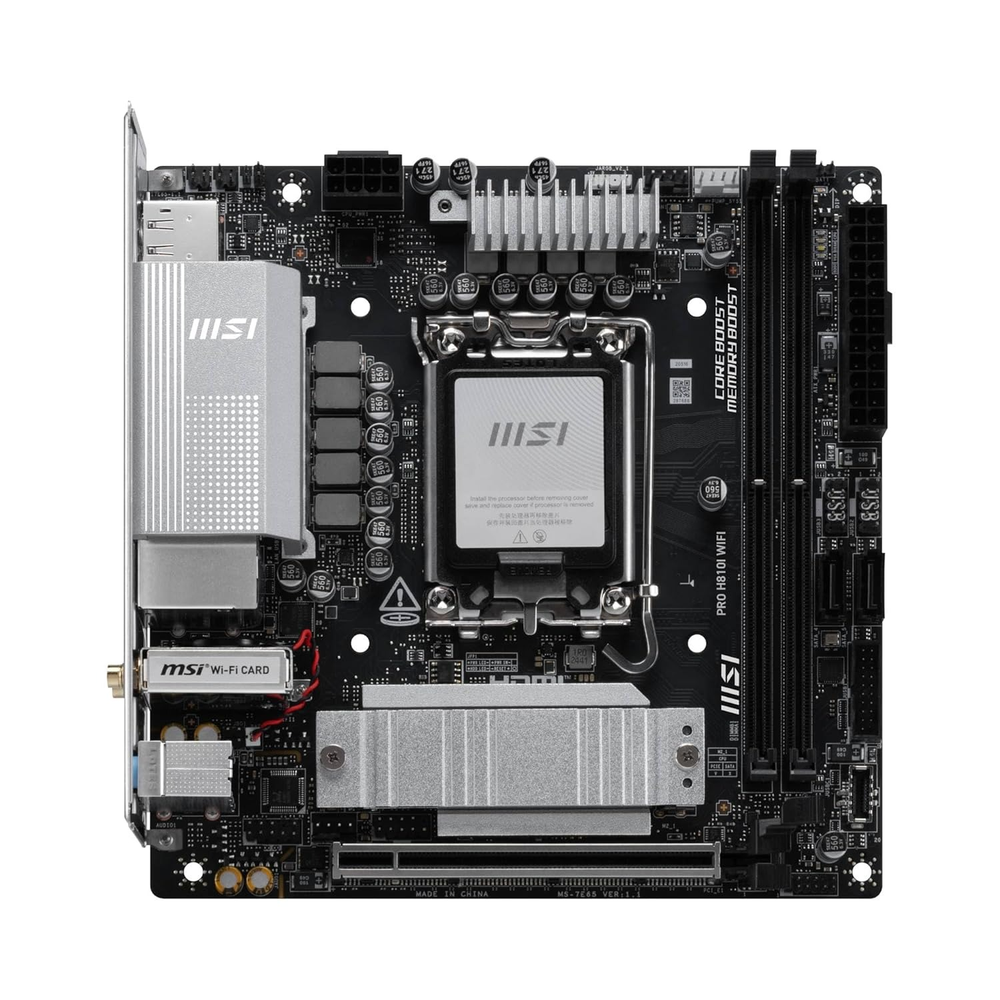

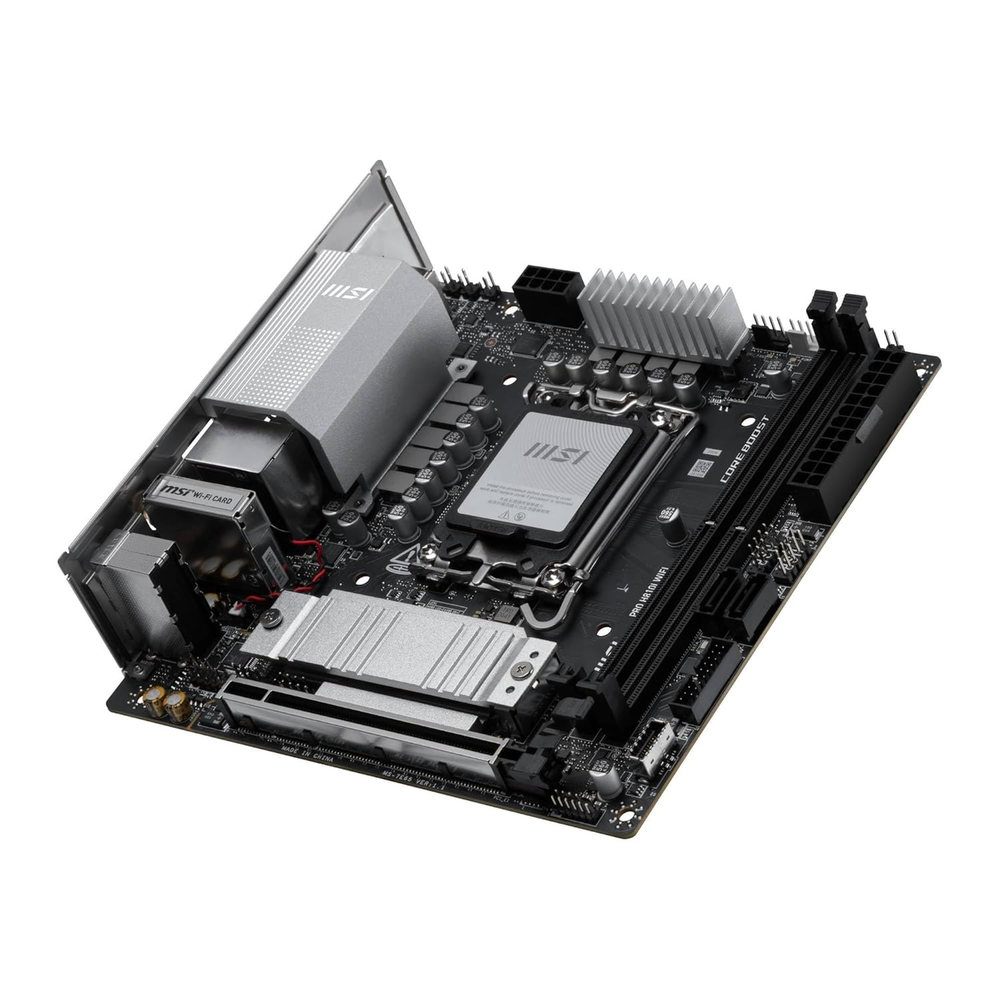

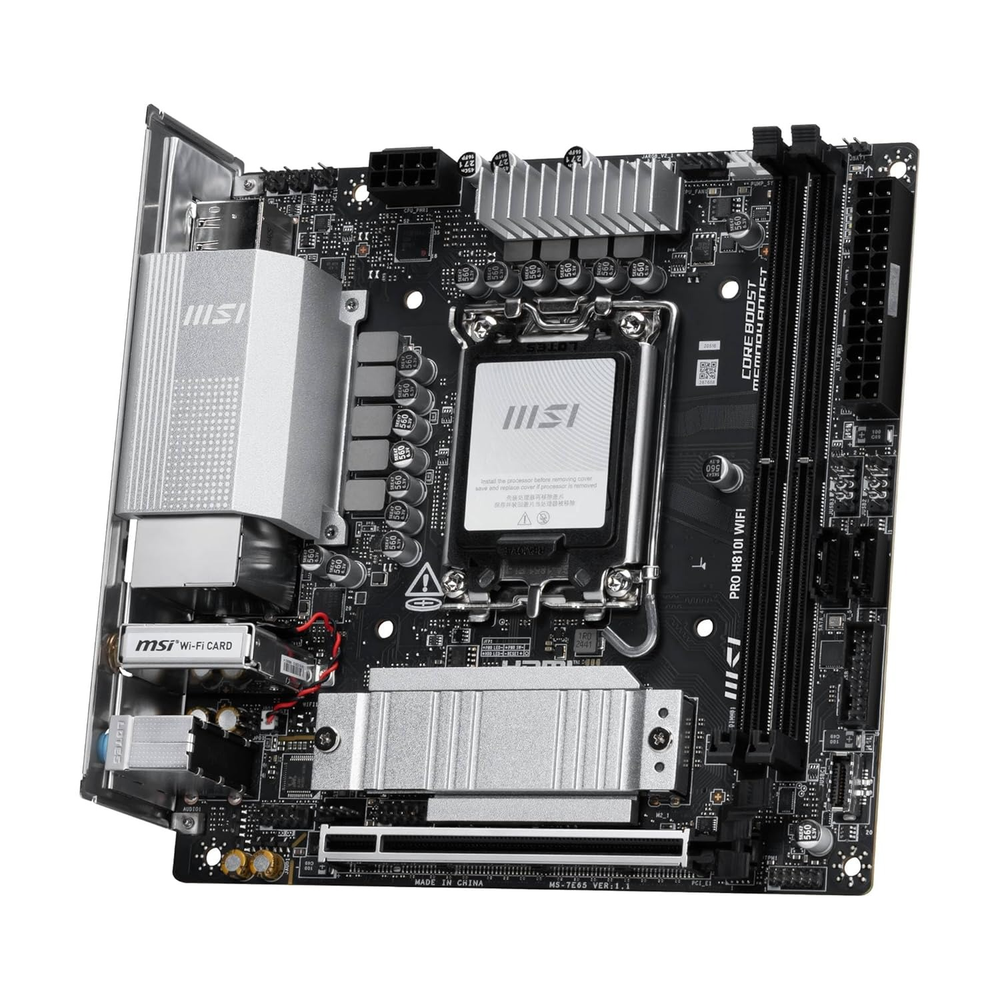

MSI PRO H810I WIFI Motherboard
Technical specification
Intel H810 Mini-ITX Motherboard for LGA 1851 — DDR5 up to 6400MHz, Wi-Fi 7 (2.9Gbps, 160MHz), BT 5.4, Intel 2.5G LAN, PCIe 5.0 x16 Steel Armor, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, HDMI + DP, USB 20Gbps Type-C, EZ PCIe Clip II, Intel Core Ultra Series 2 Ready.
The MSI PRO H810I WIFI is the premium compact Intel Mini-ITX for the Arrow Lake platform — bringing PCIe 5.0, Wi-Fi 7, 2.5G LAN, and USB 20Gbps Type-C to the smallest possible form factor. It features Frozr Guard cooling (M.2 Shield Frozr + 7W/mK thermal pads), Core Boost VRM with digital power design, Lightning Gen 4 x4 M.2, EZ PCIe Clip II for easy GPU removal, Audio Boost 7.1-CH, EZ Antenna Wi-Fi 7, and full Intel Core Ultra Series 2 support — the most feature-complete H810 Mini-ITX available.
- CPU Support: Intel Core Ultra Processors Series 2 — LGA 1851 socket (Arrow Lake)
- Power Delivery: Core Boost, Memory Boost, Frozr Guard, 7W/mK MOSFET thermal pads, 1x 8-pin CPU connector
- Storage: M2_1: PCIe 4.0 x4 (CPU, 2280/2260/2242) — M.2 Shield Frozr; 2x SATA 6G
- Connectivity: Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be, 2.4/5/6GHz, 160MHz, MU-MIMO, MLO, 4KQAM, up to 2.9Gbps), Bluetooth 5.4; Intel I226 2.5G LAN
- USB: Rear — 2x USB 2.0, 2x USB 5Gbps Gen 1 Type-A, 1x USB 10Gbps Gen 2 Type-A, 1x USB 20Gbps Gen 2x2 Type-C; Front — 2x USB 2.0, 2x USB 5Gbps Gen 1 Type-A
- PCIe: PCI_E1: PCIe 5.0 x16 (CPU, Steel Armor, SMT, EZ PCIe Clip II)
- Audio: Realtek ALC897, 7.1-CH, Audio Boost, up to 192kHz
| Specification | Details |
|---|---|
| Chipset | Intel H810 |
| Socket | LGA 1851 |
| Form Factor | Mini-ITX (170 x 170 mm) |
| Memory | 2x DDR5 UDIMM, up to 128GB; DDR5 6400(MAX OC) / 4800(JEDEC) MHz; Memory Extension Mode; Dual Channel, Non-ECC Unbuffered |
| Memory Standard | Intel XMP, Memory Extension Mode, Non-ECC Unbuffered DDR5, Dual Channel |
| PCIe Slots | PCI_E1: PCIe 5.0 x16 (CPU, Steel Armor, SMT, EZ PCIe Clip II) — only 1 PCIe slot (Mini-ITX) |
| M.2 Slots | M2_1: PCIe 4.0 x4 (CPU, 2280/2260/2242) — M.2 Shield Frozr; 1 slot only |
| SATA | 2x SATA 6G (no RAID on H810) |
| LAN | Intel I226 2.5G LAN |
| Wireless | Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be, 2.4/5/6GHz, 160MHz, MU-MIMO, MLO, 4KQAM, up to 2.9Gbps), Bluetooth 5.4, M.2 Key-E (pre-installed) |

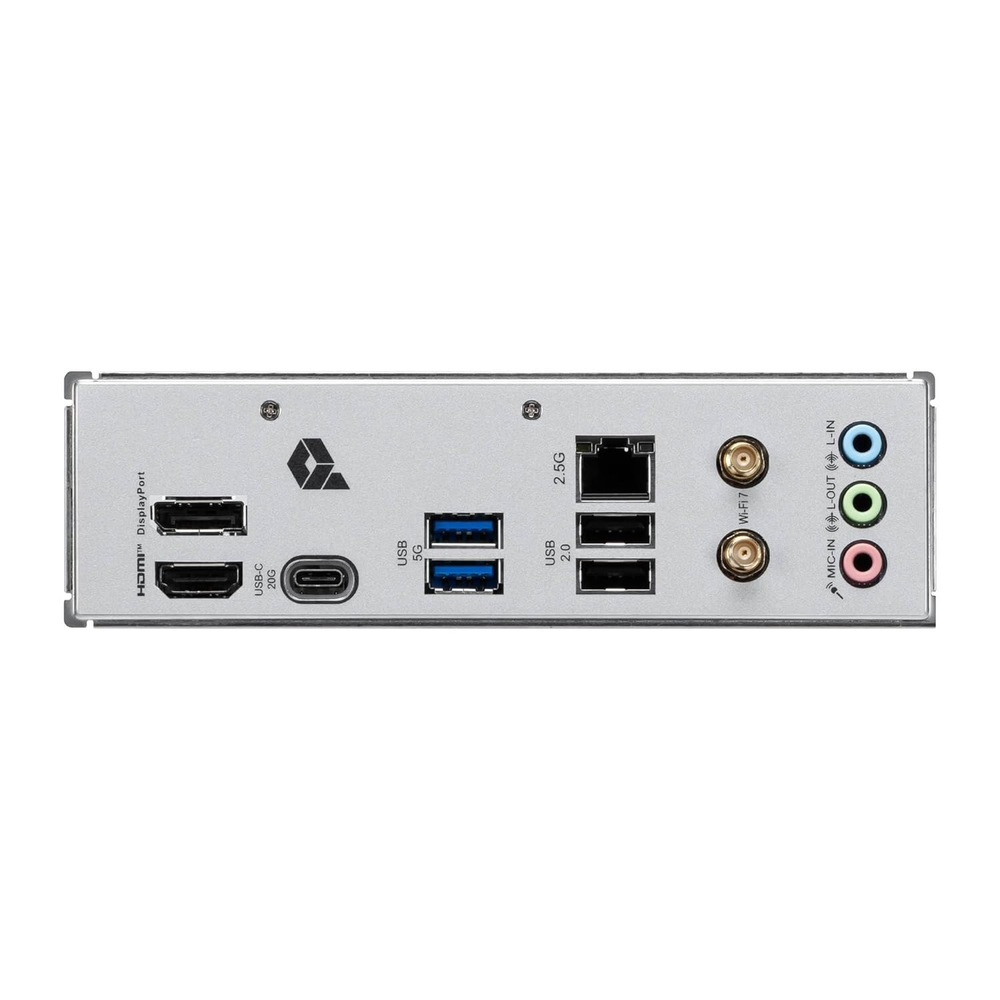

| Rear USB | 2x USB 2.0, 2x USB 5Gbps Gen 1 Type-A, 1x USB 10Gbps Gen 2 Type-A, 1x USB 20Gbps Gen 2x2 Type-C |
| Front USB Headers | 2x USB 2.0, 2x USB 5Gbps Gen 1 Type-A |
| Video Output | 1x HDMI + 1x DisplayPort — iGPU only |
| Audio | Realtek ALC897, Audio Boost, 7.1-CH, up to 192kHz |
| Fan Headers | 1x CPU Fan, 1x Pump Fan, 1x System Fan |
| RGB | None |
| Extras | Frozr Guard, M.2 Shield Frozr, Steel Armor PCIe (SMT), EZ PCIe Clip II, EZ Antenna (Wi-Fi 7), Click BIOS 5, TPM 2.0 header, Chassis Intrusion header, I/O shield included |
| OS Support | Windows 11 64-bit |
