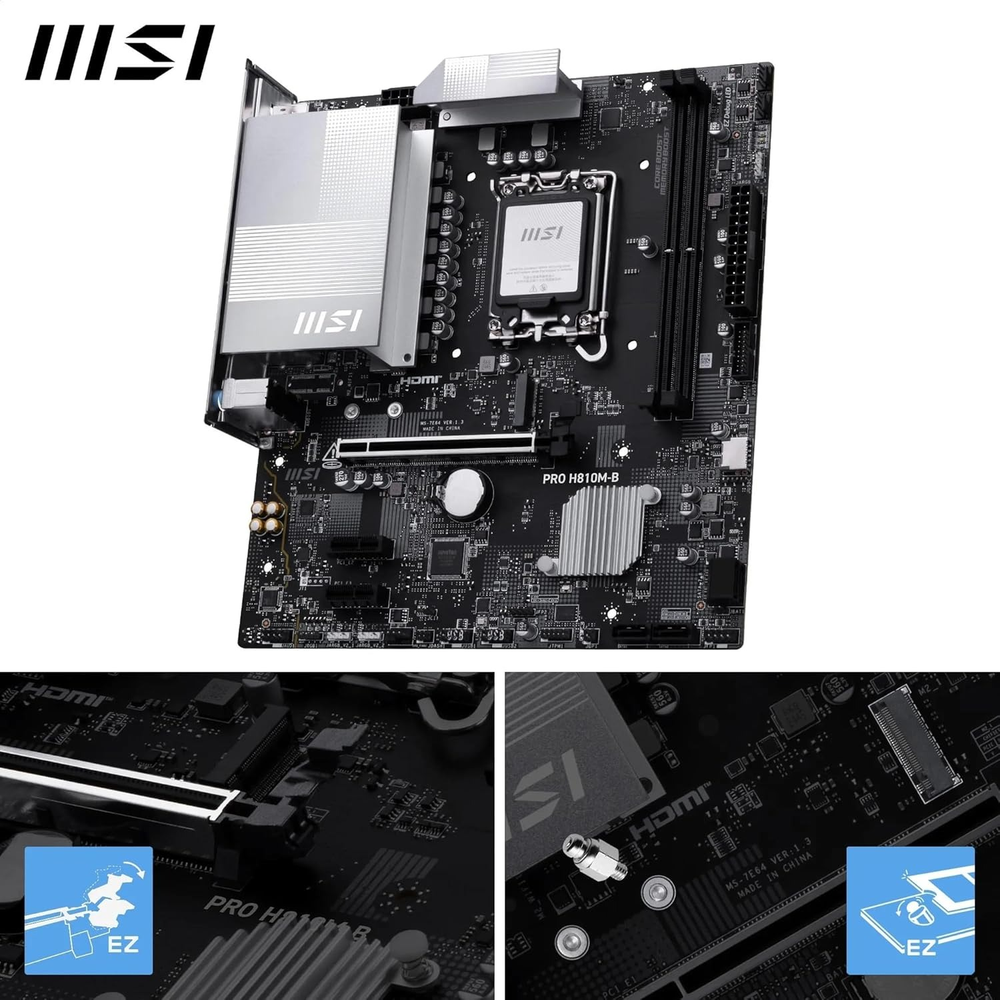

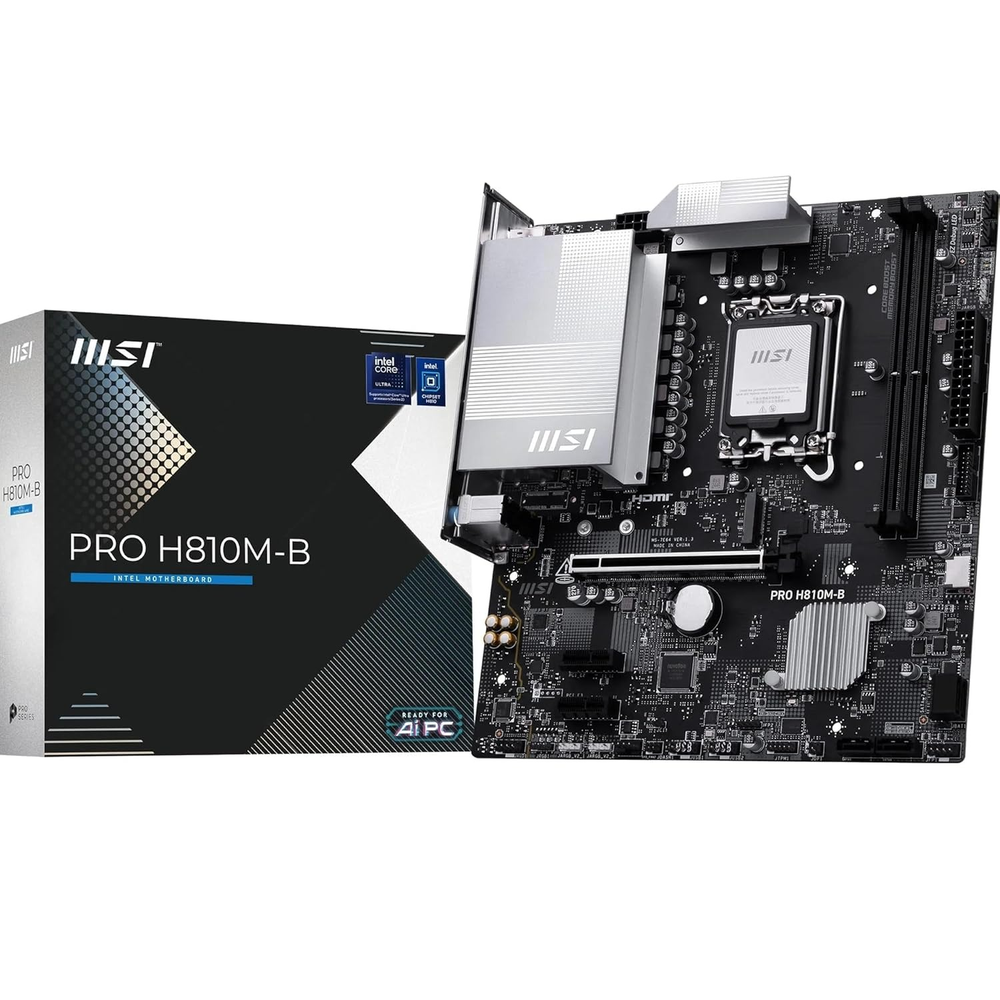

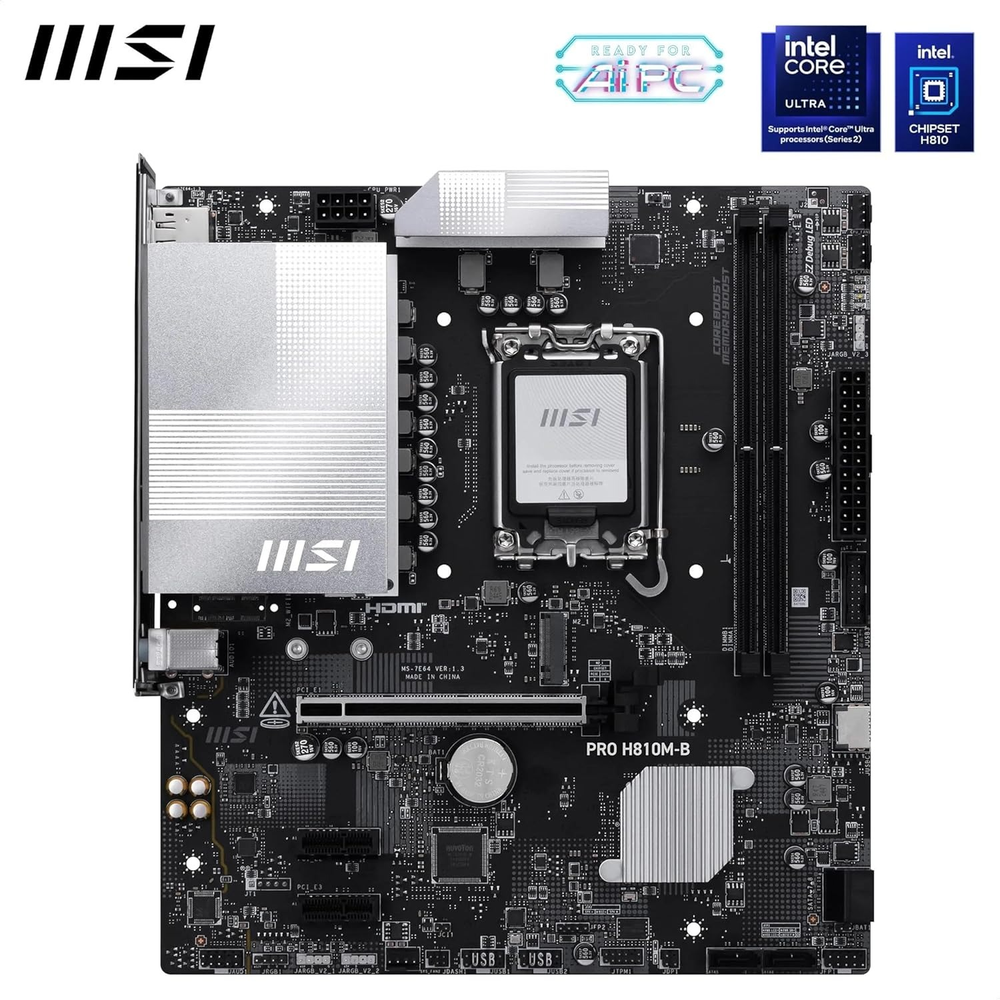

MSI PRO H810M-B Motherboard

MSI PRO H810M-B Motherboard

Intel H810 mATX Motherboard for LGA 1851 — DDR5 up to 6400MHz, No Wi-Fi, Realtek 2.5G LAN, PCIe 5.0 x16 Steel Armor, Lightning Gen 4 x4 M.2 with M.2 Shield...

Rs. 21,999.00
Rs. 21,999.00
OFF Sold out
Tax included. Shipping calculated at checkout.

Vendor:

MSI

Type:

Motherboard

Estimated deliver 5-7 days

People are viewing this right now

View full details
Let us know abour your query!
Description
Reviews

Intel H810 mATX Motherboard for LGA 1851 — DDR5 up to 6400MHz, No Wi-Fi, Realtek 2.5G LAN, PCIe 5.0 x16 Steel Armor, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, HDMI 2.1 + DisplayPort 1.4, USB 10Gbps Type-C Front, 3x ARGB V2 + 1x RGB, Intel Core Ultra Series 2 Ready.

The MSI PRO H810M-B is a clean silver-design professional H810 mATX for Arrow Lake — delivering PCIe 5.0, 2.5G LAN, USB 10Gbps Type-C, and DDR5 6400 without Wi-Fi for the most cost-effective Arrow Lake professional deployment. It features Core Boost VRM with Direct 6-phase power, M.2 Shield Frozr on Gen4 M.2, Steel Armor PCIe 5.0, Realtek 2.5G LAN, AI LAN Manager, XMP 3.0, CUDIMM support, 3x ARGB V2 + 1x RGB, JDASH Tuning Controller, EZ Debug LED, EZ Memory Detection LED, and full Intel Core Ultra Series 2 compatibility.

  • CPU Support: Intel Core Ultra Processors Series 2 — LGA 1851 socket (Arrow Lake)

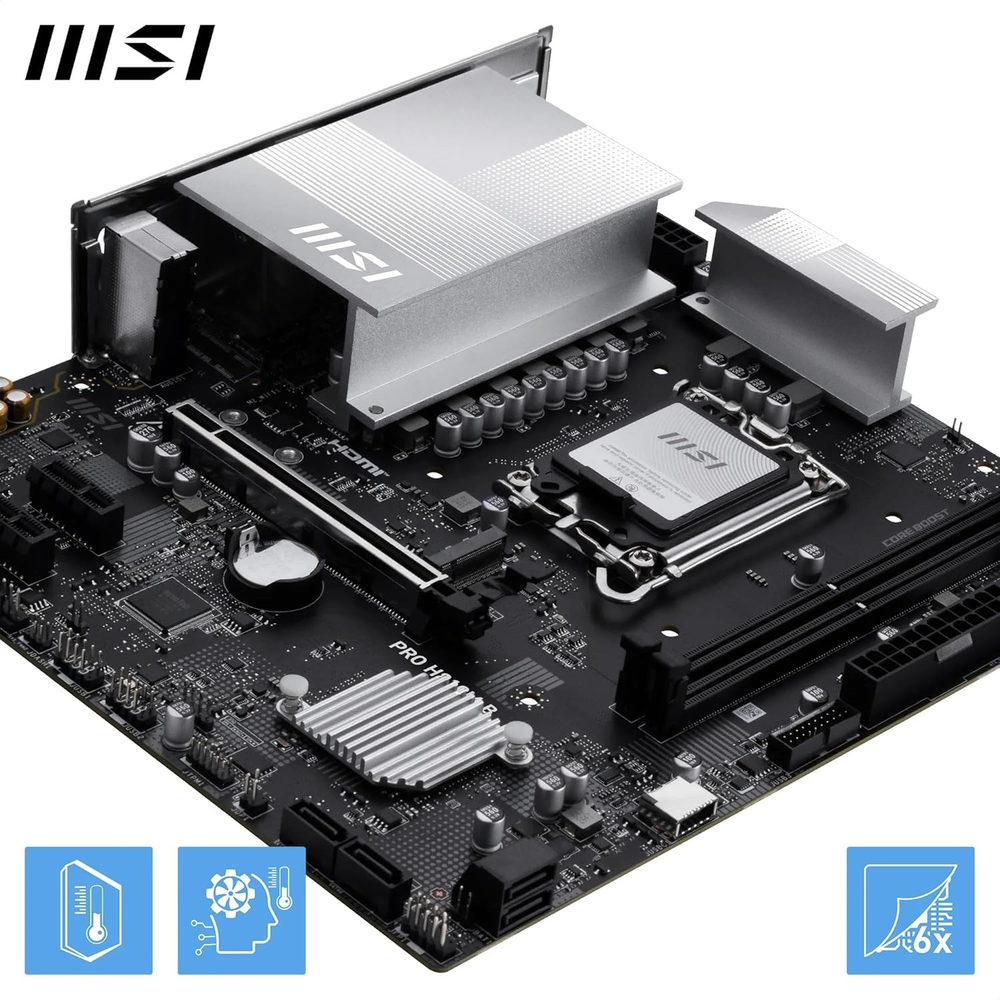

  • Power Delivery: Core Boost, Direct 6-phase, Memory Boost, 1x 8-pin CPU connector
  • Storage: M2_1: PCIe 4.0 x4 (Chipset, 2280/2260) — M.2 Shield Frozr; 4x SATA 6G
  • Connectivity: No Wi-Fi; Realtek 8125 2.5G LAN
  • USB: Rear — 4x USB 2.0, 2x USB 5Gbps Gen 1 Type-A; Front — 4x USB 2.0, 2x USB 5Gbps Gen 1 Type-A, 1x USB 10Gbps Gen 2 Type-C

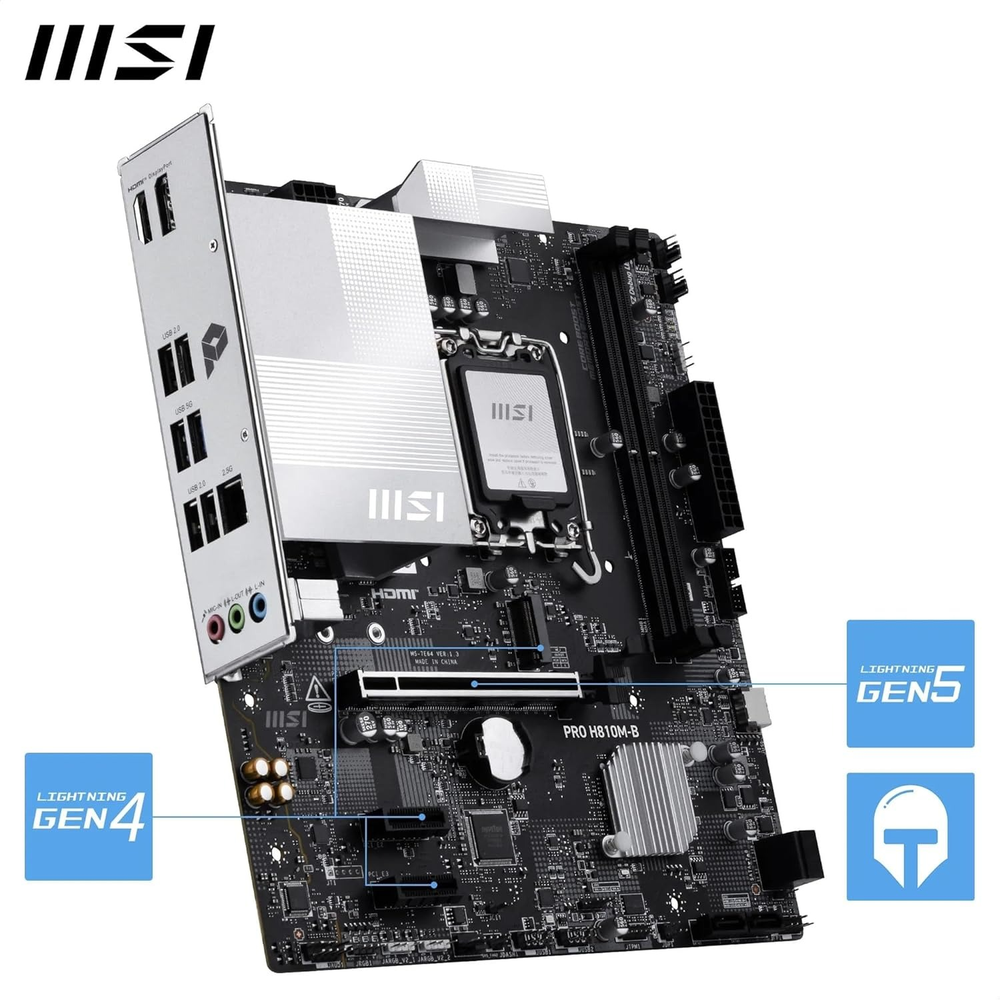

  • PCIe: PCI_E1: PCIe 5.0 x16 (CPU, Steel Armor); PCI_E2: PCIe 4.0 x1 (Chipset); PCI_E3: PCIe 4.0 x1 (Chipset)
  • Audio: Realtek ALC897, 7.1-CH, up to 192kHz
Specification Details
Chipset Intel H810
Socket LGA 1851
Form Factor mATX (220 x 243.84 mm)
Memory 2x DDR5 UDIMM (double-sided latch), up to 128GB; DDR5 6400(OC) / 4800(JEDEC) MHz; Intel XMP 3.0; CUDIMM supported; Dual-Controller Dual-Channel, Non-ECC Unbuffered
Memory Standard Intel XMP 3.0, Non-ECC Unbuffered DDR5, Dual Channel
PCIe Slots PCI_E1: PCIe 5.0 x16 (CPU, Steel Armor); PCI_E2: PCIe 4.0 x1 (Chipset); PCI_E3: PCIe 4.0 x1 (Chipset)
M.2 Slots M2_1: PCIe 4.0 x4 (Chipset, 2280/2260) — M.2 Shield Frozr; 1 slot only; No PCIe 5.0 M.2
SATA 4x SATA 6G (no RAID on H810)
LAN Realtek 8125 2.5G LAN (no Wi-Fi)
Wireless None

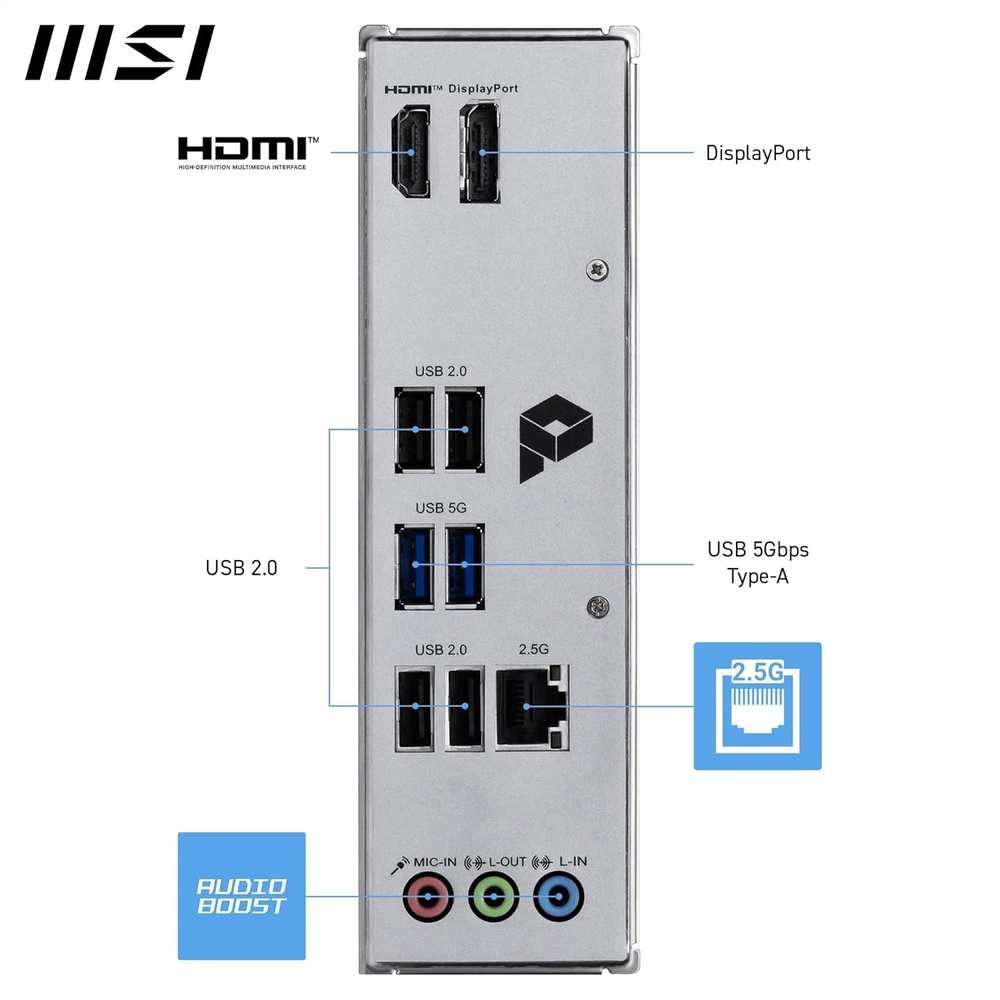

Rear USB 4x USB 2.0, 2x USB 5Gbps Gen 1 Type-A
Front USB Headers 4x USB 2.0, 2x USB 5Gbps Gen 1 Type-A, 1x USB 10Gbps Gen 2 Type-C
Video Output 1x HDMI 2.1 (4K@60Hz) + 1x DisplayPort 1.4 (4K@60Hz) — iGPU only
Audio Realtek ALC897, 7.1-CH, up to 192kHz
Fan Headers 1x CPU Fan, 2x System Fan
RGB 3x ARGB V2 headers, 1x RGB header, 4x EZ Debug LED, 1x EZ Memory Detection LED
Extras M.2 Shield Frozr, Steel Armor PCIe 5.0, AI LAN Manager, JDASH Tuning Controller, Click BIOS 5, TPM 2.0 header, Chassis Intrusion header, I/O shield included
OS Support Windows 11 64-bit
