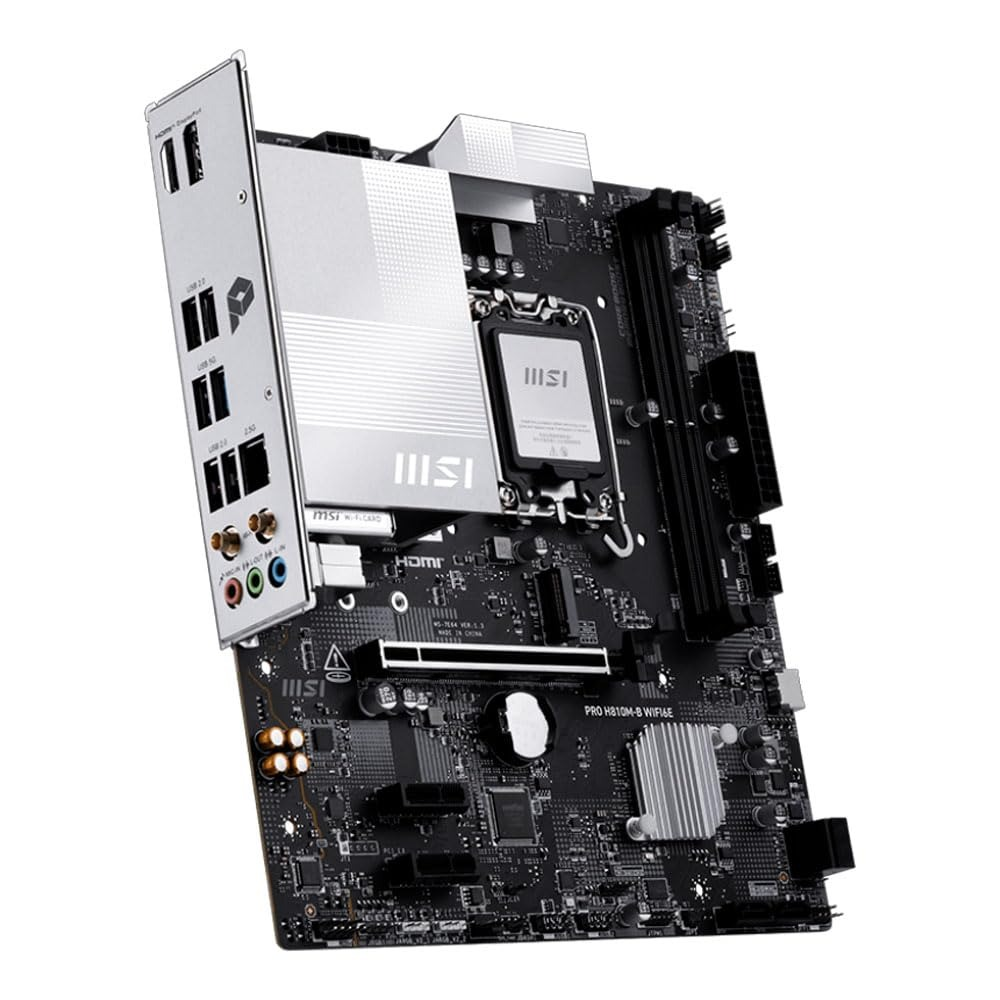

MSI PRO H810M-B WIFI6E Motherboard
Technical specification
Intel H810 mATX Motherboard for LGA 1851 — DDR5 up to 6400MHz, Wi-Fi 6E (160MHz, 2.4Gbps), BT 5.3, Realtek 2.5G LAN, PCIe 5.0 x16 Steel Armor, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, HDMI + DisplayPort, USB 20Gbps Type-C, EZ PCIe Clip II, 3x ARGB V2 + 1x RGB, Intel Core Ultra Series 2 Ready.
The MSI PRO H810M-B WIFI6E is a clean silver-design professional H810 mATX for Arrow Lake — bringing PCIe 5.0, Wi-Fi 6E, 2.5G LAN, USB 20Gbps Type-C, and DDR5 6400 to the affordable PRO tier. It features Core Boost VRM, M.2 Shield Frozr on Gen4 M.2, Steel Armor PCIe 5.0 with EZ PCIe Clip II, Realtek 2.5G LAN, AI LAN Manager, EZ Antenna with Magnetic Stand, 3x ARGB V2 + 1x RGB, JDASH Tuning Controller, EZ Debug LED, EZ Memory Detection LED, and full Intel Core Ultra Series 2 support.
- CPU Support: Intel Core Ultra Processors Series 2 — LGA 1851 socket (Arrow Lake)
- Power Delivery: Core Boost, Memory Boost, 1x 8-pin CPU connector
- Storage: M2_1: PCIe 4.0 x4 (Chipset, 2280/2260/2242) — M.2 Shield Frozr; 4x SATA 6G
- Connectivity: Wi-Fi 6E (2.4/5/6GHz, 160MHz, MU-MIMO, 802.11 a/b/g/n/ac/ax, up to 2.4Gbps), Bluetooth 5.3; Realtek 8125 2.5G LAN
- USB: Rear — 4x USB 2.0, 2x USB 5Gbps Gen 1 Type-A, 1x USB 20Gbps Gen 2x2 Type-C; Front — 4x USB 2.0, 2x USB 5Gbps Gen 1 Type-A, 1x USB 10Gbps Gen 2 Type-C
- PCIe: PCI_E1: PCIe 5.0 x16 (CPU, Steel Armor, EZ PCIe Clip II); PCI_E2: PCIe 4.0 x1 (Chipset); PCI_E3: PCIe 4.0 x1 (Chipset)
- Audio: Realtek ALC897, 7.1-CH, up to 192kHz
| Specification | Details |
|---|---|
| Chipset | Intel H810 |
| Socket | LGA 1851 |
| Form Factor | mATX (220 x 243.84 mm) |
| Memory | 2x DDR5 UDIMM (double-sided latch), up to 128GB; DDR5 6400(OC) / 4800(JEDEC) MHz; Intel XMP 3.0; CUDIMM supported; Dual-Controller Dual-Channel, Non-ECC Unbuffered |
| Memory Standard | Intel XMP 3.0, Non-ECC Unbuffered DDR5, Dual Channel |
| PCIe Slots | PCI_E1: PCIe 5.0 x16 (CPU, Steel Armor, EZ PCIe Clip II); PCI_E2: PCIe 4.0 x1 (Chipset); PCI_E3: PCIe 4.0 x1 (Chipset) |
| M.2 Slots | M2_1: PCIe 4.0 x4 (Chipset, 2280/2260/2242) — M.2 Shield Frozr; 1 slot only; No PCIe 5.0 M.2 |
| SATA | 4x SATA 6G (no RAID on H810) |
| LAN | Realtek 8125 2.5G LAN |
| Wireless | Wi-Fi 6E (2.4/5/6GHz, 160MHz, MU-MIMO, 802.11 a/b/g/n/ac/ax, up to 2.4Gbps), Bluetooth 5.3, M.2 Key-E (pre-installed) |

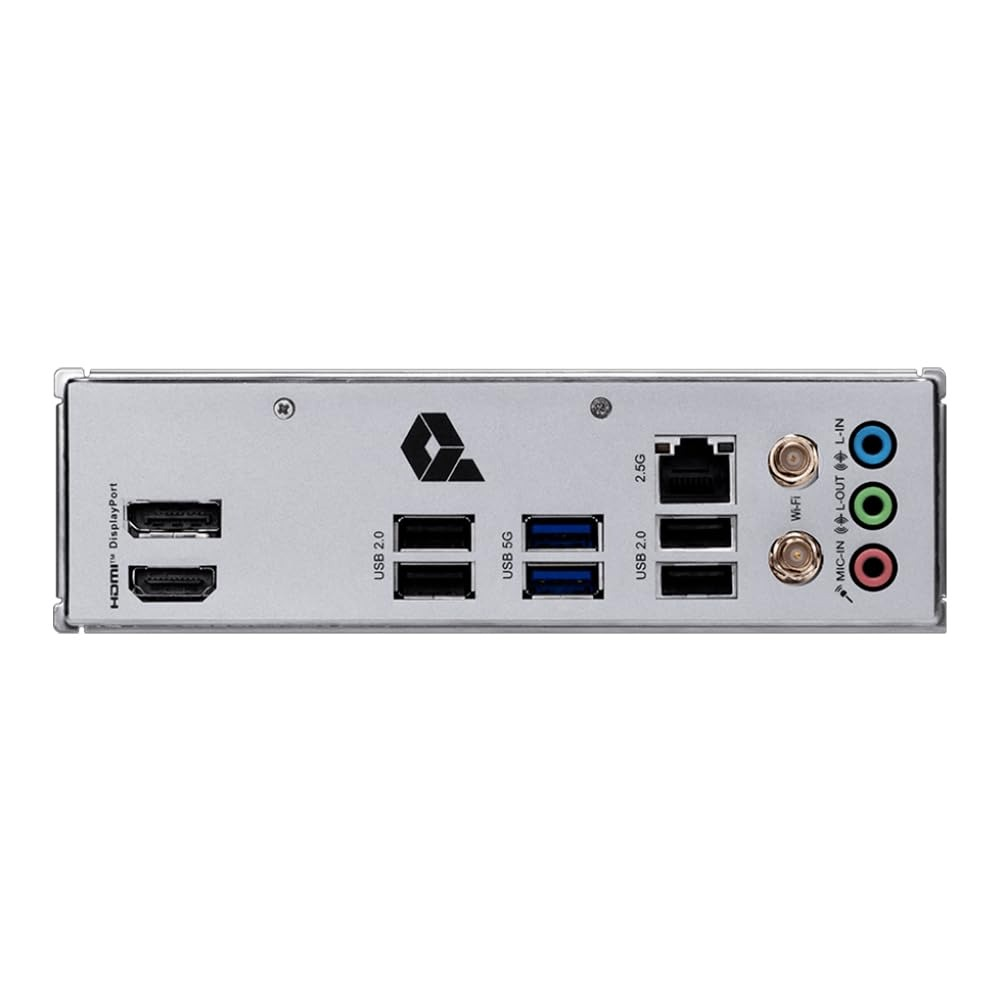

| Rear USB | 4x USB 2.0, 2x USB 5Gbps Gen 1 Type-A, 1x USB 20Gbps Gen 2x2 Type-C |
| Front USB Headers | 4x USB 2.0, 2x USB 5Gbps Gen 1 Type-A, 1x USB 10Gbps Gen 2 Type-C |
| Video Output | 1x HDMI + 1x DisplayPort — iGPU only |
| Audio | Realtek ALC897, 7.1-CH, up to 192kHz |
| Fan Headers | 1x CPU Fan, 2x System Fan |
| RGB | 3x ARGB V2 headers, 1x RGB header, 4x EZ Debug LED, 1x EZ Memory Detection LED |
| Extras | M.2 Shield Frozr, Steel Armor PCIe 5.0 (EZ PCIe Clip II), AI LAN Manager, EZ Antenna (Magnetic Stand), JDASH Tuning Controller, Click BIOS 5, TPM 2.0 header, Chassis Intrusion header, I/O shield included |
| OS Support | Windows 11 64-bit |
