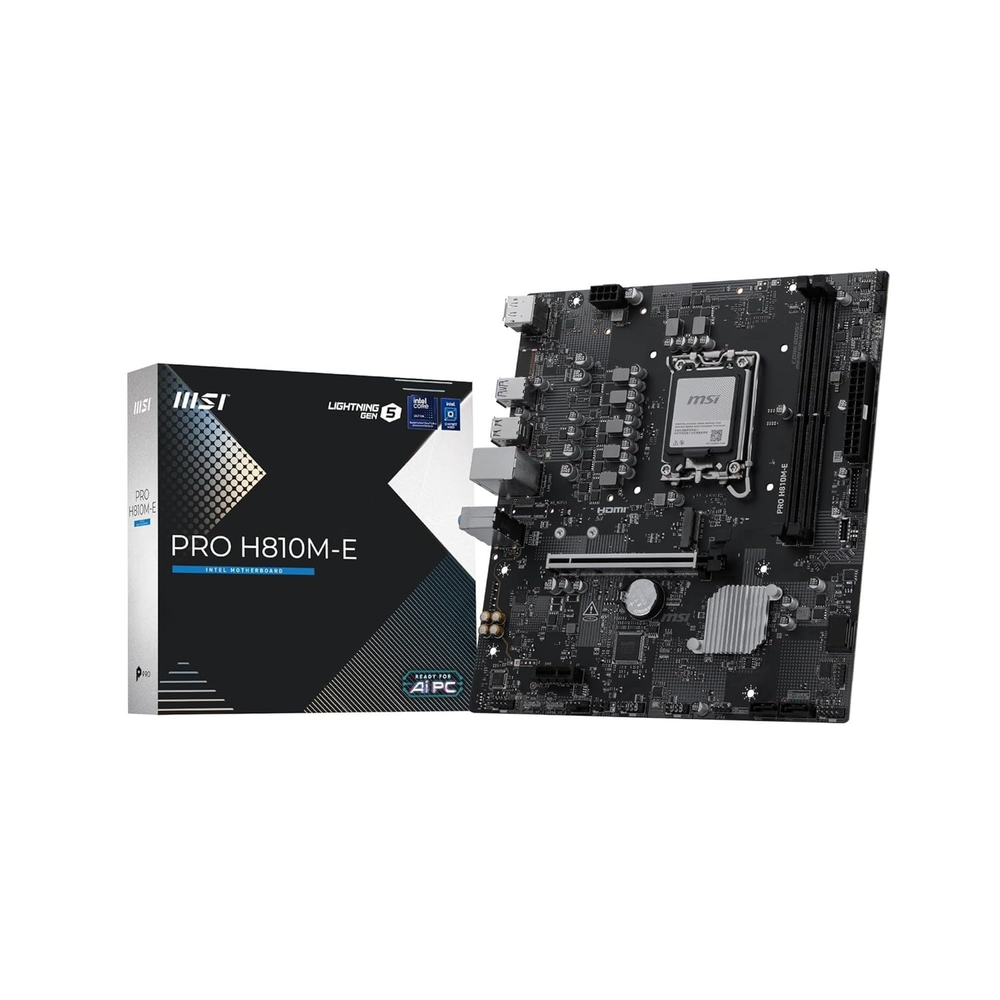

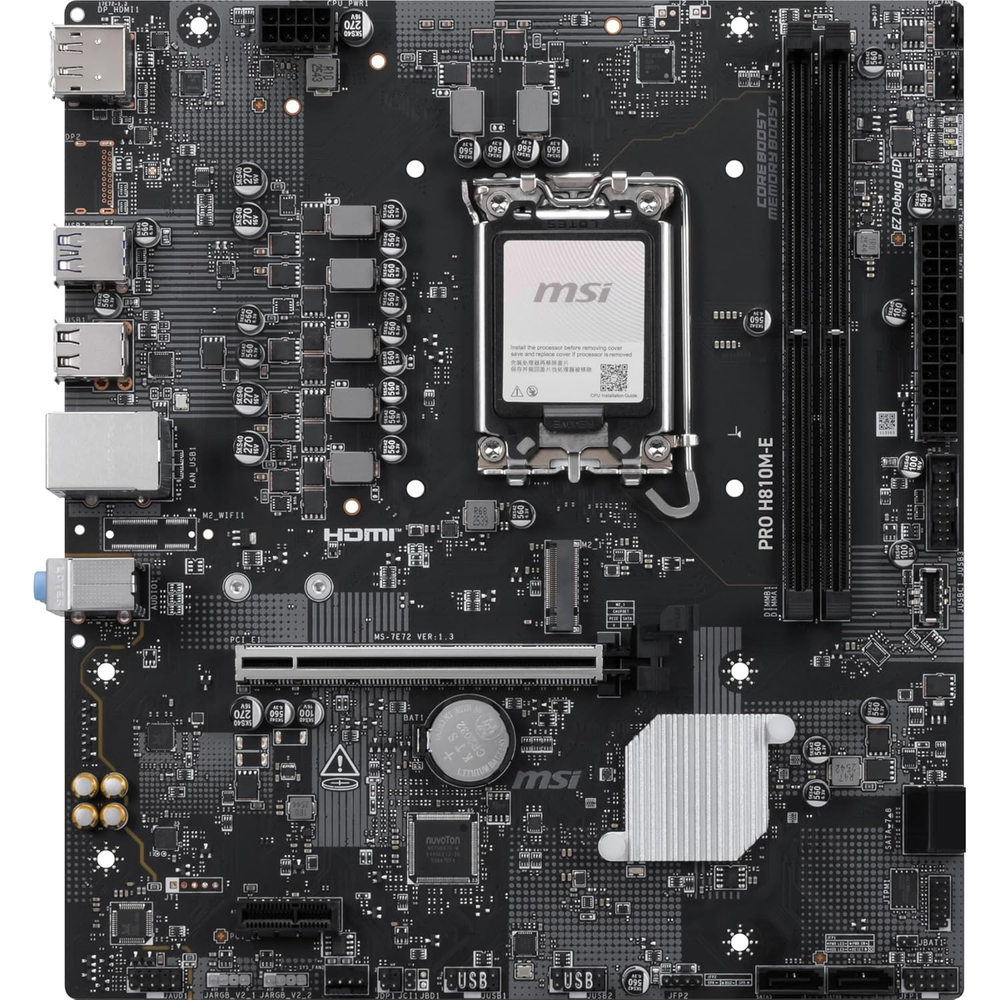

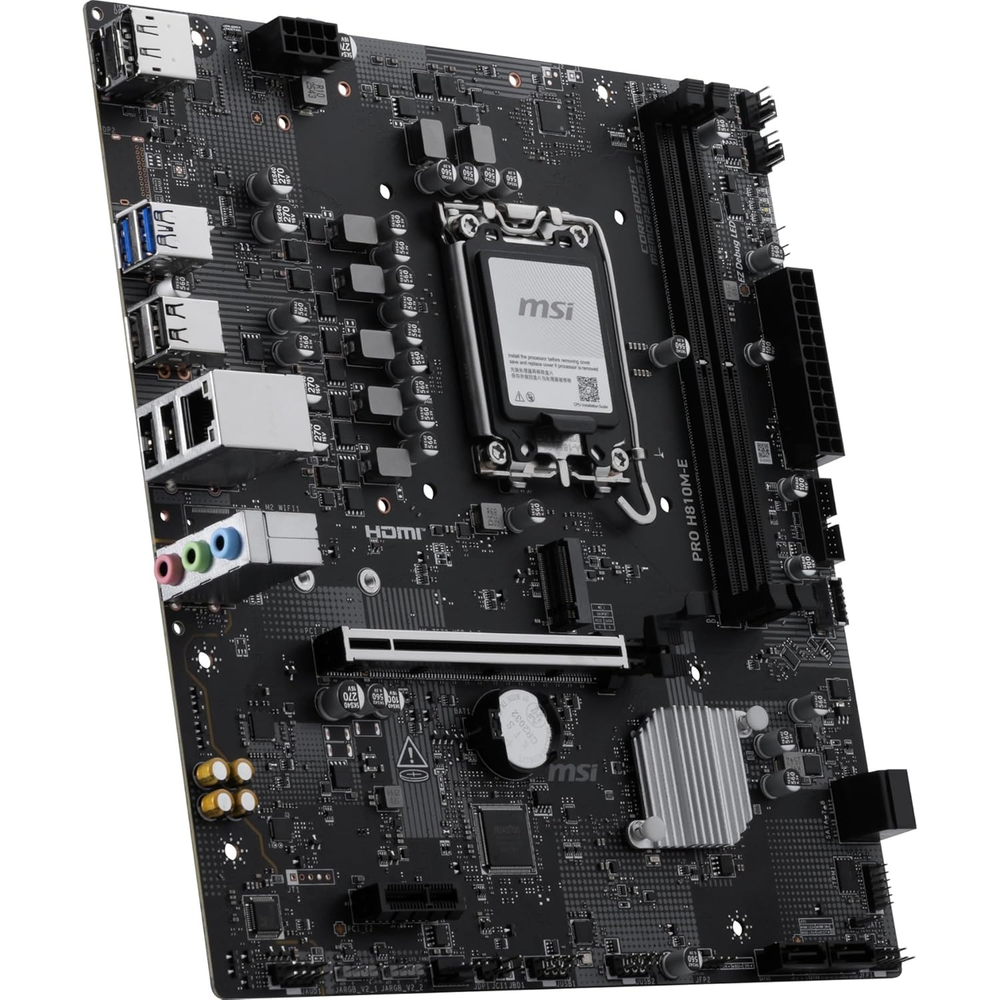

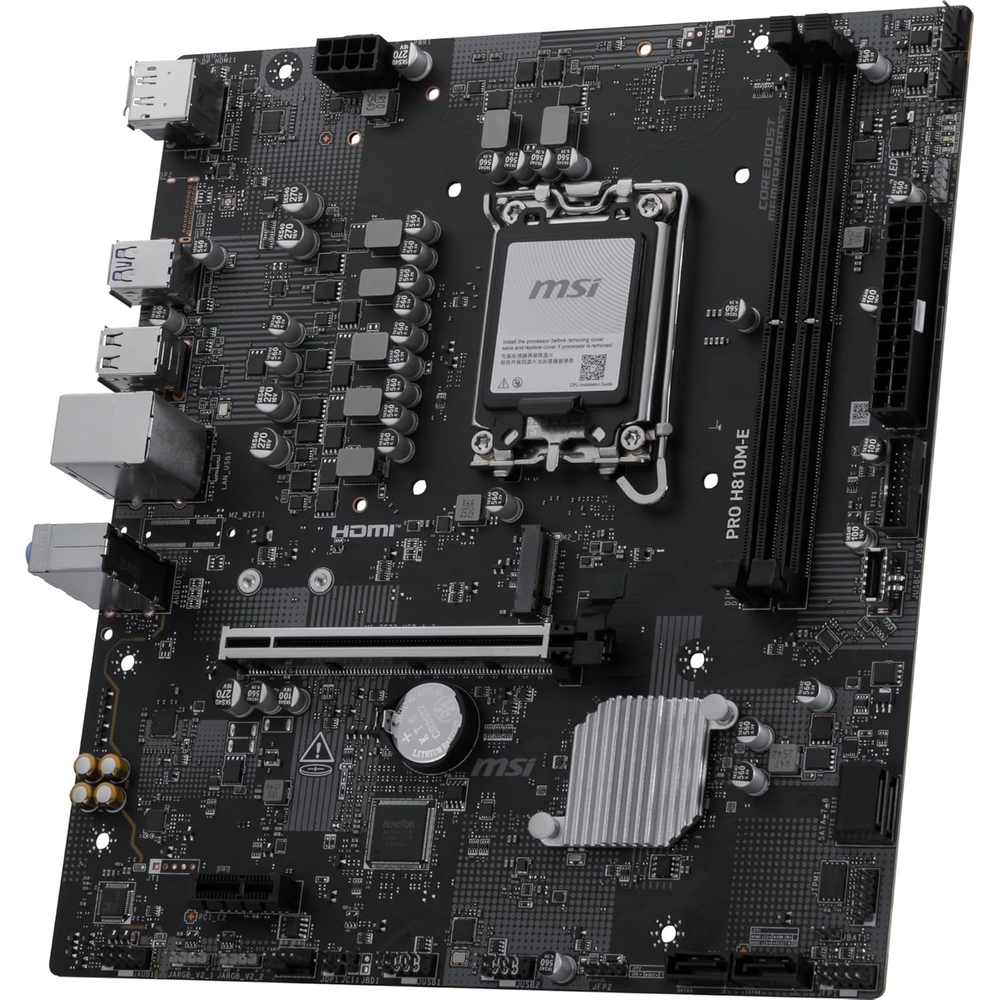

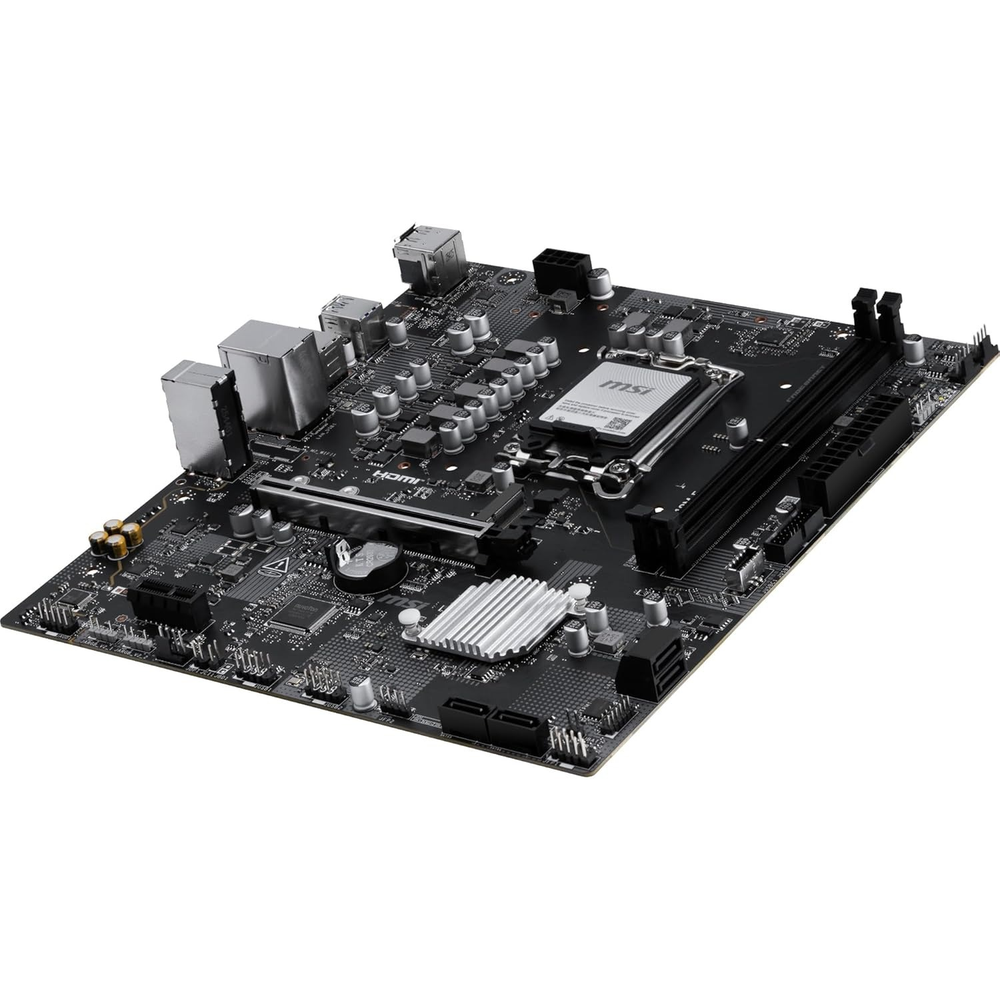

MSI PRO H810M-E Motherboard
Technical specification
Intel H810 mATX Motherboard for LGA 1851 — DDR5 up to 6400MHz, No Wi-Fi, Realtek 2.5G LAN, PCIe 5.0 x16, Lightning Gen 4 x4 M.2 (Chipset), HDMI 2.1 + DisplayPort 1.4, USB 5Gbps Type-C Front, 3x ARGB V2, EZ PCIe Clip II, Intel Core Ultra Series 2 Ready.
The MSI PRO H810M-E is the most affordable H810 mATX for Arrow Lake — delivering PCIe 5.0, 2.5G LAN, DDR5 6400, and Gen4 M.2 without Wi-Fi for the cleanest entry-level Arrow Lake professional build. It features Core Boost VRM, Memory Boost with XMP 3.0, CUDIMM support, Realtek 8125D 2.5G LAN, AI LAN Manager, HDMI 2.1 + DisplayPort 1.4, PCIe 5.0 x16 with EZ PCIe Clip II, 3x ARGB V2 headers, EZ Debug LED, EZ Memory Detection LED, chipset heatsink, and full Intel Core Ultra Series 2 compatibility.
- CPU Support: Intel Core Ultra Processors Series 2 — LGA 1851 socket (Arrow Lake)
- Power Delivery: Core Boost, Memory Boost, 1x 8-pin CPU connector
- Storage: M2_1: PCIe 4.0 x4 (Chipset, 2280/2260); 4x SATA 6G
- Connectivity: No Wi-Fi; Realtek 8125D 2.5G LAN
- USB: Rear — 4x USB 2.0, 2x USB 5Gbps Gen 1 Type-A; Front — 4x USB 2.0, 2x USB 5Gbps Gen 1 Type-A, 1x USB 5Gbps Gen 1 Type-C
- PCIe: PCI_E1: PCIe 5.0 x16 (CPU, EZ PCIe Clip II); PCI_E2: PCIe 4.0 x1 (Chipset)
- Audio: Realtek ALC897, 7.1-CH, up to 192kHz
| Specification | Details |
|---|---|
| Chipset | Intel H810 |
| Socket | LGA 1851 |
| Form Factor | mATX (220 x 243.84 mm) |
| Memory | 2x DDR5 UDIMM (double-sided latch), up to 128GB; DDR5 6400(OC) / 4800(JEDEC) MHz; Intel XMP 3.0; CUDIMM supported; Dual-Controller Dual-Channel, Non-ECC Unbuffered |
| Memory Standard | Intel XMP 3.0, Non-ECC Unbuffered DDR5, Dual Channel |
| PCIe Slots | PCI_E1: PCIe 5.0 x16 (CPU, EZ PCIe Clip II); PCI_E2: PCIe 4.0 x1 (Chipset) |
| M.2 Slots | M2_1: PCIe 4.0 x4 (Chipset, 2280/2260) — 1 slot only; No M.2 heatsink; No PCIe 5.0 M.2 |
| SATA | 4x SATA 6G (no RAID on H810) |
| LAN | Realtek 8125D 2.5G LAN (no Wi-Fi) |
| Wireless | None |

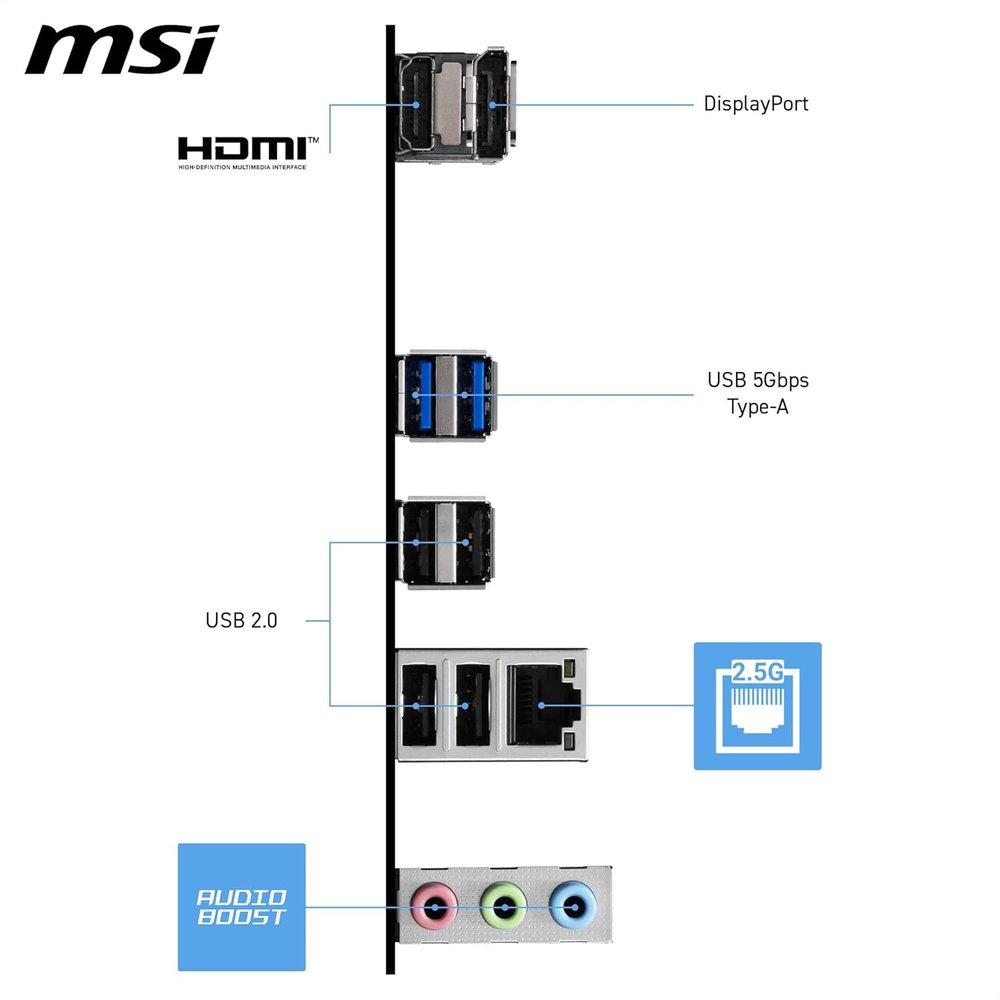

| Rear USB | 4x USB 2.0, 2x USB 5Gbps Gen 1 Type-A |
| Front USB Headers | 4x USB 2.0, 2x USB 5Gbps Gen 1 Type-A, 1x USB 5Gbps Gen 1 Type-C |
| Video Output | 1x HDMI 2.1 (4K@60Hz) + 1x DisplayPort 1.4 (4K@60Hz) — iGPU only |
| Audio | Realtek ALC897, 7.1-CH, up to 192kHz |
| Fan Headers | 1x CPU Fan, 2x System Fan |
| RGB | 3x ARGB V2 headers, 4x EZ Debug LED, 1x EZ Memory Detection LED |

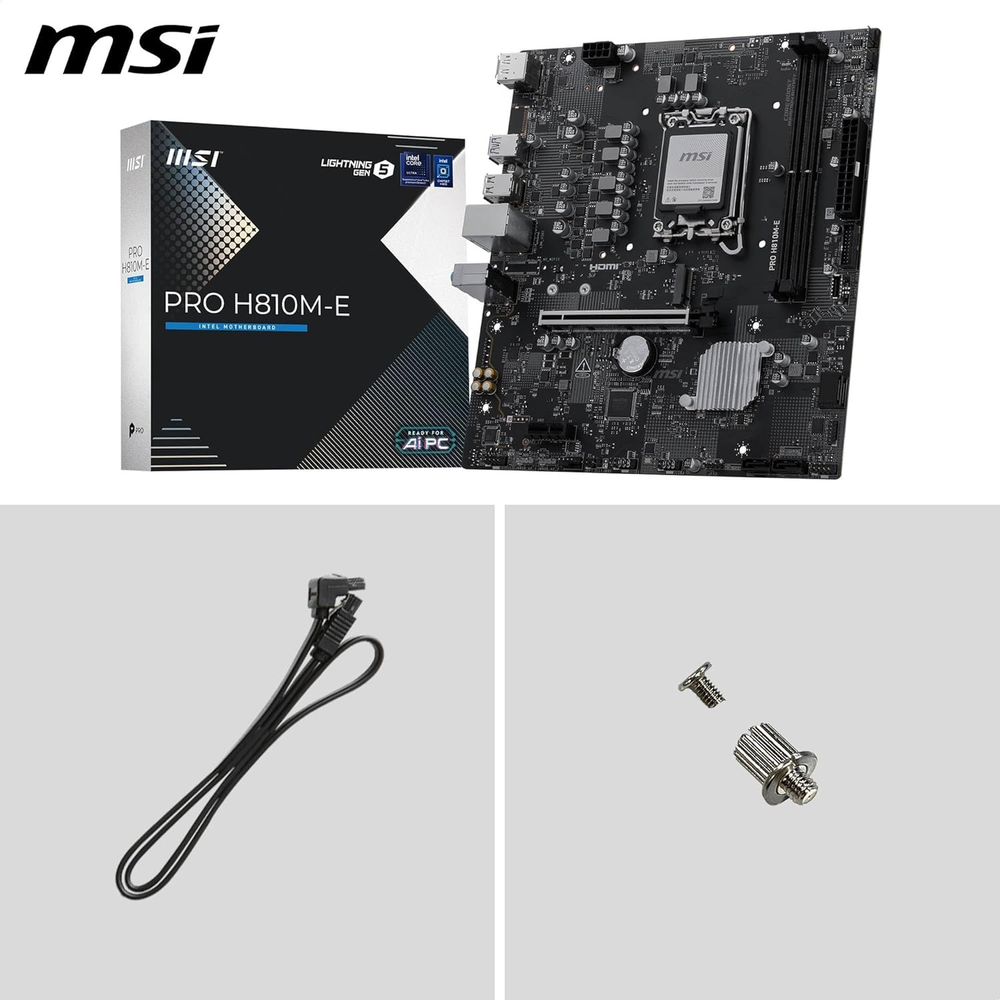

| Extras | EZ PCIe Clip II, Chipset Heatsink, AI LAN Manager, Click BIOS 5, TPM 2.0 header, Chassis Intrusion header, I/O shield included |
| OS Support | Windows 11 64-bit |
