Motherboard // MSI

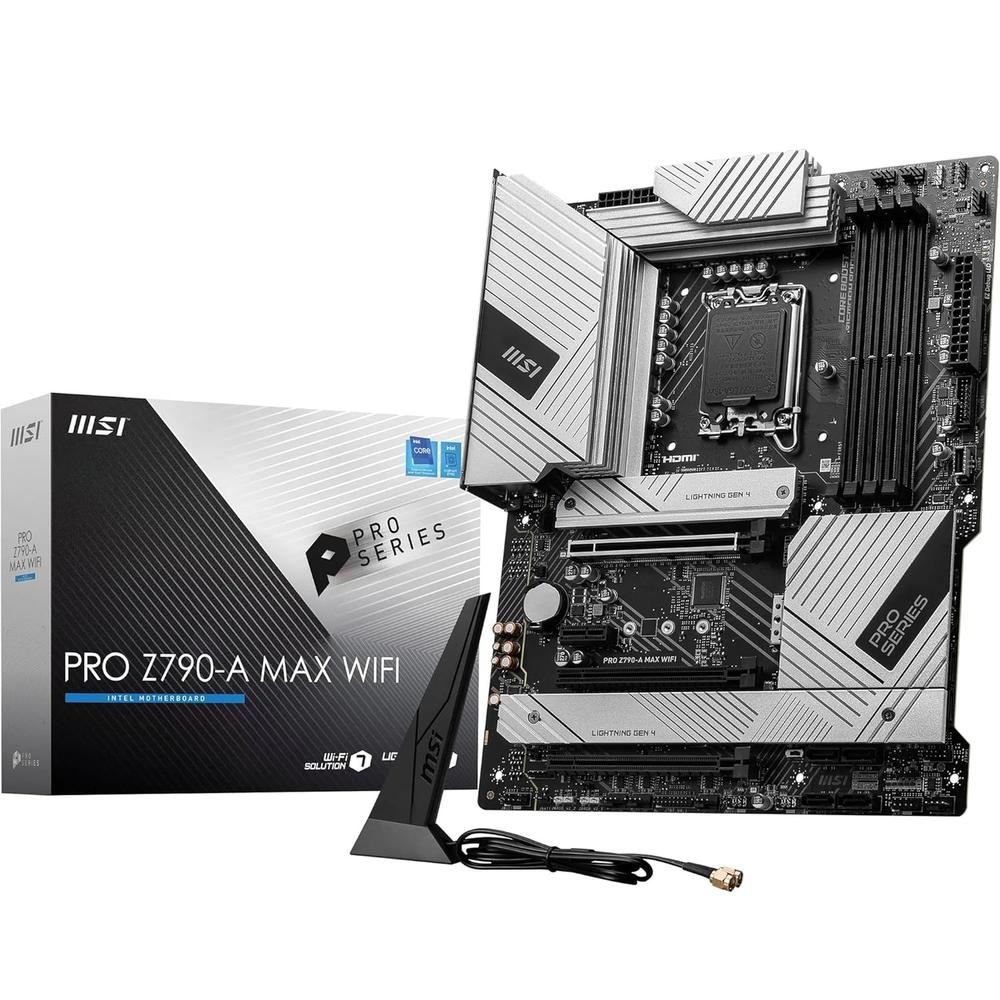

MSI PRO Z790-A MAX WIFI Motherboard
Price inclusive of all taxes
Technical specification
Professional Intel Z790 ATX Motherboard with Wi-Fi 7 — Engineered for Intel Core 12th, 13th & 14th Gen Performance.
The MSI PRO Z790-A MAX WIFI is a feature-rich ATX motherboard for Intel Core 12th, 13th, and 14th Gen processors on the LGA 1700 socket. It upgrades the PRO Z790-A with Wi-Fi 7 connectivity while retaining a robust 16+1+1 Duet Rail power system, 4x M.2 PCIe 4.0 slots, 6x SATA, Realtek ALC4080 audio, and MSI's server-grade 6-layer 2oz copper PCB — a strong all-round platform for builders and professionals alike.
-
>CPU Support: Intel Core 14th / 13th / 12th Gen + Pentium Gold / Celeron, LGA 1700 socket
>Power Delivery: 16+1+1 Duet Rail Power System, 80A SPS, dual 8-pin CPU connectors, 6-layer 2oz copper server-grade PCB
>Storage: 4x M.2 (all PCIe 4.0), 6x SATA 6G — RAID 0/1/5/10 for both SATA and NVMe
>Connectivity: Intel Wi-Fi 7 (802.11be, up to 5.8Gbps), Intel 2.5G LAN, Bluetooth 5.4
>USB: Rear — 3x USB 10Gbps Type-A, 1x USB 20Gbps Type-C, 2x USB 5Gbps Type-A, 2x USB 2.0
>Expansion: 1x PCIe 5.0 x16 (CPU), 1x PCIe 4.0 x4, 1x PCIe 3.0 x1, USB4 card connector (JTBT_U4)
>Audio: Realtek ALC4080, 7.1-Channel HD Audio, S/PDIF output, Audio Boost 5
| Specification | Details |
|---|---|
| Chipset | Intel Z790 |
| Socket | LGA 1700 |
| Form Factor | ATX (243.84 x 304.8 mm) |
| Memory | 4x DDR5 UDIMM, up to 192GB, DDR5 7800+ MT/s (OC) / 5600 MT/s (JEDEC) |
| Memory Standard | XMP 3.0, Dual Channel |
| PCIe Slots | PCI_E1: PCIe 5.0 x16 (CPU); PCI_E2: PCIe 3.0 x1 (Chipset); PCI_E3: PCIe 4.0 x4 (Chipset); PCI_E4: PCIe 3.0 x1 (Chipset) |
| M.2 Slots | 4x M.2 — M.2_1: PCIe 4.0 x4 (CPU); M.2_2: PCIe 4.0 x4 (Chipset); M.2_3: PCIe 4.0 x4 / SATA (Chipset); M.2_4: PCIe 4.0 x4 / SATA (Chipset) |
| SATA | 6x SATA 6G | RAID 0, 1, 5, 10 |
| LAN | Intel I226-V 2.5G LAN |
| Wireless | Intel Wi-Fi 7 (802.11be, 2.4/5/6GHz, 320MHz, up to 5.8Gbps), Bluetooth 5.4 |
| Thunderbolt | 1x TBT connector (JTBT, RTD3), 1x USB4 card connector (JTBT_U4_1, RTD3) |
| Rear USB | 3x USB 10Gbps Type-A, 1x USB 20Gbps Type-C, 2x USB 5Gbps Type-A, 2x USB 2.0 |
| Front USB Headers | 1x USB 10Gbps Type-C, 2x USB 5Gbps Type-A, 4x USB 2.0 |
| Video Output | 1x HDMI 2.1 (4K@60Hz), 1x DisplayPort 1.4 (8K@60Hz) |
| Audio | Realtek ALC4080, 7.1-CH HD Audio, S/PDIF out, Audio Boost 5 |
| Fan Headers | 1x CPU Fan, 1x Pump Fan, 6x System Fan |
| RGB | 3x ARGB V2 headers, 1x RGB header, 4x EZ Debug LED |
| OS Support | Windows 11 64-bit |
