Motherboard // MSI

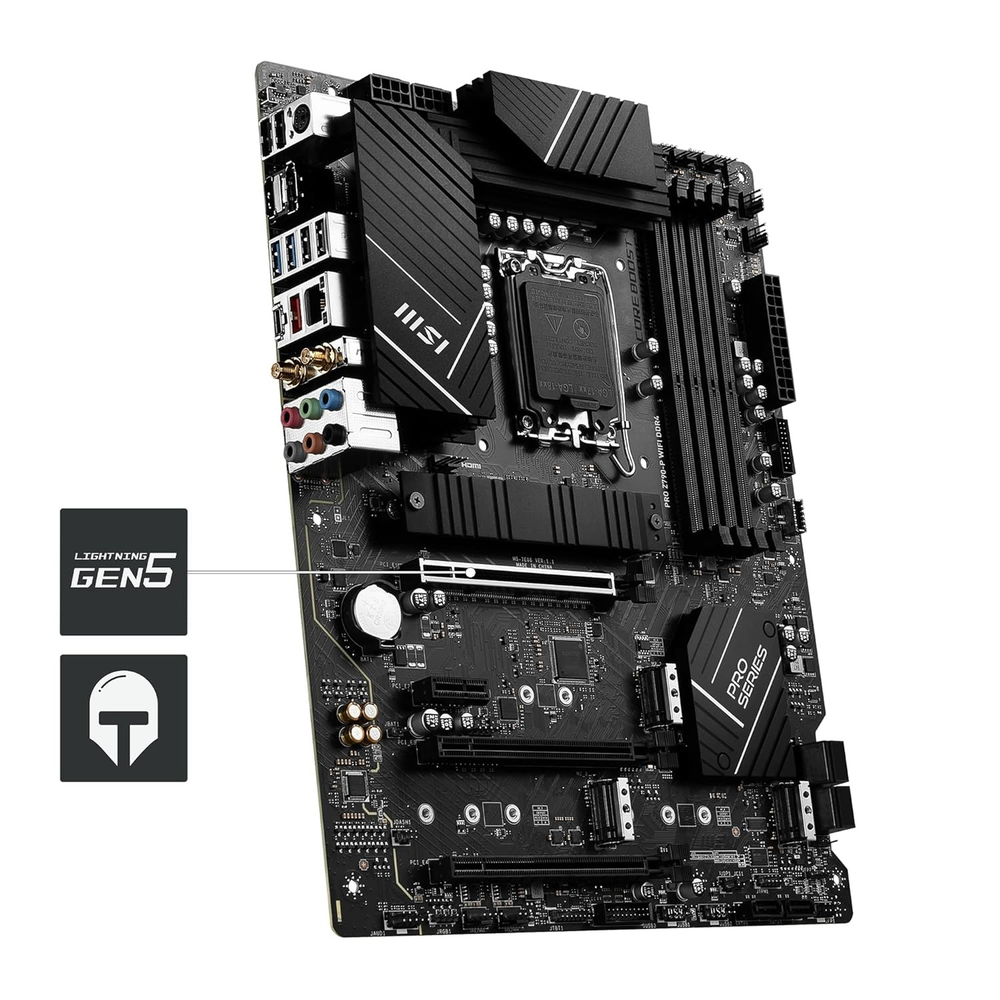

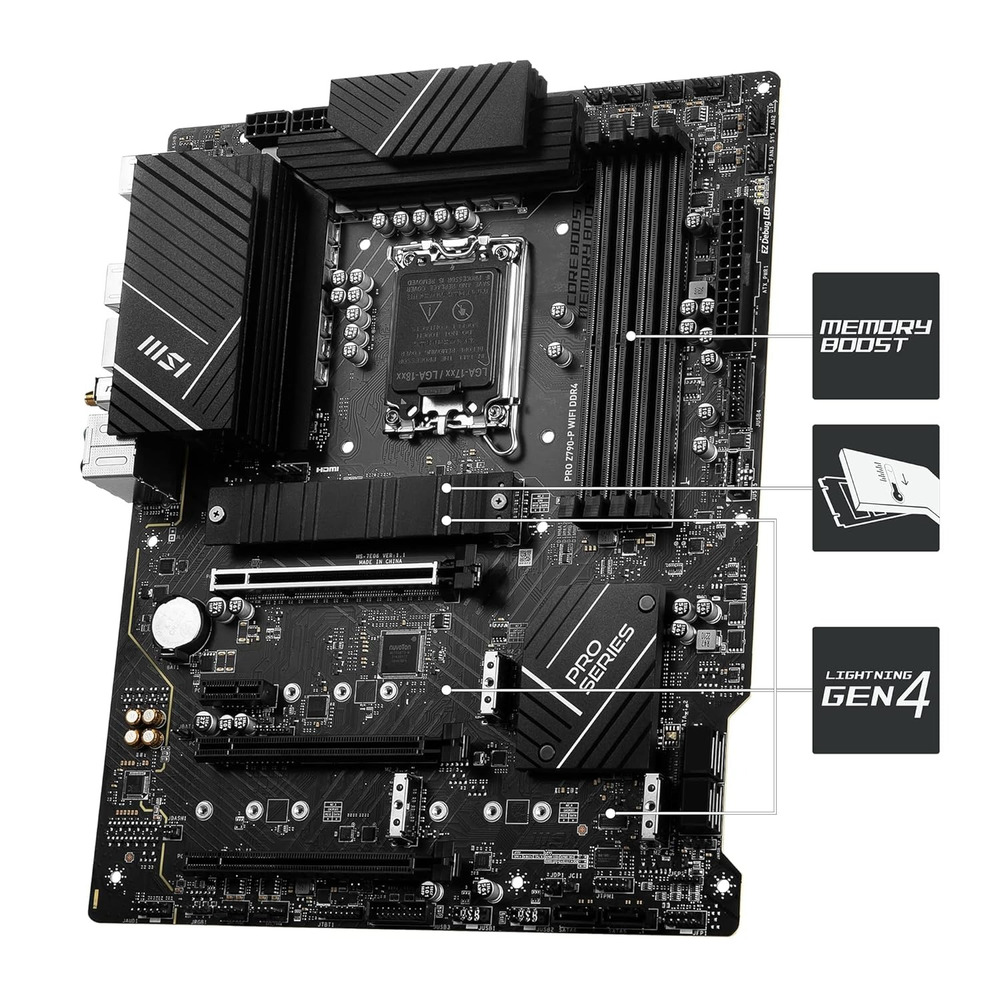

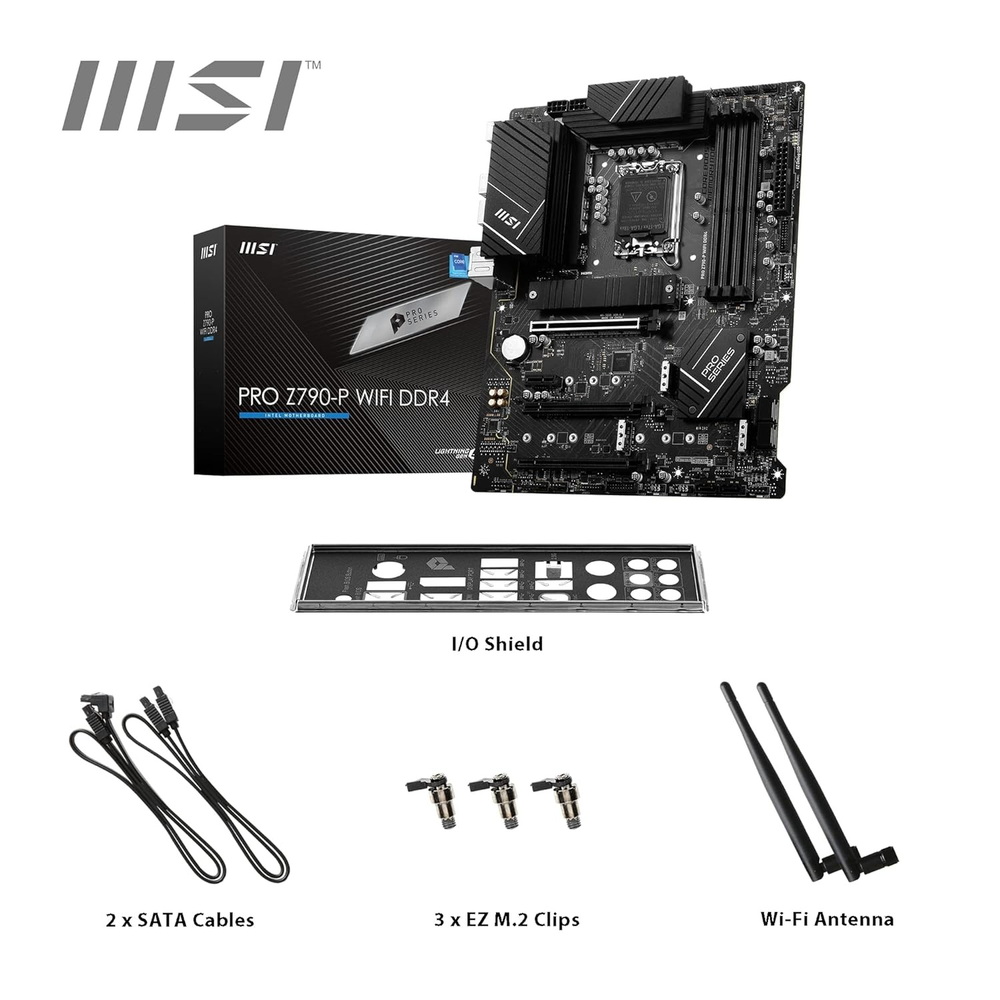

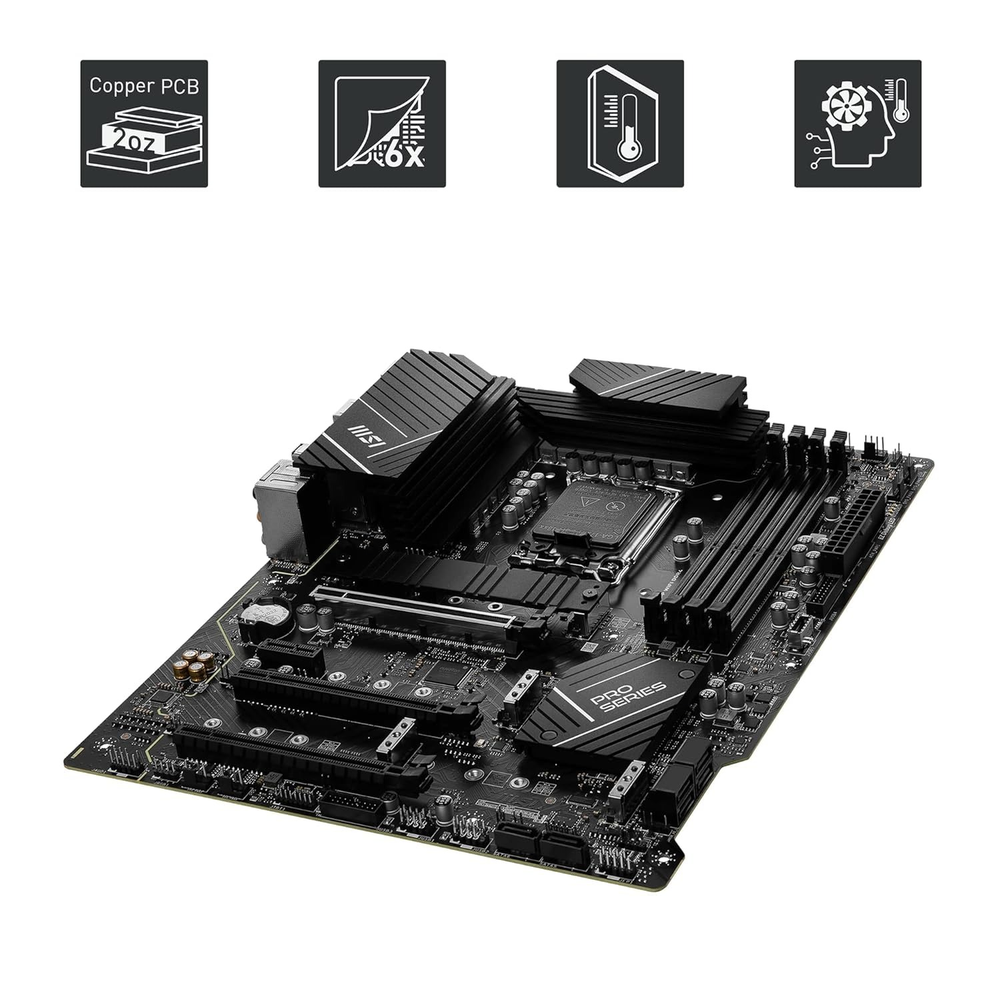

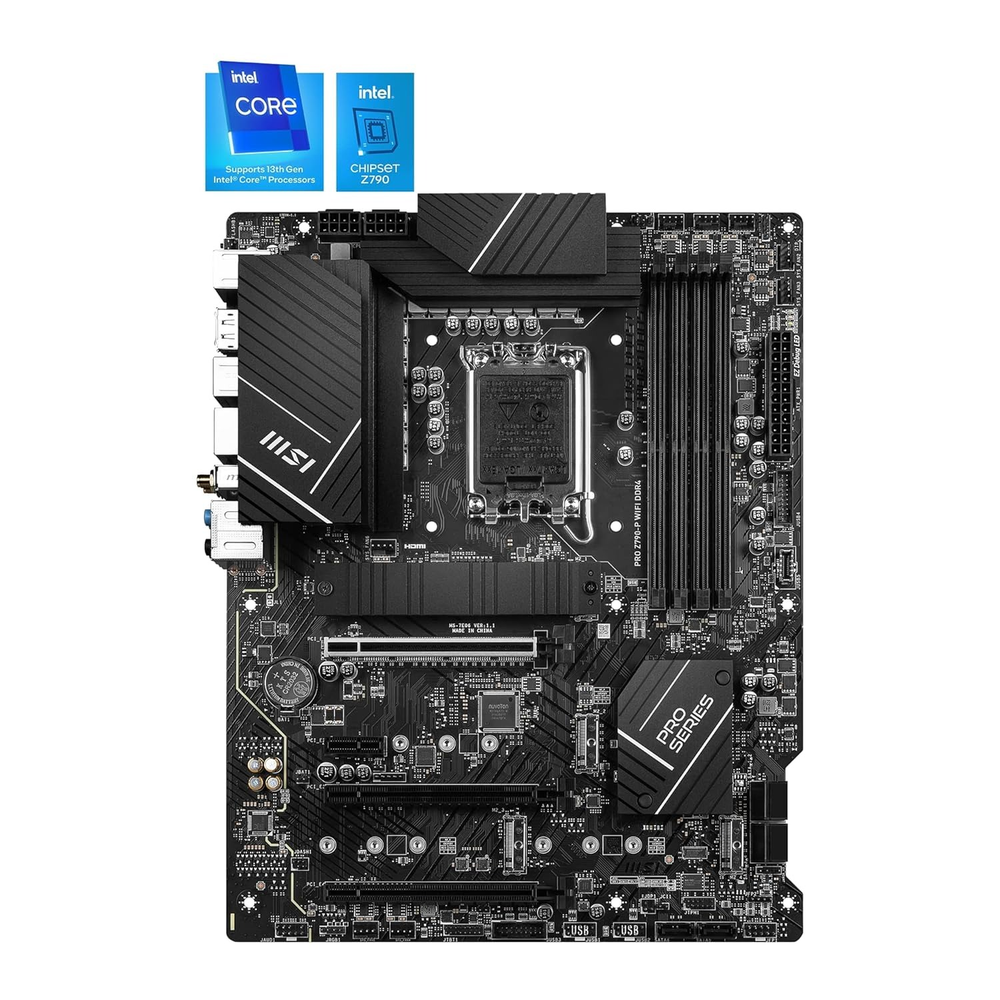

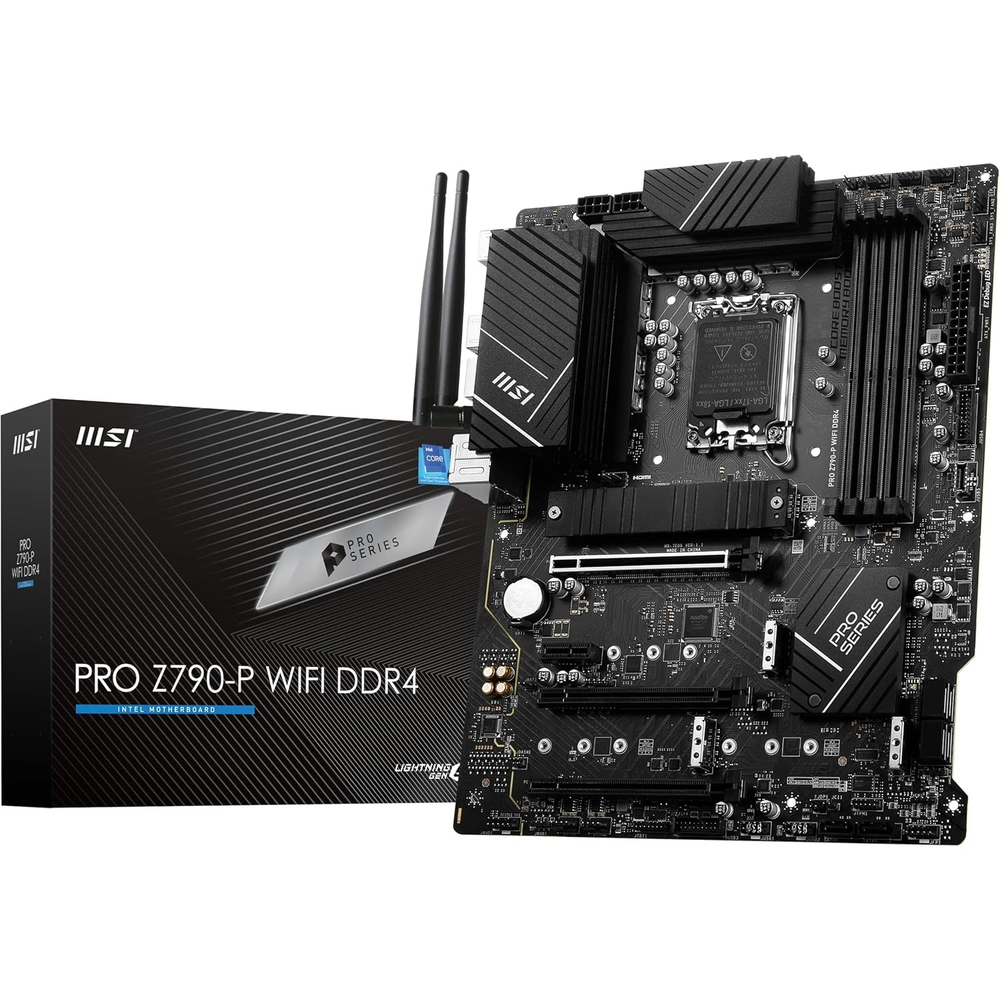

MSI PRO Z790-P WIFI DDR4 Motherboard
Technical specification
Intel Z790 ATX Motherboard with DDR4 Support — Wi-Fi 6E, PCIe 5.0, and 4x M.2 for Intel Core 12th, 13th & 14th Gen.
The MSI PRO Z790-P WIFI DDR4 is a solid ATX motherboard for Intel Core 12th, 13th, and 14th Gen processors on the LGA 1700 socket, designed for builders who want Z790 performance while retaining their existing DDR4 memory. It features a 14+1+1 Duet Rail power system, Intel Wi-Fi 6E, Intel 2.5G LAN, 4x M.2 PCIe 4.0 slots, 6x SATA, and Lightning USB 20G — making it an excellent value Z790 platform.
-
>CPU Support: Intel Core 14th / 13th / 12th Gen + Pentium Gold / Celeron, LGA 1700 socket
>Power Delivery: 14+1+1 Duet Rail Power System, 55A DrMOS, dual 8-pin CPU connectors
>Memory: DDR4 5333+ MT/s (OC) — great for builders upgrading from Z690 or Z590 platforms
>Storage: 4x M.2 (all PCIe 4.0), 6x SATA 6G — RAID 0/1/5/10
>Connectivity: Intel Wi-Fi 6E (AX211, 2.4/5/6GHz, up to 2.4Gbps), Intel 2.5G LAN, Bluetooth 5.3
>USB: Rear — 4x USB 5Gbps Type-A, 1x USB 10Gbps Type-C; Front — 4x USB 5Gbps Type-A, 1x USB 10Gbps Type-C, 4x USB 2.0
>Audio: Realtek ALC897, 7.1-Channel HD Audio
| Specification | Details |
|---|---|
| Chipset | Intel Z790 |
| Socket | LGA 1700 |
| Form Factor | ATX (243.84 x 304.8 mm) |
| Memory | 4x DDR4 UDIMM, up to 128GB, DDR4 5333+ MT/s (OC) / 3200–2133 MT/s (JEDEC) |
| Memory Standard | XMP, Dual Channel |
| PCIe Slots | PCI_E1: PCIe 5.0 x16 (CPU); PCI_E2: PCIe 3.0 x1 (Chipset); PCI_E3: PCIe 4.0 x4 (Chipset); PCI_E4: PCIe 3.0 x1 (Chipset) |
| M.2 Slots | 4x M.2 — M.2_1: PCIe 4.0 x4 (CPU); M.2_2: PCIe 4.0 x4 (Chipset); M.2_3: PCIe 4.0 x4 / SATA (Chipset); M.2_4: PCIe 4.0 x4 / SATA (Chipset) |
| SATA | 6x SATA 6G | RAID 0, 1, 5, 10 |
| LAN | Intel I226-V 2.5G LAN |
| Wireless | Intel Wi-Fi 6E (AX211, 2.4/5/6GHz, 160MHz, up to 2.4Gbps), Bluetooth 5.3 |
| Thunderbolt | Not included (JTBT header present) |

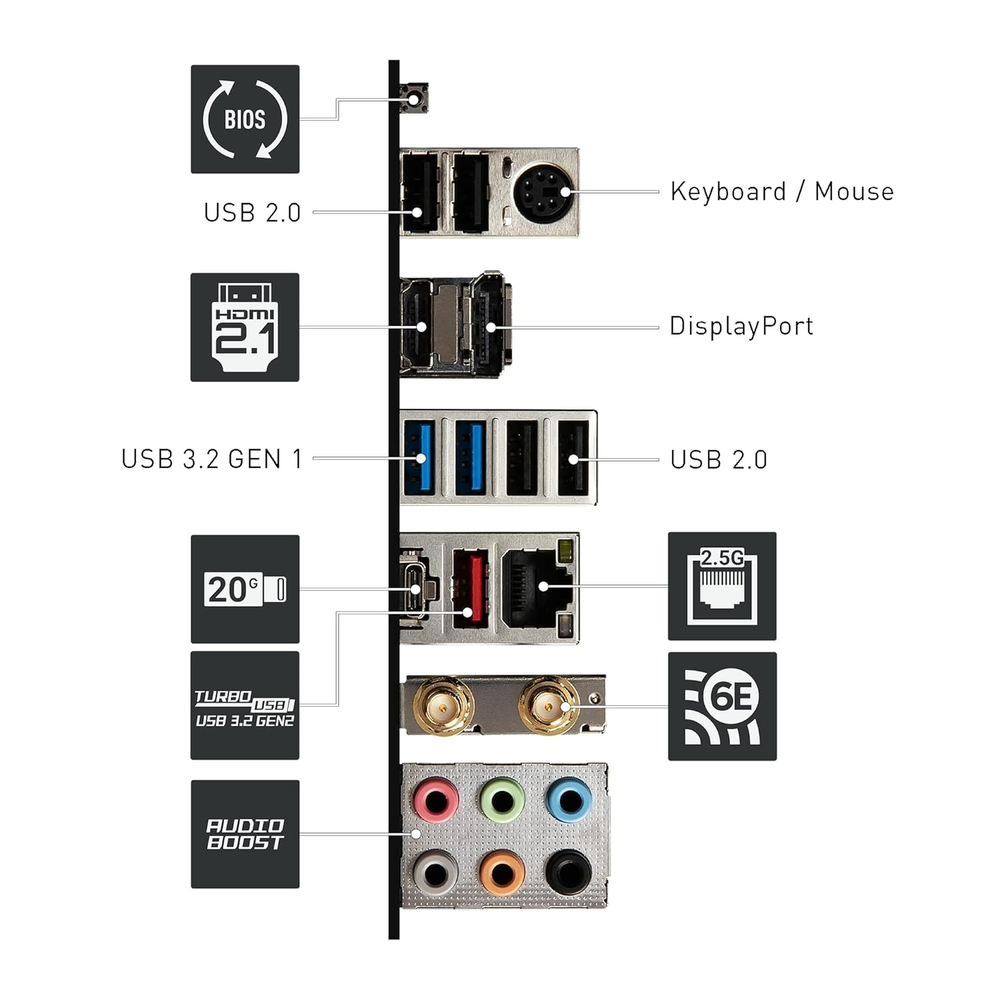

| Rear USB | 4x USB 5Gbps Type-A, 1x USB 10Gbps Type-C |
| Front USB Headers | 4x USB 5Gbps Type-A, 1x USB 10Gbps Type-C, 4x USB 2.0 |
| Video Output | 1x HDMI 2.1 (4K@60Hz), 1x DisplayPort 1.4 (4K@60Hz) |
| Audio | Realtek ALC897, 7.1-CH HD Audio |
| Fan Headers | 1x CPU Fan, 1x Pump Fan, 6x System Fan |
| RGB | 2x ARGB V2 headers, 1x RGB header, 4x EZ Debug LED |
| OS Support | Windows 11 / 10 64-bit |
