Motherboard // MSI

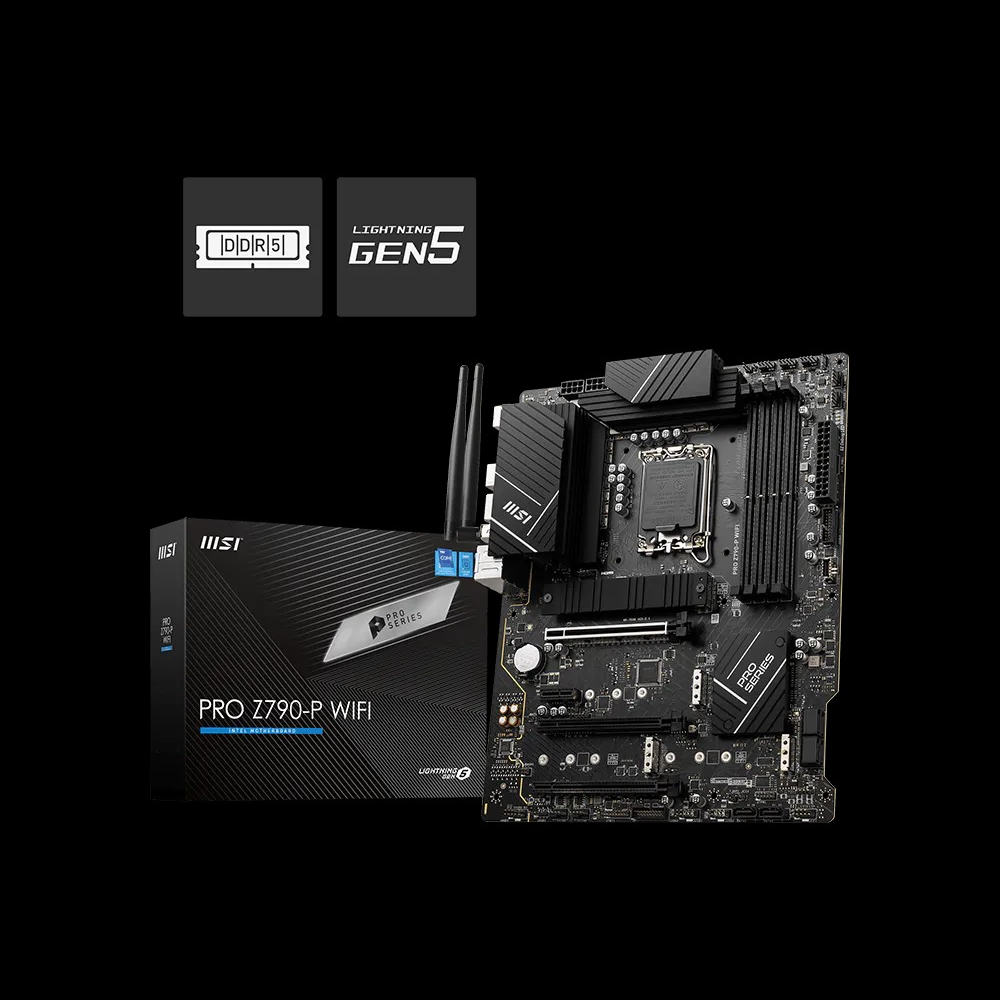

MSI PRO Z790-P WIFI Motherboard
Price inclusive of all taxes
Technical specification
Intel Z790 ATX Motherboard with DDR5 — Wi-Fi 6E, PCIe 5.0, and 4x M.2 Gen4 for Intel Core 12th, 13th & 14th Gen.
The MSI PRO Z790-P WIFI is an ATX motherboard for Intel Core 12th, 13th, and 14th Gen processors on the LGA 1700 socket. It features DDR5 support up to 7000+ MT/s (OC), a 14+1+1 Duet Rail power system with 55A DrMOS, Intel Wi-Fi 6E, 2.5G LAN, 4x M.2 PCIe 4.0 slots, 6x SATA, and USB 20Gbps — making it a feature-complete mid-range Z790 platform for gaming and productivity builds.
-
>CPU Support: Intel Core 14th / 13th / 12th Gen + Pentium Gold / Celeron, LGA 1700 socket
>Power Delivery: 14+1+1 Duet Rail Power System, 55A DrMOS, dual 8-pin CPU connectors, 6-layer 2oz copper PCB
>Storage: 4x M.2 (all PCIe 4.0), 6x SATA 6G — RAID 0/1/5/10 for both SATA and NVMe
>Connectivity: Intel Wi-Fi 6E (AX211, 2.4/5/6GHz, 160MHz, up to 2.4Gbps), Intel 2.5G LAN, Bluetooth 5.3
>USB: Rear — 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-A, 1x USB 20Gbps Type-C, 4x USB 2.0; Front — 4x USB 5Gbps Type-A, 1x USB 10Gbps Type-C, 4x USB 2.0
>EZ Features: EZ M.2 Clip, EZ Debug LED, Flash BIOS Button, pre-installed I/O shield
>Audio: Realtek ALC897, 7.1-Channel HD Audio
| Specification | Details |
|---|---|
| Chipset | Intel Z790 |
| Socket | LGA 1700 |
| Form Factor | ATX (243.84 x 304.8 mm) |
| Memory | 4x DDR5 UDIMM, up to 256GB, DDR5 7000+ MT/s (OC) / 5600–4800 MT/s (JEDEC) |
| Memory Standard | XMP 3.0, Dual Channel, non-ECC unbuffered |
| PCIe Slots | PCI_E1: PCIe 5.0 x16 (CPU); PCI_E2: PCIe 3.0 x1 (Chipset); PCI_E3: PCIe 4.0 x4 (Chipset); PCI_E4: PCIe 3.0 x1 (Chipset) |
| M.2 Slots | 4x M.2 — M.2_1: PCIe 4.0 x4 (CPU); M.2_2: PCIe 4.0 x4 (Chipset); M.2_3: PCIe 4.0 x4 / SATA (Chipset); M.2_4: PCIe 4.0 x4 / SATA (Chipset) |
| SATA | 6x SATA 6G | RAID 0, 1, 5, 10 |
| LAN | Intel I226-V 2.5G LAN |
| Wireless | Intel Wi-Fi 6E (AX211, 2.4/5/6GHz, 160MHz, up to 2.4Gbps), Bluetooth 5.3 |
| Thunderbolt | Not included (JTBT header present, supports RTD3) |
| Rear USB | 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-A, 1x USB 20Gbps Type-C |
| Front USB Headers | 4x USB 2.0, 4x USB 5Gbps Type-A, 1x USB 10Gbps Type-C |
| Video Output | 1x HDMI 2.1 (4K@60Hz), 1x DisplayPort 1.4 (4K@60Hz) |
| Audio | Realtek ALC897, 7.1-CH HD Audio |
| Fan Headers | 1x CPU Fan, 1x Pump Fan, 6x System Fan |
| RGB | 2x ARGB V2 headers, 1x RGB header, 4x EZ Debug LED |
| OS Support | Windows 11 / 10 64-bit |
