MSI PRO Z890-A WIFI Motherboard
Technical specification
Clean Silver ATX Motherboard for Intel Core Ultra Series 2 — Professional-Grade Features, Understated Design.

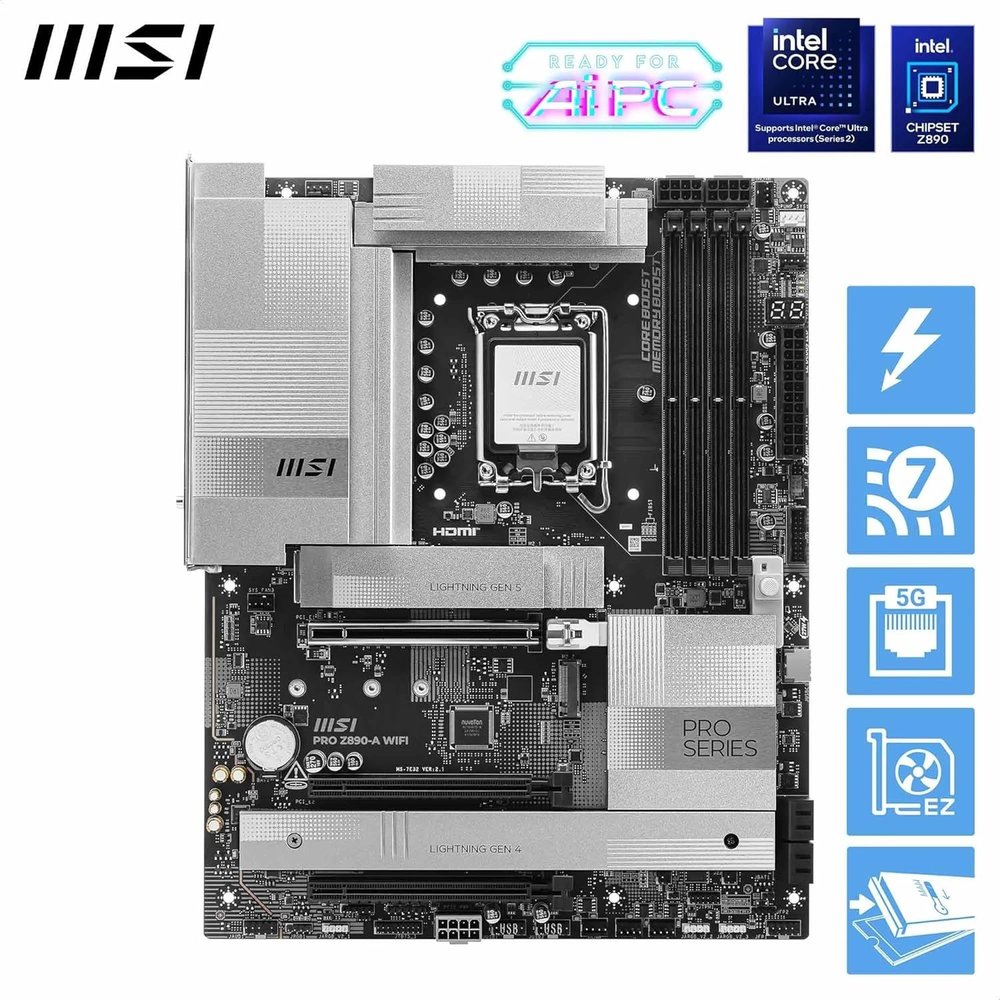

The MSI PRO Z890-A WIFI is a sleek silver-accented ATX motherboard built for Intel Core Ultra Series 2 processors on the LGA 1851 socket. Part of MSI's PRO series, it delivers a refined, no-frills platform with Wi-Fi 7, 5G LAN, dual Thunderbolt 4 ports, 4x M.2 slots with PCIe 5.0, and EZ DIY features — making it an ideal choice for productivity builds and clean-aesthetic systems.
-
>CPU Support: Intel Core Ultra Series 2, LGA 1851 socket

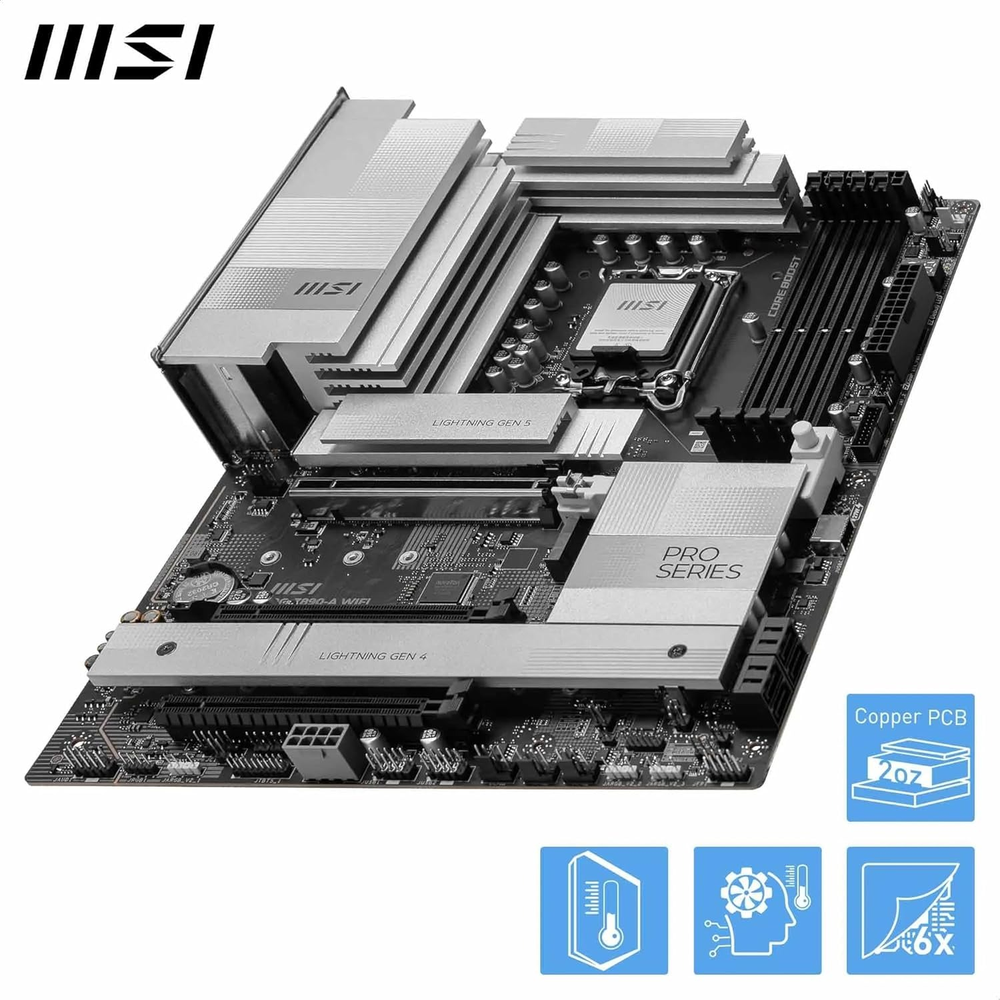

>Power Delivery: 14+1+1+1 Duet Rail Power System, 90A SPS, 6-layer PCB

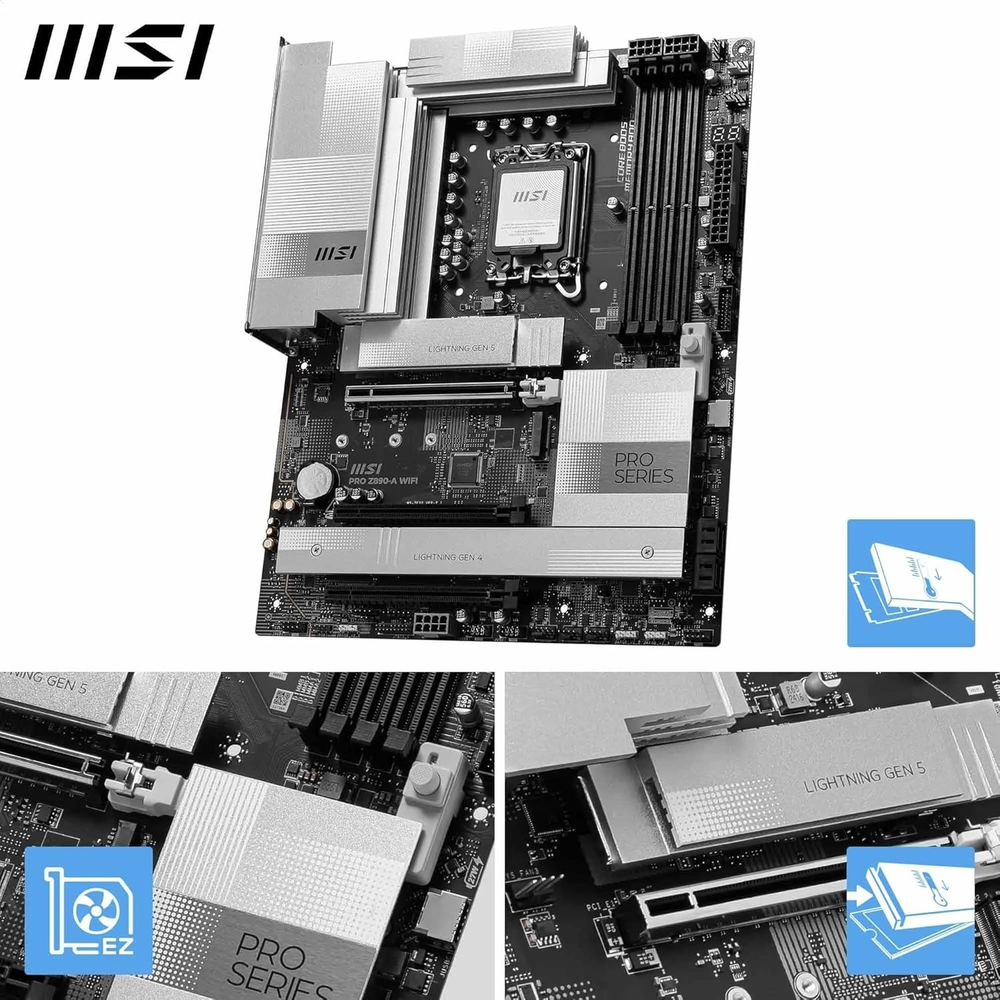

>Storage: 4x M.2 slots (1x PCIe 5.0 CPU, 3x PCIe 4.0), 4x SATA 6G — all with EZ M.2 Shield Frozr II
>Connectivity: Intel Wi-Fi 7, Realtek 5G LAN, 2x Thunderbolt 4 rear ports
>EZ Features: EZ M.2 Clip, EZ PCIe Release, EZ Debug LED, EZ Digit Debug LED, EZ Antenna
>USB: Rear — 3x USB 10Gbps Type-A, 1x USB 10Gbps Type-C, 4x USB 5Gbps Type-A, 2x USB 2.0
>Audio: Realtek ALC1220P, 7.1-Channel HD Audio with S/PDIF output
| Specification | Details |
|---|---|
| Chipset | Intel Z890 |
| Socket | LGA 1851 |
| Form Factor | ATX (243.84 x 304.8 mm) |
| Memory | 4x DDR5 UDIMM, up to 256GB, DDR5 9200+ MT/s (OC) / 6400 MT/s (JEDEC) |
| Memory Standard | XMP 3.0, CUDIMM supported, Dual Channel |
| PCIe Slots | 1x PCIe 5.0 x16 (CPU), 1x PCIe 4.0 x16 (x4 mode), 1x PCIe 4.0 x1 |

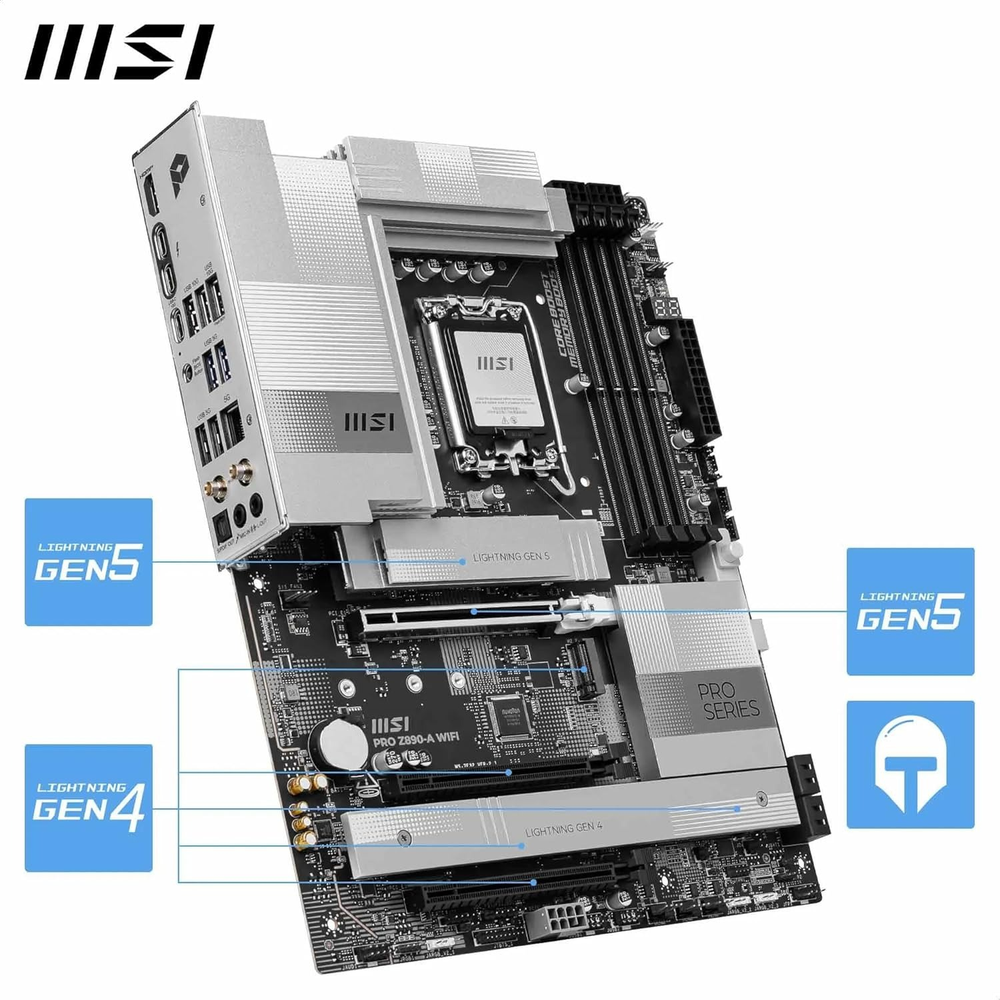

| M.2 Slots | 4x M.2 — M.2_1: PCIe 5.0 x4 (CPU); M.2_2: PCIe 4.0 x4 (CPU); M.2_3/4: PCIe 4.0 x4 (Chipset); all with EZ M.2 Shield Frozr II |
| SATA | 4x SATA 6G | RAID 0, 1, 5, 10 |
| LAN | Realtek 8126 5G LAN |
| Wireless | Intel Wi-Fi 7 (2.4/5/6GHz, up to 5.8Gbps), Bluetooth 5.4 |
| Thunderbolt | 2x Thunderbolt 4 rear (40Gbps, DP 2.1) |

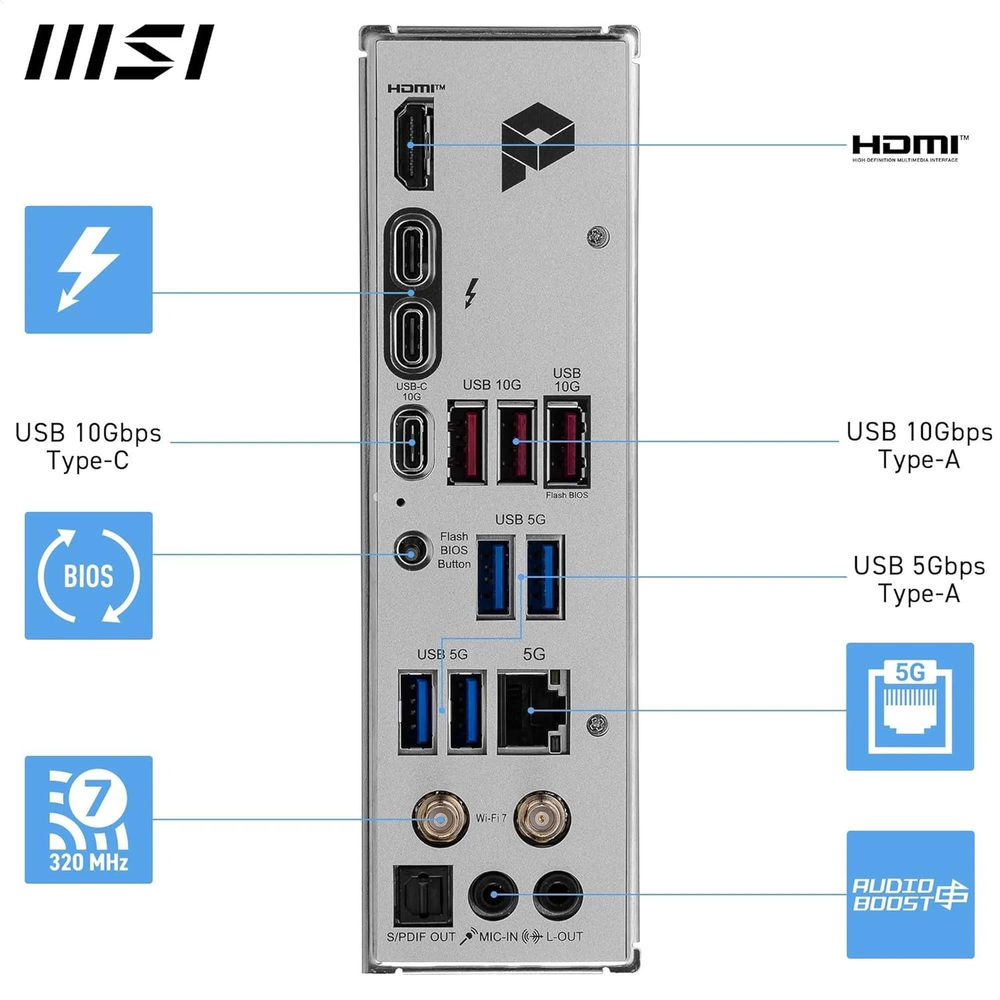

| Rear USB | 3x USB 10Gbps Type-A, 1x USB 10Gbps Type-C, 4x USB 5Gbps Type-A, 2x USB 2.0 |
| Front USB Headers | 1x USB 20Gbps Type-C, 2x USB 5Gbps Type-A, 4x USB 2.0 |
| Video Output | 1x HDMI 2.1, 2x Thunderbolt 4 Type-C (DP 2.1) |
| Audio | Realtek ALC1220P, 7.1-CH HD Audio, S/PDIF out |
| Fan Headers | 1x CPU Fan, 1x CPU Water Pump, 6x System Fan |
| RGB | 1x ARGB V2 header, 1x RGB header |
| OS Support | Windows 11 64-bit |
