Motherboard // MSI

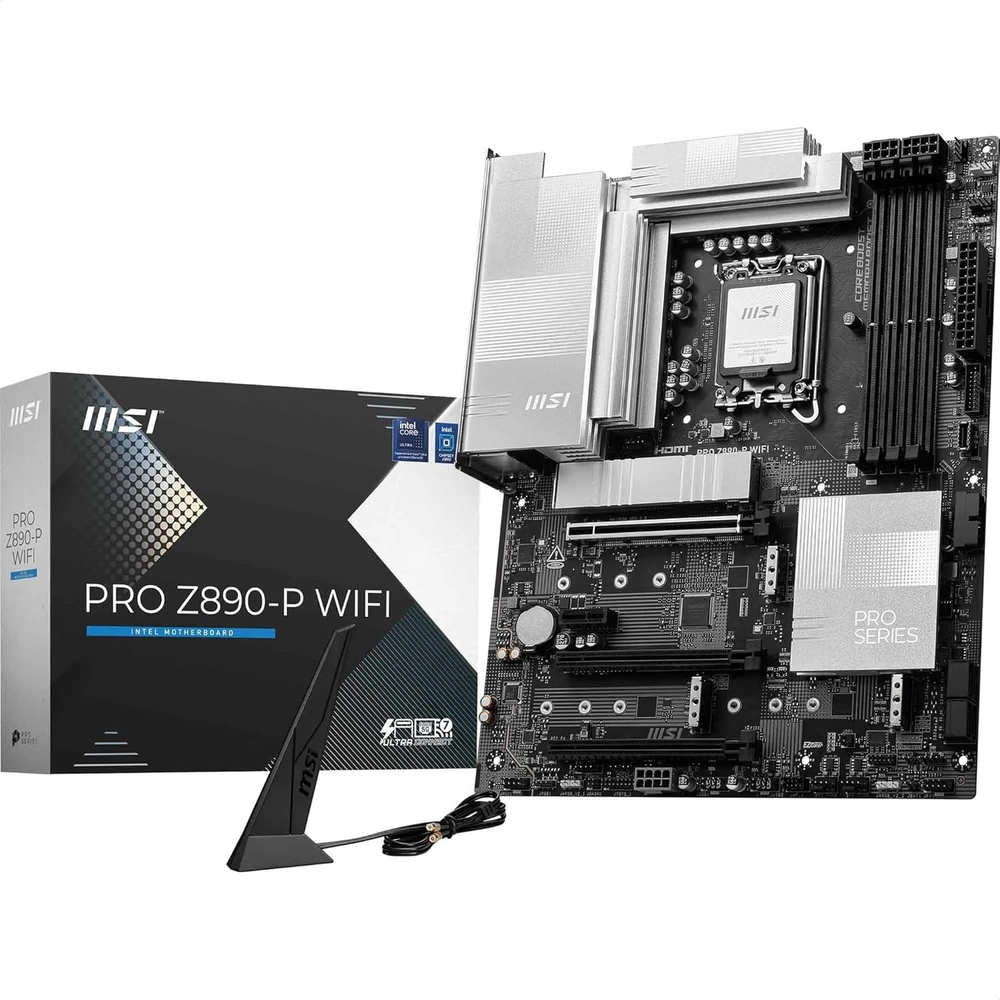

MSI PRO Z890-P WIFI Motherboard
Price inclusive of all taxes
Technical specification
Silver Intel Z890 ATX Motherboard — Wi-Fi 7, 5G LAN, Thunderbolt 4, and PCIe 5.0 in a Clean PRO Package.
The MSI PRO Z890-P WIFI is a polished silver ATX motherboard built for Intel Core Ultra Series 2 processors on the LGA 1851 socket. It blends professional aesthetics with high-end specs — offering Intel Wi-Fi 7, Realtek 5G LAN, Thunderbolt 4, 4x M.2 slots with PCIe 5.0 Gen5, supplemental PCIe power, and a 6-layer server-grade PCB with 2oz copper — all in a form factor that suits both black and white builds.
-
>CPU Support: Intel Core Ultra Series 2, LGA 1851 socket
>Power Delivery: 12+1+1+1 power stages, dual 8-pin CPU connectors, 6-layer 2oz copper server-grade PCB, PCIe Supplemental Power
>Storage: 4x M.2 slots (1x PCIe 5.0 CPU, 3x PCIe 4.0), 4x SATA 6G — all with EZ M.2 Shield Frozr II
>Connectivity: Intel Wi-Fi 7 (802.11be), Realtek 5G LAN, 1x Thunderbolt 4 rear port
>USB: Rear — 1x USB 20Gbps Type-C, 4x USB 10Gbps Type-A, 4x USB 5Gbps Type-A; Front — 1x USB 20Gbps Type-C, 2x USB 5Gbps Type-A, 4x USB 2.0
>EZ Features: EZ M.2 Clip, EZ PCIe Release, EZ Debug LED, EZ Antenna with Magnetic Stand, Pre-installed I/O Shield
>Audio: Realtek ALC897, 7.1-Channel HD Audio
| Specification | Details |
|---|---|
| Chipset | Intel Z890 |
| Socket | LGA 1851 |
| Form Factor | ATX (243.84 x 304.8 mm) |
| Memory | 4x DDR5 UDIMM, up to 256GB, DDR5 9200+ MT/s (OC) / 6400–4800 MT/s (JEDEC) |
| Memory Standard | XMP 3.0, CUDIMM supported, Dual Channel |
| PCIe Slots | PCI_E1: PCIe 5.0 x16 (CPU); PCI_E2: PCIe 4.0 x1 (Chipset); PCI_E3: PCIe 4.0 x4 (Chipset); PCI_E4: PCIe 4.0 x4 (CPU) |
| M.2 Slots | 4x M.2 — M.2_1: PCIe 5.0 x4 (CPU); M.2_2: PCIe 4.0 x4 (CPU); M.2_3/4: PCIe 4.0 x4 / SATA (Chipset); all with EZ M.2 Shield Frozr II |
| SATA | 4x SATA 6G | RAID 0, 1, 5, 10 |
| LAN | Realtek 8126 5G LAN |
| Wireless | Intel Wi-Fi 7 (2.4/5/6GHz, up to 5.8Gbps), Bluetooth 5.4 |
| Thunderbolt | 1x Thunderbolt 4 rear (40Gbps, DP 2.1 UHBR20) |
| Rear USB | 1x USB 20Gbps Type-C, 4x USB 10Gbps Type-A, 4x USB 5Gbps Type-A |
| Front USB Headers | 1x USB 20Gbps Type-C, 2x USB 5Gbps Type-A, 4x USB 2.0 |
| Video Output | 1x HDMI 2.1, 1x DisplayPort 1.4, 1x Thunderbolt 4 Type-C (DP 2.1 UHBR20) |
| Audio | Realtek ALC897, 7.1-CH HD Audio |
| Fan Headers | 1x CPU Fan, 1x Pump/SYS Fan, 4x System Fan |
| RGB | 3x ARGB V2 headers, 1x RGB header, 4x EZ Debug LED |
| OS Support | Windows 11 64-bit |
