SSD // MSI

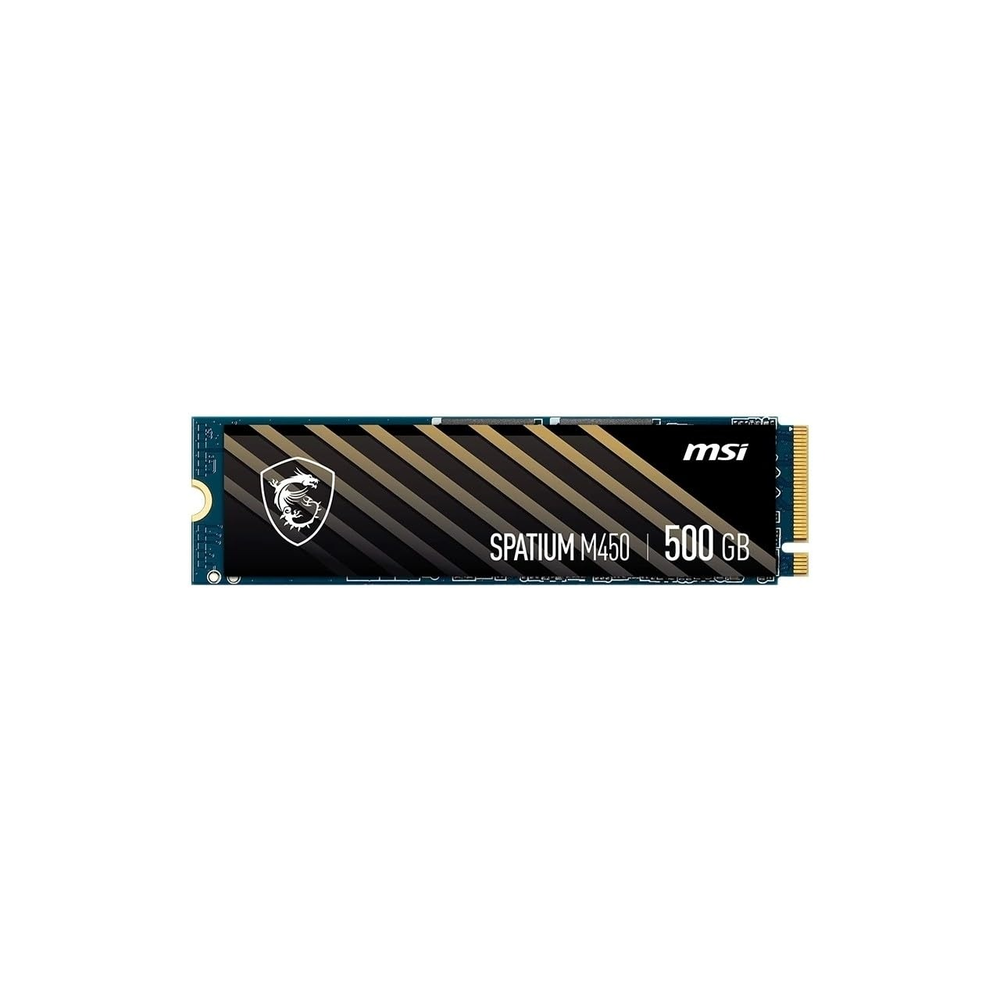

MSI SPATIUM M450 500GB PCIe 4.0 NVMe M.2 V1 SSD (S78-440K380-P83)

Rs. 8,599.00

150tbw

2000mbps write

3000mbps read

3d nand

Genuine & warrantedAuthorised stock, brand warranty

83560 26438Contact for querries

Secure checkoutUPI · cards · EMI

Fast shippingTracked · 5–7 days

01 — Datasheet

Technical specification

500GB PCIe 4.0 x4 NVMe M.2 SSD — Up to 3000 MB/s Read, 2000 MB/s Write (V1 model), Phison E19T Controller, 3D NAND, NVMe 1.4, 150 TBW, 5-Year Warranty.

The MSI SPATIUM M450 500GB V1 is an entry-level PCIe Gen4 NVMe M.2 SSD that delivers a big jump over SATA and PCIe Gen3 HDD/SSD performance while staying affordable. Optimized for the PCIe Gen4 x4 interface and compliant with NVMe 1.4, this V1 500GB model reaches up to 3000 MB/s sequential read and 2000 MB/s sequential write speeds, cutting game load times and improving OS responsiveness on modern platforms.[web:548][web:553][web:560][web:558] Powered by a Phison E19T controller and 3D NAND, with LDPC ECC, end‑to‑end data path protection, TRIM, S.M.A.R.T, APST and Pyrite support, the SPATIUM M450 500GB V1 is a solid Gen4 boot and game drive for budget and mid‑range PCs.[web:553][web:556][web:558][web:557]

PCIe Gen4 x4 NVMe 1.4 — Uses a PCIe Gen4x4 interface and complies with the NVMe 1.4 standard for higher bandwidth and lower latency than SATA.[web:548][web:553][web:556][web:558]
Gen4 Performance (V1) — V1 500GB variant offers up to 3000 MB/s sequential read and 2000 MB/s sequential write, ideal for faster boots and game loads versus SATA.[web:553][web:560][web:554]
Phison E19T Controller — Efficient Phison E19T controller paired with 3D NAND balances performance, thermals and power draw.[web:553][web:556][web:557]
3D NAND Flash — 3D NAND memory delivers better density and reliability compared to older planar NAND.[web:553][web:557][web:560]
Random I/O Performance — Up to 300,000 IOPS random read and 380,000 IOPS random write on the 500GB V1 model for snappy multitasking.[web:553][web:556]
Endurance & Reliability — Rated for 150 TBW with an MTBF up to 1,500,000 hours, suitable for daily OS and gaming usage.[web:553][web:556][web:560]
Advanced Protection — LDPC ECC, end‑to‑end data path protection, TRIM, S.M.A.R.T, APST and TCG Pyrite encryption support for data security.[web:553][web:556]
M.2 2280 Form Factor — Standard 80 mm M.2 2280 (M‑Key) for modern desktop motherboards and many laptops with NVMe slots.[web:553][web:556][web:557]
Backwards Compatible — Works in PCIe Gen4 / Gen3 / Gen2 / Gen1 M.2 slots (performance limited by host interface).[web:553][web:556]
5-Year Warranty — Backed by a 5‑year limited warranty or until TBW is reached, whichever comes first.[web:553][web:558][web:560]

Spec	Detail
Model	SPATIUM M450 PCIe 4.0 NVMe M.2 500GB V1 (S78-440K380-P83)[web:549][web:552][web:560]
Capacity	500GB[web:553][web:554][web:560]
Form Factor	M.2 2280[web:553][web:556][web:557]
Interface	PCIe Gen4x4, NVMe 1.4[web:548][web:553][web:556][web:558]
Compatibility	PCIe Gen4 / Gen3 / Gen2 / Gen1[web:553][web:556]
Controller	Phison E19T[web:553][web:554][web:557][web:560]
Flash Memory	3D NAND[web:553][web:557][web:560]
Sequential Read	Up to 3000 MB/s (V1 500GB spec)[web:553][web:560][web:554]
Sequential Write	Up to 2000 MB/s[web:553][web:560][web:554]
Random Read 4KB	Up to 300,000 IOPS[web:553][web:556]
Random Write 4KB	Up to 380,000 IOPS[web:553][web:556]
TBW (Endurance)	150 TBW[web:553][web:556][web:560]
MTBF	Up to 1,500,000 hours[web:553][web:556]
Maximum Operating Power	3.7 W (V1 table lists 3.7 W; standard M450 table ~3.4 W)[web:553][web:556]
Idle Power (PS3)	35 mW[web:553]
Low Power (L1.2)	5 mW[web:553]
Operating Temperature	0°C – 70°C[web:553][web:556]
Storage Temperature	-40°C – 85°C[web:553][web:556]
Dimensions (L × W × H)	80.00 × 22.00 × 2.15 mm[web:553][web:554][web:556]
Advanced Features	TRIM, S.M.A.R.T, LDPC ECC, End-to-End Data Path Protection, APST, Pyrite (encryption)[web:553][web:556]
Warranty	5 Years limited or until 150 TBW is reached[web:553][web:558][web:560]
