SSD // MSI

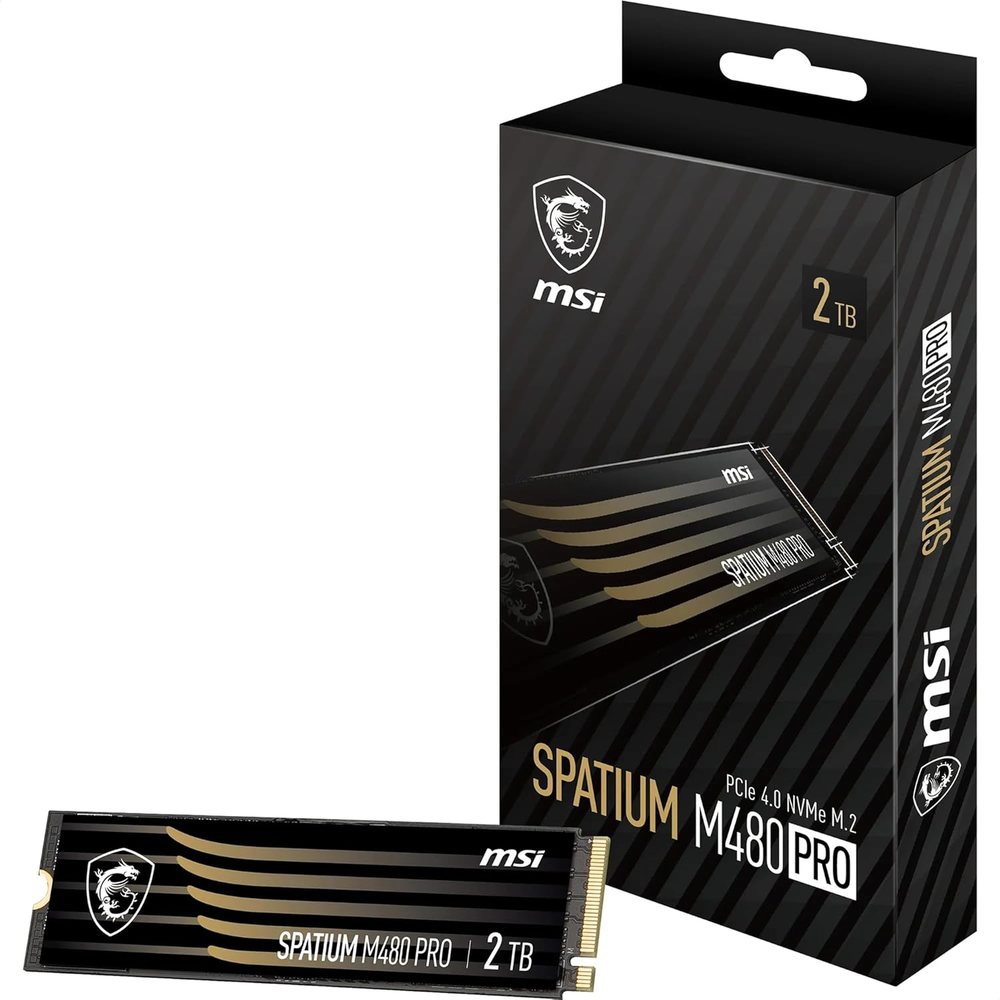

MSI SPATIUM M480 PRO 2TB PCIe 4.0 NVMe M.2 SSD
Technical specification
2TB PCIe 4.0 x4 NVMe M.2 SSD — Up to 7400 MB/s Read, 7000 MB/s Write, Phison E18 Controller, 3D NAND, NVMe 1.4, 2GB DDR4 DRAM Cache, Up to 3000 TBW, 5-Year Warranty.
The MSI SPATIUM M480 PRO 2TB is a flagship PCIe Gen4 NVMe M.2 SSD designed for high-end gaming, content creation, and workstation use. Optimized for the PCIe Gen4 x4 interface and compliant with NVMe 1.4, it delivers sequential read speeds up to 7400 MB/s and write speeds up to 7000 MB/s, dramatically reducing game load times and accelerating large project workflows.[web:522][web:527][web:528][web:530] Powered by the Phison E18 controller with 3D NAND flash and 2GB DDR4 DRAM cache on the 2TB model, it offers up to 3000 TBW endurance (regionally listed up to ~3300 TBW) and advanced data‑protection features, making it a robust, long‑life storage solution for demanding systems.[web:527][web:528][web:531][web:532]
-
>PCIe Gen4 x4 NVMe 1.4 — Uses a PCIe Gen4 x4 interface with NVMe 1.4 support for high bandwidth and low latency.[web:522][web:527][web:528]
>Extreme Read/Write Speeds — Sequential read up to 7400 MB/s and write up to 7000 MB/s (2TB model) for ultra‑fast loading and transfers.[web:522][web:527][web:530][web:528]
>Phison E18 + 3D NAND — High‑end Phison E18 controller with 3D NAND flash delivers strong sustained performance and reliability.[web:527][web:530][web:532]
>2GB DDR4 DRAM Cache — 2TB variant includes 2GB DDR4 cache to accelerate random I/O and maintain high speeds under heavy workloads.[web:527][web:528][web:530]
>High Endurance — Rated up to ~3000 TBW (some India sheets list up to 3300 TBW), suitable for intense write‑heavy workloads.[web:522][web:528][web:531][web:532]
>Advanced Data Protection — Built‑in data security and error‑correction capabilities (LDPC, end‑to‑end protection) help preserve data integrity and extend drive life.[web:522][web:528][web:532]
>M.2 2280 Form Factor — Compact 80 mm M.2 2280 form factor for desktops and laptops with PCIe NVMe M.2 slots.[web:527][web:530]
>Backwards Compatible — Works in PCIe Gen4 / Gen3 / Gen2 / Gen1 M.2 slots (performance scales with host interface).[web:527][web:530]
>5-Year Warranty — Covered by a 5‑year limited warranty or until TBW is reached, whichever comes first.[web:528][web:531][web:533]
| Spec | Detail |
|---|---|
| Model | SPATIUM M480 PRO PCIe 4.0 NVMe M.2 2TB (S78-440Q600-P83)[web:523][web:525][web:529] |
| Capacity | 2TB[web:527][web:530][web:528] |
| Form Factor | M.2 2280[web:527][web:530] |
| Interface | PCIe Gen4 x4, NVMe 1.4[web:522][web:527][web:528] |
| Compatibility | PCIe Gen4 / Gen3 / Gen2 / Gen1[web:527][web:530] |
| Controller | Phison E18[web:527][web:530][web:532] |
| Flash Memory | 3D NAND[web:527][web:530][web:532] |
| DRAM Cache | 2GB DDR4 (2TB model)[web:527][web:528][web:530] |
| Sequential Read | Up to 7400 MB/s[web:522][web:527][web:528][web:530] |
| Sequential Write | Up to 7000 MB/s (official MSI spec; some India listings quote 6850 MB/s)[web:522][web:527][web:528][web:531] |
| Random Read 4KB | Up to 1,000,000 IOPS (typical Pro E18 figures)[web:527][web:530] |
| Random Write 4KB | Up to 1,000,000 IOPS[web:527][web:530] |
| TBW (Endurance) | Up to ~3000 TBW (some India sheets list up to 3300 TBW)[web:522][web:528][web:531][web:532] |
| MTBF | Up to 1,600,000 hours (typical for this series)[web:527][web:530] |
| Operating Temperature | 0°C – 70°C[web:527] |
| Storage Temperature | -40°C – 85°C[web:527] |
| Max Operating Power | ~8–9 W (under heavy load, per reviews)[web:530][web:534] |
| Dimensions (L × W × H) | 80.00 × 22.00 × 2.15 mm[web:527][web:530] |
| Advanced Features | LDPC ECC, end‑to‑end data protection, TRIM, S.M.A.R.T, APST[web:522][web:528][web:532] |
| Warranty | 5‑Year limited or until TBW is reached[web:528][web:531][web:533] |
