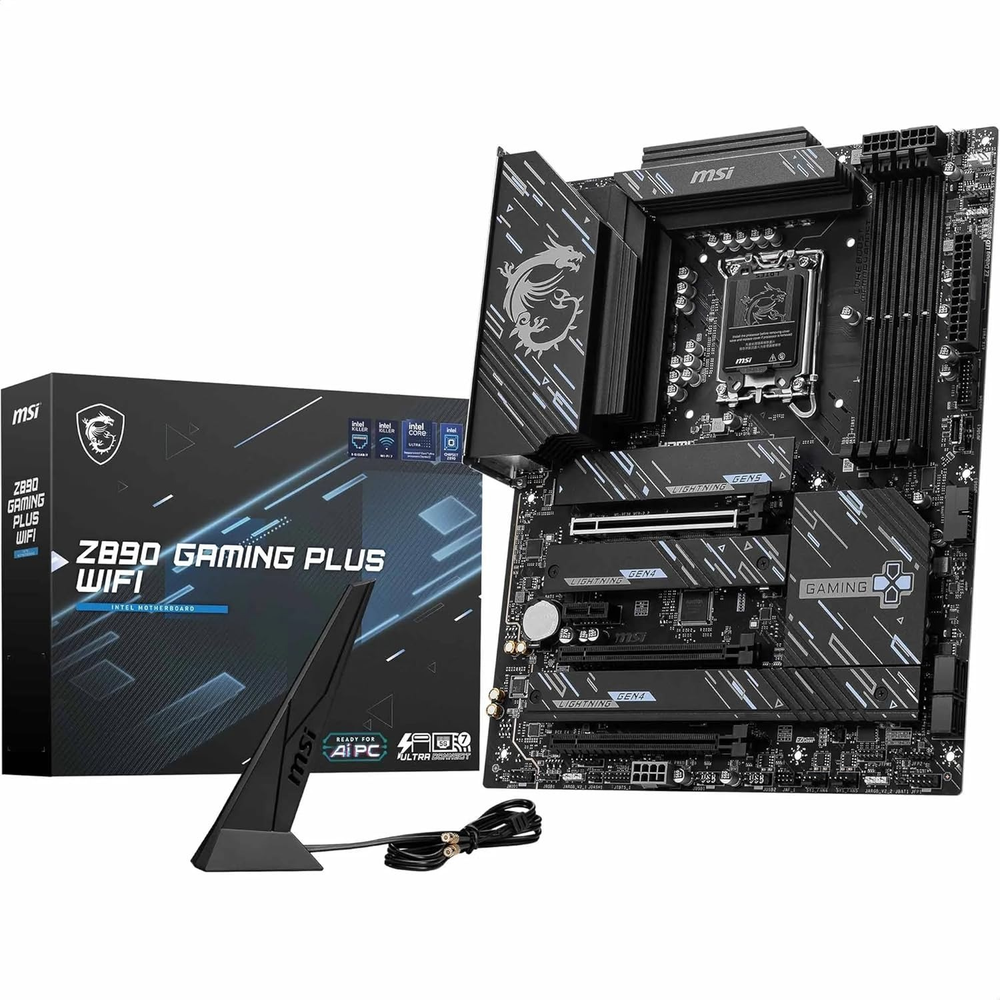

MSI Z890 GAMING PLUS WIFI Motherboard
Price inclusive of all taxes
Technical specification
Entry-Level Z890 Gaming ATX Motherboard — Killer Wi-Fi 7, PCIe 5.0, and Thunderbolt 4 Without Compromise.
The MSI Z890 GAMING PLUS WIFI is a well-rounded ATX motherboard for Intel Core Ultra Series 2 processors on the LGA 1851 socket. It delivers flagship-tier connectivity — Intel Killer Wi-Fi 7, 5G LAN, Thunderbolt 4, PCIe 5.0 M.2, and dual 8-pin CPU power — packed into an accessible Z890 platform with MSI's full suite of EZ DIY builder features.
-
>CPU Support: Intel Core Ultra Series 2, LGA 1851 socket
>Power Delivery: 14+1+1+1 Duet Rail Power System, 55A DrMOS, dual 8-pin CPU connectors, 6-layer 2oz copper PCB
>Storage: 4x M.2 slots (1x PCIe 5.0 CPU, 3x PCIe 4.0), 4x SATA 6G — all M.2 slots with M.2 Shield Frozr
>Connectivity: Intel Killer BE1750x Wi-Fi 7, Intel Killer E5000 5G LAN, 1x Thunderbolt 4 rear port
>Display Output: 1x HDMI 2.1 (4K@60Hz), 1x DisplayPort 1.4 (4K@60Hz), 1x Thunderbolt 4 Type-C (DP 2.1 UHBR20)
>USB: Rear — 1x USB 10Gbps Type-A, 1x USB 10Gbps Type-C, 2x USB 5Gbps Type-A, 4x USB 2.0
>Audio: Realtek ALC897, 7.1-Channel HD Audio
| Specification | Details |
|---|---|
| Chipset | Intel Z890 |
| Socket | LGA 1851 |
| Form Factor | ATX (305 x 244 mm) |
| Memory | 4x DDR5 UDIMM, up to 256GB, DDR5 9200+ MT/s (OC) / 6400 MT/s (JEDEC) |
| Memory Standard | XMP 3.0, CUDIMM supported, Dual Channel |
| PCIe Slots | 3x PCIe x16, 1x PCIe x1 — PCI_E1: PCIe 5.0 x16 (CPU); PCI_E3: PCIe 4.0 x4; PCI_E4: PCIe 4.0 x4 (Chipset) |
| M.2 Slots | 4x M.2 — M.2_1: PCIe 5.0 x4 (CPU); M.2_2: PCIe 4.0 x4 (CPU); M.2_3/4: PCIe 4.0 x4 (Chipset); all with M.2 Shield Frozr |
| SATA | 4x SATA 6G | RAID 0, 1, 5, 10 |
| LAN | Intel Killer E5000 5G LAN |
| Wireless | Intel Killer BE1750x Wi-Fi 7 (2.4/5/6GHz, up to 5.8Gbps), Bluetooth 5.4 |
| Thunderbolt | 1x Thunderbolt 4 rear (40Gbps, DP 2.1 UHBR20, up to 8K display) |
| Rear USB | 1x USB 10Gbps Type-A, 1x USB 10Gbps Type-C (TB4), 2x USB 5Gbps Type-A, 4x USB 2.0 |
| Front USB Headers | 1x USB 20Gbps Type-C, 4x USB 5Gbps Type-A, 4x USB 2.0 |
| Video Output | 1x HDMI 2.1 (4K@60Hz), 1x DisplayPort 1.4 (4K@60Hz), 1x Thunderbolt 4 Type-C (DP 2.1) |
| Audio | Realtek ALC897, 7.1-CH HD Audio |
| Fan Headers | 1x CPU Fan, 1x CPU Water Pump, 6x System Fan |
| RGB | 4x EZ Debug LED |
| OS Support | Windows 11 64-bit |
