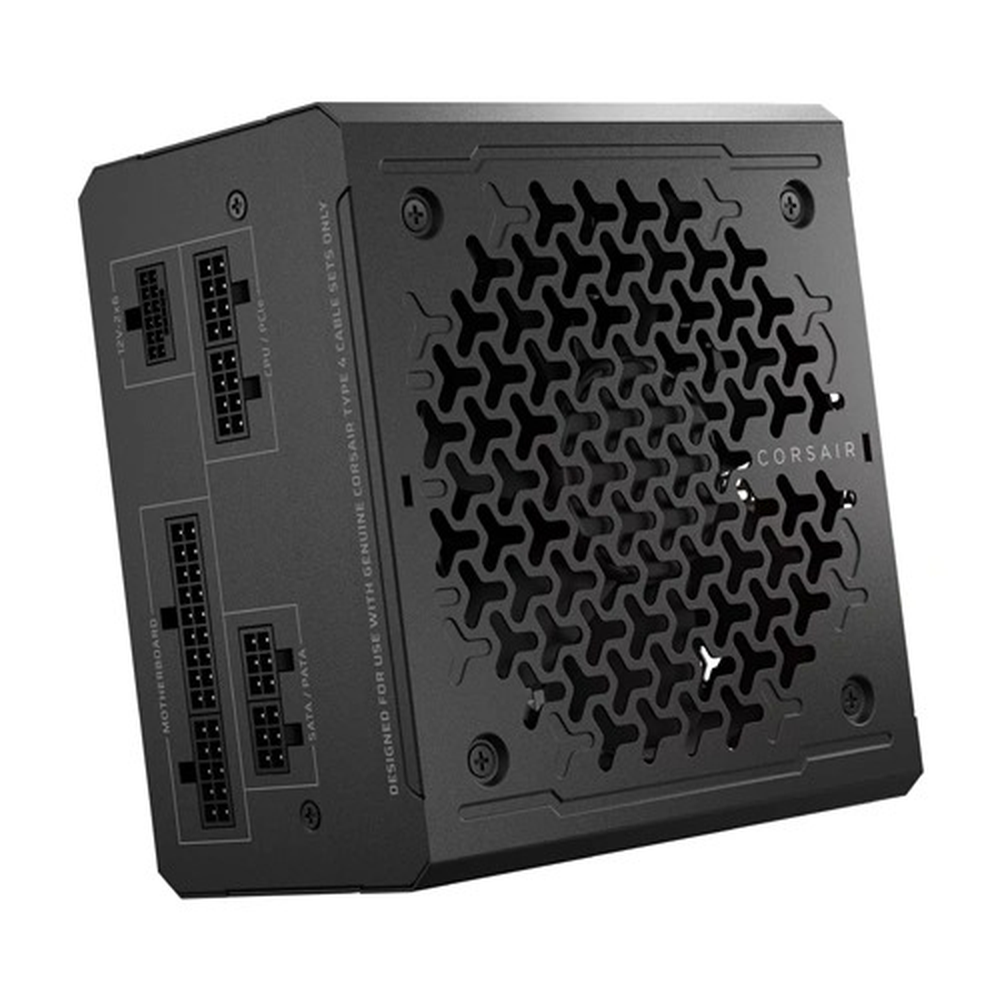

RMe Series, RM650e, 650 Watt, ATX 3.1, PCIe 5.1, Cybenetics Gold Certified, Fully Modular Power Supply

The Corsair RMe Series RM650e 650W Fully Modular Low-Noise ATX Power Supply delivers reliable Cybenetics Gold-rated power, ready for modern systems with ATX 3.1 certification and PCIe 5.1 compliance. With a dedicated native 12V-2x6 GPU power cable, fully modular Type 4 cabling, ultra-quiet 120mm rifle-bearing fan, 105°C industrial-grade capacitors, and Modern Standby support, this power supply provides consistent electrical performance with improved efficiency and minimal noise for gaming and high-performance PCs.

Key Features:

>650W continuous power output on a single +12V rail for stable, reliable performance >Intel ATX 3.1 certified for formal compliance with high reliability and power efficiency standards >PCIe 5.1 compatible with native 12V-2x6 (16-pin) connector for modern and next-gen graphics cards >Supports 2x transient power excursions from GPU (300W on 12V-2x6 cable) >Cybenetics Gold certified efficiency (up to 90% efficiency) for lower power consumption and cooler temperatures >Cybenetics A++ noise rating for exceptionally quiet operation >Fully modular Type 4 cables allow you to connect only what you need for cleaner wiring and improved airflow >Ultra-flexible embossed cables with low-profile combs for sleek installation and easier cable management >120mm rifle-bearing fan with Zero RPM Mode for silent operation at low loads >Thermally controlled fan adjusts speed based on load for optimal cooling and minimal noise >Robust resonant LLC topology with DC-DC conversion for consistent, reliable power >105°C-rated industrial-grade capacitors for superb electrical performance and longevity >Modern Standby support with precise timings ensures extremely fast wake-from-sleep times and better low-load efficiency >Compact 140mm depth (ATX size) for improved cable management in standard cases >Comprehensive protection: Over Voltage, Under Voltage, Over Current, Over Power, Short Circuit, Over Temperature >100,000 hours MTBF (Mean Time Between Failures) for exceptional reliability >7-year manufacturer warranty with world-class CORSAIR support

Technical Specifications:

Model Number	CP-9020302-NA (US), CP-9020302-IN (India)
Internal Model	RPS0223
Part Number	75-006581
Brand	Corsair
Series	RMe Series (2025)
Color	Black
Wattage	650W (Continuous Power)
Form Factor	ATX
ATX Version	ATX 3.1 (Certified)
PCIe Version	PCIe 5.1 (Compatible)
Efficiency Certification	Cybenetics Gold (up to 90% efficiency)
Noise Rating	Cybenetics A++ (Ultra-Quiet)
Modularity	Fully Modular
Cable Type	Type 4 (Ultra-flexible embossed with low-profile combs)
AC Input Voltage	100-240V (Auto-ranging)
AC Input Current	10A @ 100V / 5A @ 240V
Frequency	50-60Hz
+12V Rail	Single +12V rail (650W)
Cooling	120mm Rifle-Bearing Fan (Thermally controlled)
Zero RPM Mode	Yes (Fan stops at low loads)
Modern Standby	Yes (Fast wake-from-sleep, better low-load efficiency)
MTBF	100,000 hours
Capacitor Rating	105°C Industrial-Grade
Topology	Resonant LLC with DC-DC Conversion

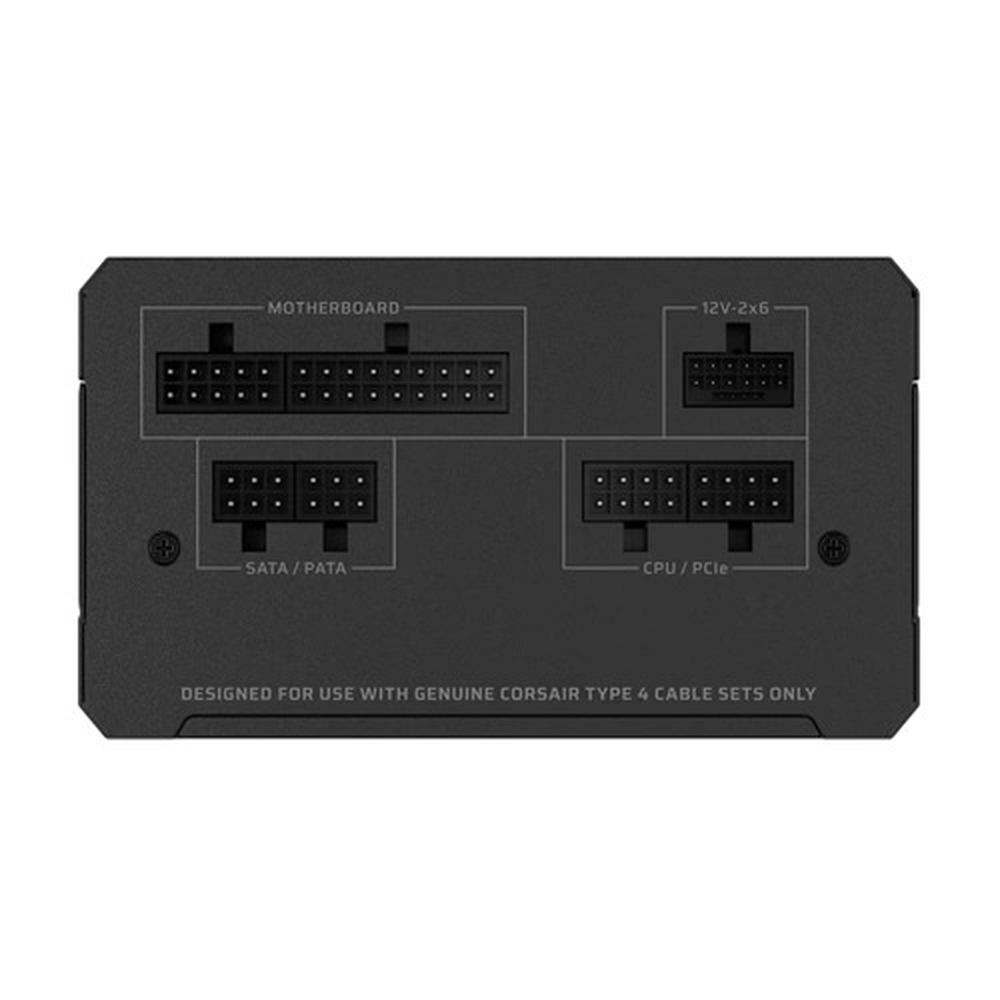

Connectors:

ATX 24-Pin Connector	1 (650mm cable)
EPS 4+4-Pin Connector	2 (700mm cables)
PCIe 6+2-Pin Connector	3 (640mm cables, 18AWG)

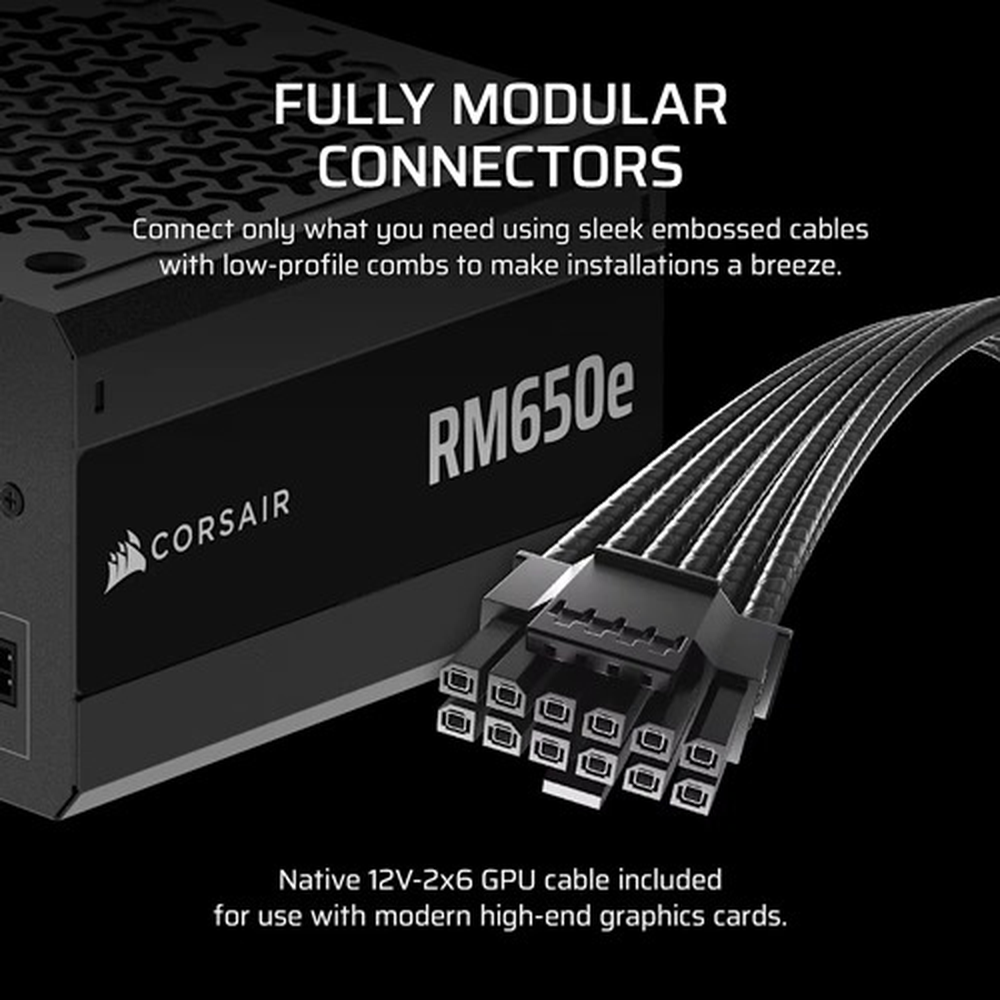

12V-2x6 PCIe 5.1 Connector (16-pin)	1 (640mm cable, 18-24AWG, 300W capable)
SATA Connector	6 (Multiple cables)
PATA (Molex) Connector	2

Protection Features:

>Over Voltage Protection (OVP) >Under Voltage Protection (UVP) >Over Current Protection (OCP) >Over Power Protection (OPP) >Short Circuit Protection (SCP) >Over Temperature Protection (OTP)

Dimensions & Weight:

Dimensions (L x W x H)	140mm x 150mm x 86mm
Depth	140mm (Compact for ATX)
Weight	2.728 kg (6.0 lbs)

Package Contents:

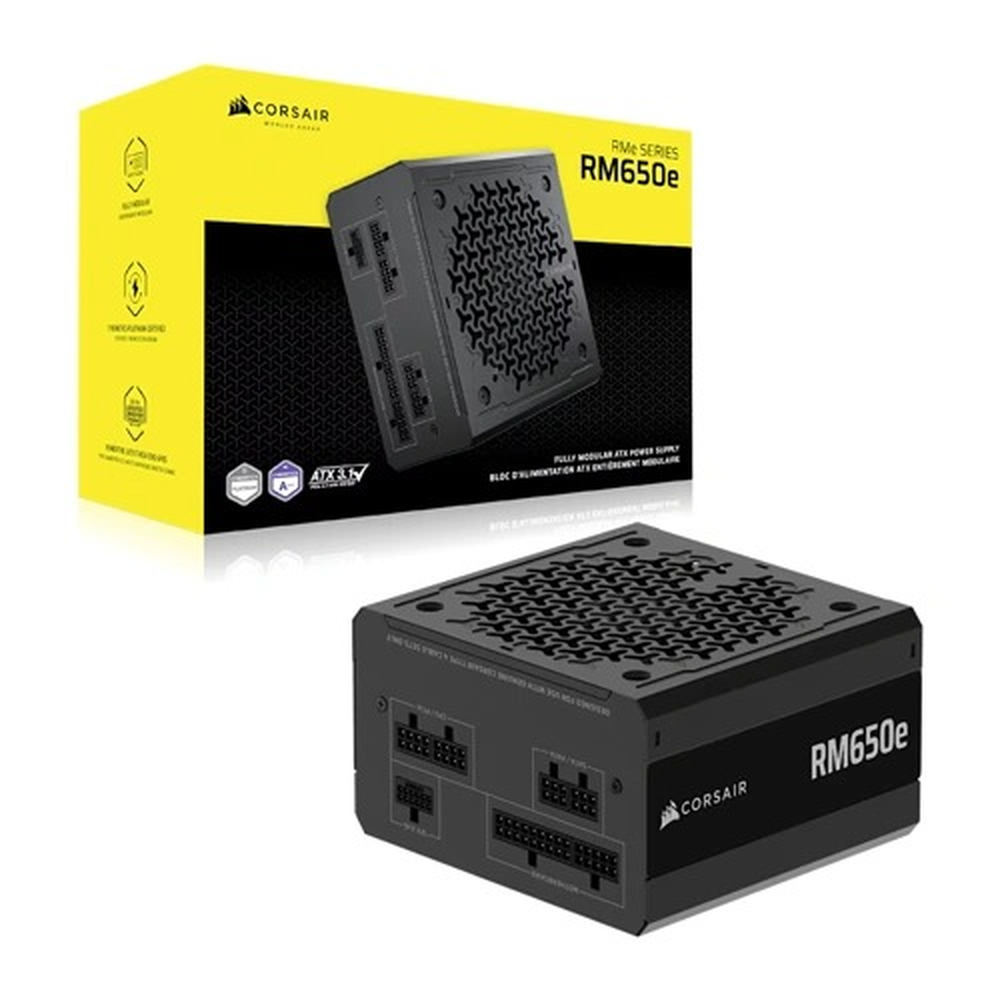

>CORSAIR RM650e Power Supply Unit >Fully Modular Cable Set (Type 4): >1x ATX 24-Pin Cable (650mm) >2x EPS 4+4-Pin Cables (700mm) >3x PCIe 6+2-Pin Cables (640mm) >1x 12V-2x6 PCIe 5.1 Cable (640mm, 300W) >Multiple SATA Power Cables >Multiple PATA (Molex) Power Cables >AC Power Cord >Cable Ties/Straps >Mounting Screws >User Manual >7-Year Warranty Card

Perfect for gaming PCs, high-performance workstations, content creation builds, mid-range to high-end systems, Intel Core i5/i7/i9 and AMD Ryzen 5/7/9 platforms, modern GPU builds (RTX 40-series, RX 7000-series), systems requiring ATX 3.1/PCIe 5.1 compliance, quiet PC builds, and anyone seeking reliable, efficient, fully modular power delivery with next-gen GPU support. The Corsair RMe Series RM650e is a fully modular 650W ATX power supply formally certified to meet the Intel ATX 3.1 compliance standard, ensuring a high level of reliability and power efficiency for modern and future systems. With PCIe 5.1 compatibility and a native 12V-2x6 (16-pin) connector capable of delivering 300W, the RM650e is ready to power the latest and upcoming high-end graphics cards including NVIDIA RTX 40-series and AMD RX 7000-series GPUs, with support for 2x transient power excursions that next-gen cards demand. Cybenetics Gold certification delivers steady power output at up to 90% efficiency, reducing power consumption from the wall, generating less heat, and lowering electricity costs over time. The Cybenetics A++ noise rating ensures exceptionally quiet operation thanks to the ultra-quiet 120mm rifle-bearing fan with Zero RPM Mode that stops completely at low loads for silent computing when your system is idle or under light use. The thermally controlled fan intelligently adjusts speed based on temperature and load, ramping up only when needed to maintain optimal cooling while keeping noise to an absolute minimum. Fully modular Type 4 cabling allows you to connect only the cables your system needs, dramatically reducing cable clutter inside your case and promoting better airflow for improved cooling. Ultra-flexible embossed cables with low-profile combs make installation sleek and cable management easier than ever. For consistent, reliable power and superb electrical performance, the RM650e features a robust resonant LLC topology with DC-DC conversion and 105°C-rated industrial-grade capacitors that ensure long-term stability even under sustained high loads. Modern Standby support with precise timings enables extremely fast wake-from-sleep times and better efficiency at low loads, perfect for systems that frequently sleep or hibernate. The compact 140mm depth (standard ATX size) fits easily in most standard ATX cases while allowing improved cable management. Comprehensive protection circuitry guards against over voltage, under voltage, over current, over power, short circuits, and over temperature conditions, protecting both the PSU and your valuable components. With a robust 100,000-hour MTBF (Mean Time Between Failures) rating and backed by CORSAIR's industry-leading 7-year warranty with world-class support, the RM650e delivers peace of mind and reliable performance for years to come. Ideal for gaming builds with mid-range to high-end CPUs and GPUs, the RM650e provides ample power headroom, quiet operation, efficient performance, and next-gen compatibility. Upgrade to reliable, efficient, and whisper-quiet power with the Corsair RMe Series RM650e.
