RMe White Series, RM1000e White, 1000 Watt, Cybenetics Gold Certified, Fully Modular Power Supply
RMe White Series, RM1000e White, 1000 Watt, Cybenetics Gold Certified, Fully Modular Power Supply
Vendor:
CorsairSub total
Rs. 12,000.00Couldn't load pickup availability
Estimated deliver 5-7 days
Description
Key Features:
-
>1000W continuous power output on a single +12V rail for stable, reliable performance
>Intel ATX 3.1 certified for formal compliance with high reliability and power efficiency standards
>PCIe 5.1 compatible with native 12V-2x6 (16-pin) connector for modern and next-gen graphics cards
>Supports 2x transient power excursions from GPU (600W on 12V-2x6 cable)
>Cybenetics Platinum efficiency rating at 230V (up to 91.5% efficiency)
>Cybenetics Platinum efficiency rating at 115V (up to 89.5% efficiency)
>80 PLUS Gold certified for lower power consumption and cooler temperatures
>Cybenetics A- noise rating for exceptionally quiet operation (25-30 dBA average)
>Pristine white finish on power supply housing for clean, premium aesthetics
>Fully modular Type 4 white cables allow you to connect only what you need for cleaner wiring and improved airflow
>Ultra-flexible white embossed cables with low-profile combs for sleek installation and easier cable management
>Five universal 8-pin connectors can be used with any 8-pin cable for maximum flexibility
>120mm rifle-bearing fan with Zero RPM Mode for silent operation at low loads
>Thermally controlled fan with specially calculated fan curve adjusts speed based on load for optimal cooling and minimal noise
>Robust resonant LLC topology with DC-DC conversion for consistent, reliable power
>105°C-rated industrial-grade capacitors for superb electrical performance and longevity
>Modern Standby support with precise timings ensures extremely fast wake-from-sleep times and better low-load efficiency
>Compact 140mm depth (ATX size) for improved cable management in standard cases
>Comprehensive protection: Over Voltage, Under Voltage, Over Current, Over Power, Short Circuit, Over Temperature
>100,000 hours MTBF (Mean Time Between Failures) for exceptional reliability
>7-year manufacturer warranty with world-class CORSAIR support
Technical Specifications:
| Model Number | CP-9020294-NA (US), CP-9020294-IN (India), CP-9020294-UK, CP-9020294-EU |
| Internal Model | RPS0217 |
| Part Number | 75-004604 (White variant) |
| Brand | Corsair |
| Series | RMe White Series (2025) |
| Color | White |
| Wattage | 1000W (Continuous Power) |
| Form Factor | ATX |
| ATX Version | ATX 3.1 (Certified), ATX12V v3.1 |
| PCIe Version | PCIe 5.1 (Compatible) |
| Efficiency Certification (230V) | Cybenetics Platinum (up to 91.5% efficiency) |
| Efficiency Certification (115V) | Cybenetics Platinum (up to 89.5% efficiency) |
| 80 PLUS Certification | 80 PLUS Gold |
| Noise Rating | Cybenetics A- (25-30 dBA average) |
| Modularity | Fully Modular |
| Cable Type | Type 4 (Ultra-flexible white embossed cables with low-profile combs, sleeved/flat mix) |
| AC Input Voltage | 100-240V (Auto-ranging) |
| AC Input Current | 12A @ 100V / 6A @ 240V |
| Frequency | 47-63Hz (50-60Hz) |
| Active PFC | Yes (≥0.9, 90%) |
| +3.3V Rail | 20A (110-150W combined with +5V) |
| +5V Rail | 20A (110-150W combined with +3.3V) |
| +12V Rail | Single +12V rail, 83.3A (1000W) |
| +5Vsb Rail | 3A (15W) |
| Cooling | 120mm Rifle-Bearing Fan (HA1225H12SF-Z, Thermally controlled) |
| Zero RPM Mode | Yes (Semi-passive operation, fan stops at low loads) |
| Modern Standby | Yes (Alternative Low Power Mode support, fast wake-from-sleep) |
| Hold-Up Time | 100-150 ms |
| Power OK Signal | >16 ms |
| MTBF | 100,000 hours |
| Capacitor Rating | 105°C Industrial-Grade |
| Topology | Resonant LLC with DC-DC Conversion |
| OEM Manufacturer | HEC |
| Operating Temperature | 0-50°C (Continuous Full Load) |
| SLI Compatible | Yes |
| CrossFire Compatible | Yes |

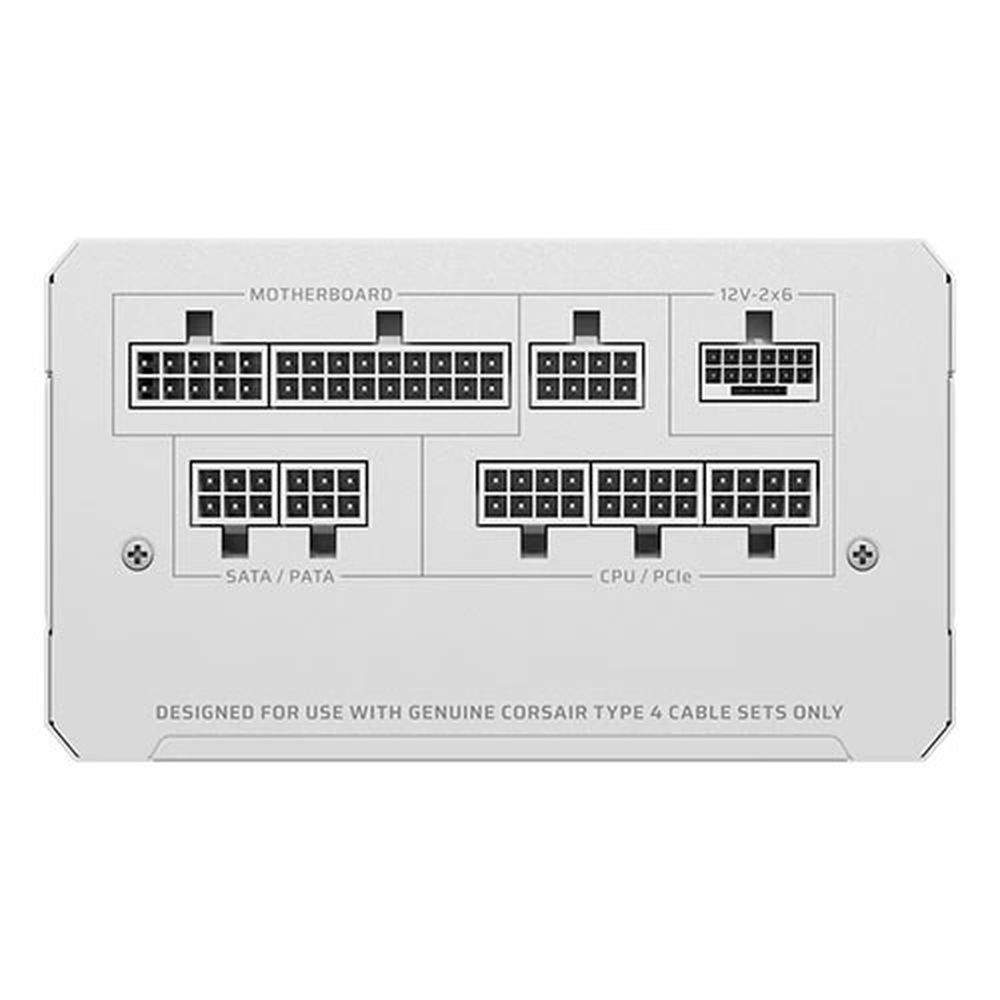

Connectors:
| ATX 24-Pin Connector | 1 (650mm white cable) |
| EPS 4+4-Pin Connector | 2 (2 separate 700mm white cables) |
| PCIe 6+2-Pin Connector | 3-4 (2-3 white cables, 640mm, 18AWG) |

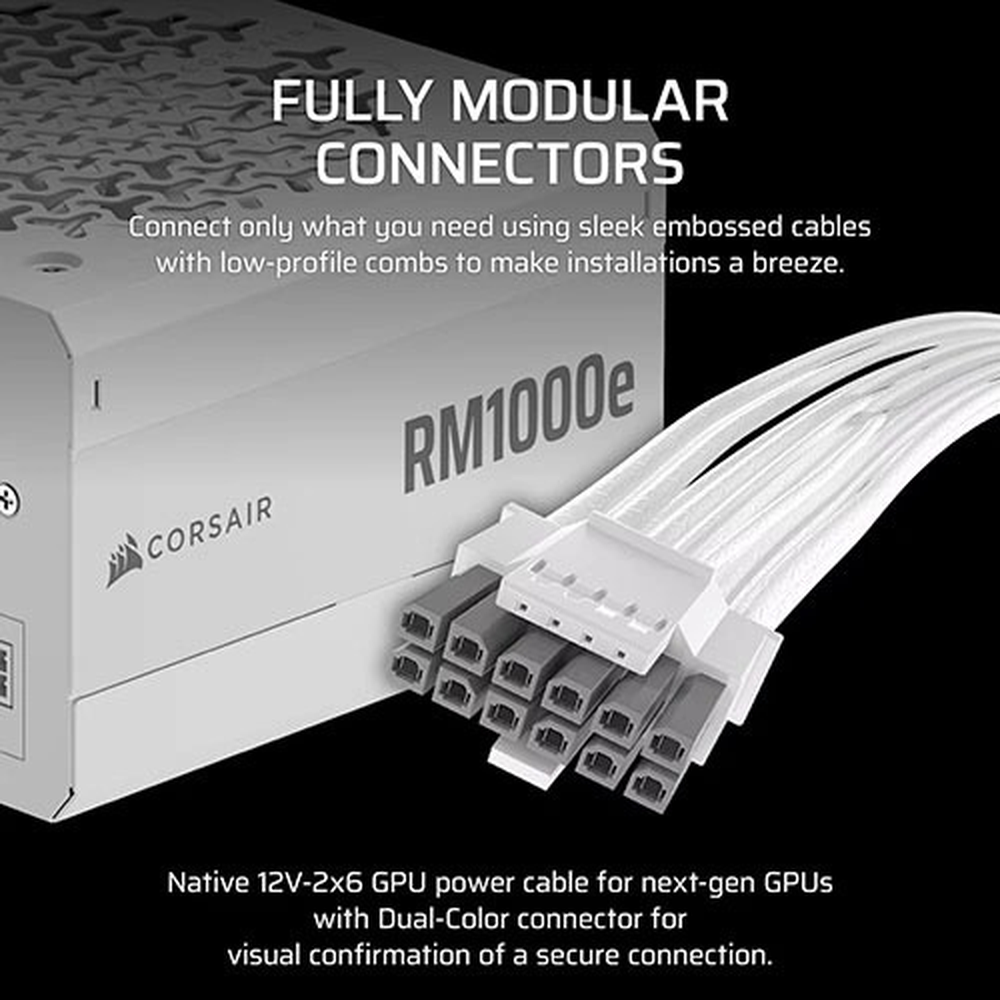

| 12V-2x6 PCIe 5.1 Connector (16-pin) | 1 (640mm white cable, 18-24AWG, 600W capable, also called 12+4-pin) |
| SATA Connector | 6 (2 white cables) |
| PATA (Molex) Connector | 2 (1 white cable) |
| Universal 8-Pin Connectors | 5 (can be used with any 8-pin cable) |
Protection Features:
-
>Over Voltage Protection (OVP)
>Under Voltage Protection (UVP)
>Over Current Protection (OCP)
>Over Power Protection (OPP)
>Short Circuit Protection (SCP)
>Over Temperature Protection (OTP)
Dimensions & Weight:
| Dimensions (L x W x H) | 140mm x 150mm x 86mm (5.5" x 5.9" x 3.4") |
| Depth | 140mm (Compact for ATX) |
| Weight | 1.65-3.23 kg (3.64-7.12 lbs) |
| Package Weight | 3.2 kg (7.05 lbs) |

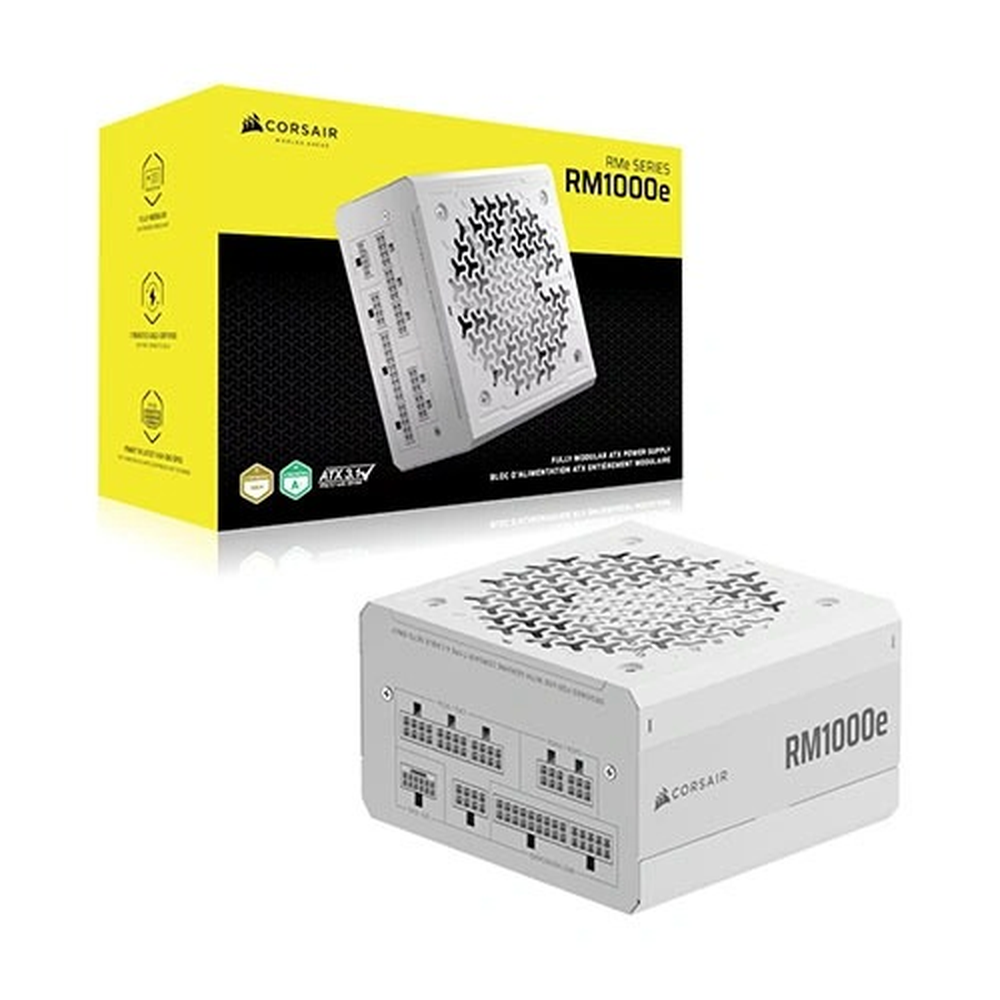

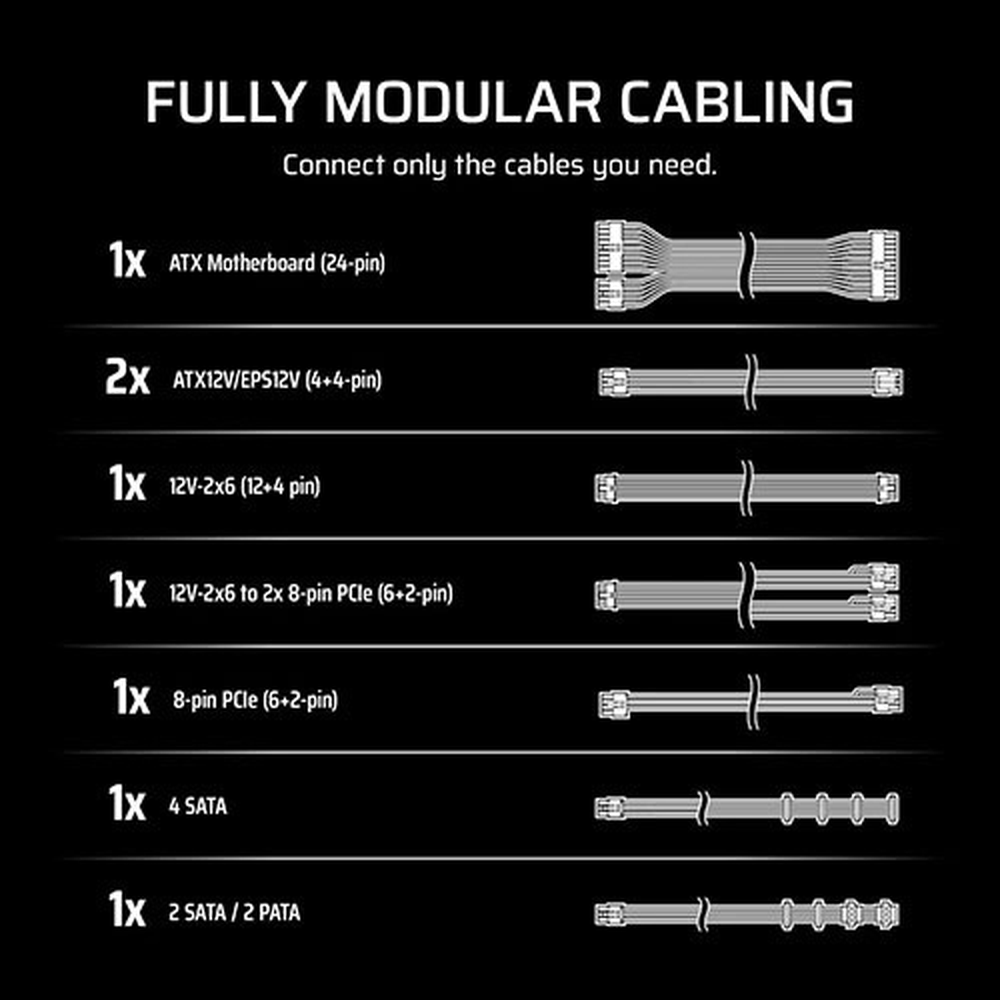

Package Contents:
-
>CORSAIR RM1000e White Power Supply Unit
>Fully Modular White Cable Set (Type 4):
>1x ATX 24-Pin White Cable (650mm)
>2x EPS 4+4-Pin White Cables (700mm each)
>2-3x PCIe 6+2-Pin White Cables (640mm, multiple connectors)
>1x 12V-2x6 PCIe 5.1 White Cable (640mm, 600W)
>2x SATA Power White Cables
>1x PATA (Molex) Power White Cable
>AC Power Cord
>Cable Ties/Straps
>Mounting Screws
>User Manual
>7-Year Warranty Card
Perfect for white-themed enthusiast gaming PCs, high-performance workstations, professional content creation builds, multi-GPU setups, Intel Core i9/Core Ultra 9 and AMD Ryzen 9 platforms, flagship GPU builds (RTX 40/50-series, RX 7000/8000-series), extreme overclocking systems, systems requiring ATX 3.1/PCIe 5.1 compliance, quiet high-performance builds, and anyone seeking reliable, efficient, fully modular power delivery with maximum headroom for next-gen GPU support in a pristine white aesthetic. The Corsair RMe White Series RM1000e is a fully modular 1000W ATX power supply formally certified to meet the Intel ATX 3.1 compliance standard, ensuring the highest level of reliability and power efficiency for modern and future demanding systems—all wrapped in a beautiful white housing with matching white cables for stunning all-white PC builds. With PCIe 5.1 compatibility and a native 12V-2x6 (16-pin) white connector capable of delivering 600W, the RM1000e White is ready to power the latest and upcoming flagship graphics cards including NVIDIA RTX 40-series, RTX 50-series, and AMD RX 7000/8000-series GPUs, with full support for 2x transient power excursions that next-gen flagship and enthusiast cards demand. Cybenetics Platinum certification at both 230V (up to 91.5% efficiency) and 115V (up to 89.5% efficiency) delivers steady power output with exceptional efficiency, also earning 80 PLUS Gold certification for significantly reduced power consumption from the wall, generating less heat, and lowering electricity costs over time—critical for 1000W systems running continuously. The Cybenetics A- noise rating ensures exceptionally quiet operation (25-30 dBA average noise output) thanks to the ultra-quiet 120mm rifle-bearing fan with Zero RPM Mode that stops completely at low loads for silent computing when your system is idle or under light use. The thermally controlled fan features a specially calculated fan curve that intelligently adjusts speed based on temperature and load, ramping up only when needed to maintain optimal cooling while keeping noise minimal even at full 1000W load. Fully modular Type 4 white cabling with five universal 8-pin connectors that can be used with any 8-pin cable allows you to connect only the cables your system needs with maximum flexibility, dramatically reducing cable clutter inside your case and promoting better airflow for improved cooling—the pristine white cables perfectly complement white-themed builds. Ultra-flexible white embossed cables (sleeved/flat mix) with low-profile combs make installation sleek and cable management easier than ever, even in complex enthusiast builds, creating a cohesive white aesthetic throughout your build. For consistent, reliable power and superb electrical performance, the RM1000e White features a robust resonant LLC topology with DC-DC conversion and 105°C-rated industrial-grade capacitors that ensure long-term stability and dependable electrical performance even under sustained maximum loads or extreme overclocking scenarios. Modern Standby support (Alternative Low Power Mode) with precise timings enables extremely fast wake-from-sleep times and better efficiency at low loads, perfect for workstations and systems that frequently sleep or hibernate. The compact 140mm depth (standard ATX size) ensures an easy fit in modern enthusiast PC cases while allowing improved cable management behind the PSU. The white finish on the power supply housing creates a cohesive aesthetic when installed in white or windowed cases, perfect for show builds where the PSU is visible. Comprehensive protection circuitry guards against over voltage, under voltage, over current, over power, short circuits, and over temperature conditions, protecting both the PSU and your valuable components. Compatible with both NVIDIA SLI and AMD CrossFire multi-GPU configurations. With excellent hold-up time (100-150 ms) and power OK signal timing (>16 ms), a robust 100,000-hour MTBF (Mean Time Between Failures) rating, and backed by CORSAIR's industry-leading 7-year warranty with world-class support, the RM1000e White delivers peace of mind and reliable performance for years to come through multiple builds and upgrades. Ideal for enthusiast builds with flagship CPUs and top-tier GPUs, multi-GPU configurations, extreme overclocking, and professional workstations, the RM1000e White provides abundant power headroom, quiet operation, exceptional efficiency, next-gen compatibility, and stunning all-white aesthetics. Upgrade to reliable, efficient, and whisper-quiet power with pristine white styling in the Corsair RMe White Series RM1000e.
