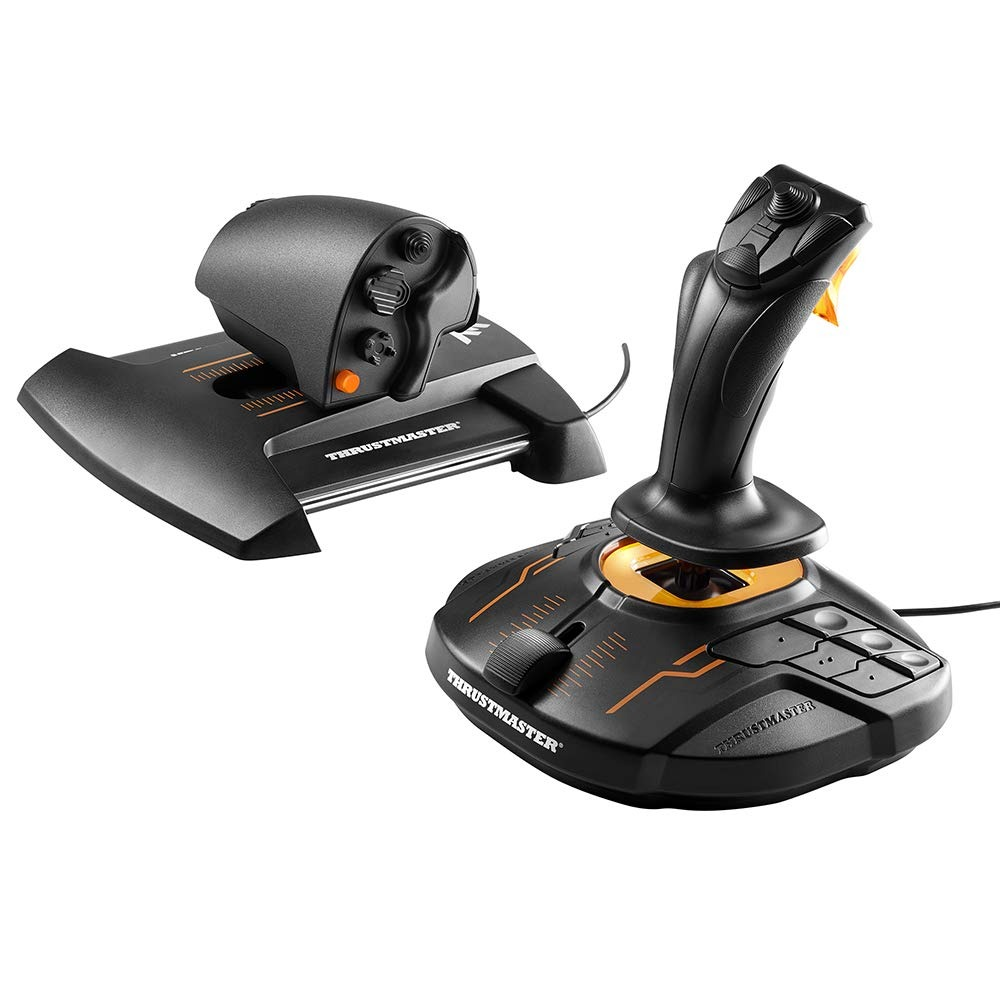

Thrustmaster T-16000M FCS HOTAS — Joystick & Throttle

Warthog-Level Precision at Half the Price — Thrustmaster T-16000M FCS HOTAS

The Thrustmaster T-16000M FCS HOTAS is the ideal mid-range HOTAS bundle for PC flight simulation — pairing the acclaimed T.16000M FCS joystick with the TWCS (Thrustmaster Weapon Control System) throttle in one complete package. The same H.E.A.R.T magnetic precision technology found in the flagship HOTAS Warthog, now accessible at a mid-range price. With 30 action buttons, 5 axes, dual 8-way PoV hats, and an ambidextrous stick design, the T-16000M FCS HOTAS gives you comprehensive flight control for DCS World, Star Citizen, Elite Dangerous, and every major PC flight sim.

Why the T-16000M FCS HOTAS?

• H.E.A.R.T HallEffect AccuRate Technology: 16-bit (16,000 × 16,000 values) contactless magnetic sensors on pitch and roll — the same Warthog-grade precision at a fraction of the price. US Patent US08471815.

• Ambidextrous Joystick: Internal components swap so the stick works equally for left-hand or right-hand use — ideal for dual-stick HOTAS setups.

• Helical Spring Mechanism: 2.8 mm diameter helical spring inside the stick provides firm, linear, and smooth tension for natural, fatigue-free flying.

• Braille-Style Button ID: Raised tactile markers on all stick buttons — identify controls without looking away from your sim.

• Orange Accents + Backlighting: Immersive cockpit aesthetics with lit controls and striking orange highlights.

• S.M.A.R.T Throttle (Sliding Motion Advanced Rail Tracks): Industrial slide-rail system for jolt-free, smooth throttle travel across an 80 mm range with adjustable friction via tightening screw.

• 5 Throttle Axes: TWCS throttle features 5 axes including mini-stick and rocker — plus a rear RJ12 connector for adding optional TFRP rudder pedals for 3 extra axes.

• 30 Total Buttons: 16 on the joystick + 14 on the throttle — comprehensive coverage for the most demanding sims.

• 2 × 8-Way PoV Hats: One on the joystick, one on the throttle — for full panoramic view control and aircraft systems management.

• Expandable with TFRP Rudder Pedals: TWCS throttle includes an RJ12 connector — add TFRP rudder pedals for 3 additional axes (sold separately).

• TARGET Software Compatible: Create, save, and share advanced custom profiles with Thrustmaster's free T.A.R.G.E.T programming software.

T.16000M FCS Joystick Controls

• Axes: 4 (X/pitch, Y/roll, Z/twist rudder, progressive throttle)

• Buttons: 16 action buttons (braille-style ID) + 1 × 8-way PoV hat

• Precision: H.E.A.R.T 16-bit (16,000 × 16,000 values)

• Spring: Helical, 2.8 mm — firm, linear, smooth

• Ambidextrous: Yes (swappable internals)

• Base: Weighted for stability

TWCS Throttle Controls

• Axes: 5 (throttle, mini-stick X/Y, rocker, rotation)

• Buttons: 14 + 1 × 8-way PoV hat

• Throttle Travel: 80 mm (S.M.A.R.T slide rails)

• Friction: Adjustable tightening screw

• Connector: RJ12 for TFRP rudder pedals

Combined Pack Totals

• Total Axes: 5 (+ 3 via TFRP pedals = 8 total)

• Total Buttons: 30

• Total PoV Hats: 2 × 8-way

Compatible Games

• DCS World

• Star Citizen

• Elite Dangerous

• Microsoft Flight Simulator 2020 / 2024

• X-Plane 11 & 12

• War Thunder & more

Key Specifications

• Platform: PC (Windows 10, 8, 7 — 32-bit & 64-bit)

• Connection: USB Plug & Play (2 separate USB — joystick + throttle)

• Total Axes: 5 (up to 8 with TFRP)

• Total Buttons: 30

• Joystick Precision: H.E.A.R.T 16-bit (16,000 × 16,000 values)

• Throttle Travel: 80 mm (S.M.A.R.T rails)

• Dimensions (W × D × H): 27.2 × 22.9 × 26.4 cm

• Weight: 2,100 g

• Software: T.A.R.G.E.T (free download)

• MPN: 2960778

• Brand: Thrustmaster

• Warranty: 1 Year

Two controllers. One ecosystem. The T-16000M FCS HOTAS — Warthog precision, without the Warthog price.
