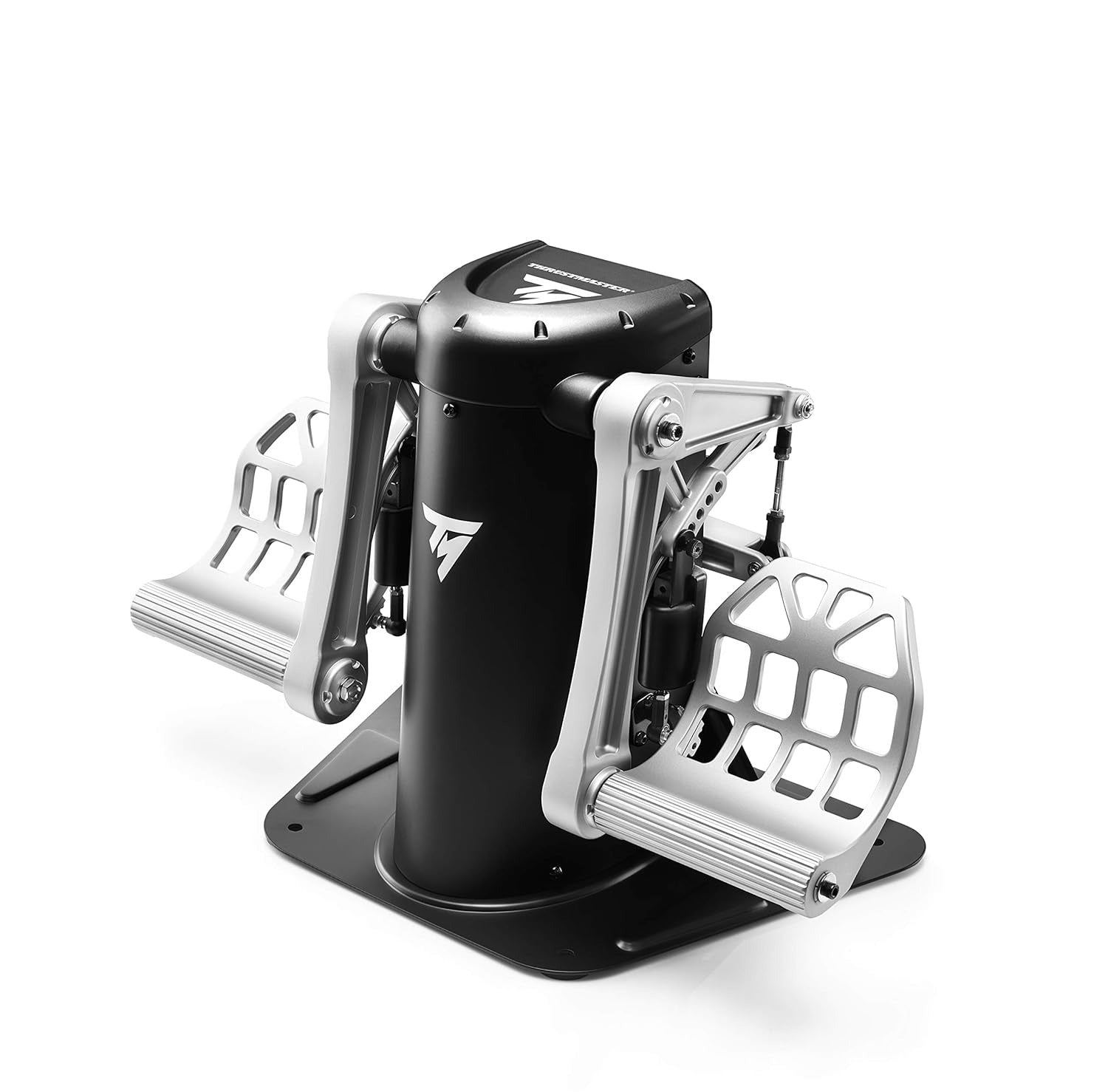

Thrustmaster TPR Pendular Rudder — Expert Flight Rudder Pedals

The Most Precise Rudder Pedals Ever Made. — Thrustmaster TPR Pendular Rudder

The Thrustmaster TPR (Thrustmaster Pendular Rudder) is the ultimate expert-grade flight simulation rudder system — designed for serious sim pilots who refuse to compromise on precision, realism, or durability. Featuring Thrustmaster's exclusive PENDUL_R suspended pendular mechanism, 16-bit H.E.A.R.T. Hall Effect magnetic sensors on all 3 axes, a full 100% metal structure, and weighing 7 kg for total cockpit-grade stability, the TPR is the most accurate and realistic rudder pedal system Thrustmaster has ever engineered. Compatible with all flight simulation games — from civil aviation to military combat and space sim.

Why the TPR Pendular Rudder?

• PENDUL_R™ Suspended Mechanism (Exclusive to Thrustmaster): The TPR's revolutionary PENDUL_R technology uses a unique suspended pendular mechanism — unlike conventional pivot rudders, the pedals move in a smooth, linear forward-and-back pendular motion that perfectly mimics the feel of real aircraft rudder pedals. Fluid, jolt-free, and extraordinarily precise in every movement.

• H.E.A.R.T. HallEffect AccuRate Technology — 16-bit Precision (U.S. Patent US08471815): 3D Hall effect magnetic sensors on all 3 axes (rudder + left differential brake + right differential brake) — 65,536 values per axis, 0.005° of precision. No potentiometers, no friction, no wear — magnetic frictionless action that maintains perfect calibration indefinitely.

• 100% Metal Structure — 7 kg Cockpit-Grade Weight: Full metal construction throughout — steel frame, 32 industrial plain bearings, 53 cm wide metal base. The 7 kg weight guarantees zero movement under aggressive rudder inputs with or without cockpit mounting.

• Adjustable Pedal Position — 5 Angles (35° to 75°): Pedals adjust into five different positions at angles between 35° and 75° — dial in the exact foot angle to match your seated position, leg length, and flying preference.

• Adjustable Spring Resistance — 2 Springs Included: Two springs included for customizable resistance levels — reposition them on the spring brackets to increase or decrease rudder pressure according to your personal preference or the aircraft type you fly.

• Two Fully Independent Differential Brake Axes: Left and right toe brake axes are fully independent and progressive — precise differential braking for ground steering, asymmetric multi-engine thrust management, and combat maneuvering with complete proportional control.

• Versatile Mounting — Desk or Cockpit: Four M6 mounting holes in the metal base for permanent cockpit installation. The 7 kg weight also provides total desk stability without any mounting — works either way without compromise.

• Firmware Updateable: Built-in electronics with the ability to update the device's firmware — future-proof your investment as new games and platforms evolve.

• 32 Industrial Plain Bearings: All movement joints use 32 industrial-grade plain bearings — zero slop, zero play, silky-smooth action in every axis across millions of inputs.

• Compatible With All Flight Sim Games: Military combat flight, civilian aviation, airliners, helicopters, warbirds, space sim — designed for any genre that uses rudder input on PC.

In The Box

1 × TPR Pendular Rudder base
2 × Metal differential brake pedals (user-attached)
2 × Allen keys (2.5 mm and 3 mm)
2 × Flat wrenches (8 mm and 14 mm)
2 × Springs (for resistance adjustment)
User manual and warranty information

Compatible With

PC (Windows 10/11/8/7) — USB connection
Compatible with all flight simulation HOTAS systems on PC:
HOTAS Warthog, TCA Officer Pack Airbus Edition, T.16000M FCS HOTAS, T-Flight HOTAS One (PC), VKB, Virpil, Logitech, and all other USB joysticks/HOTAS

Compatible Games

Microsoft Flight Simulator 2020 / 2024
DCS World
X-Plane 11 & 12
IL-2 Sturmovik series
Star Citizen
Elite Dangerous
War Thunder (Air)
Prepar3D & more

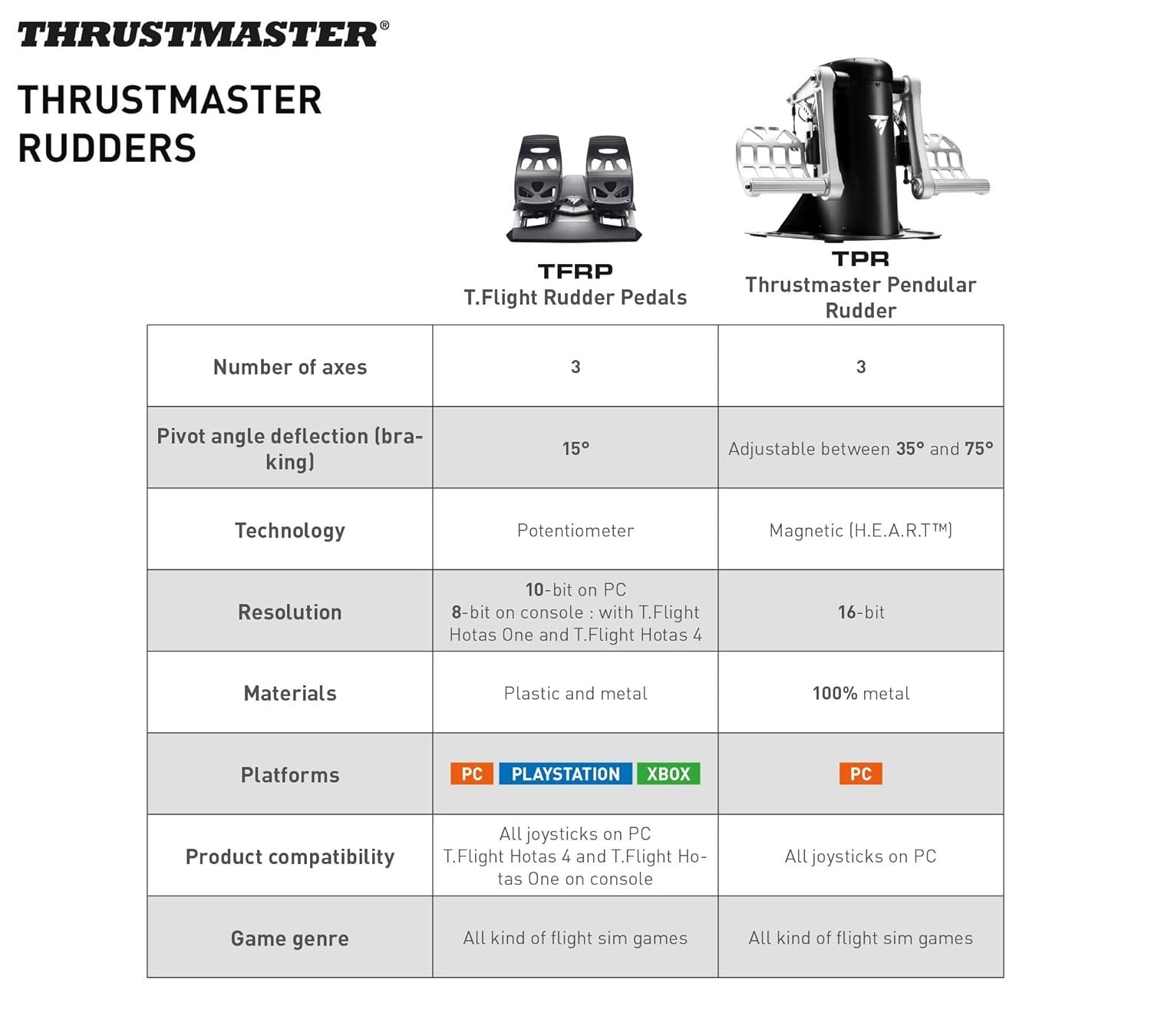

Key Specifications

Platform: PC (Windows 10/11/8/7)
Connection: USB
Mechanism: PENDUL_R™ suspended pendular (Thrustmaster exclusive)
Sensors: H.E.A.R.T. 3D Hall effect magnetic — 16-bit per axis (65,536 values)
Precision: 0.005° per axis
Axes: 3 (rudder + left differential brake + right differential brake)
Construction: 100% metal
Bearings: 32 industrial plain bearings
Springs: 2 × adjustable resistance springs (included)
Pedal Positions: 5 (angles 35° to 75°)
Mounting: 4 × M6 holes (cockpit) + freestanding desk use
Dimensions (W × D × H): 53 × 36 × 36 cm
Weight: 7 kg (15.4 lbs)
Firmware: Updatable
Color: Black / Metal
Brand: Thrustmaster
Warranty: 1 Year

The TPR Pendular Rudder — when you're ready for the most realistic rudder experience money can buy.
