Thrustmaster TX Racing Wheel Leather Edition

The Complete Sim Racing Package — Thrustmaster TX Racing Wheel Leather Edition

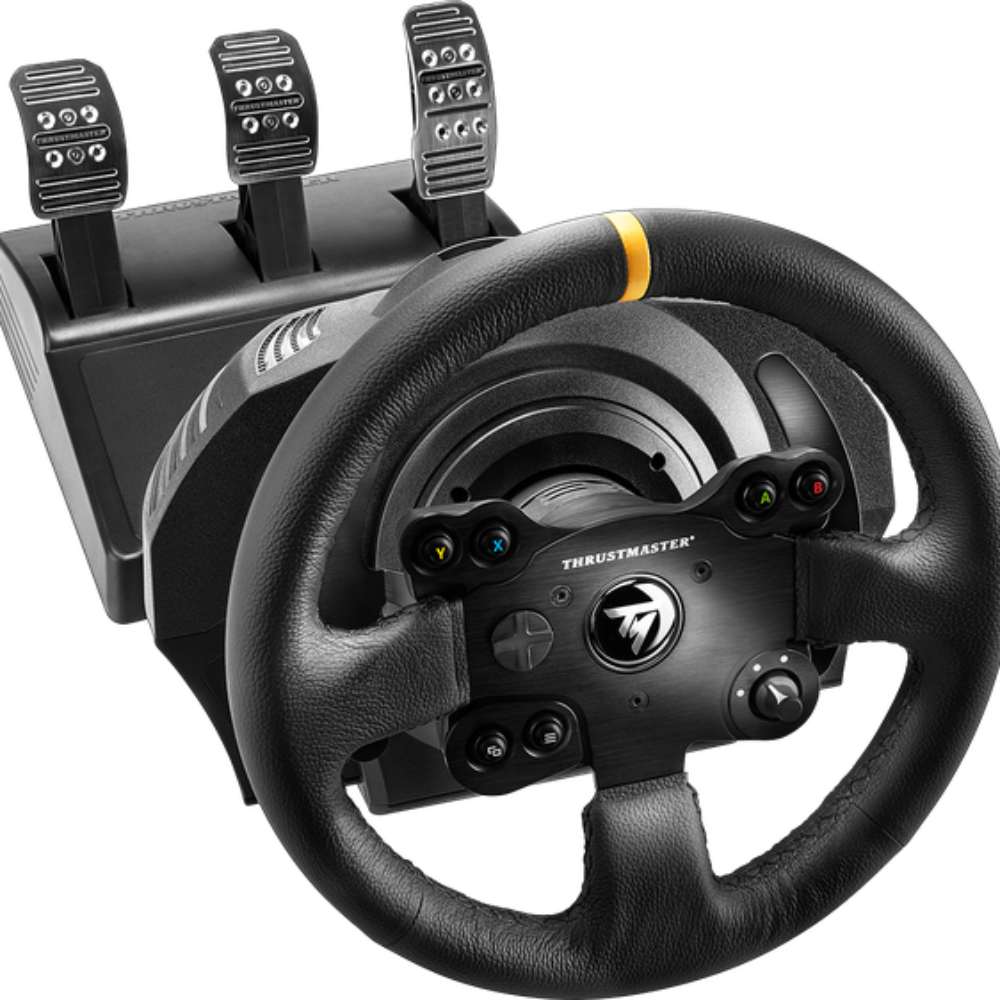

The Thrustmaster TX Racing Wheel Leather Edition is Thrustmaster's flagship all-in-one Xbox and PC racing bundle — combining the acclaimed TX Servo Base, the hand-stitched TM Leather 28 GT wheel rim, and the fully adjustable T3PA 3-pedal set in one premium package. With a 25W industrial brushless servomotor, dual-belt force feedback, and H.E.A.R.T contactless magnetic precision, this is the definitive mid-to-high-end sim racing setup for Xbox Series X|S, Xbox One, and PC racers who want everything in one box.

Why the TX Racing Wheel Leather Edition?

• 25W Brushless Servomotor: Fast, precise, and near-silent force feedback — realistic transmission of every bump, kerb, slide, and grip change directly to your hands in real time.

• Dual-Belt Force Feedback System: Twin belt mechanism eliminates dead zones and dampens unwanted jolts for a smooth, consistent, and powerful driving feel across all racing types.

• H.E.A.R.T HallEffect AccuRate Technology: Contactless 16-bit magnetic sensor (65,536 values) on the steering axis — no wear, no drift, unlimited product lifespan.

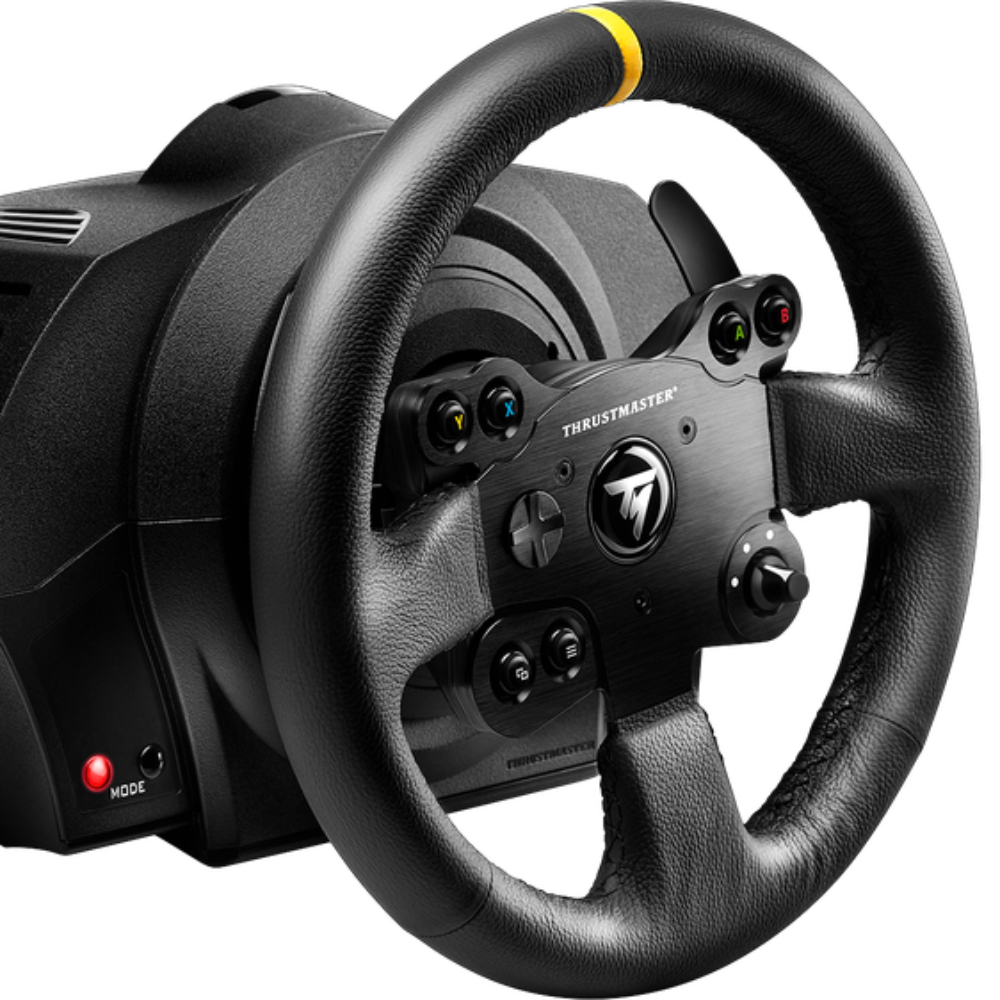

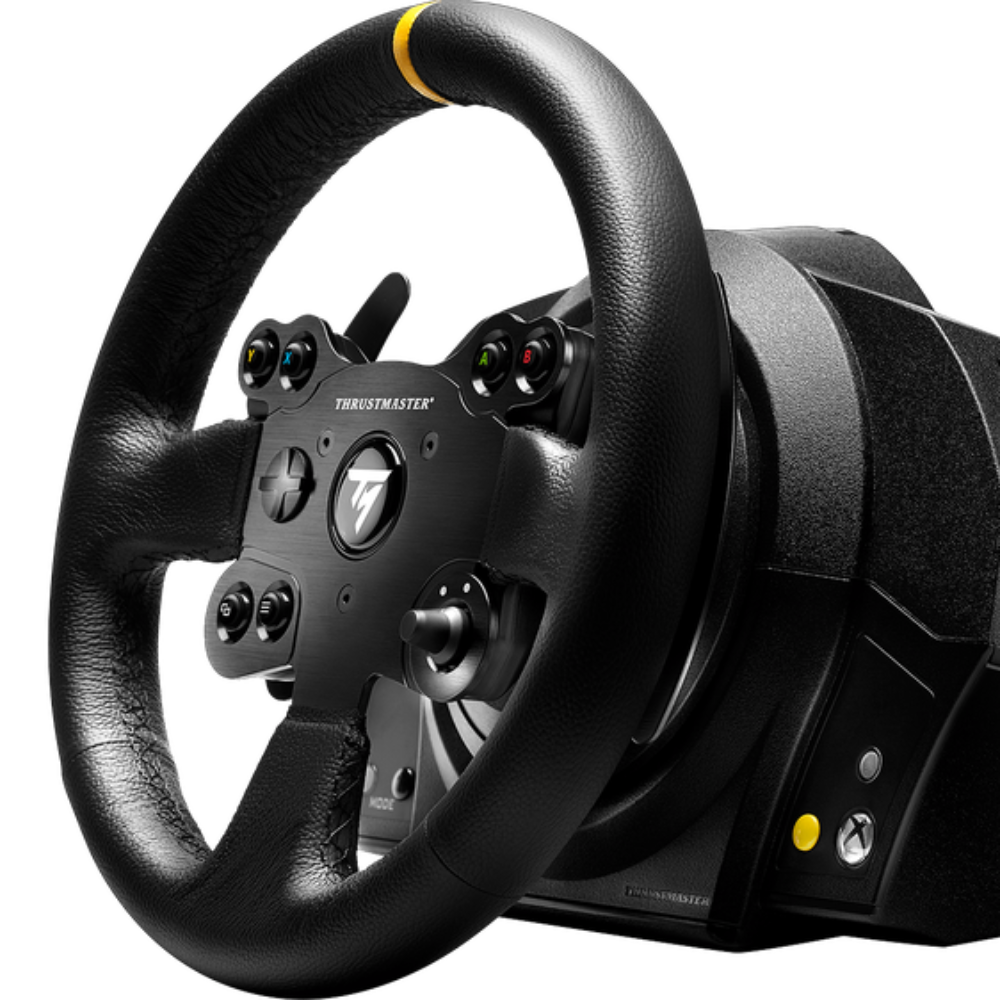

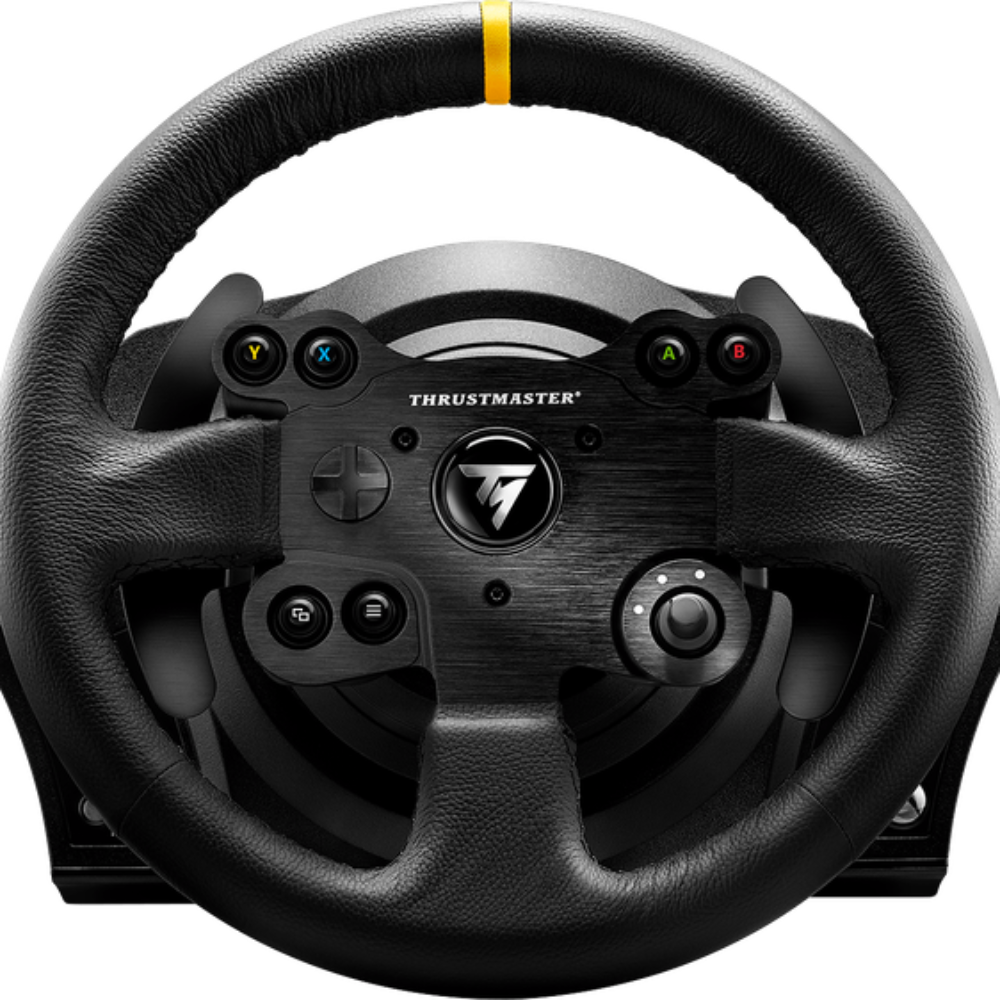

• TM Leather 28 GT Wheel (Hand-Stitched): 11-inch (28 cm) GT-style detachable wheel in premium hand-stitched leather for maximum grip and luxury feel — includes 2 metal paddle shifters, 6 action buttons, 1 rotary switch, and a multi-directional D-Pad.

• T3PA 3-Pedal Set (Included): Fully adjustable throttle, brake, and clutch pedal set — Conical Rubber Brake Mod included for adjustable brake resistance to simulate a real race car pedal feel.

• Up to 900° Rotation: Auto-adaptive from 270° to 900° — adjust per vehicle and racing discipline or set manually in the driver software.

• Ecosystem-Ready: Quick release system lets you swap to any Thrustmaster add-on wheel in seconds — invest once, upgrade whenever.

• Official Xbox License: Certified by Microsoft — full force feedback support on Xbox Series X|S, Xbox One, and Windows PC.

• Metal Central Clamp: Robust desk clamp included for stable table mounting; built-in screw threads for cockpit rig integration.

• Firmware Upgradeable: Keep up to date via Thrustmaster's Firmware Updater and free drivers for Windows.

What's in the Box

• TX Racing Wheel Servo Base

• TM Leather 28 GT Wheel (detachable, hand-stitched leather, 28 cm)

• T3PA 3-Pedal Set (throttle, brake, clutch) with Conical Rubber Brake Mod

• USB cable

• EU power adapter

• Metal mounting clamp

TM Leather 28 GT Wheel Controls

• 2 × Metal paddle shifters

• 6 action buttons

• 1 rotary switch

• 1 multi-directional D-Pad

T3PA Pedal Set

• 3 pedals: throttle, brake, clutch

• Fully adjustable positioning

• Conical Rubber Brake Mod included

• All-metal pedal heads

Compatible Games

• Forza Motorsport / Forza Horizon series

• F1 series

• Assetto Corsa / Assetto Corsa Competizione

• DiRT Rally 2.0

• Project CARS 2 / 3

• iRacing

• rFactor 2

• WRC series & more

Key Specifications

• Platform: Xbox Series X|S, Xbox One, PC (Windows)

• Connection: Wired USB

• Motor: Industrial-class brushless servomotor, 25W

• Force Feedback: Dual-belt mechanism

• Steering Resolution: H.E.A.R.T 16-bit (65,536 values)

• Rotation Angle: Up to 900° (adjustable)

• Wheel Diameter: 28 cm (11 inches)

• Wheel Material: Hand-stitched leather

• Pedal Set: T3PA (3-pedal, fully adjustable)

• Dimensions (Base): 47.4 × 37.5 × 35 cm

• Weight: ~10 kg (full set)

• Edition: EU power adapter included

• Official License: Microsoft Xbox

• Brand: Thrustmaster

• Warranty: 1 Year

Everything you need to race seriously — straight out of the box.
