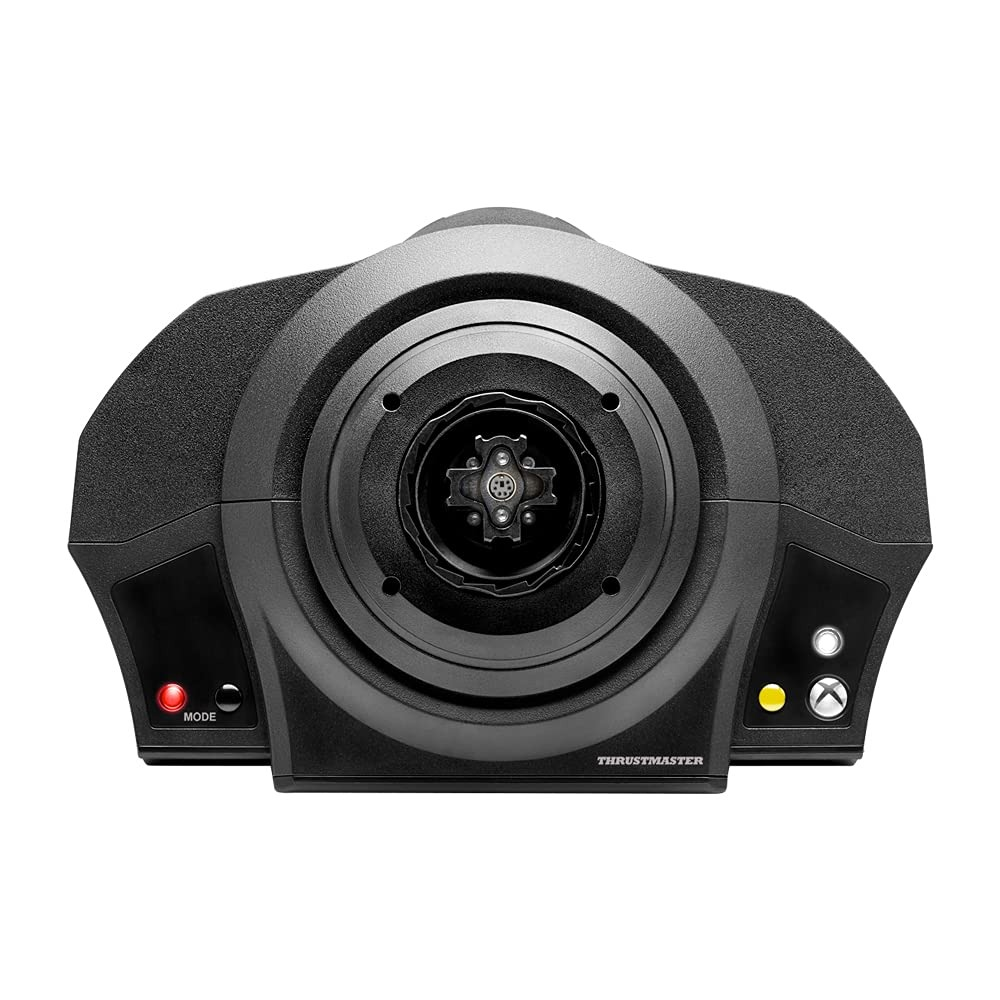

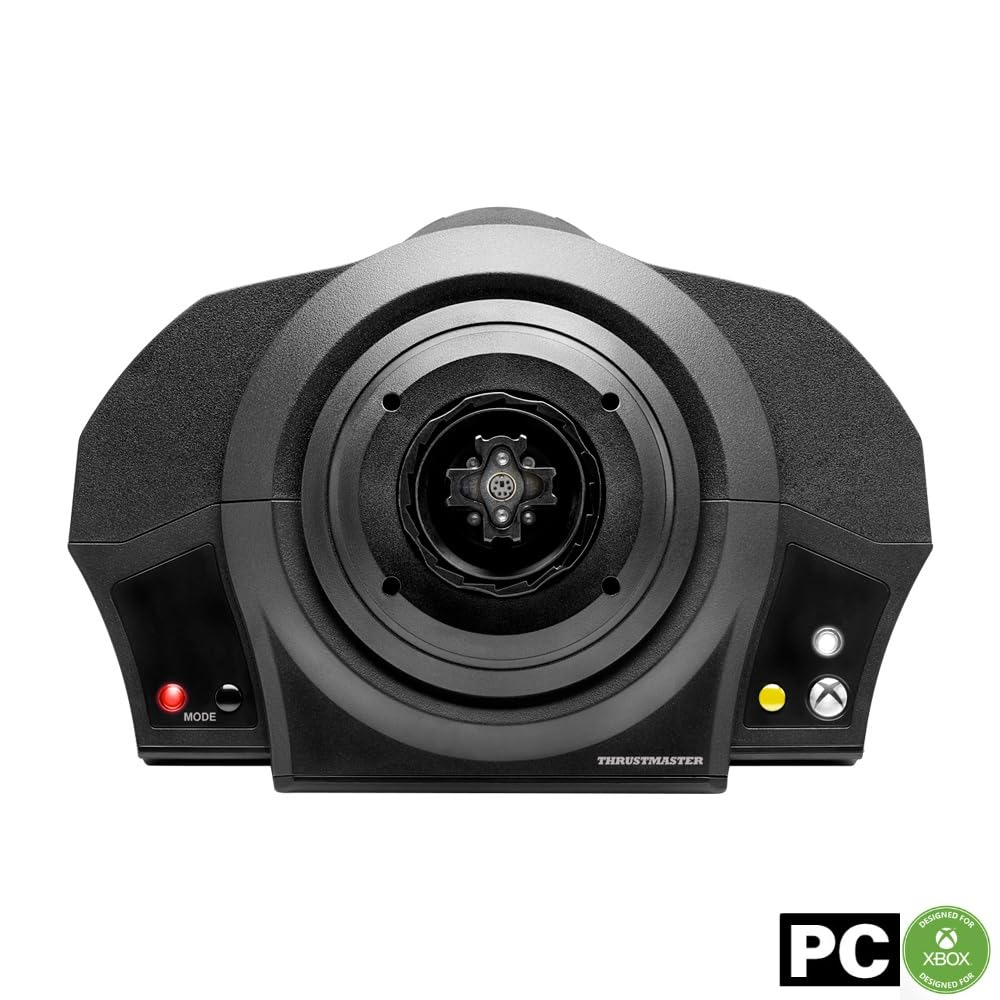

Thrustmaster TX Racing Wheel Servo Base — Racing Wheel Base

Build Your Ultimate Racing Sim — Thrustmaster TX Servo Base

The Thrustmaster TX Servo Base is the cornerstone of a fully customizable racing simulator setup for Xbox One, Xbox Series X, and PC. As the standalone base of the acclaimed TX Racing Wheel, this EMEA edition gives you the freedom to pick your own wheel, pedals, and shifter — building the exact racing rig you want within the Thrustmaster ecosystem. With an industrial-class brushless servo motor, dual-belt force feedback, and H.E.A.R.T magnetic precision, the TX Servo Base delivers professional-grade immersion at a sim-enthusiast price.

Note: This is the base only. Wheel, pedals, and shifter are sold separately.

Why the TX Servo Base?

• Industrial-Class Brushless Servomotor: 25W of pure, frictionless force feedback power — ultra-responsive, near-silent, and with no latency. Feel every kerb, slide, and surface change in real time.

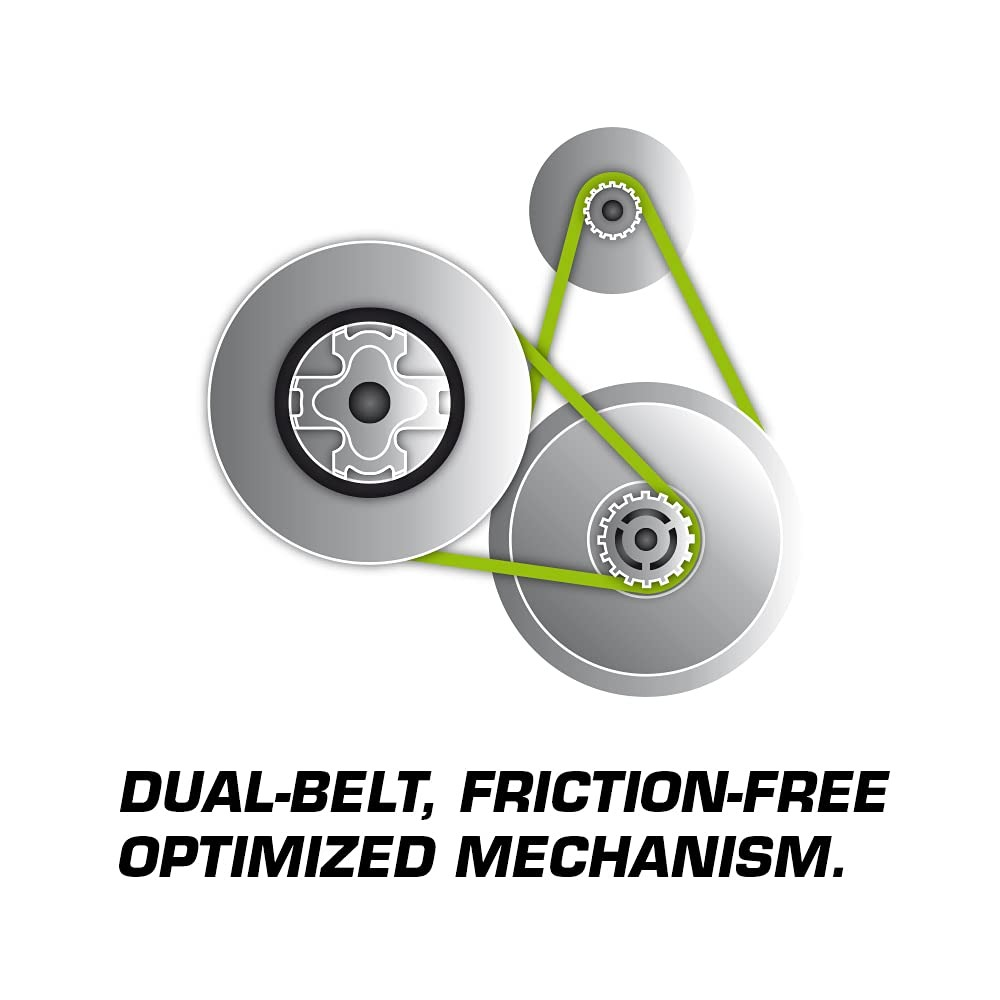

• Dual-Belt Mechanism: No dead zones, no clunking — the twin belt system delivers the smoothest and most realistic force feedback transmission available at this price point.

• H.E.A.R.T HallEffect AccuRate Technology: Contactless magnetic sensor with 16-bit resolution (65,536 values on steering axis) — infinite lifespan, zero drift, zero wear.

• 900° Rotation Angle: Adjustable steering lock from 270° to 900° — covers everything from Formula cars to trucks and rally cars.

• Thrustmaster Quick Release System: Swap between compatible Thrustmaster wheels in seconds — invest once in the base, upgrade wheels without buying a new unit.

• Official Xbox One License: Certified by Microsoft — works on Xbox One, Xbox Series X, and Windows PC with full force feedback support.

• Ecosystem-Ready: Compatible with all Thrustmaster add-on wheels, T3PA / T3PA-PRO pedals, TH8A shifter, and all USB pedal sets / shifters on PC.

• Metal Central Attachment System: Includes a heavy-duty metal clamp compatible with all desks and tables — plus built-in screw threads for cockpit mounting.

Compatible Wheels (Sold Separately)

• 599XX EVO 30 Wheel Add-On Alcantara Edition

• TM Leather 28 GT Wheel Add-On

• Ferrari F1 Wheel Add-On

• Ferrari GTE Wheel Add-On

• Any Thrustmaster Quick Release-compatible wheel

Compatible Pedals (Sold Separately)

• T3PA (3-pedal add-on)

• T3PA-PRO

• All USB pedal sets on PC (in games supporting multi-USB)

Compatible Shifters (Sold Separately)

• TH8A Add-On Shifter

• All USB shifters on PC (in games supporting multi-USB)

Compatible Games

• Forza Motorsport / Forza Horizon

• F1 series

• Assetto Corsa / Assetto Corsa Competizione

• Gran Turismo Sport

• Project CARS 2 / 3

• iRacing, rFactor 2, DiRT Rally 2.0 & more

Key Specifications

• Platform: Xbox One, Xbox Series X, PC (Windows)

• Connection: Wired (USB + power adapter)

• Motor: Industrial-class brushless servomotor, 25W

• Maximum Torque: Approx. 3.9–4 Nm

• Force Feedback: Dual-belt, friction-free

• Steering Resolution: H.E.A.R.T 16-bit (65,536 values)

• Rotation Angle: Adjustable, up to 900°

• Wheel Mount: Thrustmaster Quick Release System

• Desk Clamp: Metal central attachment (included)

• Cockpit Mount: Built-in screw threads

• Weight: 2 kg (base only)

• Edition: EMEA (220–240V compatible power supply)

• Brand: Thrustmaster

• Official License: Microsoft Xbox One

• Warranty: 1 Year

The TX Servo Base — the foundation every serious sim racer builds on.
