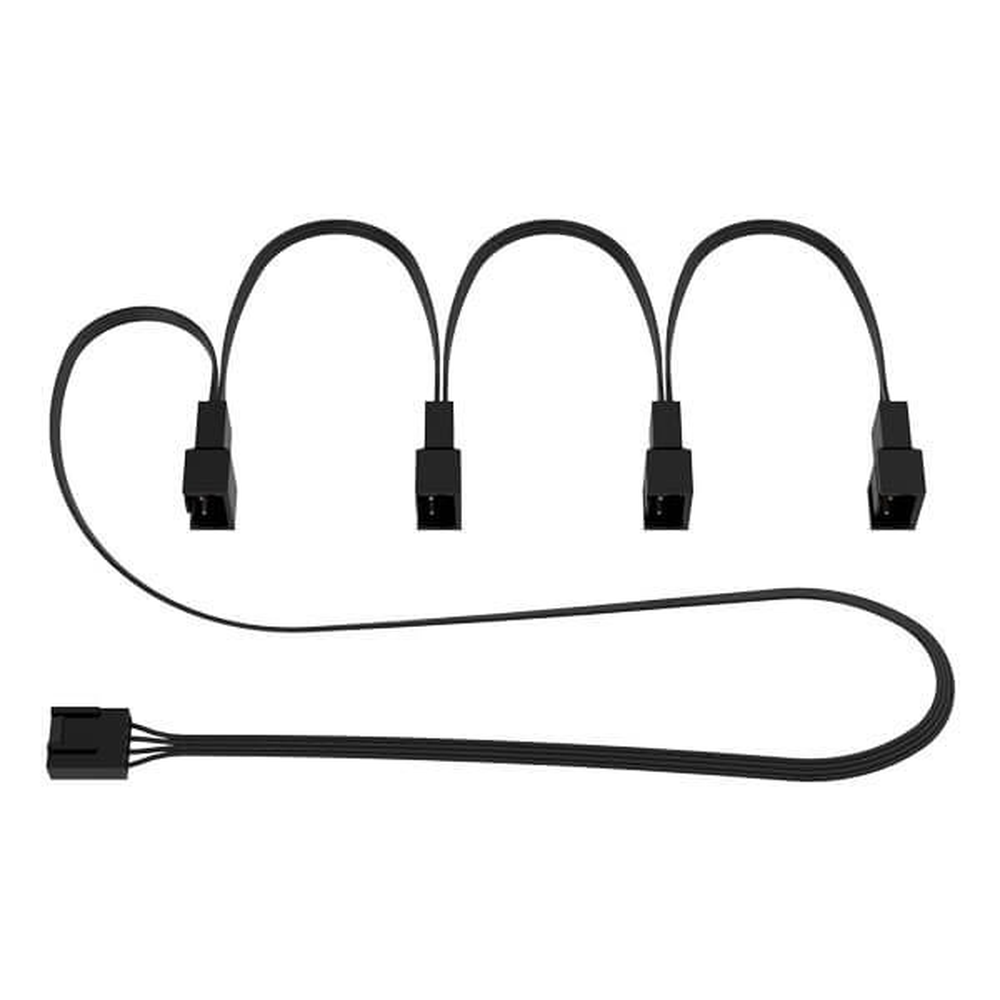

ARCTIC 4-Pin PWM Fan Splitter Cable (Black)
Rs. 369.00
1-to-4
4-pin
accbl00007a
arctic
Genuine & warrantedAuthorised stock, brand warranty
83560 26438Contact for querries
Secure checkoutUPI · cards · EMI
Fast shippingTracked · 5–7 days
01 — Datasheet
Technical specification
ARCTIC 4-Pin PWM Fan Splitter Cable (ACCBL00007A) lets you connect up to four case fans to a single motherboard fan header, with synchronized PWM speed control and clean cable management for modern PC builds.
- Connect up to four fans: One 4-Pin PWM input and four 4-Pin PWM outputs allow you to run up to four case fans from a single motherboard header (max 1 A total)
- Synchronous PWM control: The PWM signal from your motherboard is mirrored to all connected fans, while the RPM of the first fan socket is reported back for monitoring
- Improved cable management: 70 cm overall length with 40 cm to the first fan connector lets you route the cable out of sight and reach fans anywhere in the case
- Flexible, slim cabling: Same durable, flexible cable material as ARCTIC fans, without extra sleeving, so it tucks easily into tight spaces and behind cable channels
- 3-Pin compatible: Also works with 3-Pin DC fans and headers, forwarding the voltage control and reading the speed of the first fan
| Specification | Detail |
|---|---|
| Brand | ARCTIC |
| Model | 4-Pin PWM Fan Splitter Cable |
| Part Number | ACCBL00007A |
| Colour | Black |
| Connector (Input) | 1 × 4-Pin PWM Connector |
| Connectors (Output) | 4 × 4-Pin PWM Socket (RPM signal on first socket only) |
| Cable Length (overall) | 700 mm |
| Cable to first socket | 400 mm |
| Cable between sockets | 100 mm |
| Fan Compatibility | 4-Pin PWM and 3-Pin DC 12 V fans |
| Max total current | Up to 1 A recommended on the header |
| Operating Temp | 0 – 40 °C |
| Packaging Size | 190 (L) × 54 (W) × 23 (H) mm |
| Packaging Weight | 0.01 kg |
| Box Contents | ARCTIC 4-Pin PWM Fan Splitter Cable |
