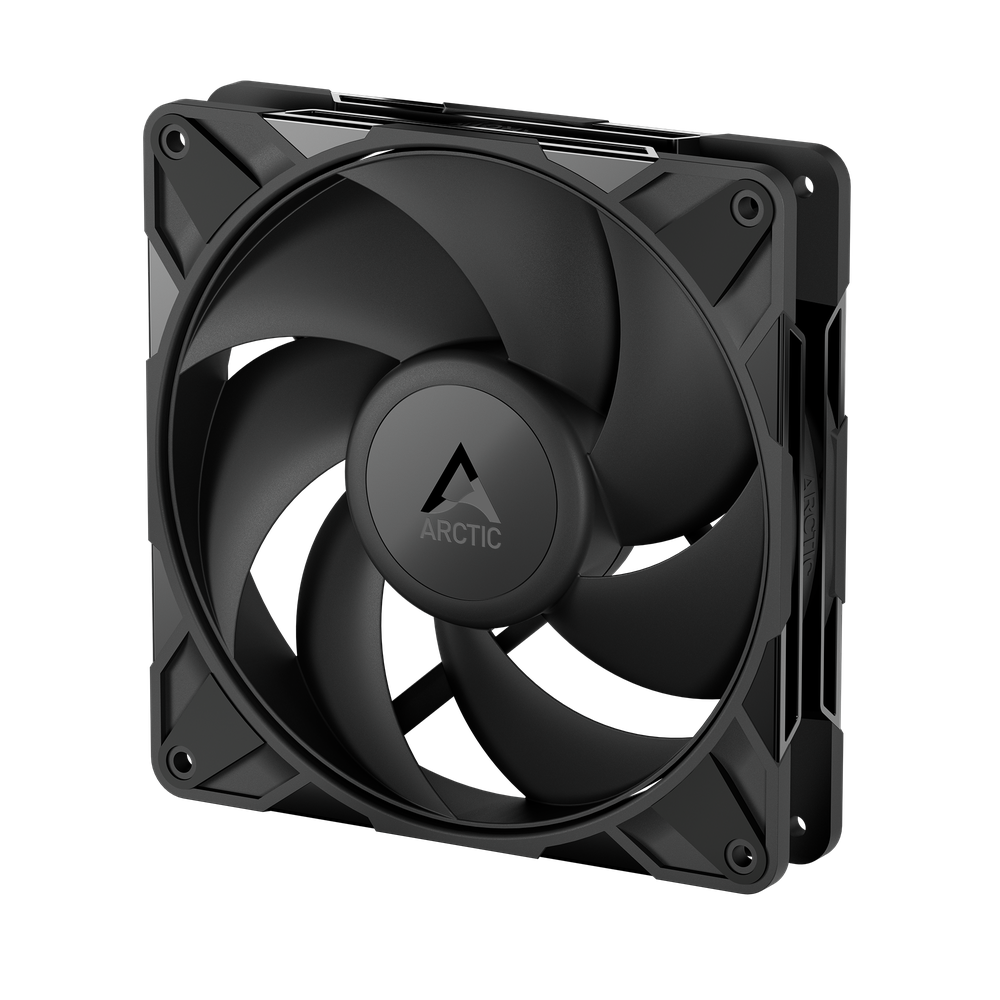

ARCTIC P14 Pro PST 140mm PWM Case Fan (Black)
Rs. 1,120.00
140mm
acfan00314a
airflow fan
arctic
Genuine & warrantedAuthorised stock, brand warranty
83560 26438Contact for querries
Secure checkoutUPI · cards · EMI
Fast shippingTracked · 5–7 days
01 — Datasheet
Technical specification
ARCTIC P14 Pro PST (Black) (ACFAN00314A) — a high‑performance 140mm PWM case fan with a reinforced ring‑frame rotor for extreme static pressure, 110 CFM airflow, and PWM Sharing Technology (PST), ideal for radiators, front intakes with dense filters, and performance‑focused builds.
-
>High airflow & pressure: Up to 110 CFM (186 m³/h) airflow and 5.2 mmH₂O static pressure, perfect for thick radiators and restrictive front panels
>PWM PST daisy-chain: 4‑Pin PWM plug plus 4‑Pin socket let you connect multiple P14 Pro PST fans to a single header and control them together
>Wide speed range: 400–2500 RPM PWM‑controlled with 0 RPM below 5% PWM for silent idle and aggressive cooling under load
>Quiet FDB motor: Fluid Dynamic Bearing and optimised rotor reduce motor noise and vibration while maintaining a long service life
>140mm performance fan: 140 × 140 × 27mm frame moves more air than 120mm fans at similar noise levels, ideal for high‑end CPU and GPU cooling setups
| Specification | Detail |
|---|---|
| Brand | ARCTIC |
| Model | P14 Pro PST (Black) |
| SKU | ACFAN00314A |
| Fan Size | 140 × 140 × 27 mm |
| Net Fan Weight | 242 g |
| Bearing | Fluid Dynamic Bearing (FDB) |
| Speed | 400–2500 RPM (PWM), 0 RPM below 5% PWM |
| Airflow | 110 CFM | 186 m³/h |
| Static Pressure | 5.2 mmH₂O |
| Noise Level | sub‑30 dB(A) range at full speed (very quiet for its performance) |
| Connector | 4‑Pin PWM Fan Plug + 4‑Pin PWM Socket (PST) |
| Cable Length | 400 mm + 80 mm daisy‑chain lead |
| Rated Voltage | 12 V DC |
| Start‑Up Voltage | 5 V DC |
| Current | 0.35 A |
| Operating Temp | 0 – 40 °C |
| Warranty | 6 Years |
| Box Dimensions | 145 (L) × 145 (W) × 32 (H) mm |
| Gross (Boxed) Weight | 0.294 kg |
| Box Contents | P14 Pro PST fan ×1, mounting screws ×4 |
