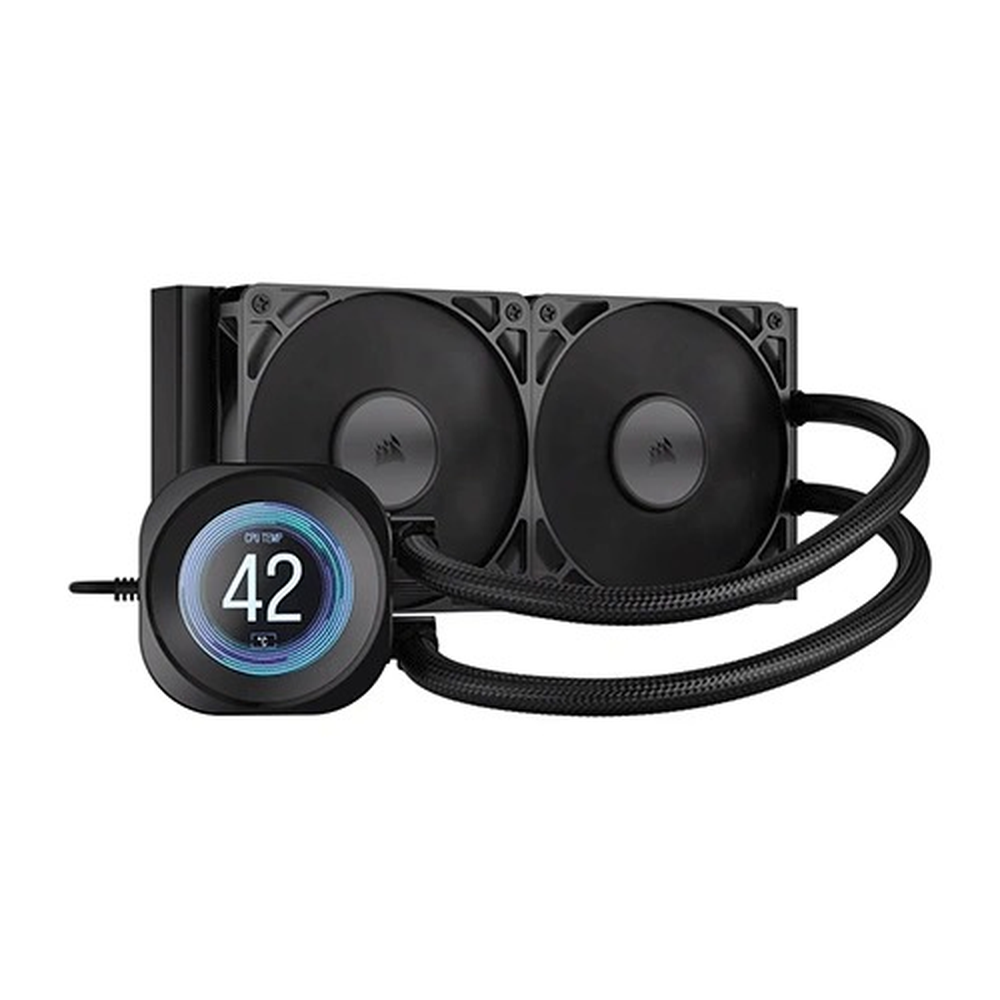

CORSAIR NAUTILUS 240 LCD, 240mm Radiator, Liquid CPU Cooler With Heatsink

The Corsair NAUTILUS 240 RS LCD Liquid CPU Cooler delivers efficient, low-noise cooling with a brightly lit 2.1" IPS LCD screen that displays system information or custom visuals. With copper cold plate heatsink, pre-applied thermal paste, 240mm aluminum radiator, two RS120 PWM fans with Zero RPM mode, precise temperature monitoring, and direct motherboard connectivity requiring no additional controllers, this AIO offers exceptional cooling performance with customizable LCD display.

Key Features:

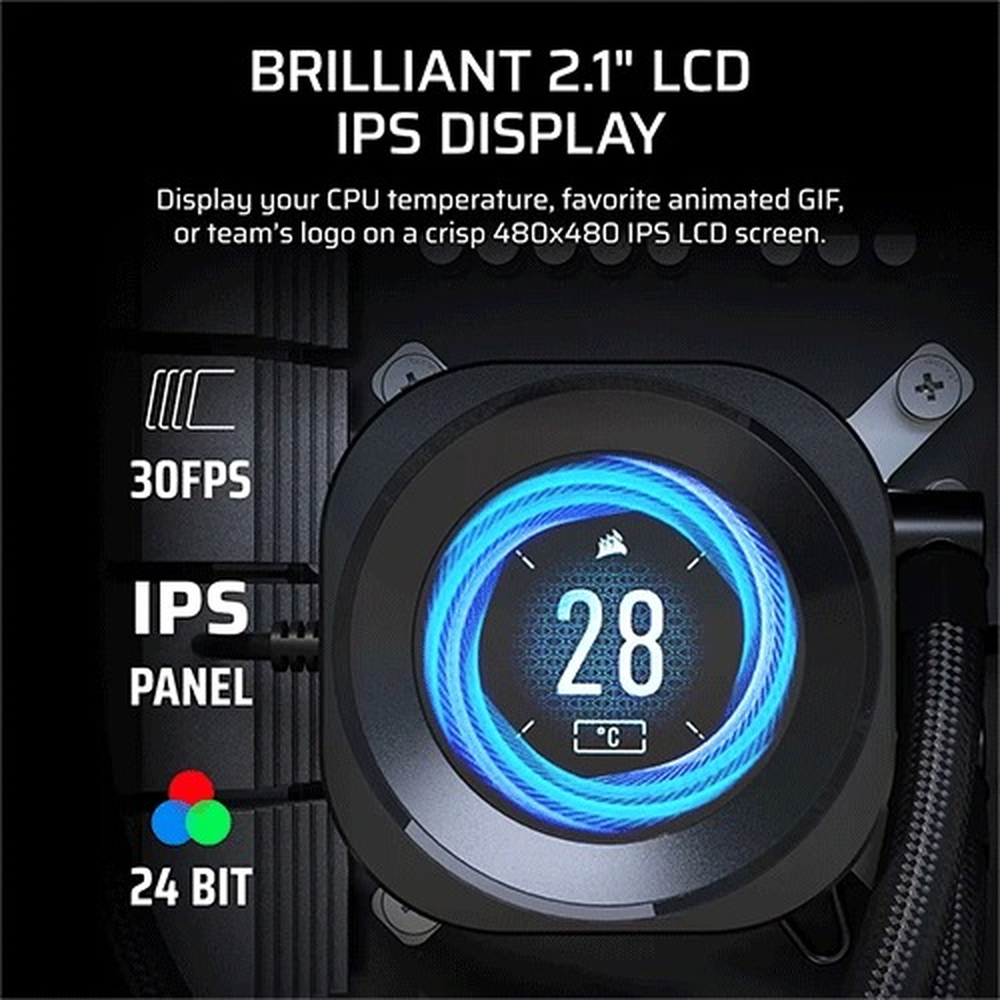

• Brightly lit 2.1" IPS LCD screen (480x480 resolution) displays system temps, images, GIFs, and custom content via iCUE software
• Full in-app GIPHY integration provides access to thousands of favorite memes and GIFs
• 16.7 million colors (24-bit color depth) with 30Hz refresh rate and 600cd/m² brightness
• Efficient low-noise cooling to help your CPU reach its full potential

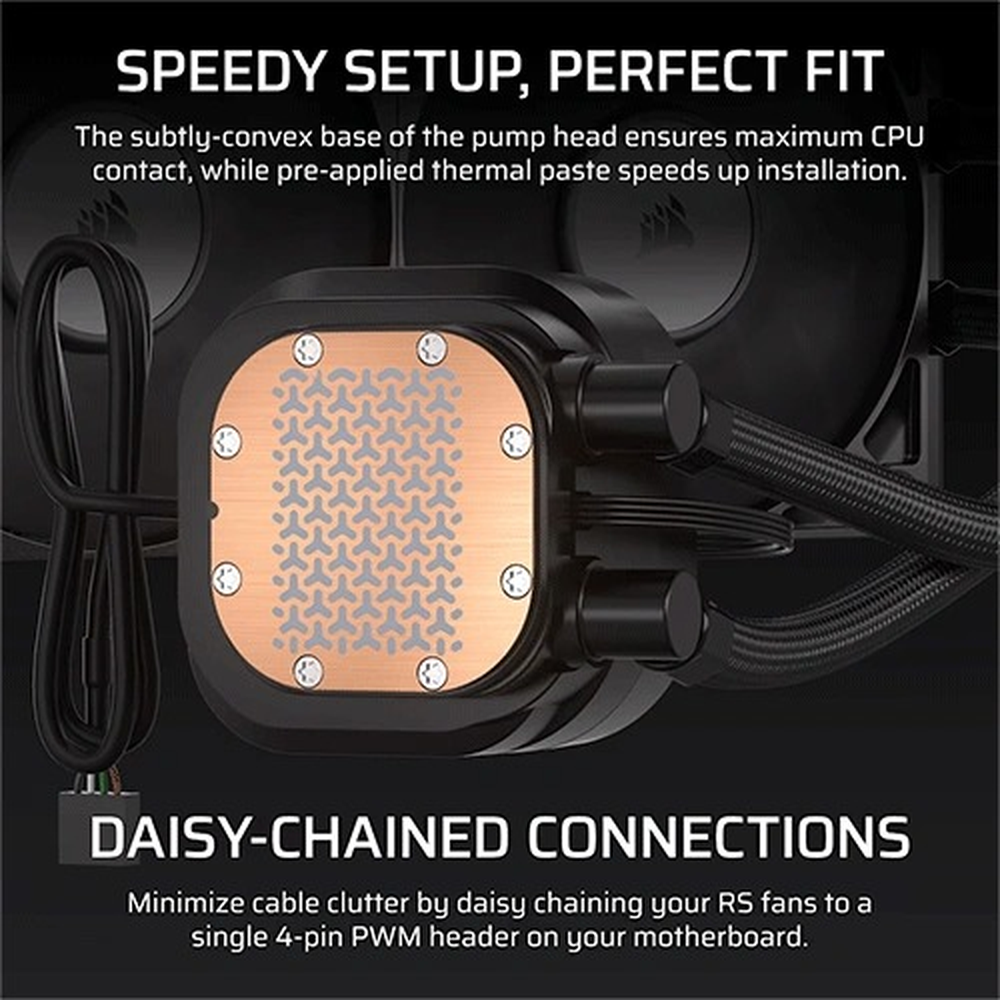

• Copper cold plate heatsink with slightly convex surface for maximum CPU contact and optimal thermal transfer
• Pre-applied XTM60 thermal paste in optimized pattern for easy installation
• 240mm aluminum radiator with optimized fin density for effective heat dissipation

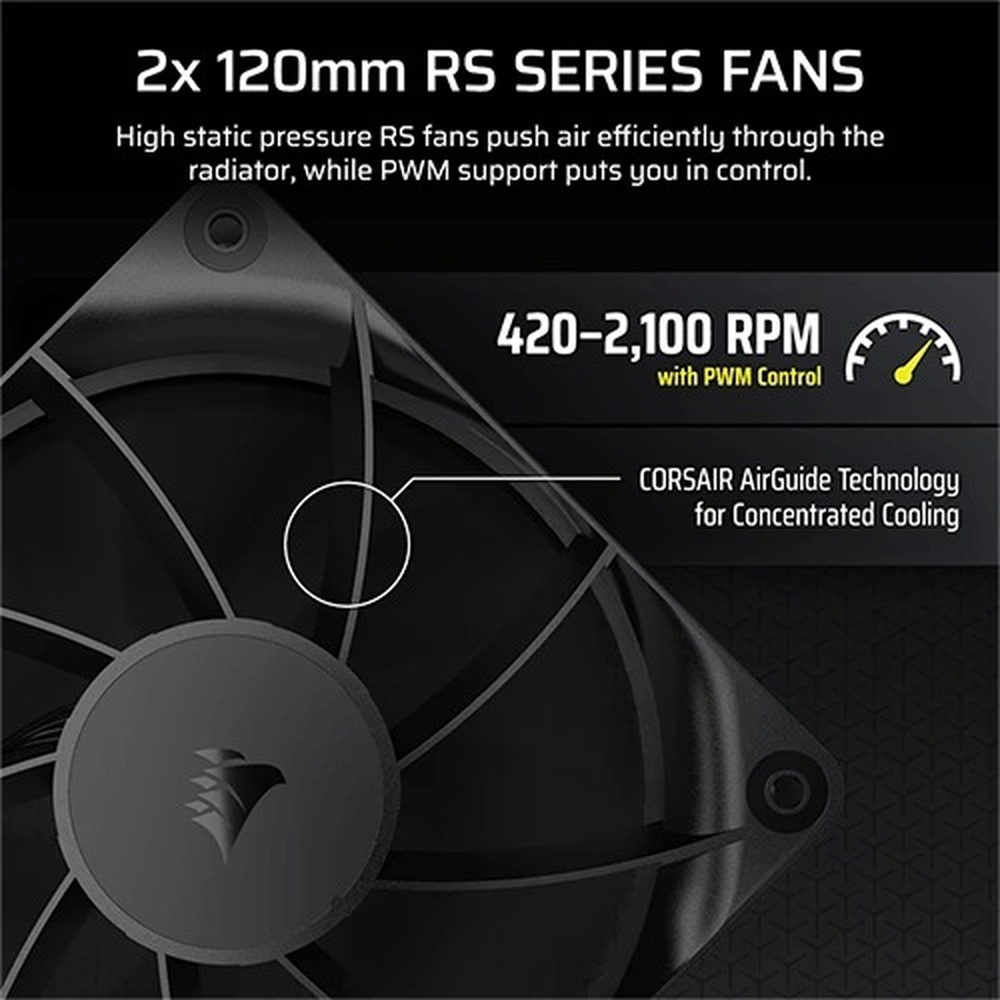

• Two RS120 PWM fans deliver high airflow (72.8 CFM max), strong static pressure (4.15 mm-H2O), and low noise
• Precise PWM fan speed control from 0-2100 RPM for optimal cooling and quiet operation
• Zero RPM mode stops fans completely at low loads for silent operation

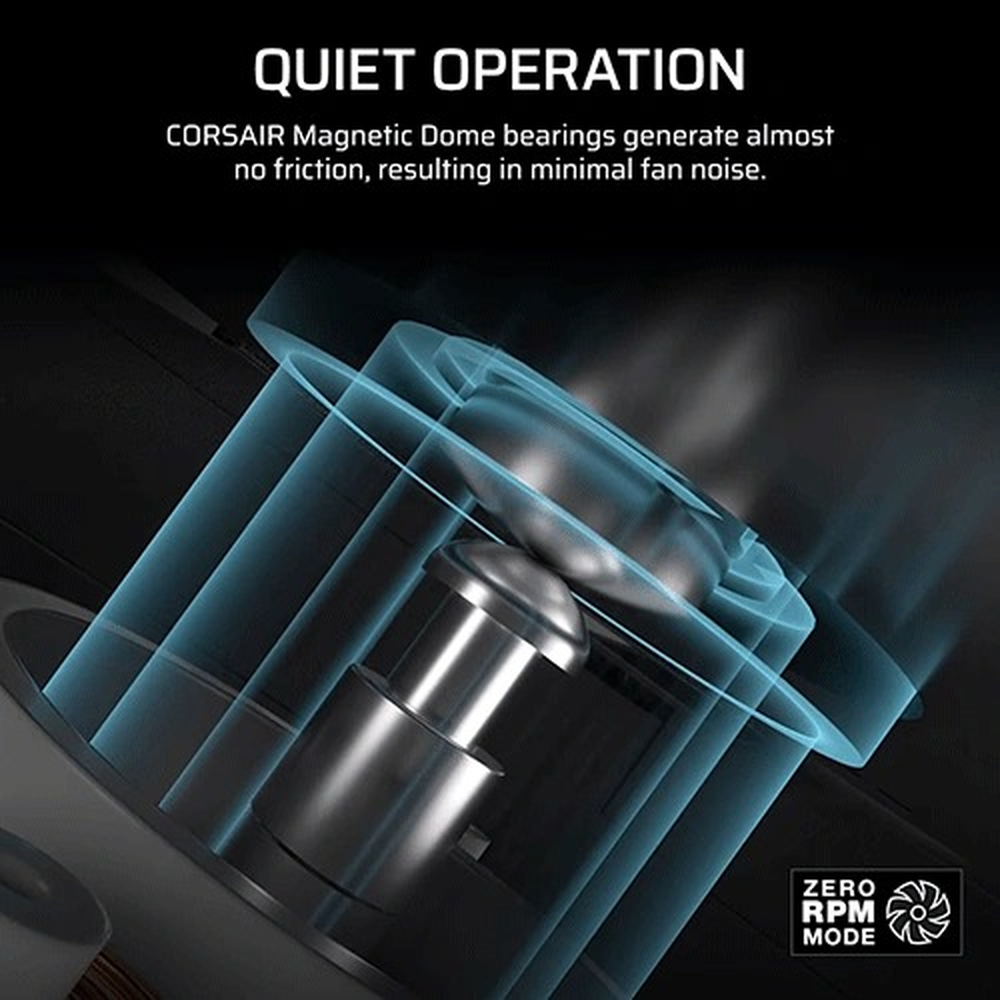

• CORSAIR Magnetic Dome fan bearings for exceptional longevity and minimal noise (10-36 dBA)
• Plugs directly into motherboard—no additional controllers necessary (LCD requires USB connection)

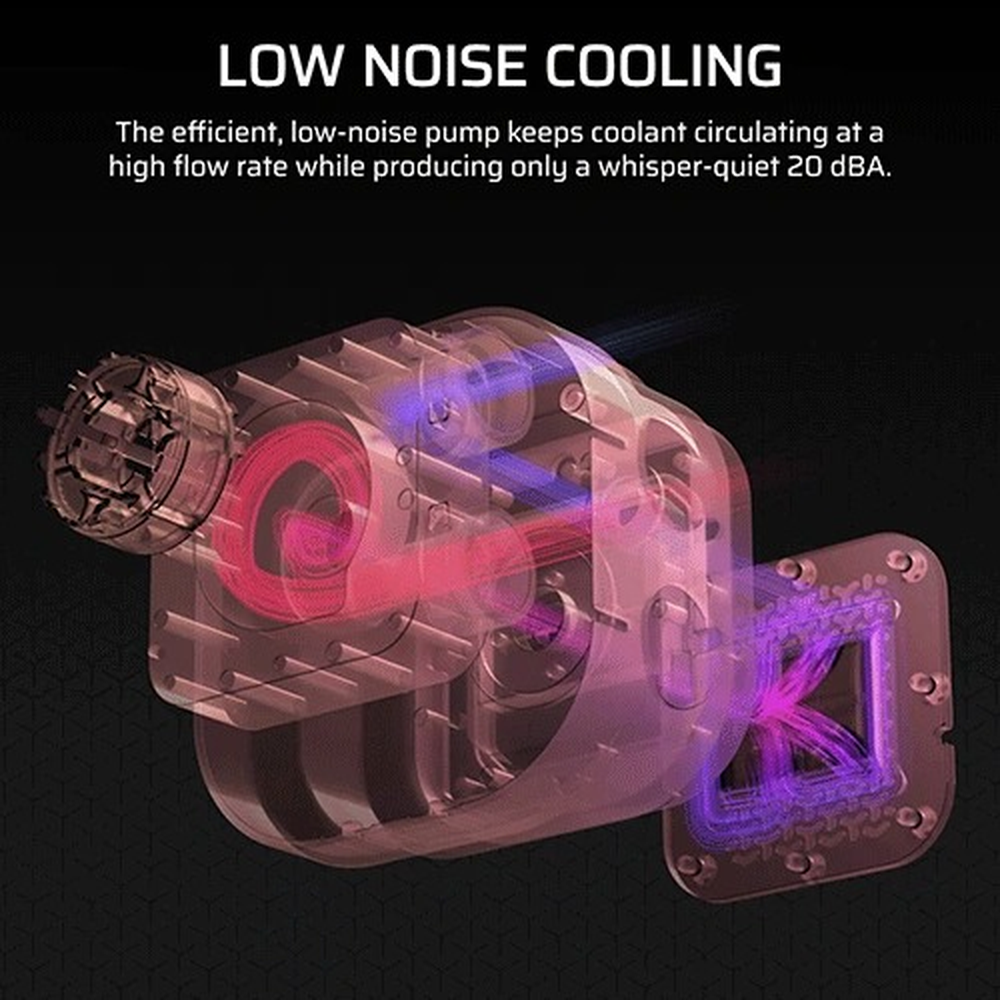

• Low-noise pump circulates coolant efficiently at whisper-quiet 20 dBA operation
• 400mm black sleeved low-permeation rubber tubing for flexible installation
• Compatible with Intel LGA 1851, LGA 1700, and AMD AM5, AM4 sockets
• Intel mounting bracket pre-installed for quick installation
• Available in Black or White
• 5-year warranty

Technical Specifications:

Model Number	CW-9061031-WW (Black), CW-9061032-WW (White)
Brand	Corsair
Series	NAUTILUS RS LCD
Color	Black or White
Cooler Type	All-in-One Liquid CPU Cooler (AIO) with LCD Screen
LCD Screen Size	2.1 inch IPS (480x480 resolution)
LCD Refresh Rate	30Hz
LCD Brightness	600 cd/m²
LCD Color Depth	24-bit (16.7 million colors)
LCD Connection	USB 2.0 (9-pin internal header)
LCD Control Software	CORSAIR iCUE (GIPHY integration included)
Radiator Size	240mm (276mm x 120mm x 27mm)
Radiator Material	Aluminum
Cold Plate Material	Copper (slightly convex surface)
Thermal Paste	Pre-applied XTM60 (optimized pattern)
Tubing Length	400mm
Tubing Material	Black sleeved low-permeation rubber
Pump Noise Level	20 dBA
Number of Fans	2x RS120 Fans
Fan Model	RS120 (Standard)
Fan Size	120mm x 120mm x 25mm
Fan Speed Range	0-2100 RPM ±10%
Fan Airflow	13.3 - 72.8 CFM (per fan)
Fan Static Pressure	0.2 - 4.15 mm-H2O (per fan)
Fan Noise Level	10 - 36 dBA, 34 dBA typical
Fan Bearing Type	CORSAIR Magnetic Dome
Fan Control Method	PWM (4-pin)
Zero RPM Mode	Yes
RGB Lighting	None (LCD screen only)
Intel Socket Support	LGA 1851, LGA 1700
AMD Socket Support	AM5, AM4
Intel Processors Supported	Core i9, i7, i5, i3, Pentium, Celeron
AMD Processors Supported	Ryzen, A-Series
Dimensions (L x W x H)	275 x 125 x 125 mm
Weight	1.818 kg
Warranty	5 Years

Package Contents:

• NAUTILUS 240 RS LCD Pump/Cold Plate Unit with 2.1" LCD Screen
• 240mm Aluminum Radiator
• 2x RS120 PWM Fans
• Intel LGA 1851/1700 Mounting Bracket (pre-installed)
• AMD AM5/AM4 Mounting Bracket
• PWM Extension Cable
• Fan and Radiator Mounting Screws
• Quick Start Guide

Note: LCD screen requires USB 2.0 internal 9-pin motherboard header connection and CORSAIR iCUE software for full functionality. Fans plug directly into motherboard PWM headers—no additional fan controller required.

Perfect for gaming PCs, content creator workstations, show builds, Intel 13th/14th/15th Gen and AMD Ryzen systems, users wanting customizable LCD display, and anyone seeking efficient liquid cooling with real-time system monitoring. The Corsair NAUTILUS 240 RS LCD Liquid CPU Cooler combines efficient cooling performance with personalized visual expression through its stunning 2.1" IPS LCD screen. The high-resolution 480x480 LCD display is fully controlled via CORSAIR iCUE software, allowing you to display real-time system temperatures (CPU temp, coolant temp, fan speeds), upload your own images and animated GIFs, or access thousands of your favorite memes and GIFs through full in-app GIPHY integration—all rendered in 16.7 million colors with 600 cd/m² brightness for vivid, eye-catching visuals even in brightly lit environments. The copper cold plate heatsink features a slightly convex surface engineered to maximize contact with your CPU's integrated heat spreader (IHS) for optimal thermal transfer, while pre-applied XTM60 thermal paste in an optimized pattern ensures hassle-free installation and excellent thermal conductivity. The 240mm aluminum radiator with optimized fin density provides ample surface area for effective heat dissipation, keeping your CPU cool under load. Two CORSAIR RS120 fans deliver powerful airflow (72.8 CFM max per fan) and strong static pressure (4.15 mm-H2O) with PWM speed control from 0-2100 RPM, allowing precise adjustment of cooling performance vs. noise levels. Zero RPM mode stops the fans completely at low loads for silent operation when cooling demands are minimal. CORSAIR Magnetic Dome bearings ensure whisper-quiet operation (10-36 dBA, typically 34 dBA) and exceptional longevity. The low-noise pump circulates coolant efficiently at just 20 dBA, maintaining whisper-quiet operation even under sustained workloads. Installation is straightforward with direct motherboard connectivity: fans plug into standard PWM headers (no fan controller needed), and the LCD screen connects to a USB 2.0 internal 9-pin header for iCUE software control—Intel mounting bracket comes pre-installed for quick setup on LGA 1851/1700 systems, while AMD users simply swap to the included AM5/AM4 bracket. The 400mm black sleeved low-permeation rubber tubing provides flexible installation options in various case configurations. Compatible with the latest Intel and AMD processors. Available in Black or White to match your build aesthetic. Backed by a 5-year warranty. Upgrade your cooling with customizable LCD brilliance and efficient performance in the Corsair NAUTILUS 240 RS LCD.
