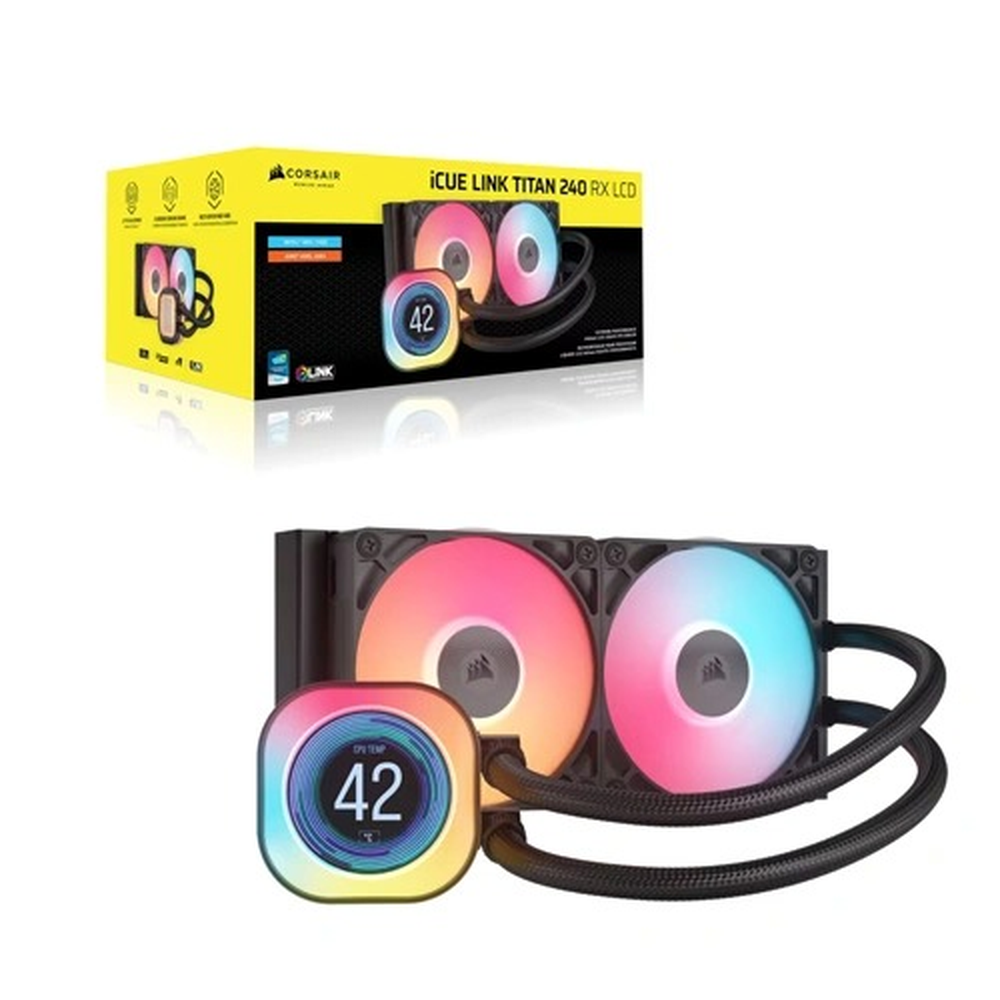

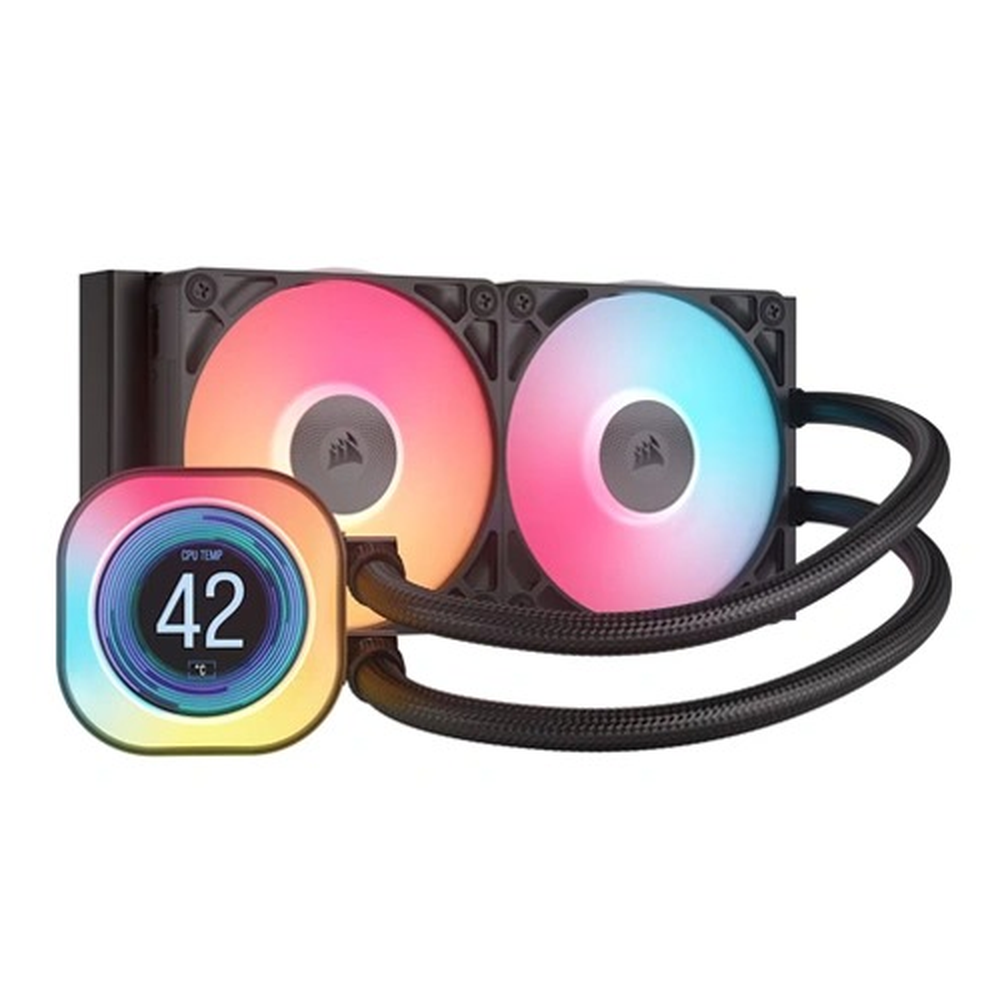

iCUE LINK TITAN 240 RX LCD

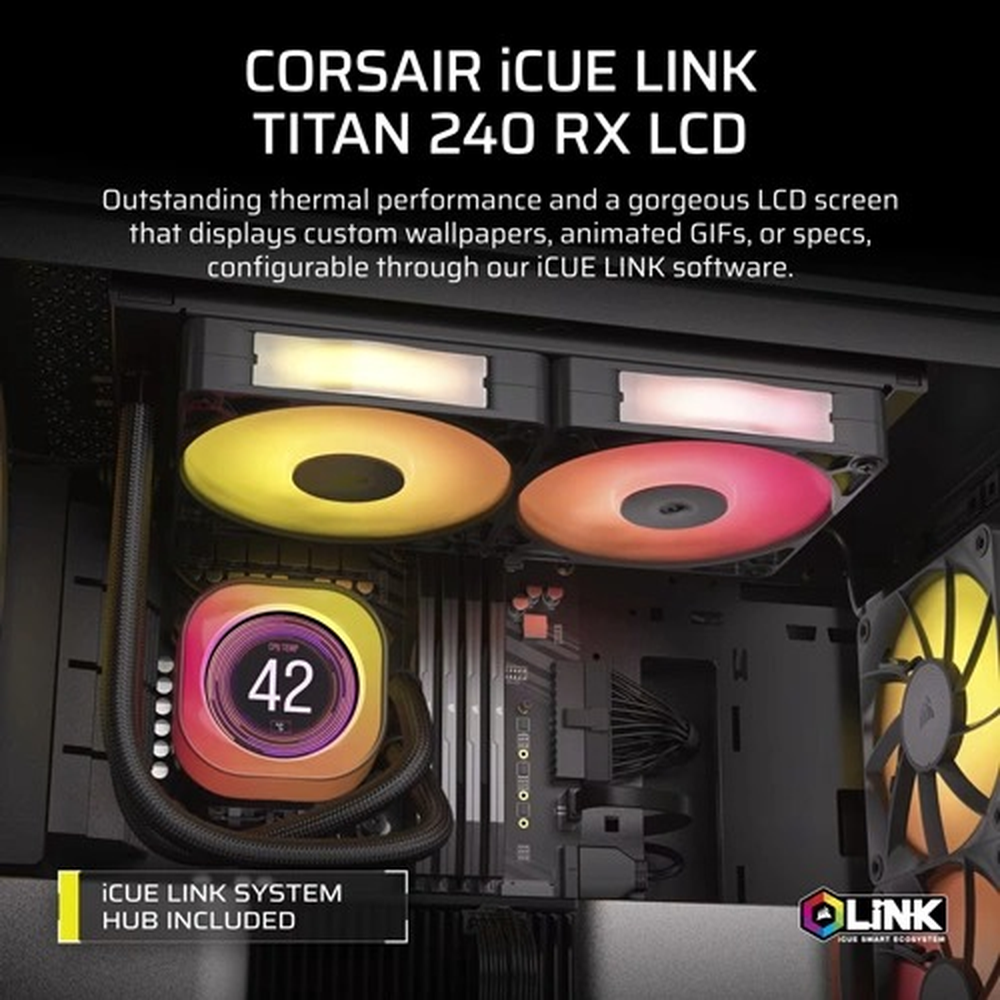

The Corsair iCUE LINK TITAN 240 RX LCD Liquid CPU Cooler delivers high-performance, ultra-quiet cooling with optimized thermal performance, streamlined iCUE LINK connectivity, and dynamic RGB lighting showcased on a stunning customizable 2.1" IPS LCD screen. With FlowDrive cooling engine featuring three-phase motor, precision cold plate, pre-applied XTM70 thermal paste, two RX120 RGB fans, 44 RGB LEDs on pump plus 8 per fan, tool-free CapSwap modules, and iCUE LINK System Hub included, this premium AIO delivers exceptional cooling with personalized visual flair.

Key Features:

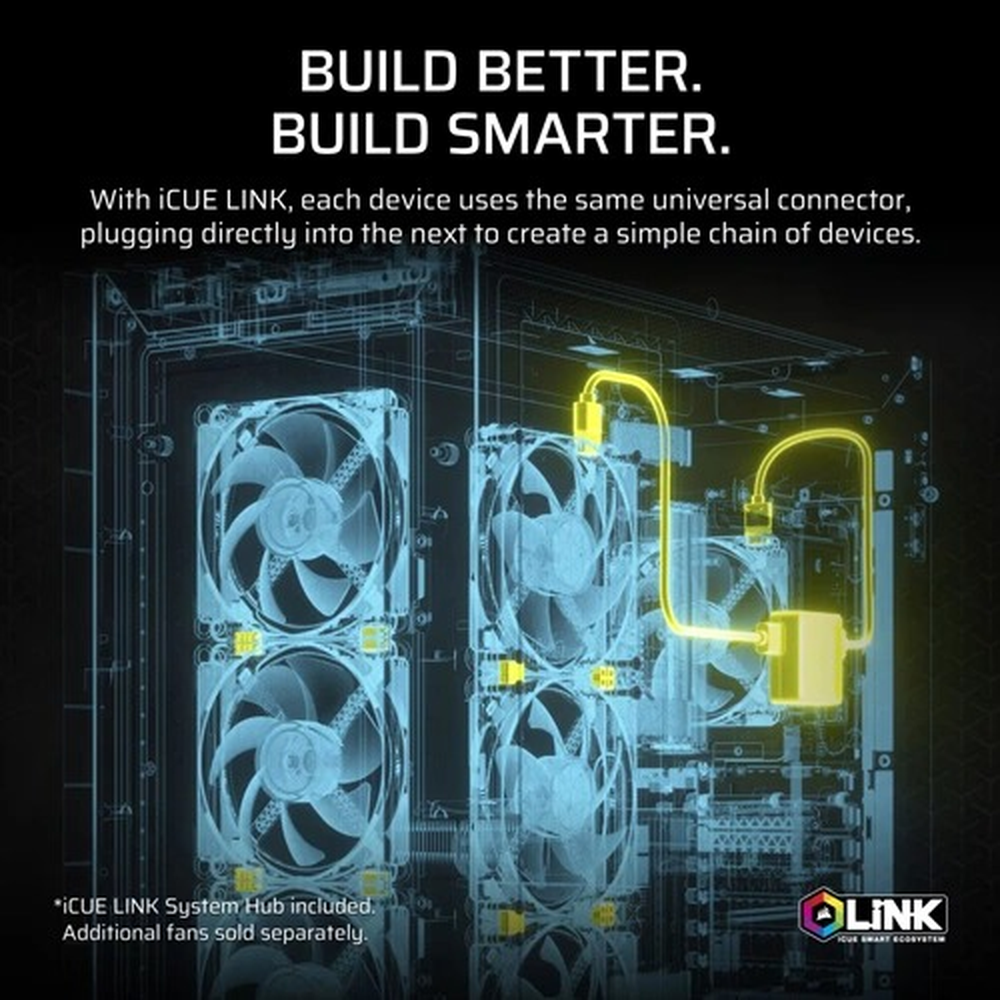

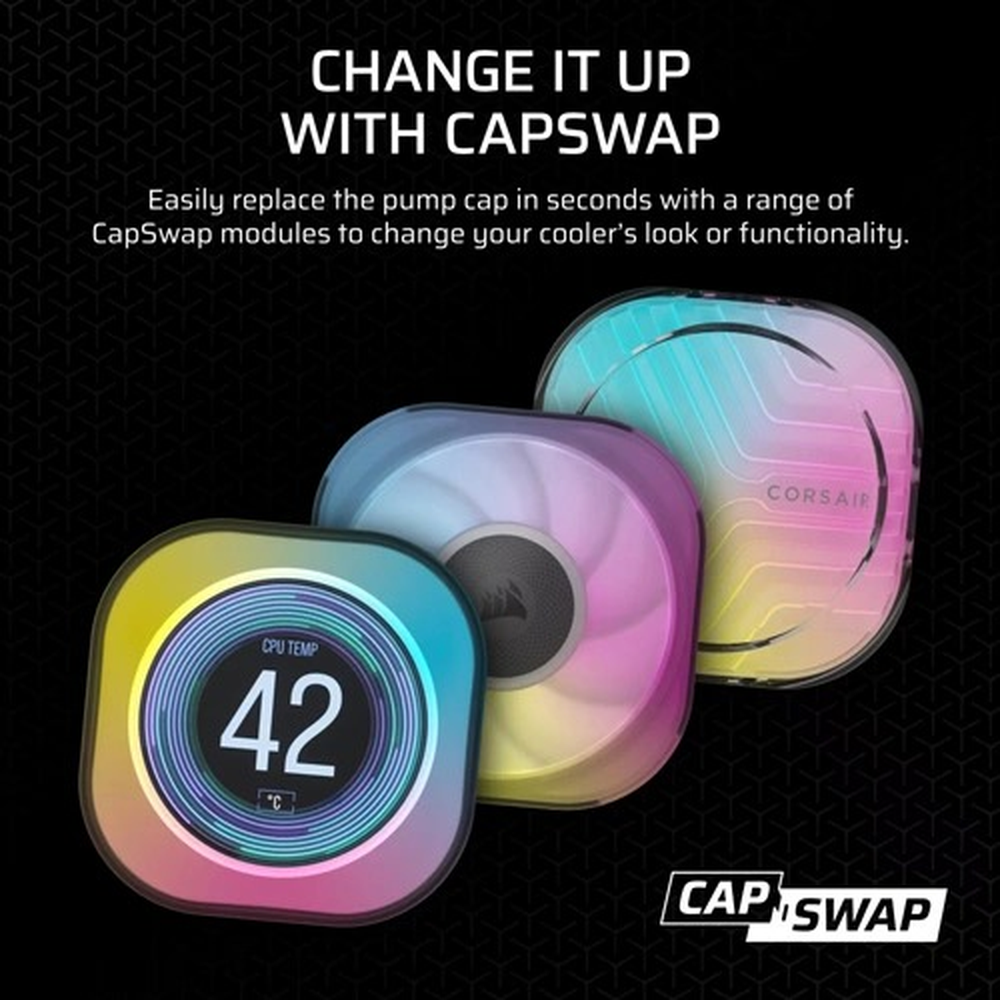

>Customizable 2.1" 480x480 IPS LCD screen displays system temps, images, animated GIFs, and more via iCUE software >Full in-app GIPHY integration gives access to thousands of favorite memes and GIFs to display on pump screen >Select from 16.7 million custom colors or choose from pre-defined animations and data displays >FlowDrive cooling engine with high-performance three-phase pump for peak thermal efficiency and longevity >Precision engineered cold plate surface profile for optimal thermal contact with CPU >Pre-applied CORSAIR XTM70 Extreme Performance thermal paste for unparalleled efficiency >Two high-performance RX120 RGB fans with Magnetic Dome bearings deliver 73.5 CFM airflow and 4.33 mm-H2O static pressure >Digital fan speed control from 300-2100 RPM for precise cooling and whisper-quiet operation (10-36 dBA) >44 individually addressable RGB LEDs around pump and cap, plus 8 LEDs on each fan (60 total) for dynamic lighting >Streamlined iCUE LINK connectivity with included iCUE LINK System Hub simplifies cable management >Single cable connection per component eliminates traditional cable daisy-chaining >Personalize your cooler with tool-free CapSwap modules (sold separately) to change pump cap appearance >240mm aluminum radiator with optimized fin density for efficient heat dissipation >400mm black sleeved low-permeation rubber tubing for flexible installation >Full compatibility with Intel LGA 1851, 1700 and AMD AM5, AM4 sockets >Intel mounting bracket pre-installed for quick installation >Available in Black or White >6-year warranty

Technical Specifications:

Model Number	CW-9061022-WW (Black), CW-9061024-WW (White)
Brand	Corsair
Series	iCUE LINK TITAN RX LCD
Color	Black or White
Cooler Type	All-in-One Liquid CPU Cooler (AIO) with LCD Screen

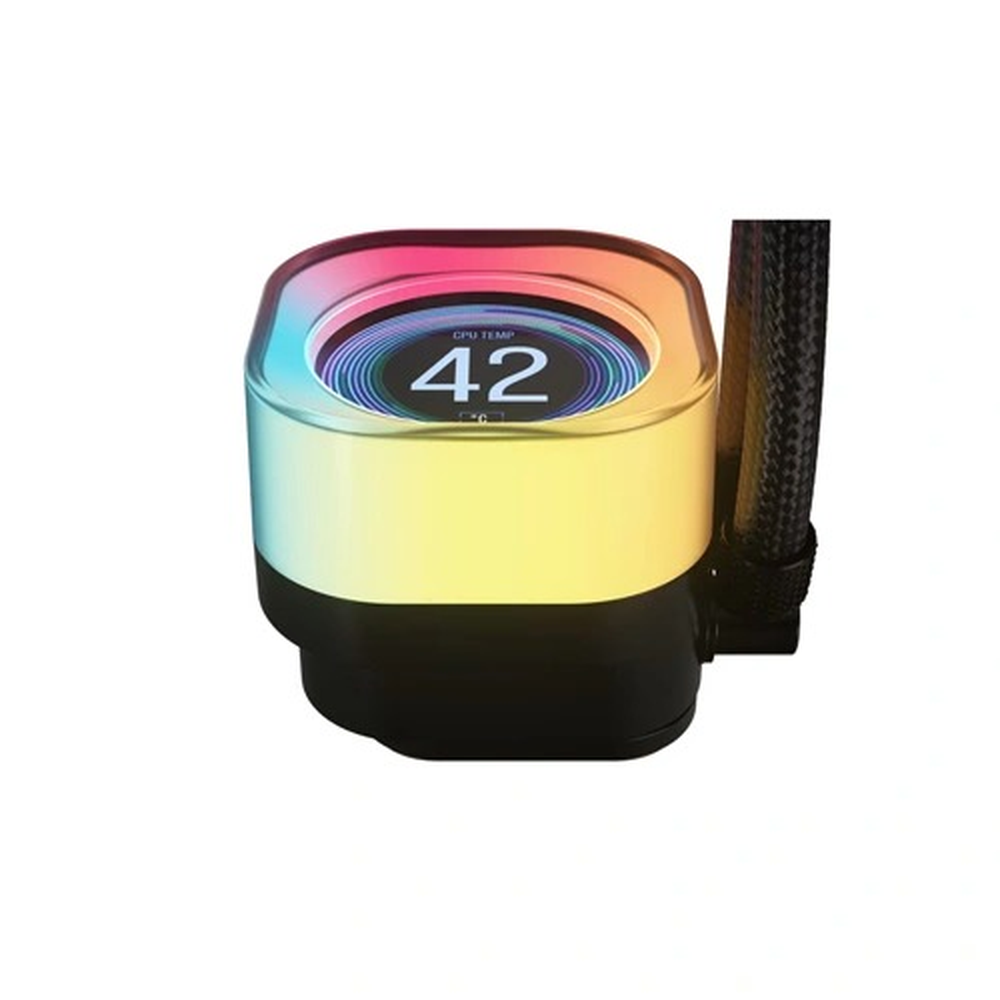

LCD Screen Size	2.1 inch (480x480 resolution, IPS display)
LCD Screen Features	Customizable via iCUE (system temps, images, GIFs, animations, GIPHY integration)
LCD Frame Rate	30 FPS
LCD Color Depth	24-bit color (16.7 million colors)

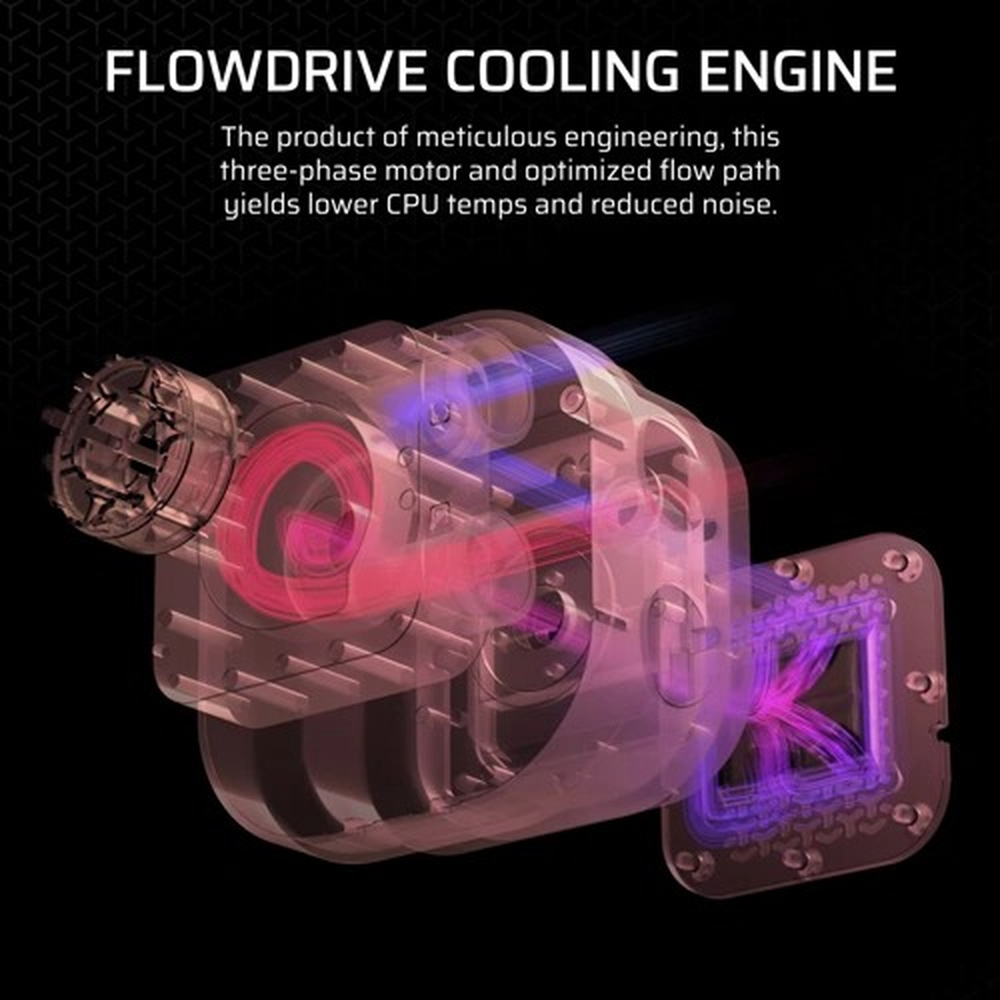

Pump Type	FlowDrive with three-phase motor
Radiator Size	240mm (277mm x 120mm x 27mm)
Radiator Material	Aluminum

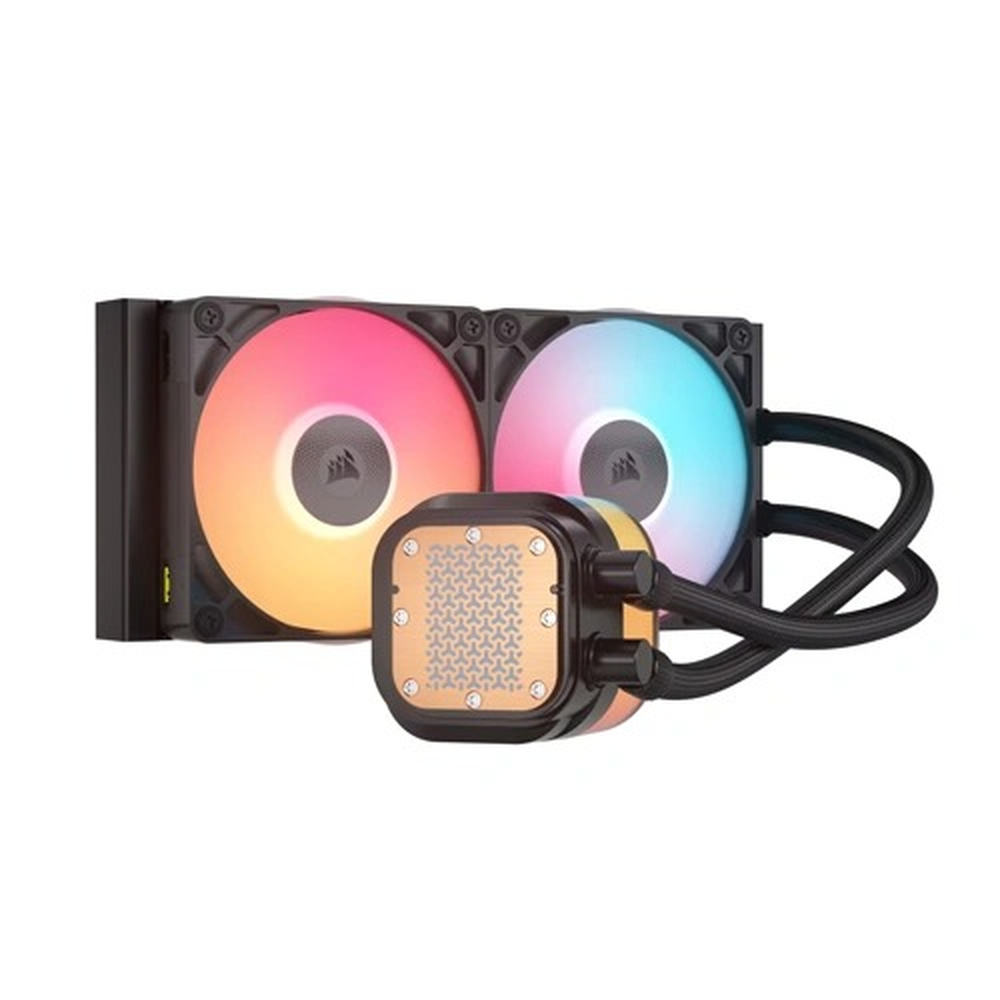

Cold Plate Material	Copper (precision engineered surface profile)
Thermal Paste	Pre-applied CORSAIR XTM70 Extreme Performance
Tubing Length	400mm
Tubing Material	Black sleeved low-permeation rubber

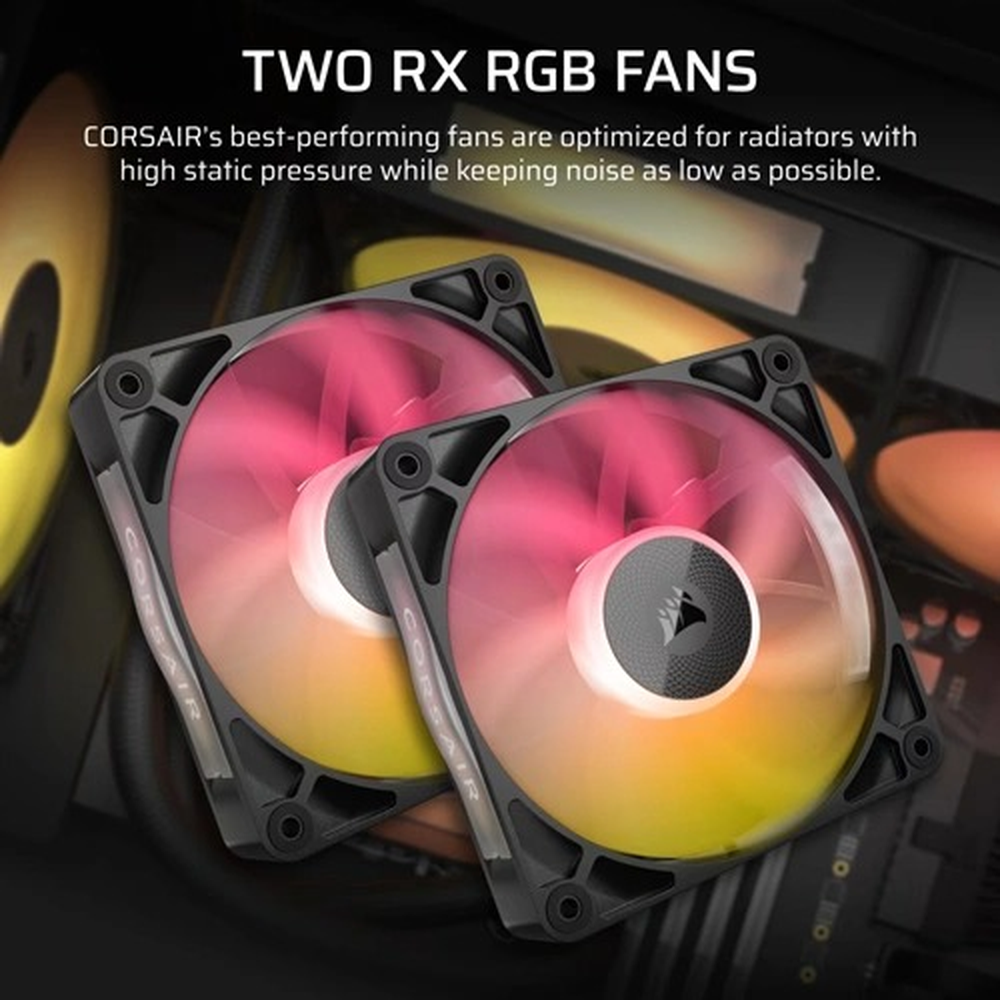

Number of Fans	2x RX120 RGB Fans
Fan Model	iCUE LINK RX120 RGB
Fan Size	120mm x 120mm x 25mm
Fan Speed Range	300-2100 RPM ±10%
Fan Airflow	10.4 - 73.5 CFM (per fan)
Fan Static Pressure	0.12 - 4.33 mm-H2O (per fan)
Fan Noise Level	10 - 36 dBA
Fan Bearing Type	Magnetic Dome
Fan Control Method	Digital (via iCUE LINK System Hub)
PWM Control	No (digital control via iCUE LINK)
RGB LEDs	44 LEDs on pump/cap, 8 LEDs per fan (60 total)
RGB Type	Individually addressable RGB (via iCUE LINK)
RGB Control	iCUE software via iCUE LINK System Hub (included)
iCUE LINK System Hub	Included (controls pump, fans, and RGB)
CapSwap Compatibility	Yes (tool-free, modules sold separately)
Intel Socket Support	LGA 1851, LGA 1700
AMD Socket Support	AM5, AM4
Intel Processors Supported	Core i9, i7, i5, i3, Pentium, Celeron
AMD Processors Supported	Ryzen, A-Series
Dimensions (L x W x H)	275 x 125 x 125 mm
Water Block Dimensions	77mm x 77mm x 73mm
Weight	1.932 kg
Warranty	6 Years

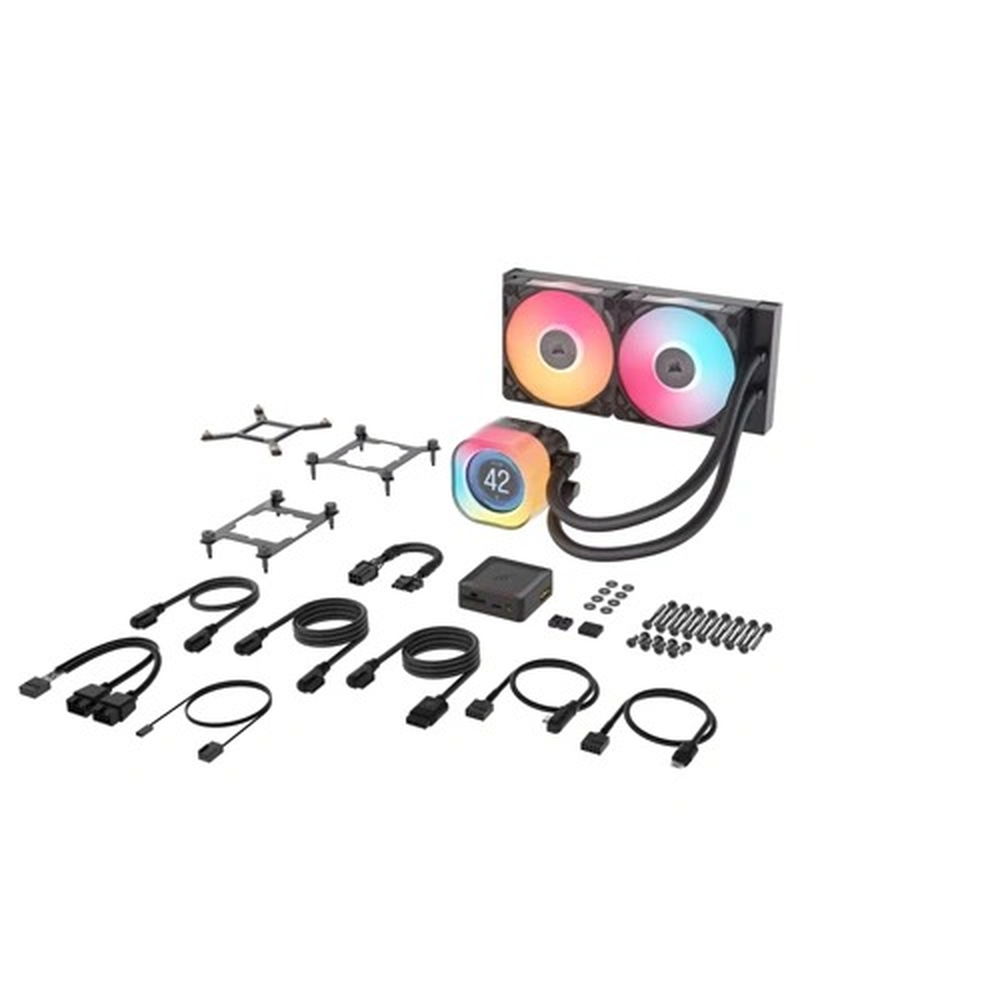

Package Contents:

>TITAN 240 RX LCD Pump/Cold Plate Unit with 2.1" LCD Screen >240mm Aluminum Radiator >2x iCUE LINK RX120 RGB Fans >iCUE LINK System Hub >150mm PCIe Power Cable (for System Hub) >500mm Micro USB 2.0 Cable (for LCD screen) >USB Splitter >Tach Cable >Intel LGA 1851/1700 Mounting Bracket Set (pre-installed) >Intel LGA 1851/1700 Backplate >AMD AM5/AM4 Mounting Bracket Set >16x Long Fan Screws >8x Radiator Screws >8x Washers >Quick Start Guide

Perfect for flagship gaming PCs, enthusiast builds, content creator workstations, show PC builds, overclocking, Intel 13th/14th/15th Gen and AMD Ryzen systems, iCUE LINK ecosystem users, and anyone seeking premium liquid cooling with customizable LCD display and streamlined connectivity. The Corsair iCUE LINK TITAN 240 RX LCD represents the pinnacle of AIO liquid CPU cooling technology, combining extreme thermal performance with personalized visual expression through its stunning 2.1" 480x480 IPS LCD screen. The custom LCD screen is fully controlled via iCUE software, allowing you to display real-time system temperatures, choose from 16.7 million custom colors, select pre-defined animations, or upload your own images and GIFs—now with full in-app GIPHY integration giving instant access to thousands of your favorite memes and GIFs to showcase your personality. The FlowDrive cooling engine features a high-performance three-phase motor that delivers peak thermal efficiency and exceptional longevity backed by a 6-year warranty, while the precision engineered cold plate surface profile ensures optimal thermal contact with your CPU's IHS. Pre-applied CORSAIR XTM70 Extreme Performance thermal paste provides unparalleled thermal conductivity for hassle-free installation and maximum cooling efficiency. Two high-performance iCUE LINK RX120 RGB fans deliver powerful airflow (73.5 CFM max per fan) and strong static pressure (4.33 mm-H2O) with digital speed control from 300-2100 RPM, while Magnetic Dome bearings ensure whisper-quiet operation (10-36 dBA) and extended lifespan. Sixty individually addressable RGB LEDs—44 around the pump and cap plus 8 on each fan—create mesmerizing dynamic lighting effects synchronized through iCUE software. The streamlined iCUE LINK connectivity eliminates traditional cable daisy-chaining chaos: each component connects to the included iCUE LINK System Hub with a single cable that carries both power and data, dramatically simplifying cable management in your build. Tool-free CapSwap module compatibility allows you to personalize the pump's appearance by swapping cap modules (sold separately) without tools—just pop off the current cap and snap on a new design. The 240mm aluminum radiator provides efficient heat dissipation, while 400mm black sleeved low-permeation rubber tubing offers flexible installation options. Compatible with the latest Intel LGA 1851/1700 and AMD AM5/AM4 sockets with Intel mounting bracket pre-installed for quick setup. Available in Black or White to match your build aesthetic. Backed by an industry-leading 6-year warranty. Elevate your cooling to the next level with customizable LCD brilliance in the Corsair iCUE LINK TITAN 240 RX LCD.
