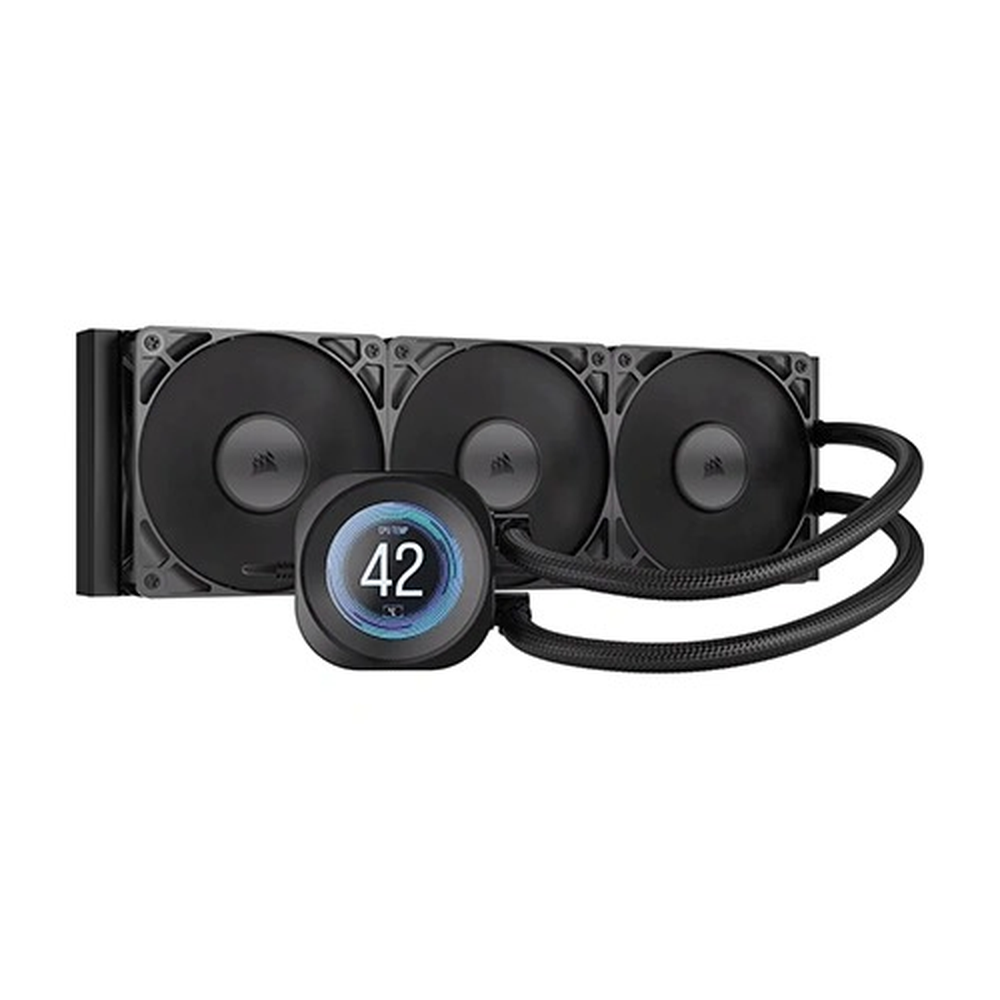

CORSAIR NAUTILUS 360 LCD, 360mm Radiator, Liquid CPU Cooler With Heatsink

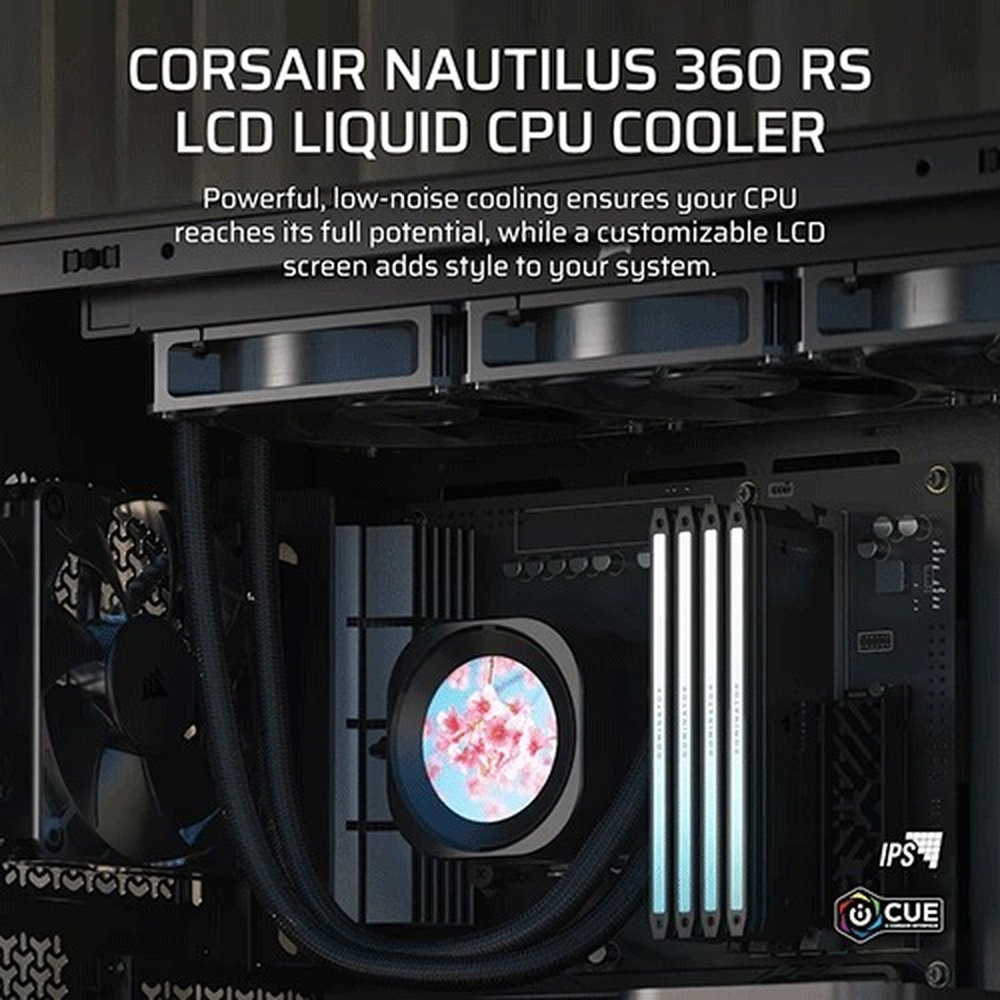

The Corsair NAUTILUS 360 RS LCD Liquid CPU Cooler delivers efficient, low-noise cooling with a brightly lit 2.1" IPS LCD screen that displays system information or custom visuals. With copper cold plate heatsink, pre-applied thermal paste, 360mm aluminum radiator, three RS120 PWM fans with Zero RPM mode, three-phase pump motor, precise temperature monitoring, and direct motherboard connectivity requiring no additional controllers, this AIO offers exceptional cooling performance for high-end CPUs with customizable LCD display.

Key Features:

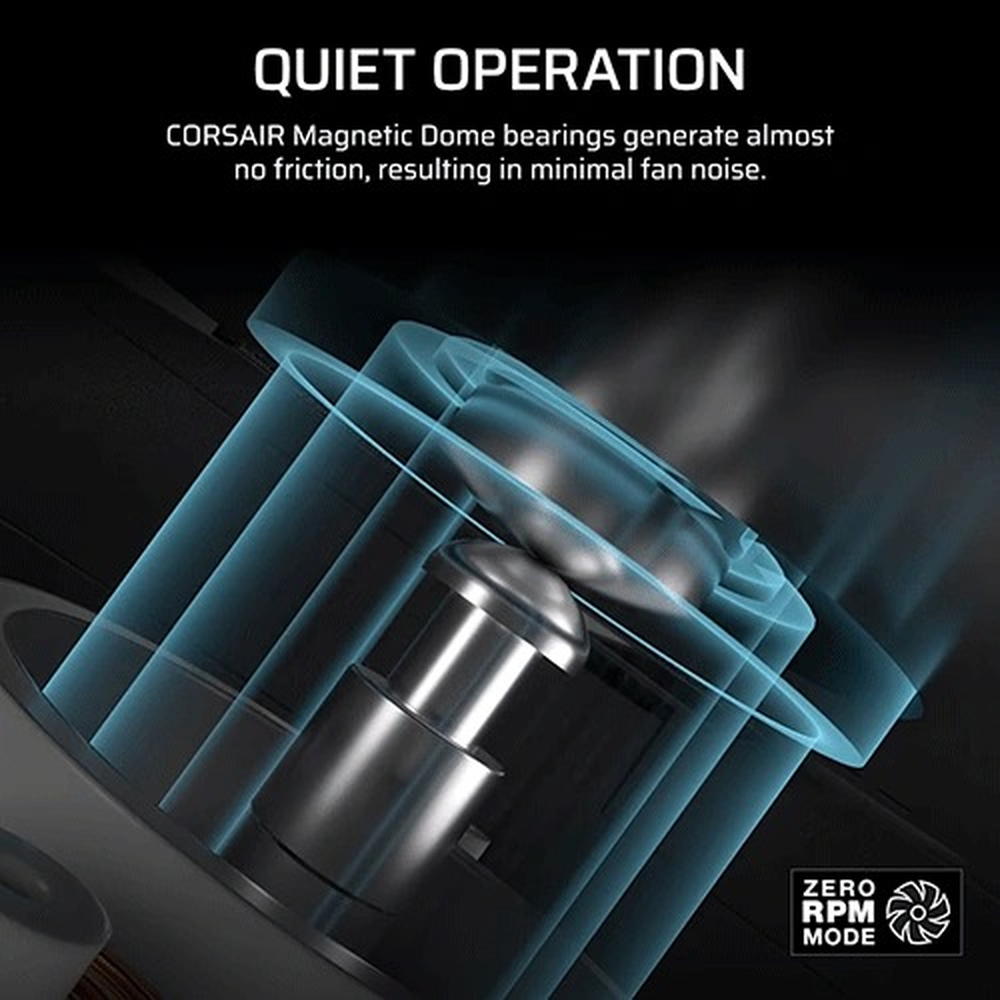

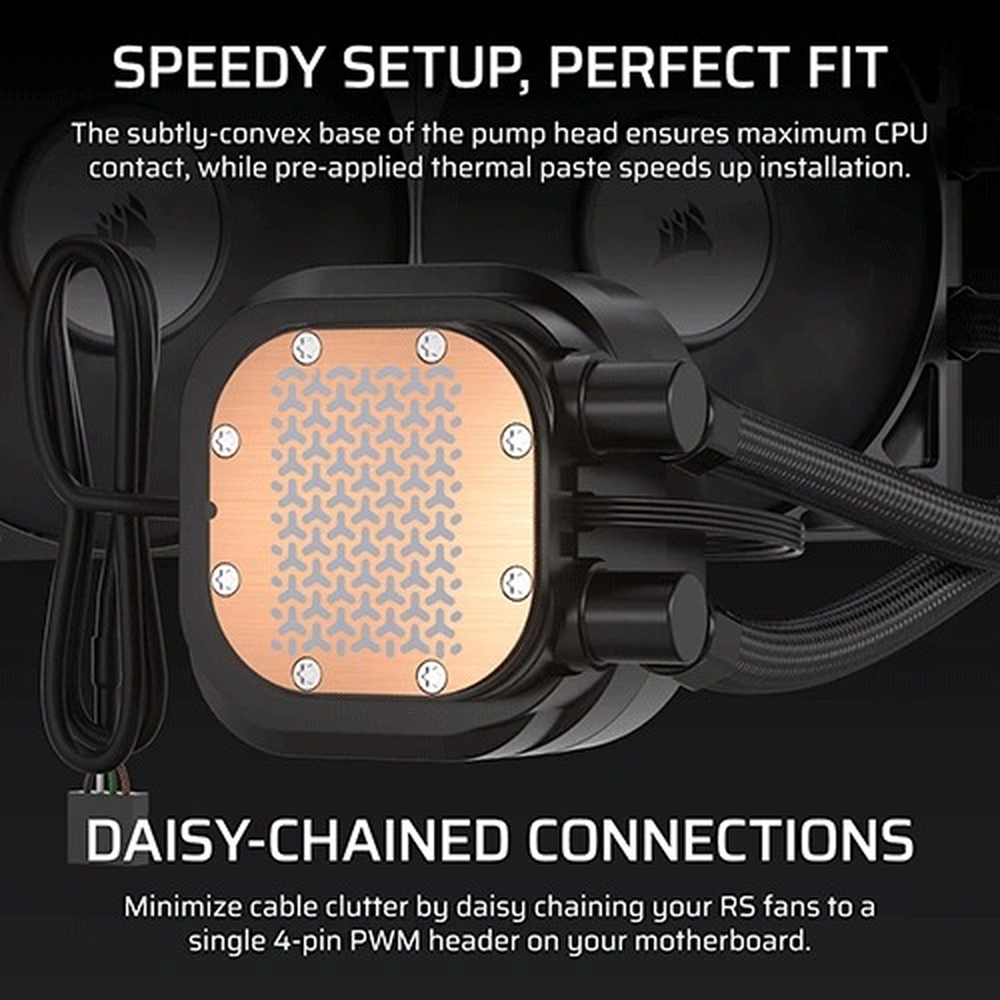

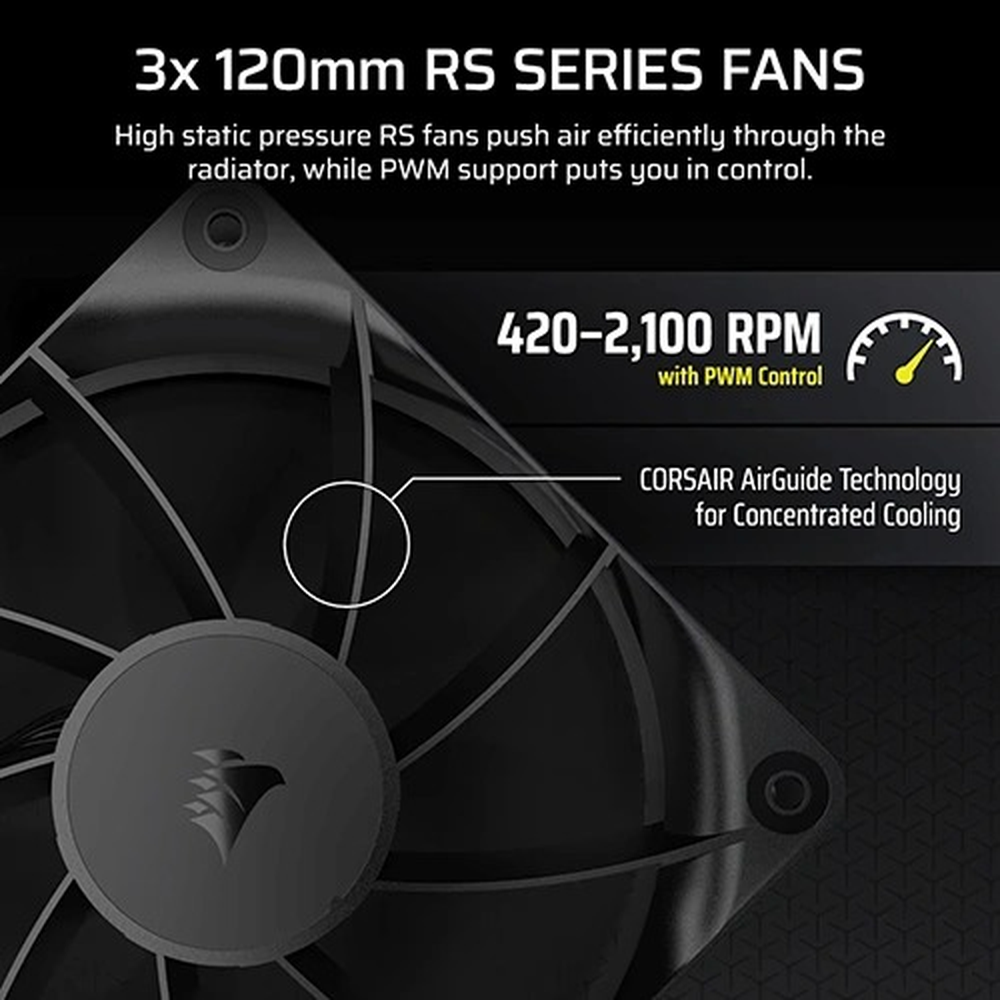

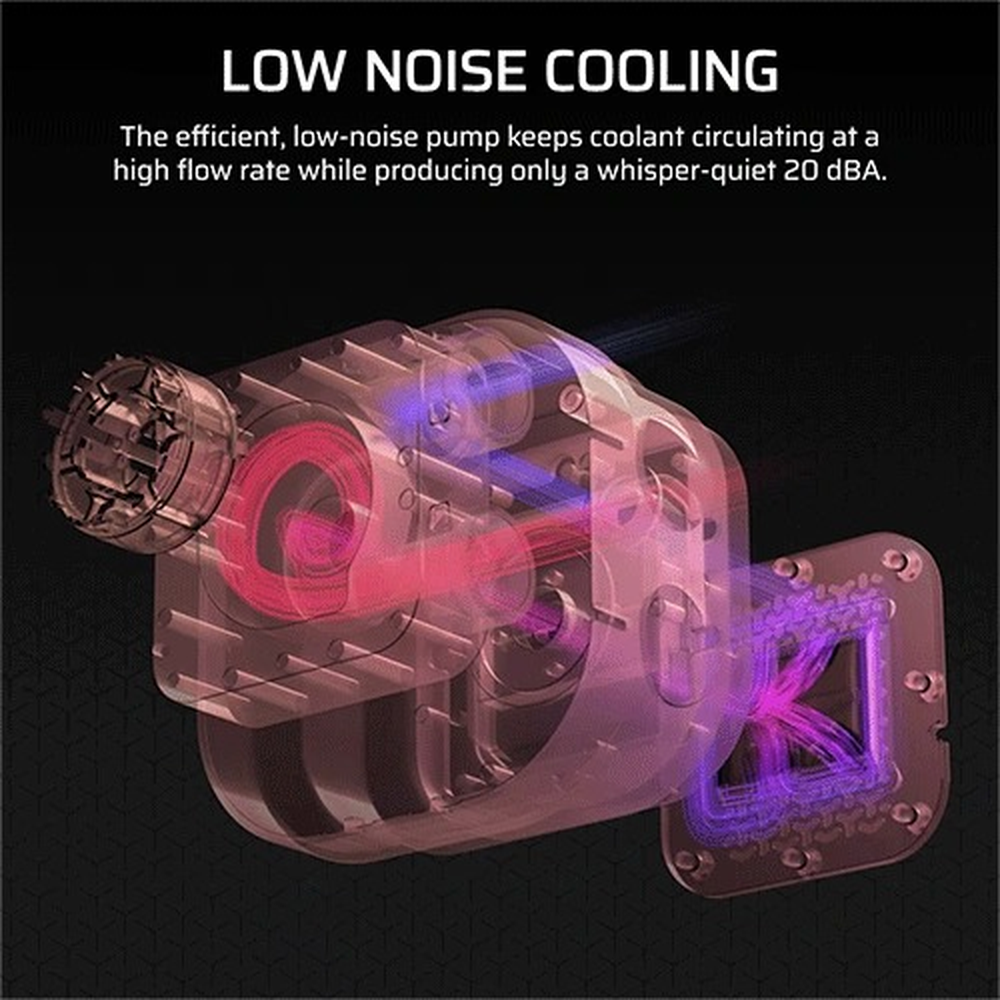

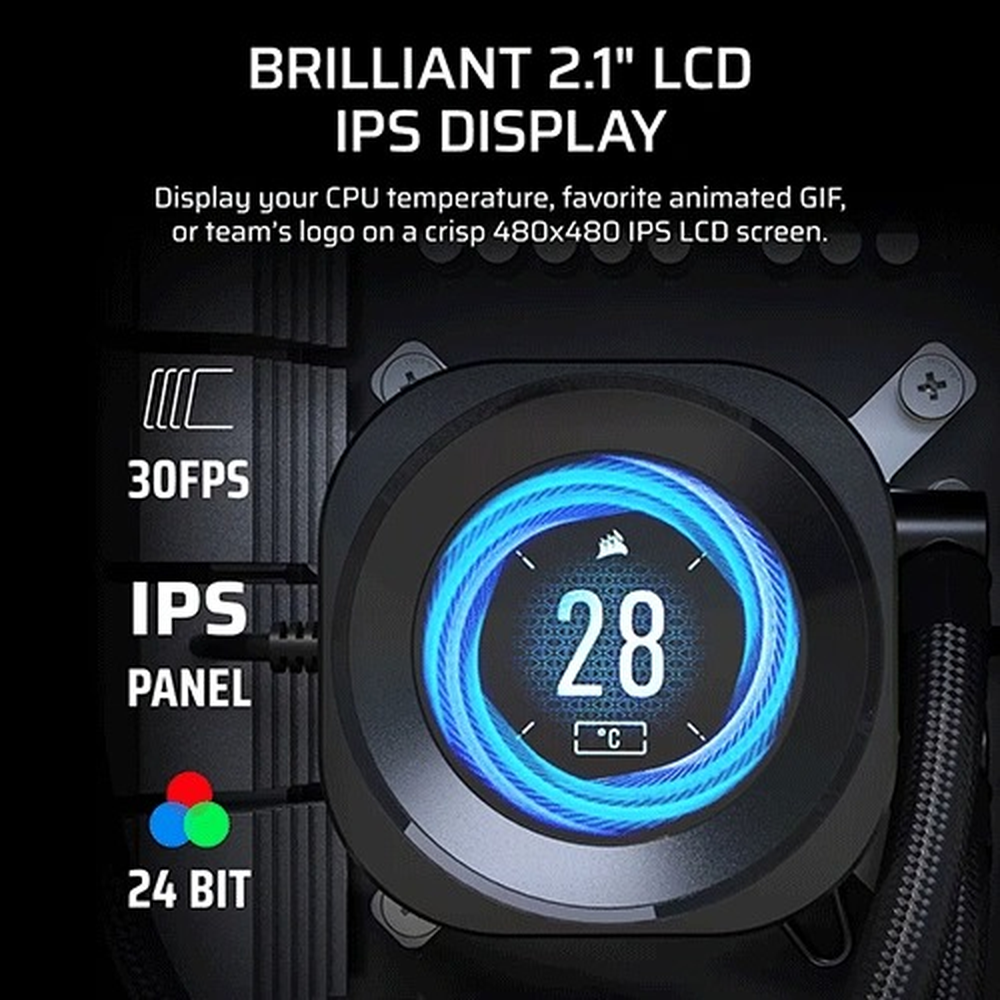

>Brightly lit 2.1" IPS LCD screen (480x480 resolution) displays system temps, images, GIFs, and custom content via iCUE software >Full in-app GIPHY integration provides access to thousands of favorite memes and GIFs >16.7 million colors (24-bit color depth) with 30 FPS and ultra-bright 600cd/m² backlight >360mm radiator offers superior heat dissipation for high-performance CPUs even under heavy workloads >Efficient low-noise cooling to help your CPU reach its full potential >Three-phase pump motor delivers higher flow rate and lower noise than previous generations >Copper cold plate heatsink with precision-engineered surface profile maximizes contact with CPU for optimal thermal transfer >Pre-applied XTM60 thermal paste in optimized pattern for easy installation >360mm aluminum radiator with optimized fin density for maximum heat dissipation >Three RS120 PWM fans deliver high airflow (72.8 CFM max per fan), strong static pressure (4.15 mm-H2O), and low noise >Precise PWM fan speed control from 420-2100 RPM for optimal cooling and quiet operation >Zero RPM mode stops fans completely at low loads for silent operation >CORSAIR Magnetic Dome fan bearings for exceptional longevity and minimal noise (10-36 dBA) >CORSAIR AirGuide technology on RS fans concentrates airflow through radiator for improved cooling efficiency >Plugs directly into motherboard—no additional controllers necessary (LCD requires USB connection) >Low-noise pump circulates coolant efficiently at whisper-quiet 20 dBA operation >450mm black sleeved low-permeation rubber tubing for flexible installation in larger cases >Compatible with Intel LGA 1851, LGA 1700, and AMD AM5, AM4 sockets >Intel mounting bracket pre-installed for quick installation >Available in Black or White >5-year warranty

Technical Specifications:

Model Number	CW-9061033-WW (Black), CW-9061034-WW (White)
Brand	Corsair
Series	NAUTILUS RS LCD
Color	Black or White
Cooler Type	All-in-One Liquid CPU Cooler (AIO) with LCD Screen
LCD Screen Size	2.1 inch IPS (480x480 resolution)
LCD Refresh Rate	30 FPS (30Hz)
LCD Brightness	600 cd/m²
LCD Color Depth	24-bit (16.7 million colors)
LCD Connection	USB 2.0 (9-pin internal header)
LCD Control Software	CORSAIR iCUE (GIPHY integration included)
Pump Motor Type	Three-phase (high flow rate, low noise)
Pump Noise Level	20 dBA
Radiator Size	360mm (396mm x 120mm x 27mm)
Radiator Material	Aluminum
Cold Plate Material	Copper (precision-engineered surface profile)
Thermal Paste	Pre-applied XTM60 (optimized pattern)
Tubing Length	450mm
Tubing Material	Black sleeved low-permeation rubber
Number of Fans	3x RS120 Fans
Fan Model	RS120 (Standard)
Fan Size	120mm x 120mm x 25mm
Fan Speed Range	420-2100 RPM ±10%
Fan Airflow	13.3 - 72.8 CFM (per fan)
Fan Static Pressure	0.2 - 4.15 mm-H2O (per fan)
Fan Noise Level	10 - 36 dBA
Fan Bearing Type	CORSAIR Magnetic Dome
Fan Control Method	PWM (4-pin)
Zero RPM Mode	Yes
RGB Lighting	None (LCD screen only)
Intel Socket Support	LGA 1851, LGA 1700
AMD Socket Support	AM5, AM4
Intel Processors Supported	Core i9, i7, i5, i3, Core Ultra 9, Ultra 7, Ultra 5, Pentium, Celeron
AMD Processors Supported	Ryzen 9, 7, 5, 3, A-Series
Dimensions (L x W x H)	396 x 120 x 27 mm
Weight	2.389 kg
Warranty	5 Years

Package Contents:

>NAUTILUS 360 RS LCD Pump/Cold Plate Unit with 2.1" LCD Screen >360mm Aluminum Radiator >3x RS120 PWM Fans >Intel LGA 1851/1700 Mounting Bracket (pre-installed) >AMD AM5/AM4 Mounting Bracket >PWM Extension Cable >Fan and Radiator Mounting Screws >Quick Start Guide

Note: LCD screen requires USB 2.0 internal 9-pin motherboard header connection and CORSAIR iCUE software for full functionality. Fans plug directly into motherboard PWM headers—no additional fan controller required.

Perfect for high-end gaming PCs, enthusiast workstations, show builds, CPU overclocking, flagship Intel 13th/14th/15th Gen and AMD Ryzen systems, users wanting customizable LCD display, and anyone seeking maximum liquid cooling capacity with real-time system monitoring. The Corsair NAUTILUS 360 RS LCD Liquid CPU Cooler combines superior cooling performance for high-end CPUs with personalized visual expression through its stunning 2.1" IPS LCD screen. The expansive 360mm aluminum radiator offers exceptional heat dissipation surface area, keeping flagship processors cool even under sustained heavy workloads like gaming, rendering, video editing, or overclocking. The high-resolution 480x480 LCD display is fully controlled via CORSAIR iCUE software, allowing you to display real-time system temperatures (CPU temp, coolant temp, fan speeds), upload your own images and animated GIFs, or access thousands of your favorite memes and GIFs through full in-app GIPHY integration—all rendered in 16.7 million colors at 30 FPS with an ultra-bright 600 cd/m² backlight for vivid, eye-catching visuals. Designed in-house by CORSAIR's expert engineers, the pump is powered by a three-phase motor delivering higher flow rate and even lower noise levels (20 dBA) than its predecessors. The copper cold plate heatsink features a precision-engineered surface profile that maximizes contact with your CPU's integrated heat spreader (IHS) for optimal thermal transfer, while pre-applied XTM60 thermal paste in an optimized pattern ensures hassle-free installation and excellent thermal conductivity. Three CORSAIR RS120 fans deliver powerful combined airflow (72.8 CFM max per fan) and strong static pressure (4.15 mm-H2O) with PWM speed control from 420-2100 RPM, allowing precise adjustment of cooling performance vs. noise levels. RS fans feature CORSAIR AirGuide technology that concentrates airflow efficiently through the radiator for improved cooling, while CORSAIR Magnetic Dome bearings ensure whisper-quiet operation (10-36 dBA) and exceptional longevity. Zero RPM mode stops the fans completely at low loads for silent operation when cooling demands are minimal. Installation is straightforward with direct motherboard connectivity: fans plug into standard PWM headers (no fan controller needed), and the LCD screen connects to a USB 2.0 internal 9-pin header for iCUE software control—Intel mounting bracket comes pre-installed for quick setup on LGA 1851/1700 systems, while AMD users simply swap to the included AM5/AM4 bracket. The 450mm black sleeved low-permeation rubber tubing provides flexible installation options in various case configurations including larger mid-tower and full-tower chassis. Compatible with the latest Intel Core i9/i7/i5/i3 and Core Ultra, as well as AMD Ryzen 9/7/5/3 processors. Available in Black or White to match your build aesthetic. Backed by a 5-year warranty. Upgrade your high-end cooling with customizable LCD brilliance and maximum performance in the Corsair NAUTILUS 360 RS LCD.
