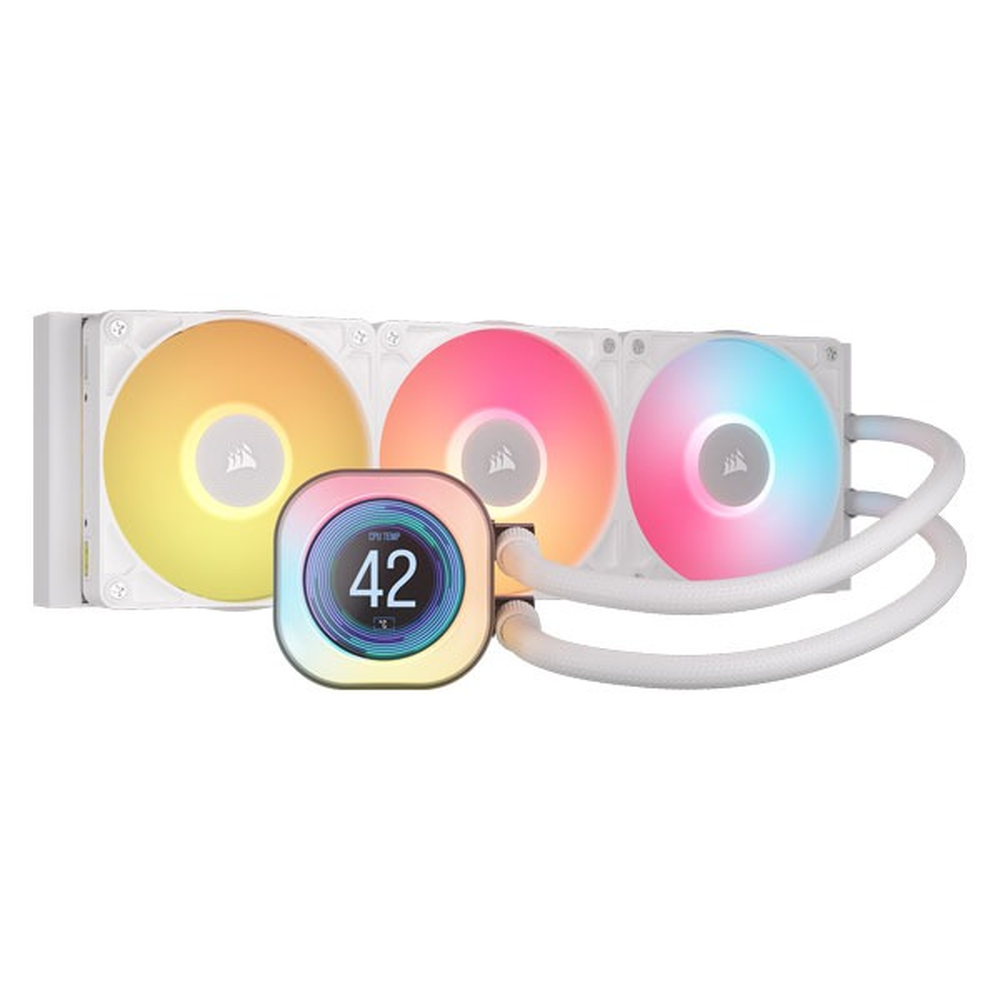

Titan Icue Link 360 RX LCD White

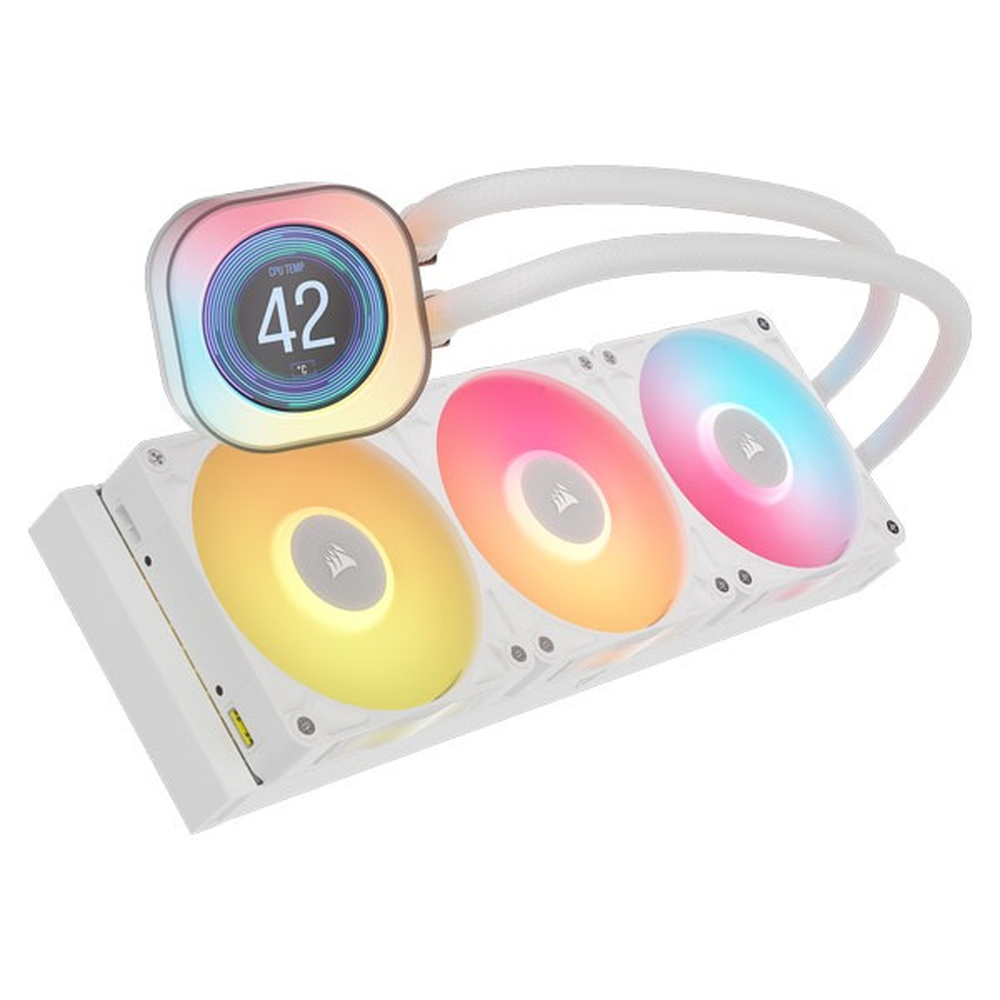

The Corsair iCUE LINK TITAN 360 RX LCD Liquid CPU Cooler in White delivers high-performance, ultra-quiet cooling with optimized thermal performance, streamlined iCUE LINK connectivity, and dynamic RGB lighting showcased on a stunning customizable 2.1" IPS LCD screen. With FlowDrive cooling engine featuring three-phase motor, precision cold plate, pre-applied XTM70 thermal paste, three RX120 RGB fans with 68 RGB LEDs total, tool-free CapSwap modules, white sleeved tubing, and iCUE LINK System Hub included, this premium 360mm AIO delivers exceptional cooling for high-end CPUs with personalized visual flair in a pristine white aesthetic.

Key Features:

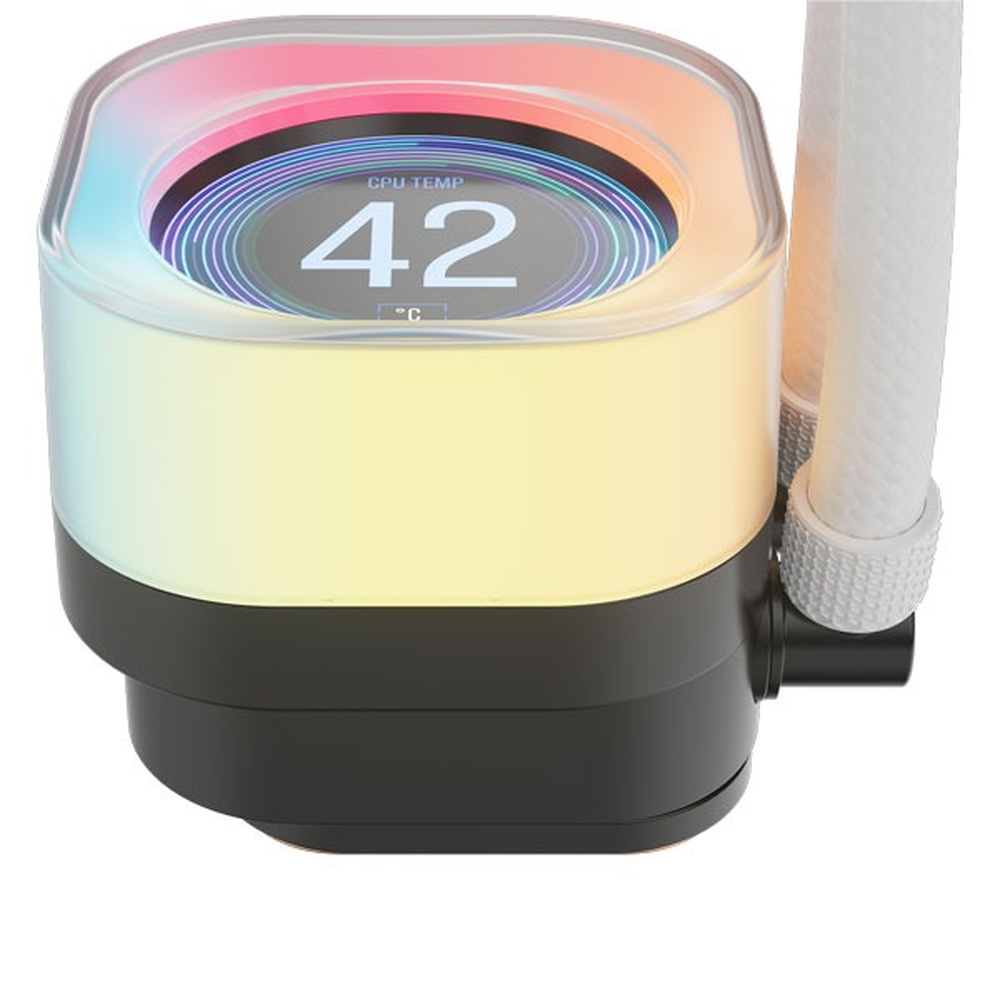

• Customizable 2.1" 480x480 IPS LCD screen displays system temps, images, animated GIFs, and more via iCUE software
• Full in-app GIPHY integration gives access to thousands of favorite memes and GIFs to display on pump screen
• Ultra-bright 600cd/m² backlight with 30 FPS and 16.7 million colors (24-bit color depth)
• 360mm radiator offers superior heat dissipation for high-performance CPUs even under heavy workloads
• FlowDrive cooling engine with high-performance three-phase motor for peak thermal efficiency and longevity
• Precision engineered cold plate surface profile for optimal thermal contact with CPU
• Pre-applied CORSAIR XTM70 Extreme Performance thermal paste for unparalleled efficiency
• Three high-performance RX120 RGB fans with AirGuide technology deliver 73.5 CFM airflow and 4.33 mm-H2O static pressure
• Digital fan speed control from 300-2100 RPM for precise cooling and whisper-quiet operation (10-36 dBA)
• Zero RPM mode allows fans to stop entirely at low temperatures, eliminating fan noise completely
• 68 individually addressable RGB LEDs—44 around pump and cap, 8 per fan—for dynamic lighting
• Streamlined iCUE LINK connectivity with included iCUE LINK System Hub simplifies cable management
• Single cable connection per component eliminates traditional cable daisy-chaining
• Personalize your cooler with tool-free CapSwap modules (sold separately) to change pump cap appearance

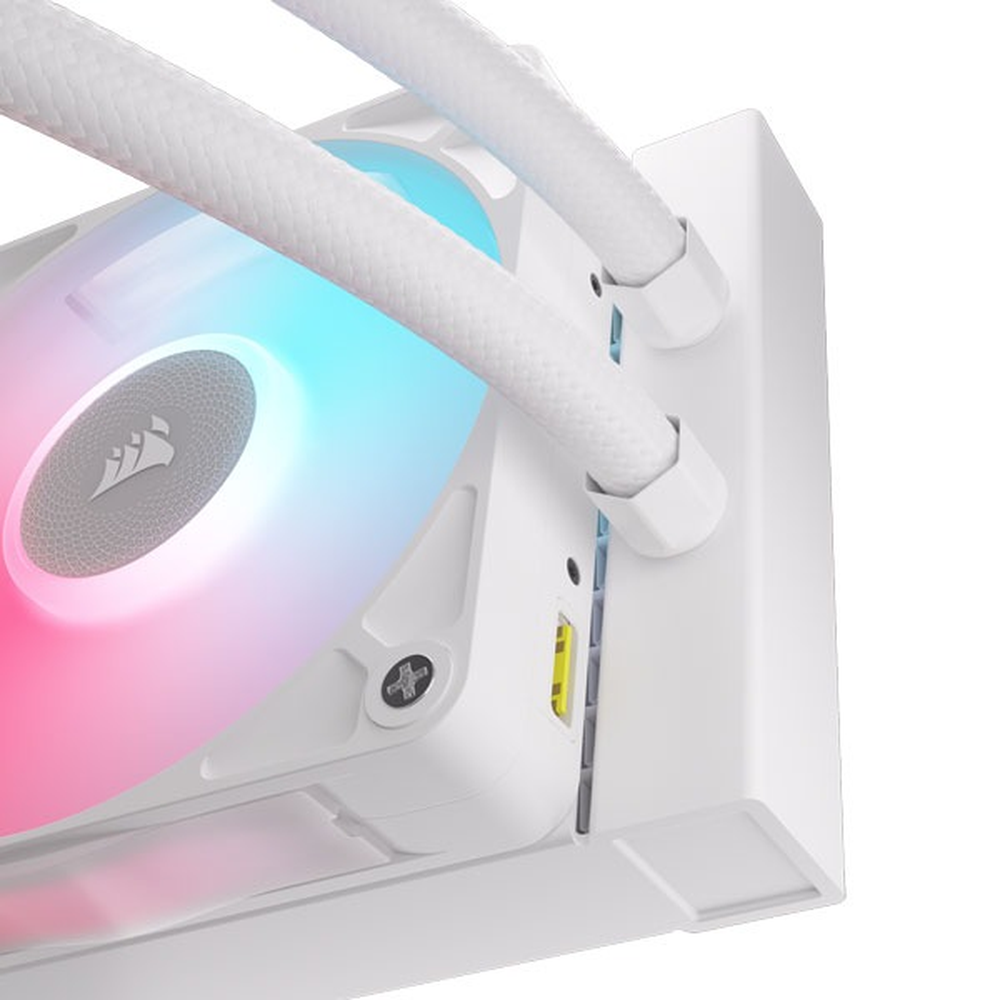

• 360mm aluminum radiator with optimized fin density for efficient heat dissipation
• 450mm white sleeved low-permeation rubber tubing for flexible installation
• Pristine white finish on pump housing and fans for clean, premium aesthetics
• Full compatibility with Intel LGA 1851, 1700 and AMD AM5, AM4 sockets
• Intel mounting bracket pre-installed for quick installation
• 6-year warranty

Technical Specifications:

Model Number	CW-9061026-WW
Brand	Corsair
Series	iCUE LINK TITAN RX LCD
Color	White
Cooler Type	All-in-One Liquid CPU Cooler (AIO) with LCD Screen - 360mm
LCD Screen Size	2.1 inch (480x480 resolution, IPS display)
LCD Screen Features	Customizable via iCUE (system temps, images, GIFs, animations, GIPHY integration)
LCD Frame Rate	30 FPS
LCD Brightness	600 cd/m²
LCD Color Depth	24-bit color (16.7 million colors)

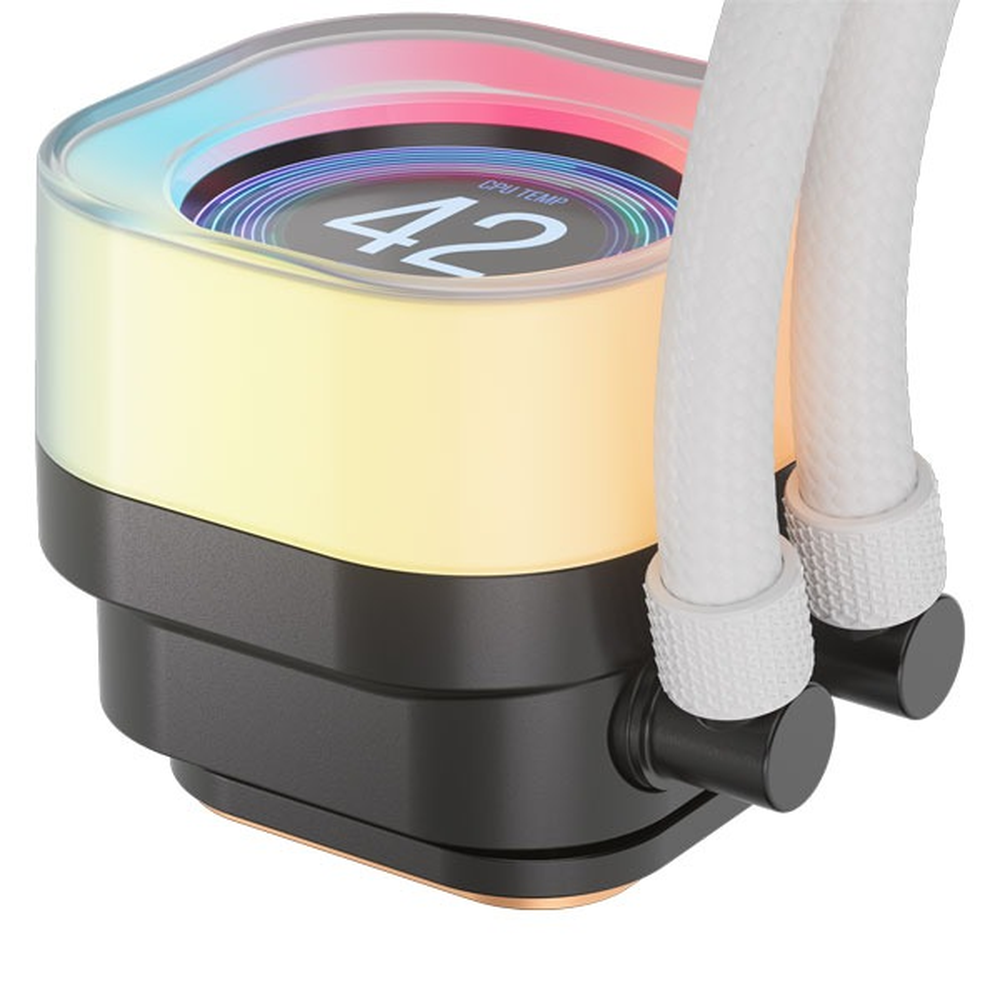

Pump Type	FlowDrive with three-phase motor
Radiator Size	360mm (396mm x 120mm x 27mm)
Radiator Material	Aluminum
Cold Plate Material	Copper (precision engineered surface profile)
Thermal Paste	Pre-applied CORSAIR XTM70 Extreme Performance
Tubing Length	450mm
Tubing Material	White sleeved low-permeation rubber
Number of Fans	3x RX120 RGB Fans (White)
Fan Model	iCUE LINK RX120 RGB
Fan Size	120mm x 120mm x 25mm
Fan Speed Range	300-2100 RPM ±10%
Fan Airflow	10.4 - 73.5 CFM (per fan)
Fan Static Pressure	0.12 - 4.33 mm-H2O (per fan)
Fan Noise Level	10 - 36 dBA
Fan Bearing Type	Magnetic Dome
Fan Control Method	Digital (via iCUE LINK System Hub)
PWM Control	Yes (PWM-controlled via iCUE LINK)
Zero RPM Mode	Yes
RGB LEDs	44 LEDs on pump/cap, 8 LEDs per fan (68 total)
RGB Type	Individually addressable RGB (via iCUE LINK)
RGB Control	iCUE software via iCUE LINK System Hub (included)
iCUE LINK System Hub	Included (controls pump, fans, LCD, and RGB)
CapSwap Compatibility	Yes (tool-free, modules sold separately)
Intel Socket Support	LGA 1851, LGA 1700
AMD Socket Support	AM5, AM4
Intel Processors Supported	Core i9, i7, i5, i3, Core Ultra 9, Ultra 7, Ultra 5, Pentium, Celeron
AMD Processors Supported	Ryzen 9, 7, 5, 3, A-Series
Dimensions (L x W x H)	396 x 125 x 125 mm
Water Block Dimensions	77mm x 77mm x 73mm
Weight	2.59 kg
Warranty	6 Years

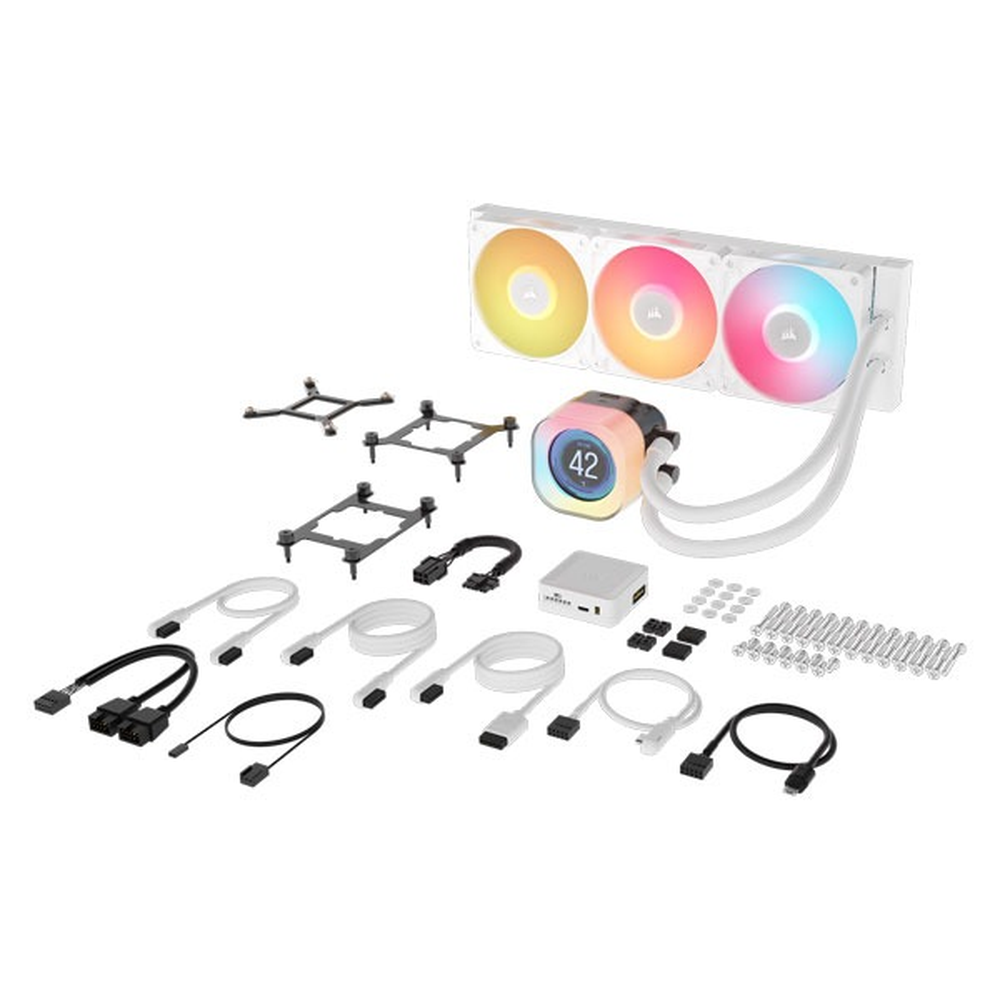

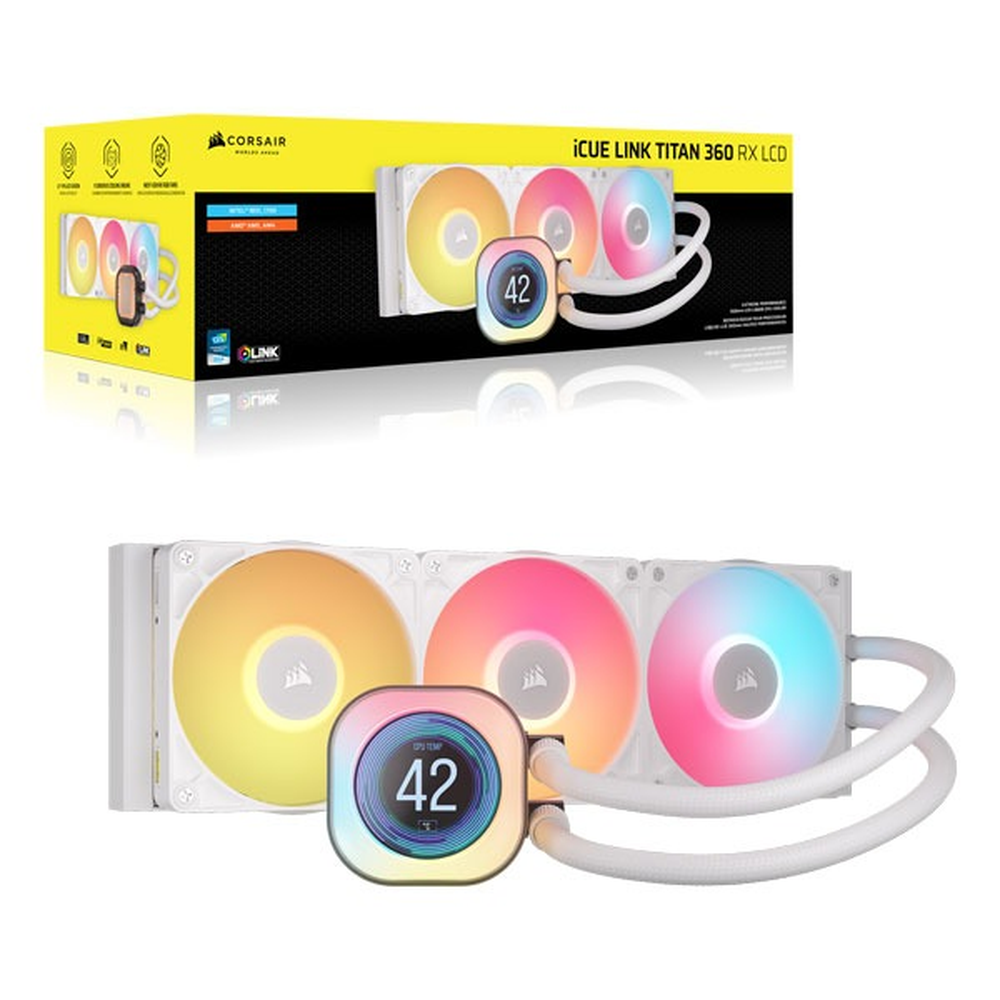

Package Contents:

• TITAN 360 RX LCD Pump/Cold Plate Unit with 2.1" LCD Screen (White)
• 360mm Aluminum Radiator
• 3x iCUE LINK RX120 RGB Fans (White)
• iCUE LINK System Hub
• 150mm PCIe Power Cable (for System Hub)

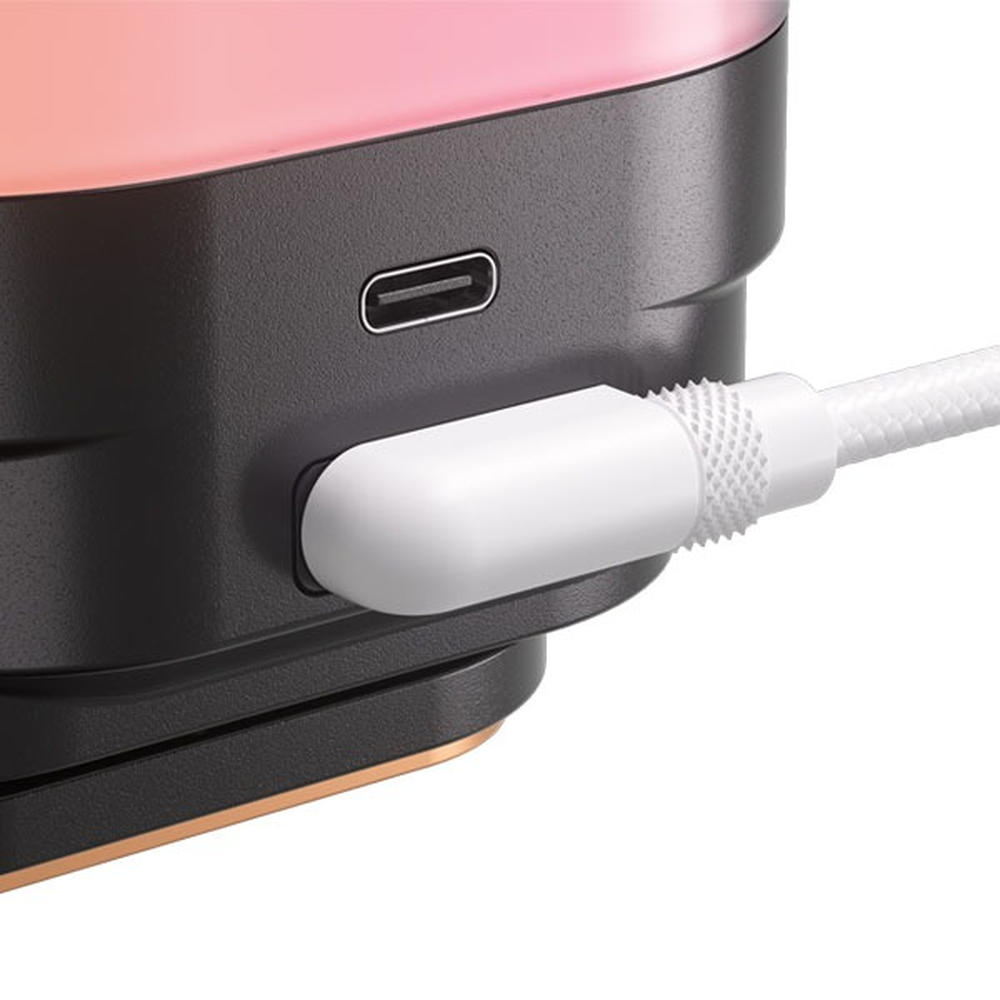

• 600mm Type-C USB 2.0 Cable (for LCD screen)
• 150mm USB Splitter
• 800mm Tach Cable
• Intel LGA 1851/1700 Mounting Bracket Set (pre-installed)
• Intel LGA 1851/1700 Backplate
• AMD AM5/AM4 Mounting Bracket Set
• 24x Long Fan Screws
• 12x Radiator Screws
• 12x Washers
• Quick Start Guide

Perfect for white-themed gaming PCs, enthusiast workstations, show builds, CPU overclocking, flagship Intel 13th/14th/15th Gen and AMD Ryzen systems, iCUE LINK ecosystem users, and anyone seeking premium liquid cooling with customizable LCD display in a pristine white aesthetic. The Corsair iCUE LINK TITAN 360 RX LCD in White represents the pinnacle of AIO liquid CPU cooling technology, combining extreme thermal performance with personalized visual expression through its stunning 2.1" 480x480 IPS LCD screen in a beautiful white finish. The custom LCD screen is fully controlled via iCUE software, allowing you to display real-time system temperatures (CPU temp, coolant temp, fan speeds), choose from 16.7 million custom colors, select pre-defined animations, or upload your own images and GIFs—now with full in-app GIPHY integration giving instant access to thousands of your favorite memes and GIFs to showcase your personality. The ultra-bright 600 cd/m² backlight ensures vivid visuals at 30 FPS in any lighting environment. The expansive 360mm aluminum radiator offers exceptional heat dissipation surface area, keeping high-end processors cool even under sustained heavy workloads like gaming, rendering, or overclocking. The FlowDrive cooling engine features a high-performance three-phase motor that delivers peak thermal efficiency and exceptional longevity backed by a 6-year warranty, while the precision engineered cold plate surface profile ensures optimal thermal contact with your CPU's IHS. Pre-applied CORSAIR XTM70 Extreme Performance thermal paste provides unparalleled thermal conductivity for hassle-free installation and maximum cooling efficiency. Three high-performance iCUE LINK RX120 RGB fans in white with AirGuide technology deliver powerful airflow (73.5 CFM max per fan) and strong static pressure (4.33 mm-H2O) with digital speed control from 300-2100 RPM, while Magnetic Dome bearings ensure whisper-quiet operation (10-36 dBA) and extended lifespan. Zero RPM mode allows the fans to stop entirely at low temperatures for completely silent operation. Sixty-eight individually addressable RGB LEDs—44 around the pump and cap plus 8 on each fan—create mesmerizing dynamic lighting effects synchronized through iCUE software, beautifully contrasting with the white finish. The streamlined iCUE LINK connectivity eliminates traditional cable daisy-chaining chaos: each component connects to the included iCUE LINK System Hub with a single cable that carries both power and data, dramatically simplifying cable management in your build. Tool-free CapSwap module compatibility allows you to personalize the pump's appearance by swapping cap modules (sold separately) without tools. The white sleeved tubing completes the pristine aesthetic. Compatible with the latest Intel LGA 1851/1700 and AMD AM5/AM4 sockets with Intel mounting bracket pre-installed for quick setup. Backed by an industry-leading 6-year warranty. Elevate your white-themed build with customizable LCD brilliance in the Corsair iCUE LINK TITAN 360 RX LCD White.
