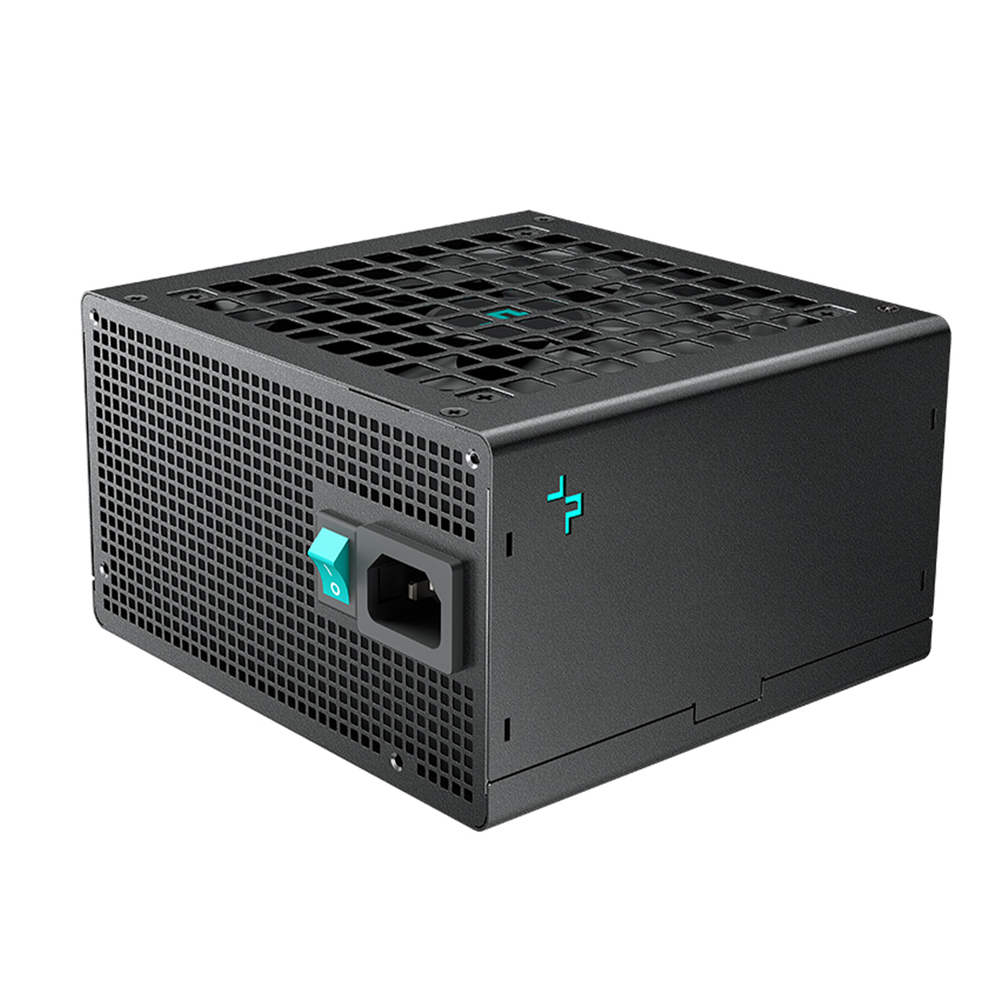

DEEPCOOL PL650D 650W 80 Plus Bronze ATX 3.0 / 3.1 Power Supply

The DeepCool PL650D is a non‑modular 650 W power supply that brings the PL‑D line up to Intel’s ATX 3.0 / 3.1 spec with a native 12VHPWR (12V‑2×6) connector, making it ready for current and next‑gen GPUs in mid‑range gaming and creator builds. It’s 80 Plus Bronze certified for at least 85% efficiency at typical loads, uses a 120 mm hydro‑bearing fan, and is built on an Active PFC + DC‑to‑DC platform with a full protection set, aimed at stable, quiet power delivery for years.

Key Specifications

• Model: PL650D

• P/N (India): R‑PL650D‑FC0B‑IN‑V2

• Standard: ATX12V V3.0 / V3.1 (India listings often show ATX 3.1)

• Wattage: 650 W continuous

• Efficiency certification: 80 Plus Bronze (≥85% at 50% load)

• Form factor: ATX, non‑modular

• Dimensions: 150 × 140 × 86 mm (W × L × H)

Cables & connectors (fixed / non‑modular)

• 24‑pin ATX: 1 × (20+4‑pin)

• CPU EPS: 2 × (4+4‑pin) on one or two cables

• PCIe 8‑pin: 3 × (6+2‑pin) total across two cables

• 12VHPWR / 12V‑2×6: 1 × native 16‑pin GPU connector, rated up to 300 W

• SATA: Typically 2 × cables, each with 3 × SATA + 1 × Molex (total 6 × SATA + 2 × 4‑pin peripheral)

Electrical & design

• Topology: Active PFC + DC‑to‑DC

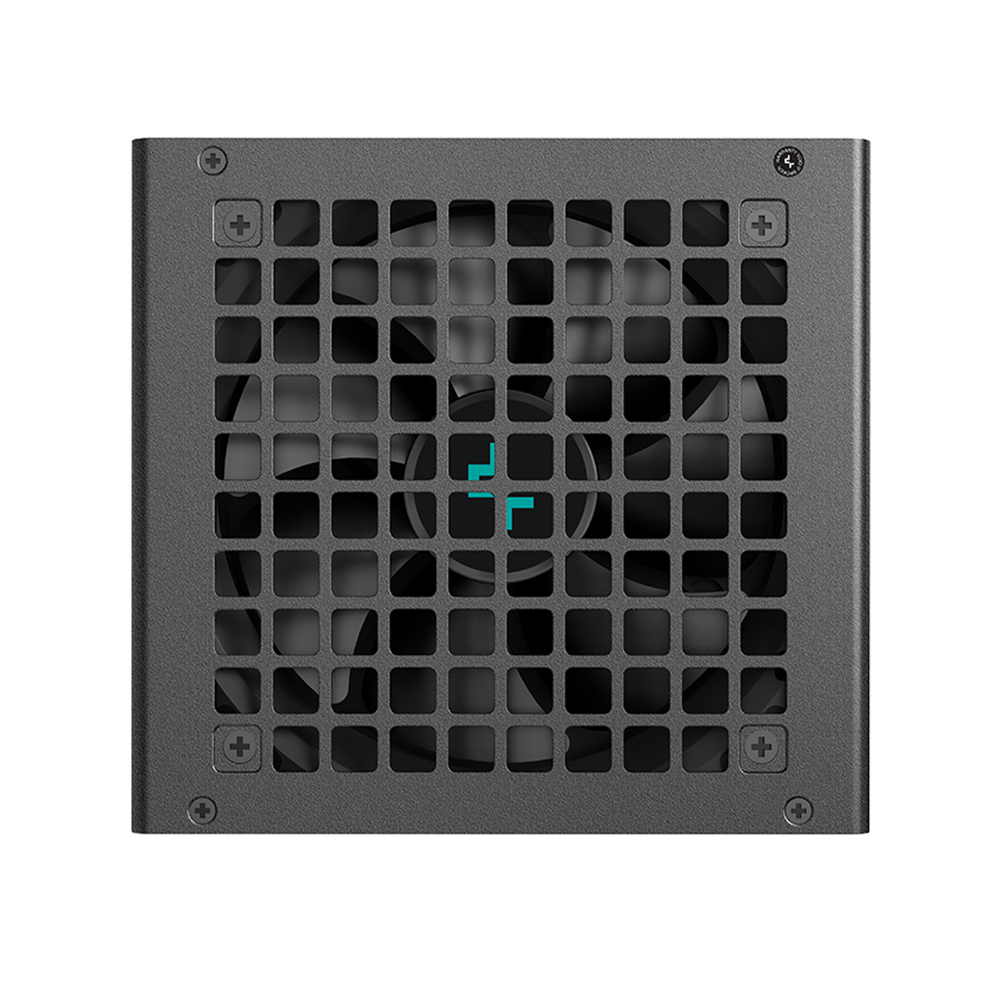

• Fan: 120 mm HYB / hydro‑bearing fan

• Capacitors: Chinese electrolytic capacitors

• Power good signal: 100–150 ms

• Hold‑up time: ≥16 ms

• Efficiency: ≥85% at 50% load

• Protections: OPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO

• Operating temp: 0–40 °C

• MTBF: 100,000 hours

• Warranty: 5 years (per most PL‑D series listings, including India)

About the DEEPCOOL PL650D
The PL650D is well‑suited for mid‑range gaming and café PCs running GPUs up to roughly RTX 4070 / RX 7800 class, where you want ATX 3.x compliance, a native 12VHPWR/12V‑2×6, and multiple PCIe 8‑pins without paying Gold‑tier prices. It’s positioned just above the PL550D as the “sweet‑spot” Bronze option, with extra headroom for future GPU upgrades and a 5‑year warranty that works nicely for fleet café deployments.
