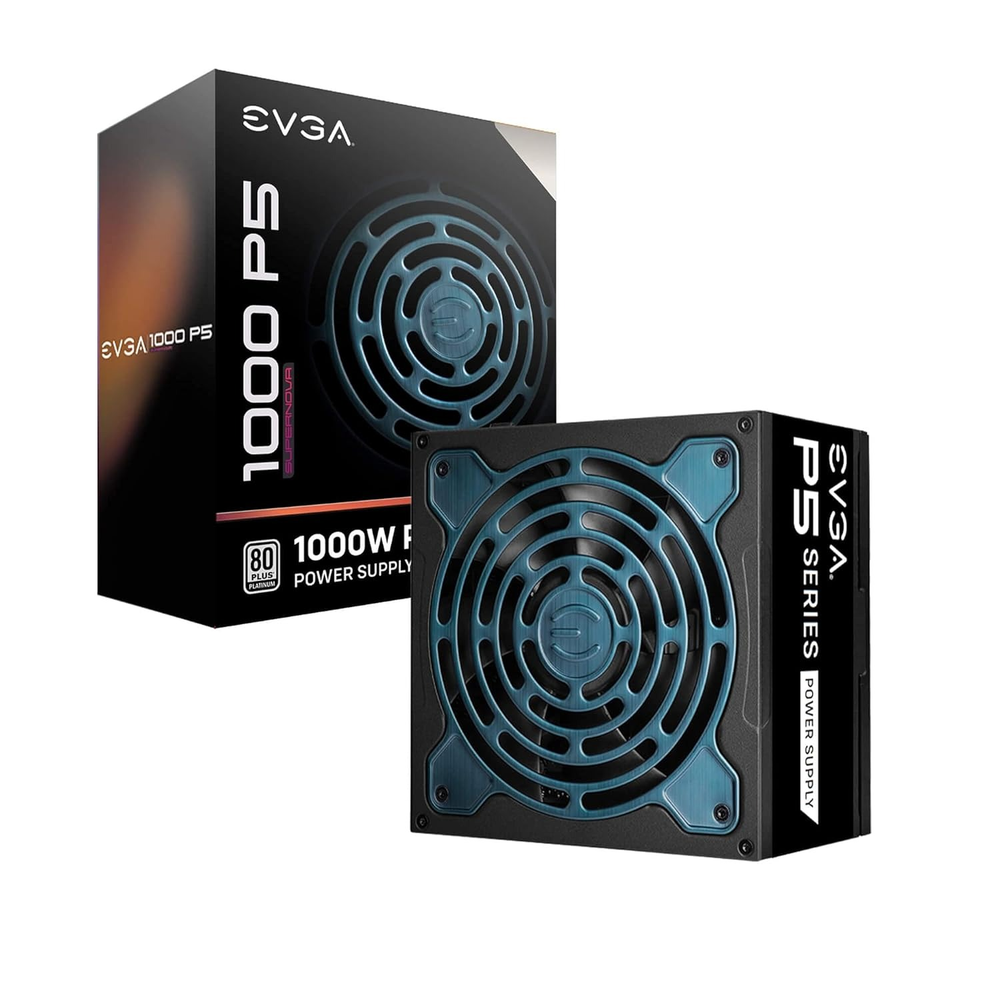

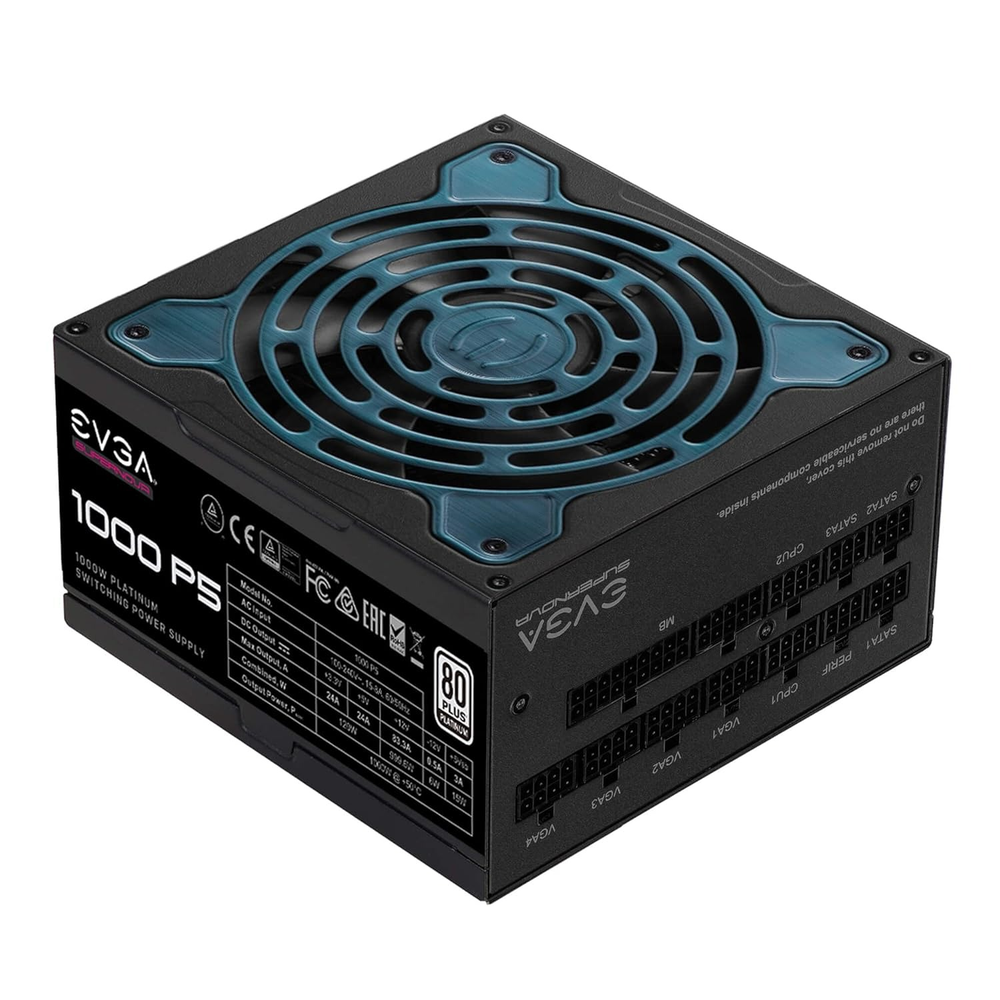

EVGA SuperNOVA 1000 P5 1000W 80+ Platinum Fully Modular ATX 3.1 Power Supply

The EVGA SuperNOVA 1000 P5 (1000W) is an 80 Plus Platinum fully modular ATX 3.1 power supply built for high‑end gaming PCs and workstations. With up to 92–94% efficiency, a powerful single +12 V rail, 100% Japanese capacitors and a 135 mm FDB fan with ECO mode, it delivers clean, quiet and reliable power backed by a 10‑year warranty. [web:1270][web:1272][web:1274]

• 80 Plus Platinum efficiency: Certified for up to 92% efficiency at 115 V and 94% at 220–240 V under typical loads, reducing wasted power and heat. [web:1270][web:1274]
• 1000W single‑rail design: Robust single +12 V rail rated up to 83.3 A (999.6 W) for modern high‑draw GPUs and multi‑core CPUs. [web:1281][web:1277]
• Fully modular cabling: Fully modular cable design minimizes clutter and improves case airflow, letting you connect only what you need. [web:1270][web:1272][web:1277]
• 100% Japanese capacitors: High‑grade Japanese capacitors and active clamp + DC‑DC circuitry deliver tight voltage regulation and low ripple. [web:1272][web:1274][web:1277]
• 135 mm FDB fan with ECO mode: Fluid Dynamic Bearing fan and EVGA ECO mode keep the PSU near‑silent at low to medium loads. [web:1270][web:1272][web:1277]
• Comprehensive protections: OVP, UVP, OCP, OPP, SCP, OTP and full safety certifications protect your components. [web:1270][web:1274][web:1277]

### Technical Specifications ```html [2][1] [4][2] [1][2] [5][2][1] [3][1] [4][1] [3][4] [6][1][4] [6][3] [6][3] [3][6] [6][3] [3][6] [6][3] [5][6] [4][6] [1][4] [6] [6] [3][6] [3][6] [3][6] [6][3] [6] [2][1][6] [2][6] [6] [6] [1][4]

Specification	Detail
Brand	EVGA
Series	SuperNOVA P5
Model	1000 P5
Part Number	220-P5-1000-X1
Wattage	1000 W
80 Plus Rating	80 Plus Platinum
Form Factor	ATX12V / EPS12V (ATX 3.1 compliant)
Modularity	Fully modular

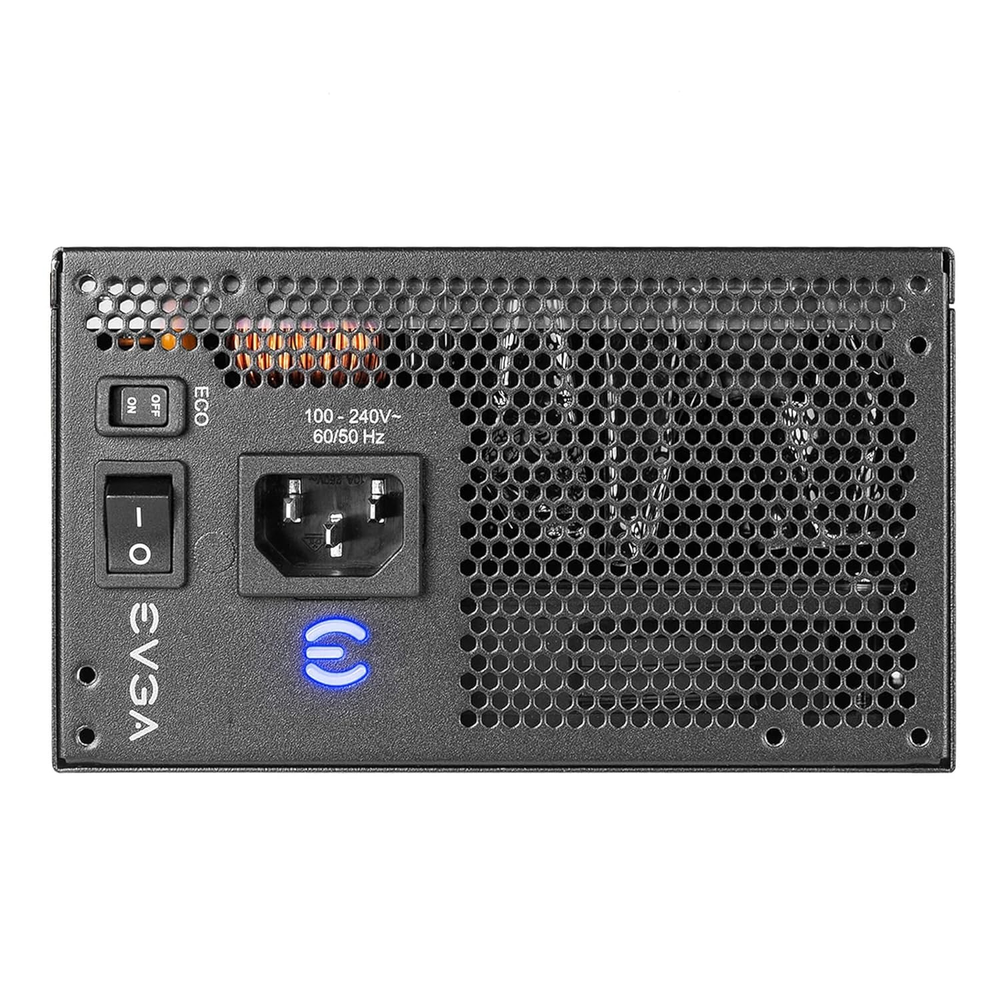

AC Input	100–240 V~, 15–8 A, 50/60 Hz
DC Output Rails	+3.3 V, +5 V, +12 V, -12 V, +5 Vsb

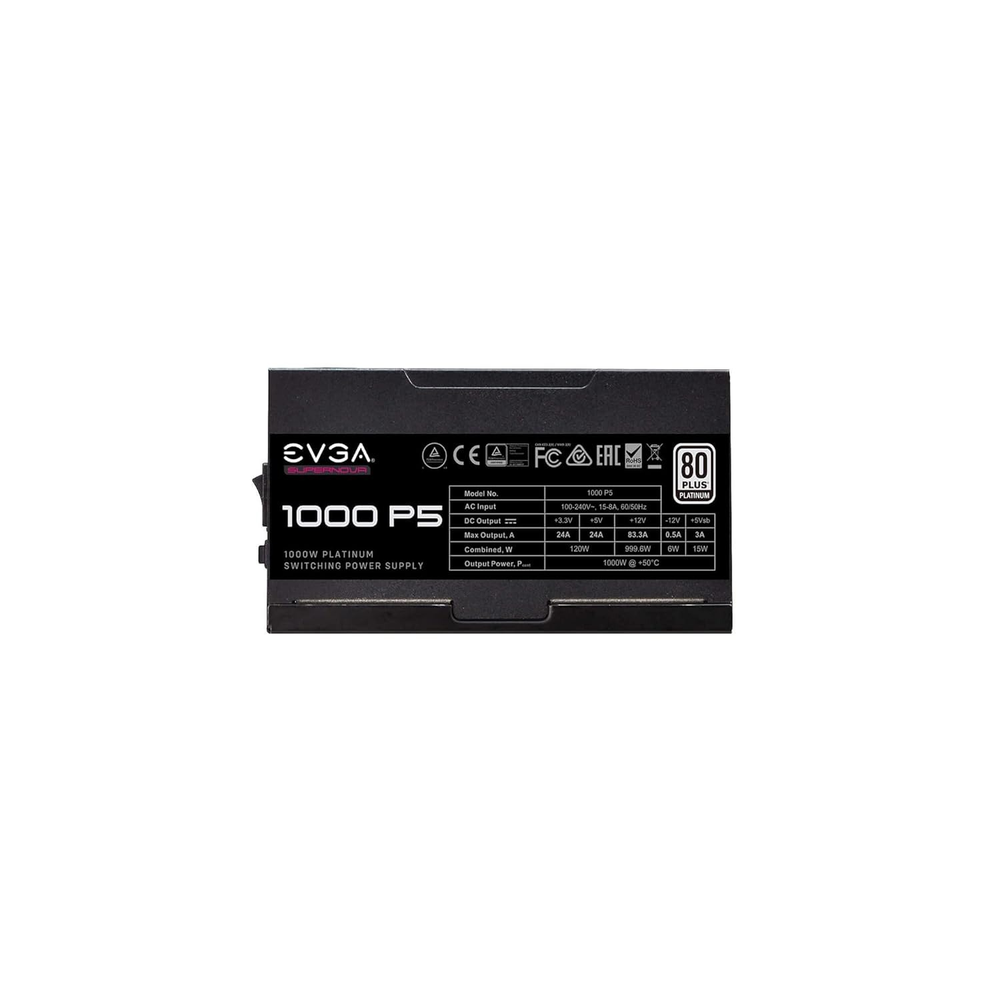

Max Output (3.3 V / 5 V)	24 A / 24 A (combined 120 W)
Max Output (+12 V)	83.3 A (999.6 W) single rail
Max Output (-12 V)	0.5 A (6 W)
Max Output (+5 Vsb)	3 A (15 W)
Total Power	1000 W @ 50 °C operating temperature
Fan	135 mm Fluid Dynamic Bearing (FDB) fan
Fan Mode	EVGA ECO mode (semi‑fanless at low/medium load)
MTBF	100,000 hours

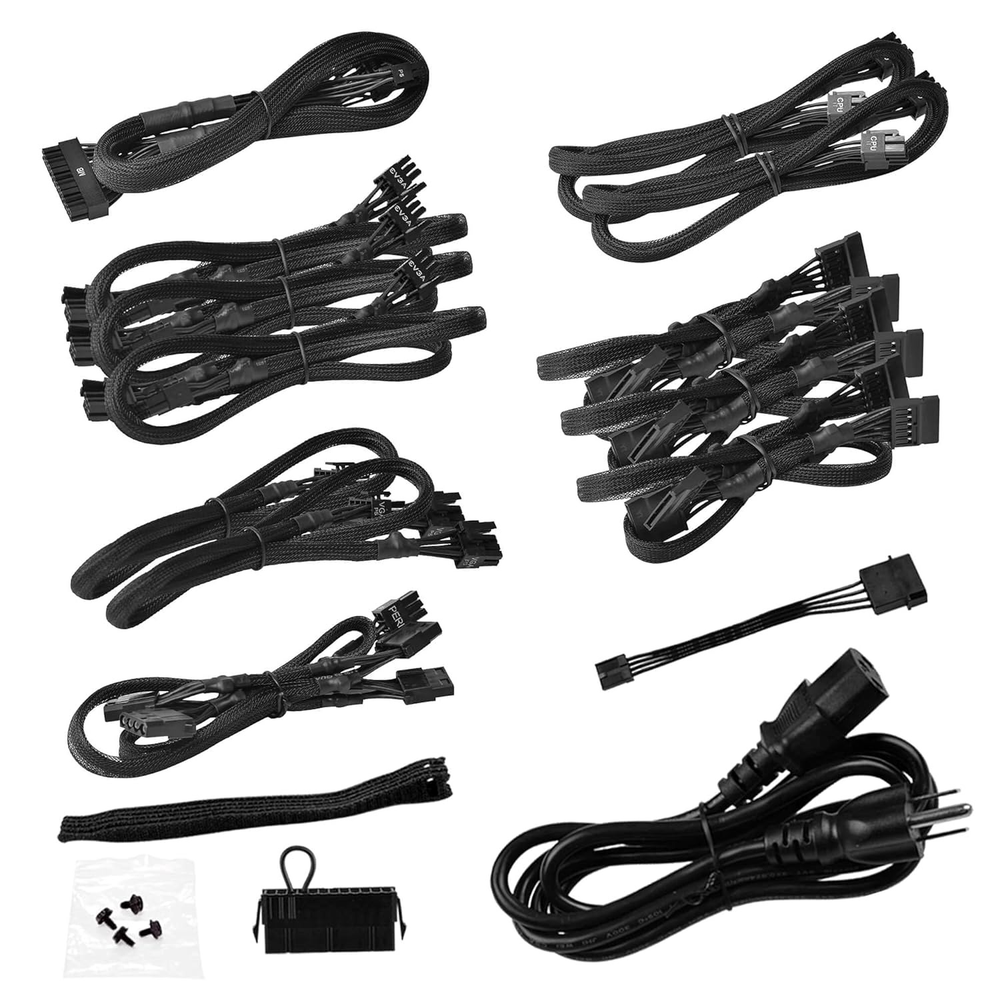

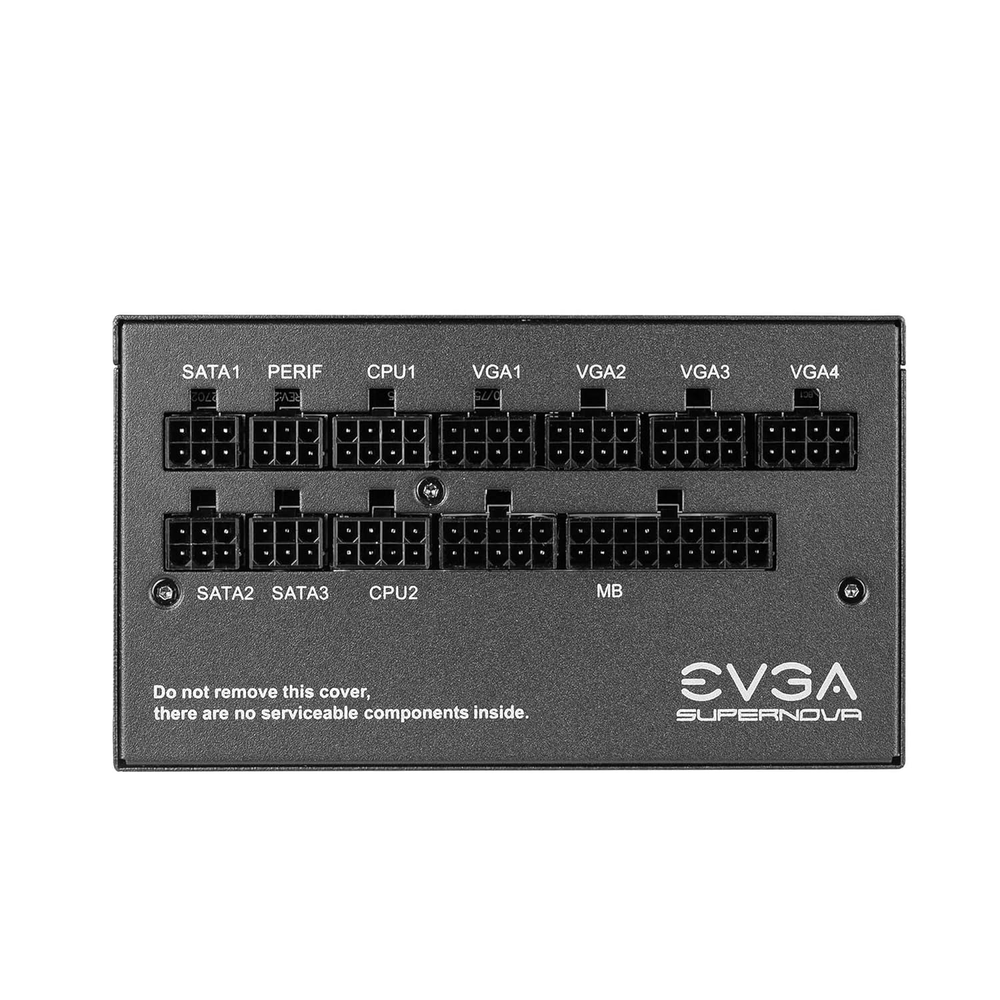

24‑pin ATX	1 × 24‑pin ATX (600 mm)
CPU / EPS	2 × 8‑pin (4+4) EPS (700 mm)
PCIe (GPU)	8 × 8‑pin (6+2) PCIe
SATA	12 × SATA power connectors
Peripheral (Molex)	4 × 4‑pin peripheral connectors
Floppy	1 × floppy adapter
Protections	OVP, UVP, OCP, OPP, SCP, OTP
Certifications	TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS, ErP Lot 3 2014
Dimensions	86 × 150 × 150 mm (H × W × L)
Net Weight	Approx. 7 lbs (~3.2 kg)
Warranty	10‑Year limited warranty with registration

```

Ideal For: High‑end gaming PCs and creator workstations that need 1000 W of clean, Platinum‑rated power with fully modular cabling and long‑term reliability. [web:1272][web:1274]
