EVGA SuperNOVA 1300 P+ 1300W 80+ Platinum Fully Modular ATX Power Supply

The EVGA SuperNOVA 1300 P+ (1300W) is a high‑end 80 Plus Platinum fully modular PSU built for extreme gaming PCs, multi‑GPU rigs and heavy workstation loads. With up to 92–94% efficiency, a powerful single +12 V rail, 100% Japanese capacitors and EVGA’s ECO fan mode, it delivers clean, stable power with low noise and a 10‑year warranty. [web:1256][web:1261][web:1266]

>80 Plus Platinum efficiency: Up to 92% efficiency at 115 V and 94% at 220–240 V under typical loads, reducing wasted power and heat output. [web:1256][web:1261] >1300W single‑rail design: Powerful single +12 V rail rated up to around 108 A provides excellent stability and compatibility with high‑draw GPUs and CPUs. [web:1261][web:1266] >Fully modular cabling: Fully modular interface lets you use only the cables you need for cleaner routing and better airflow. [web:1256][web:1264] >Premium Japanese capacitors: 100% Japanese capacitors and DC‑DC converters on 3.3 V/5 V rails improve long‑term reliability and voltage stability. [web:1256][web:1266] >Quiet FDB fan with ECO mode: 135 mm fluid dynamic bearing fan and EVGA ECO Intelligent Thermal Control keep the fan off at low–medium loads for near‑silent operation. [web:1256][web:1266] >Comprehensive protections: Includes OVP, UVP, OCP, OPP, SCP and OTP to protect your hardware from power faults. [web:1256][web:1266]

### Technical Specifications ```html [1] [2][4] [2] [4][1][2] [4][2] [3][1] [3][2] [1][4] [5] [2][3] [5][2] [3][2] [2] [2] [1][3] [1][3] [4] [4] [3][4] [5][4] [5][4] [1][3] [1][2] [4][2] [3][1]

Specification	Detail
Brand	EVGA
Series	SuperNOVA P+
Model	1300 P+
Part Number	220-PP-1300-X1
Wattage	1300 W
80 Plus Rating	80 Plus Platinum
Form Factor	ATX12V / EPS12V (standard ATX PSU)

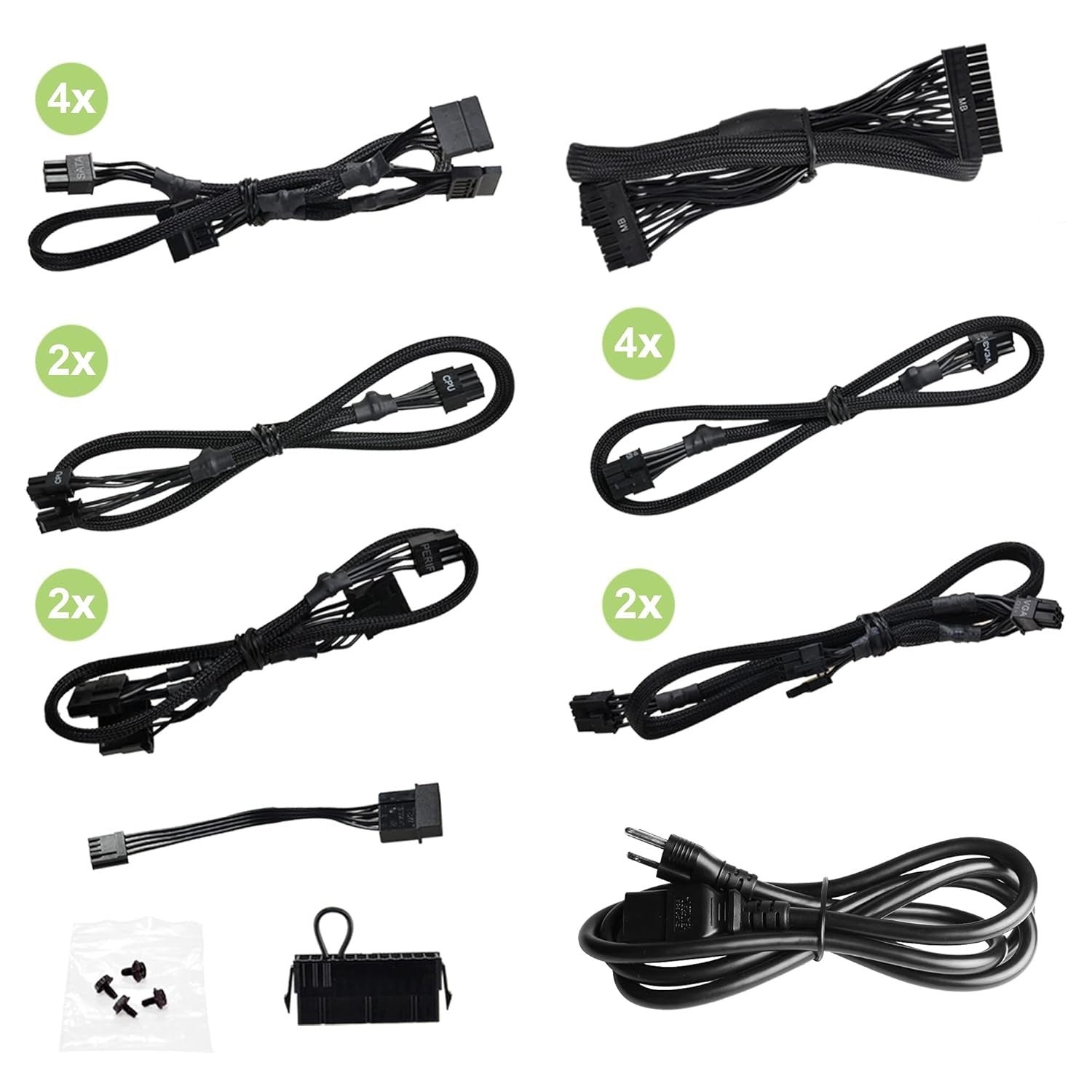

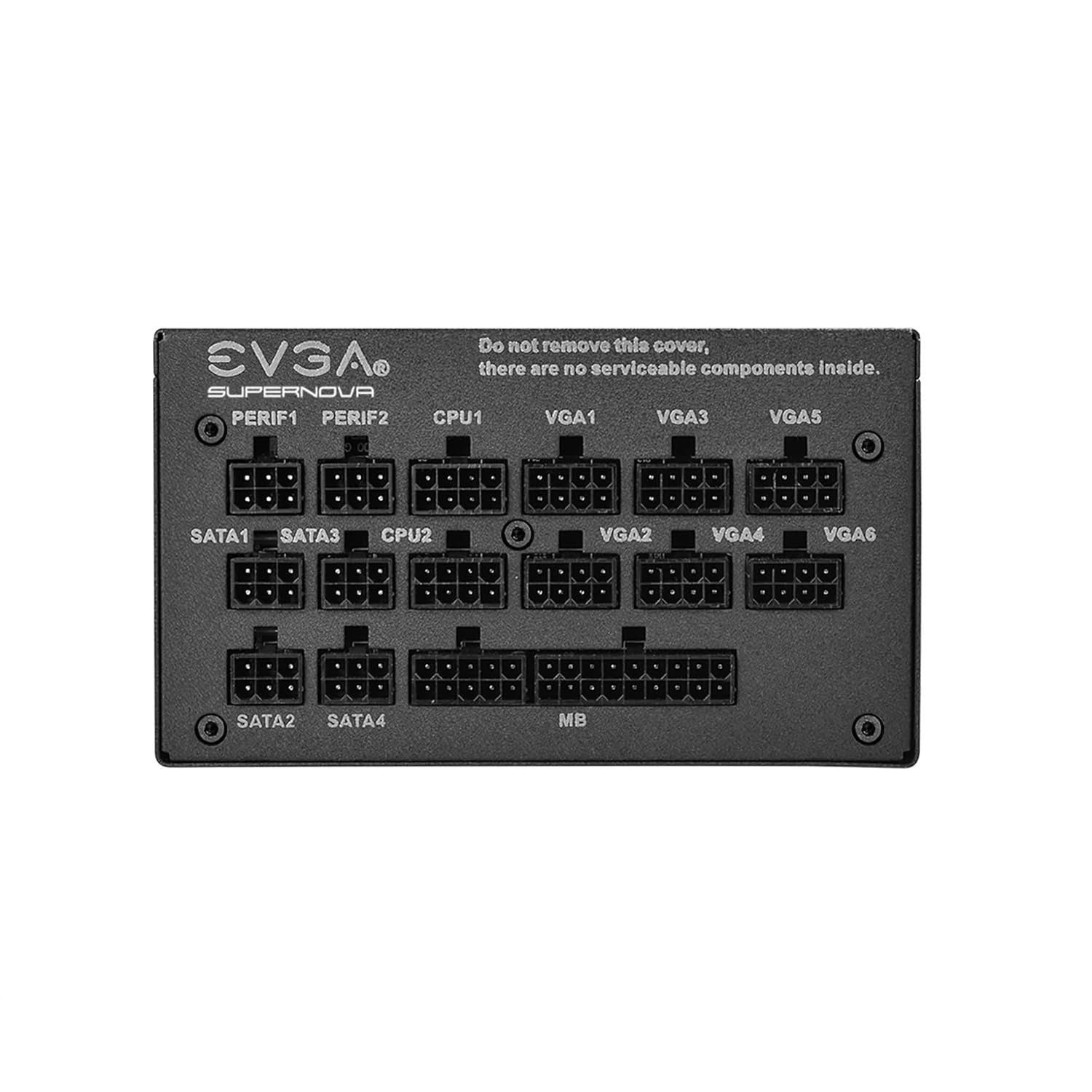

Modularity	Fully modular
AC Input	100–240 V~, 15–8 A, 50/60 Hz
DC Output Rails	+3.3 V, +5 V, +12 V, -12 V, +5 Vsb
Max Output (3.3 V / 5 V)	24 A / 24 A (combined 120 W)
Max Output (+12 V)	108.3 A (approx. 1300 W) single rail
Max Output (-12 V)	0.5 A
Max Output (+5 Vsb)	3 A
Fan	135 mm Fluid Dynamic Bearing fan
Fan Mode	EVGA ECO mode (fanless at low–medium load)
Connectors – 24‑pin	1 × 24‑pin ATX
CPU Power	2 × 8‑pin (4+4) EPS/CPU
PCIe (GPU)	8 × 8‑pin (6+2) PCIe for GPUs
SATA	12 × SATA power connectors
Peripheral (Molex)	6 × 4‑pin peripheral (Molex) connectors
Protections	OVP, UVP, OCP, OPP, SCP, OTP
Efficiency (typical)	Up to 92% (115 V) / 94% (220–240 V)
Dimensions (L × W × H)	7.9" × 5.9" × 3.4" (201 × 150 × 86 mm approx.)
Warranty	10‑Year limited warranty with registration

```

Ideal For: Extreme gaming PCs, dual‑GPU or high‑core workstation builds that need rock‑solid 1300 W Platinum‑rated power with fully modular cabling and long‑term reliability. [web:1256][web:1266]
