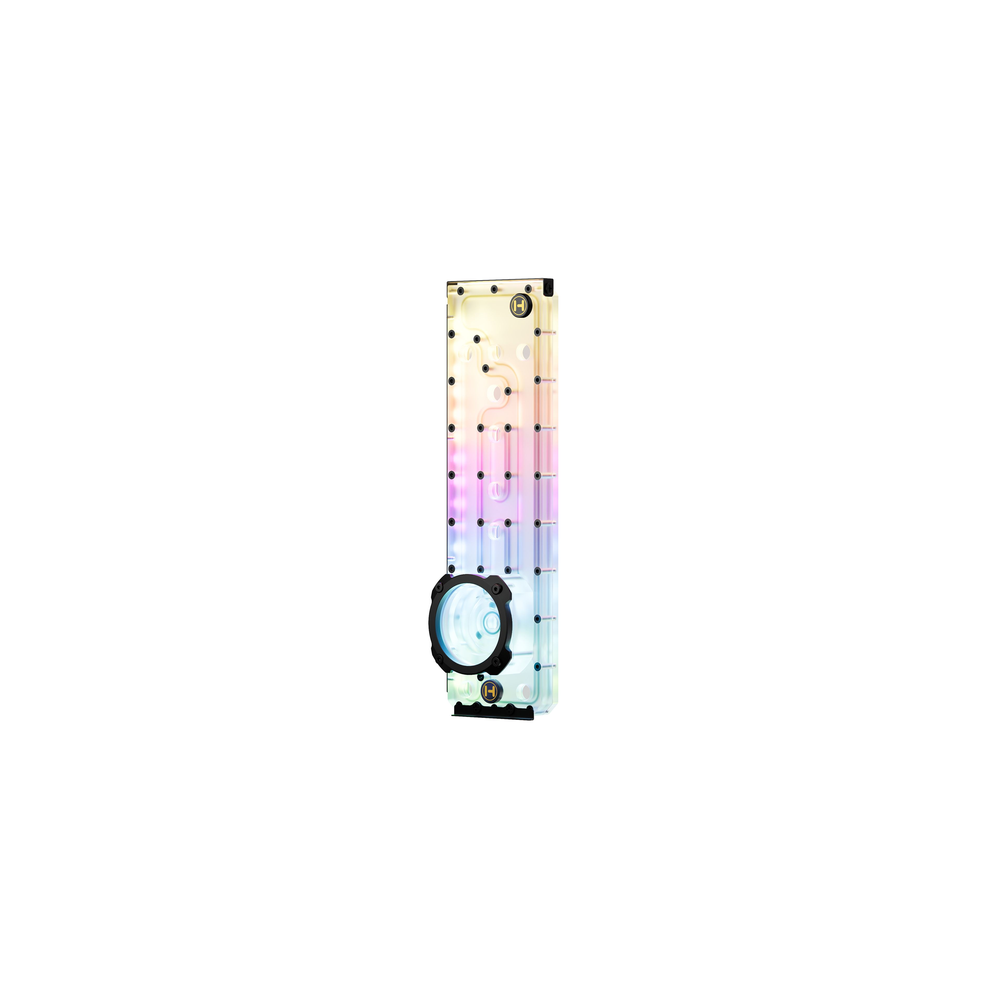

HYTE Y60 BYO Distro ARGB Distribution Plate for Y60
Technical specification
The HYTE Y60 BYO Distro is a custom ARGB distribution plate engineered exclusively for the HYTE Y60 case, replacing the corner glass to put your coolant flow front and center. It supports both D5 and DDC pumps, includes four separate flow chambers and is designed for dual‑radiator CPU + GPU custom loops, making it the perfect centrepiece for showcase builds. [web:1192][web:1195][web:1203]
- Exclusively for HYTE Y60: Designed to fit the Y60’s corner glass position, using dedicated brackets and hardware for a seamless, rigid install. [web:1192][web:1196][web:1199]
- Showcase your loop: Clear acrylic distro with routed channels prioritises visible coolant flow across the front of the case so your loop becomes part of the aesthetics. [web:1192][web:1199][web:1198]
- ARGB illumination: 17 addressable RGB LEDs connect via a 3‑pin 5 V ARGB header to light the distro and coolant path with rich, even lighting. [web:1192][web:1199]
- Bring your own pump: Includes tops and mounting hardware for both D5 and DDC pumps so you can choose your preferred pump (pump not included). [web:1192][web:1199]
- Four flow chambers: Internal layout with four separate flow chambers enables precise routing between CPU block, GPU block and up to two radiators. [web:1192][web:1203]
- Dual‑radiator ready: Port layout supports cooling for both CPU and GPU in a dual‑radiator loop inside the Y60. [web:1192][web:1203]
| Specification | Detail |
|---|---|
| Brand | HYTE [web:1192] |
| Product Name | Y60 Distro / Y60 BYO Distro ARGB Distribution Plate [web:1192][web:1195] |
| SKU | CS-HYTE-Y60-DISTRO [web:1192][web:1194][web:1202] |
| Case Compatibility | HYTE Y60 only (replaces corner/front glass) [web:1192][web:1196][web:1199] |
| Materials | Acrylic, silicone, steel, POM [web:1192] |
| Thread | G1/4" ports [web:1192][web:1203] |
| Flow Chambers | Four internal flow chambers [web:1192][web:1203] |
| Pump Support | D5 and DDC pump tops with O-rings included (pump not included) [web:1192][web:1199] |
| D5 Mounting | D5 pump top pre‑installed, D5 retention & screws included [web:1192][web:1199] |
| DDC Mounting | DDC pump top with O‑ring and mounting screws included [web:1192][web:1199] |
| Included Stop Fittings | 2 × stop fittings [web:1192] |
| LEDs | 17 addressable RGB LEDs [web:1192][web:1199] |
| RGB Connector | 3‑pin 5 V ARGB header [web:1192] |
| Addressable RGB | Yes [web:1192] |
| Loop Support | CPU + GPU + dual radiators (Y60 layout) [web:1192][web:1203] |
| Included Hardware | Mounting brackets, screws for Y60, D5/DDC tops, stop fittings [web:1192][web:1199] |
Ideal For: Custom water‑cooling builds in the HYTE Y60 that want a clean hard‑tube layout, visible coolant flow and integrated ARGB lighting with D5 or DDC pump flexibility. [web:1192][web:1197][web:1199]
