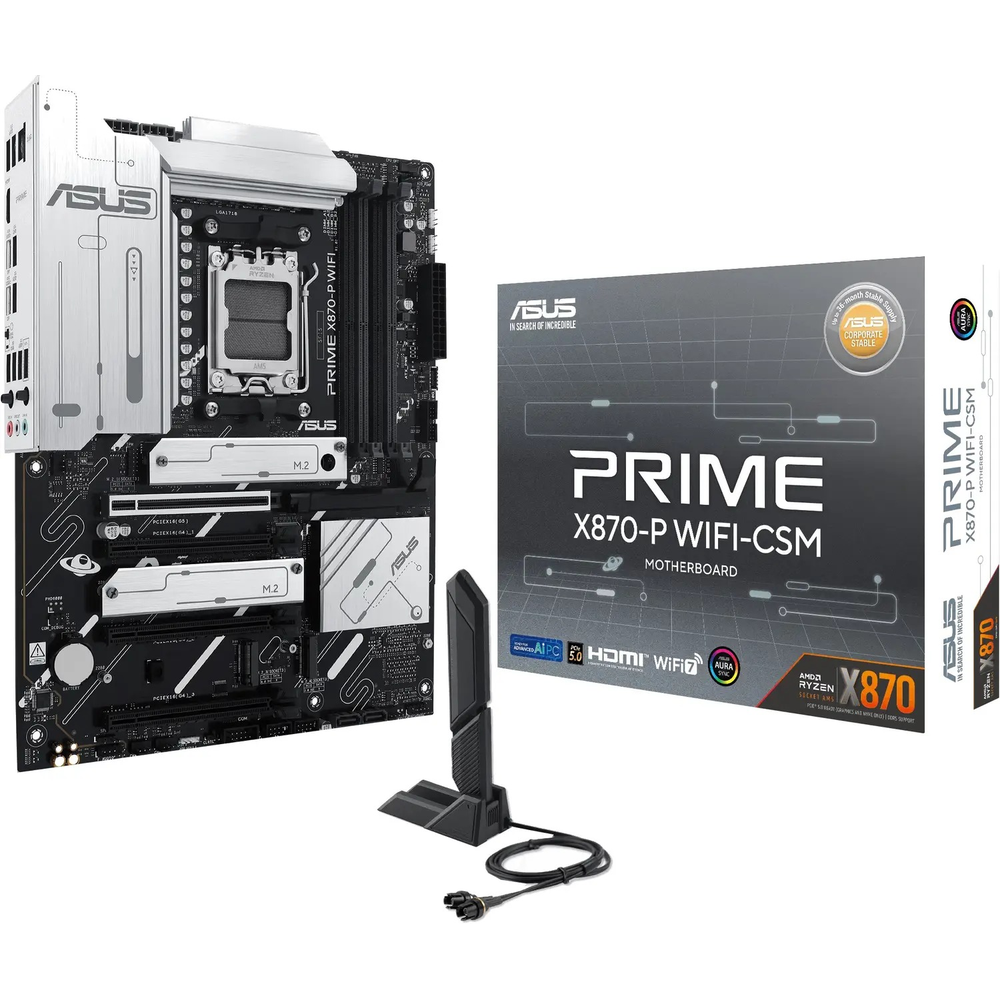

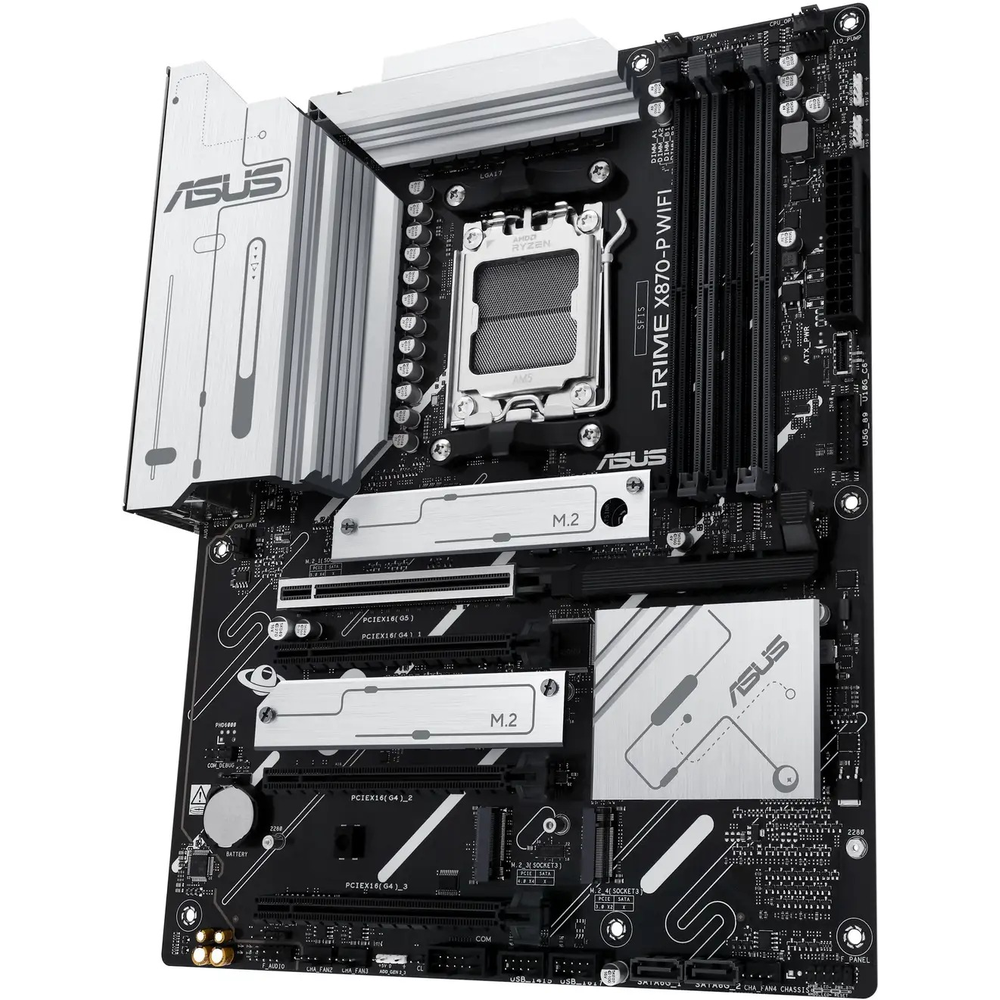

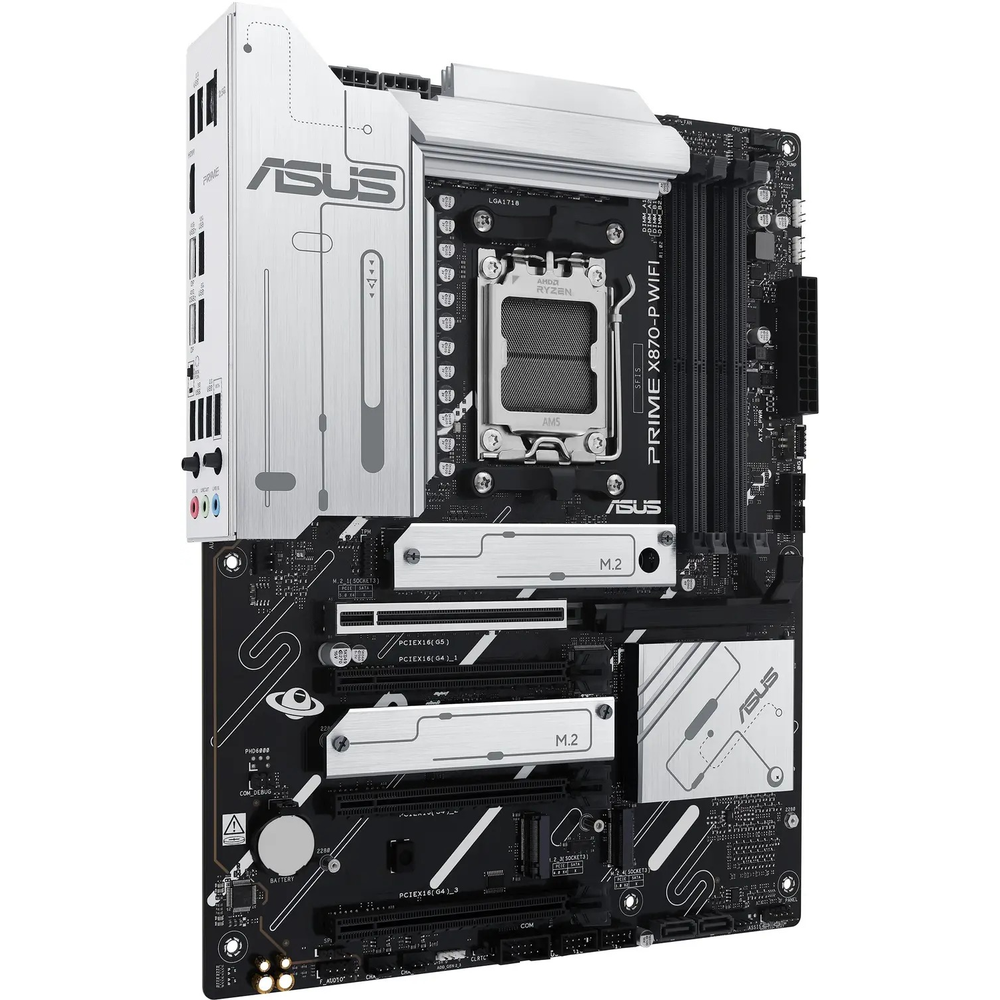

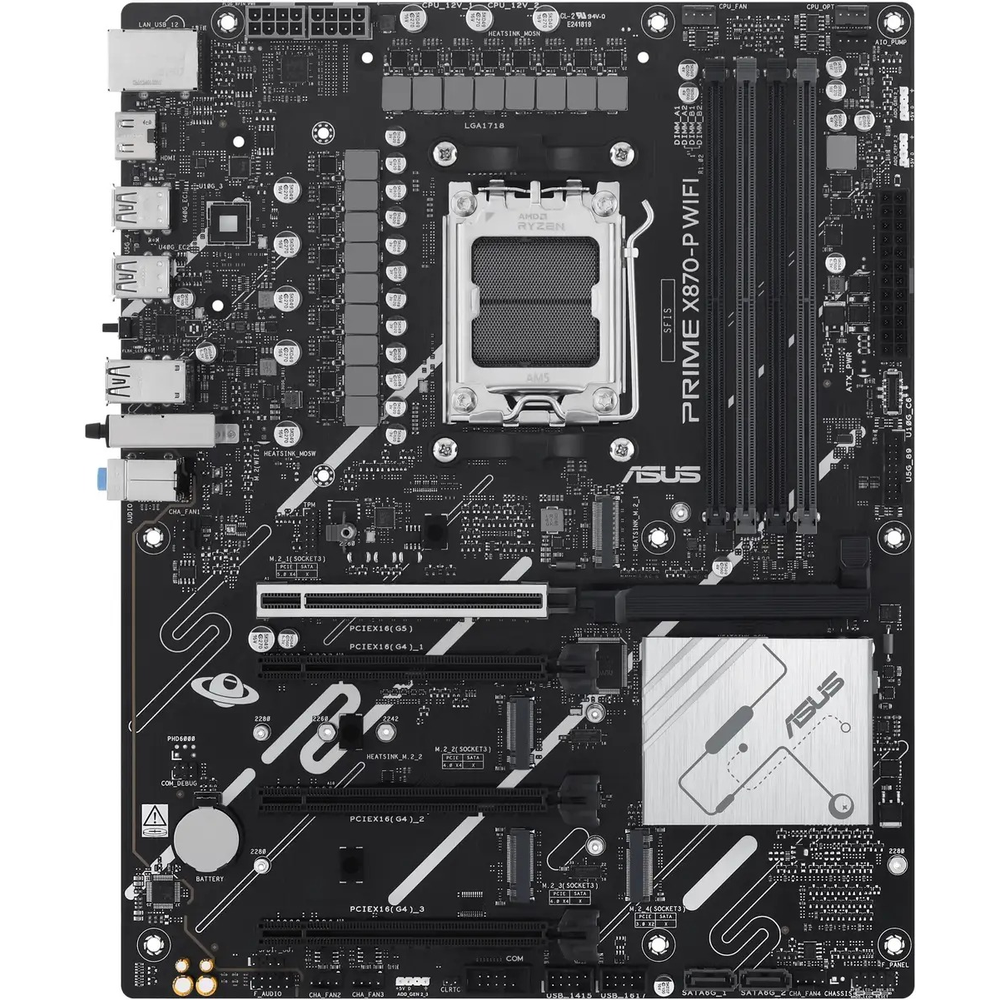

ASUS PRIME X870-P WIFI-CSM ATX Motherboard
ASUS PRIME X870-P WIFI-CSM ATX Motherboard
Vendor:
AsusSub total
Rs. 20,500.00Couldn't load pickup availability
Estimated deliver 5-7 days
Description
ASUS PRIME X870-P WIFI-CSM is an AMD X870 ATX motherboard for Ryzen 7000, 8000 and 9000 Series desktop processors on the AM5 socket. Designed for Advanced AI PC builds and high-end gaming/workstation use, it combines a robust 14+2+1 power stage design, DDR5 support up to 8000+ MT/s, PCIe 5.0 storage, four M.2 slots, dual 40Gbps USB4 Type‑C ports, Realtek 2.5Gb Ethernet and Wi‑Fi 7 in a clean PRIME layout with CSM lifecycle support.
Key Features:
-
>AMD X870 ATX motherboard with AM5 socket for Ryzen 9000 / 8000 / 7000 Series processors.
>14 (80A) + 2 (80A) + 1 (80A) power stages with enlarged VRM heatsinks for stable high-core-count CPUs.
>4 x DDR5 DIMM slots, up to 256GB, supports up to 8000+ MT/s (OC) with AMD EXPO and ASUS AEMP.
>Four M.2 slots total: 1 x PCIe 5.0 x4, 2 x PCIe 4.0 x4 and 1 x PCIe 3.0 for flexible NVMe storage layouts.
>PCIe 5.0 slots for graphics card and storage (exact lane configuration depends on CPU).

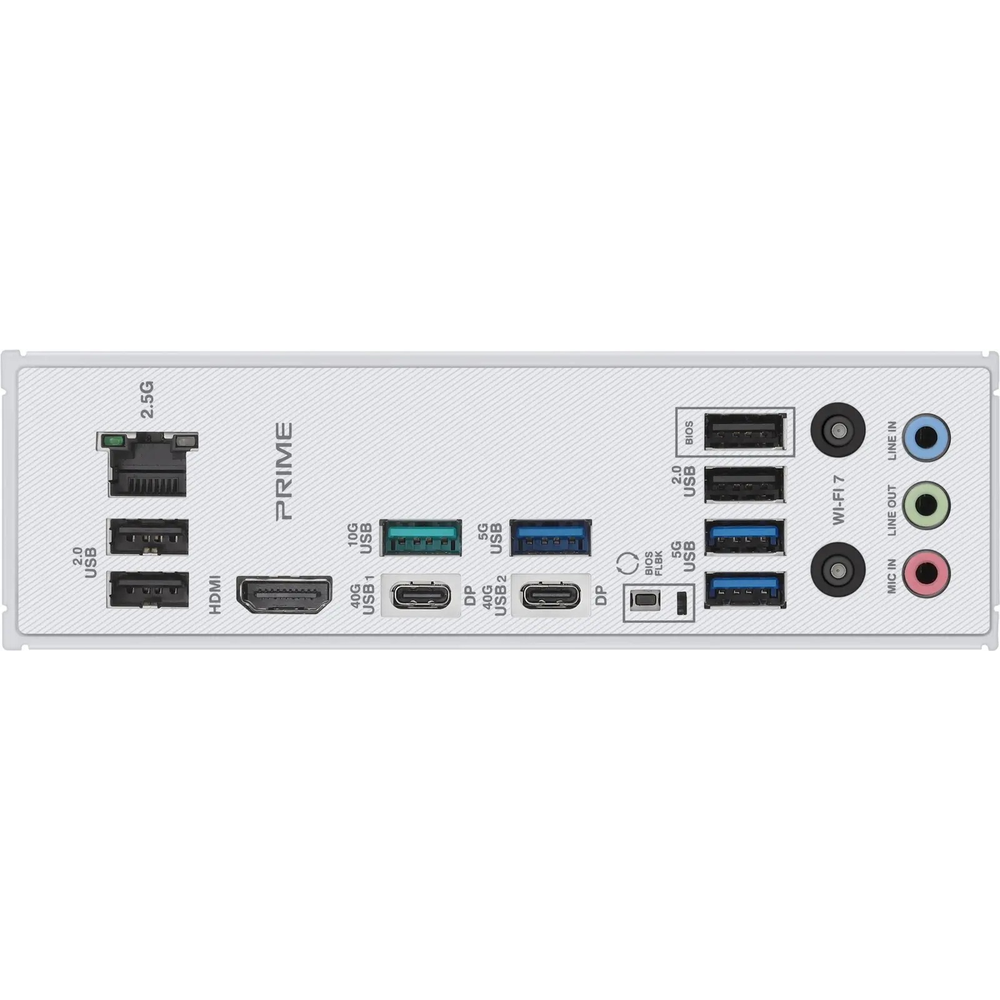

>Dual USB4 40Gbps Type‑C ports on the rear I/O for super‑speed external drives and devices.
>Additional USB 10Gbps Type‑C / Type‑A and USB 5Gbps ports, plus internal USB 10Gbps/5Gbps/2.0 headers.
>Realtek 2.5Gb Ethernet for fast wired networking.
>On‑board Wi‑Fi 7 (2x2) and Bluetooth 5.4 for next‑gen wireless performance and low latency.
>Aura Sync RGB with onboard lighting and RGB/Addressable Gen 2 headers for full lighting control.
>CSM (Corporate Stable Model) program: up to 36‑month lifecycle and ASUS Control Center Express IT management.
Specifications:
| Model | PRIME X870-P WIFI-CSM |
| Chipset | AMD X870 |
| CPU Support | AMD Socket AM5 for Ryzen 9000, 8000 and 7000 Series desktop processors (see ASUS CPU support list). |
| Form Factor | ATX |
| Power Design | 14 (80A) + 2 (80A) + 1 (80A) power stages with high-side & low-side MOSFETs; large VRM heatsinks. |
| Memory | 4 x DDR5 DIMM slots, up to 256GB, dual-channel; supports up to 8000+ MT/s (OC) with Ryzen 9000 / 8000 / 7000, ECC & non‑ECC unbuffered DIMMs, AMD EXPO and ASUS AEMP. |
| Expansion Slots | PCIe 5.0 x16 slot for graphics (CPU lanes) plus additional PCIe 4.0/3.0 slots from chipset (exact layout as per ASUS spec). |
| Storage |
Total: 4 x M.2 slots + SATA ports - 1 x M.2 PCIe 5.0 x4 (up to 128 Gbps) - 2 x M.2 PCIe 4.0 x4 (up to 64 Gbps each) - 1 x M.2 PCIe 3.0 slot Plus SATA 6Gb/s ports for HDDs/SSDs (see detailed spec for exact count). |
| Networking | Realtek 2.5Gb Ethernet (RJ‑45) 2x2 Wi‑Fi 7 (802.11be) on 2.4/5/6GHz, up to 2.9Gbps; Bluetooth 5.4. |
| USB (rear) | 2 x USB4 40Gbps Type‑C, plus USB 10Gbps and USB 5Gbps Type‑A ports (exact mix as per ASUS spec). |
| USB (internal) | Front USB 10Gbps or 5Gbps Type‑C header, USB 5Gbps and USB 2.0 headers for case I/O. |
| Audio | High-definition multi‑channel audio, audio shielding, premium audio capacitors and dedicated audio PCB layers. |
| Cooling & Fan Headers | Enlarged VRM, chipset and M.2 heatsinks; multiple hybrid fan headers and AIO pump header; advanced fan control via ASUS software and UEFI. |
| Lighting | Aura Sync RGB with RGB and Addressable Gen 2 headers. |
| CSM Features | Up to 36‑month lifecycle, 6‑month EOL notice, ASUS Control Center Express license included. |
| Operating System | Windows 11 / Windows 10 64-bit. |
| Warranty | 3 years (ASUS India warranty, typical). |
Ideal For:
Perfect for high-end AM5 workstations, AI/ML and content creation rigs and enthusiast gaming PCs that need DDR5, PCIe 5.0 storage, four NVMe slots, dual USB4 40Gbps, Wi‑Fi 7 and 2.5Gb LAN in a stable, long‑lifecycle CSM platform.
