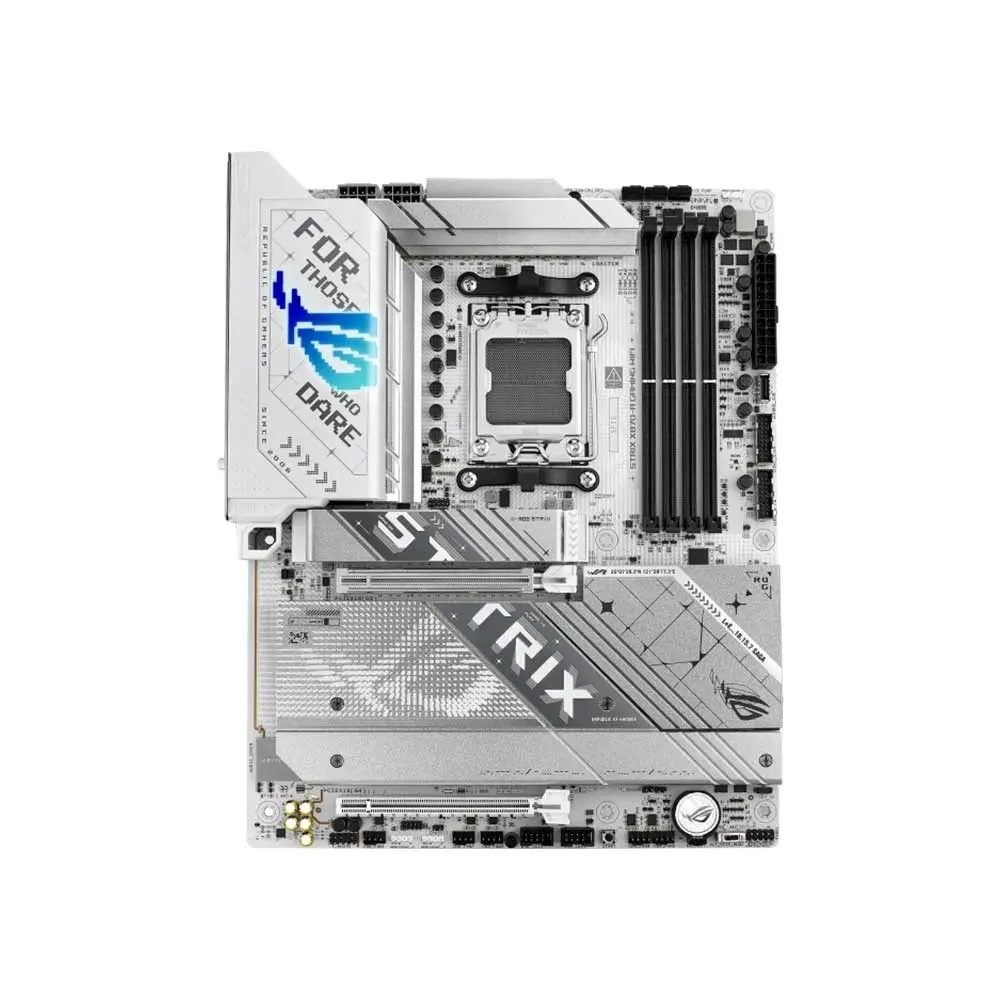

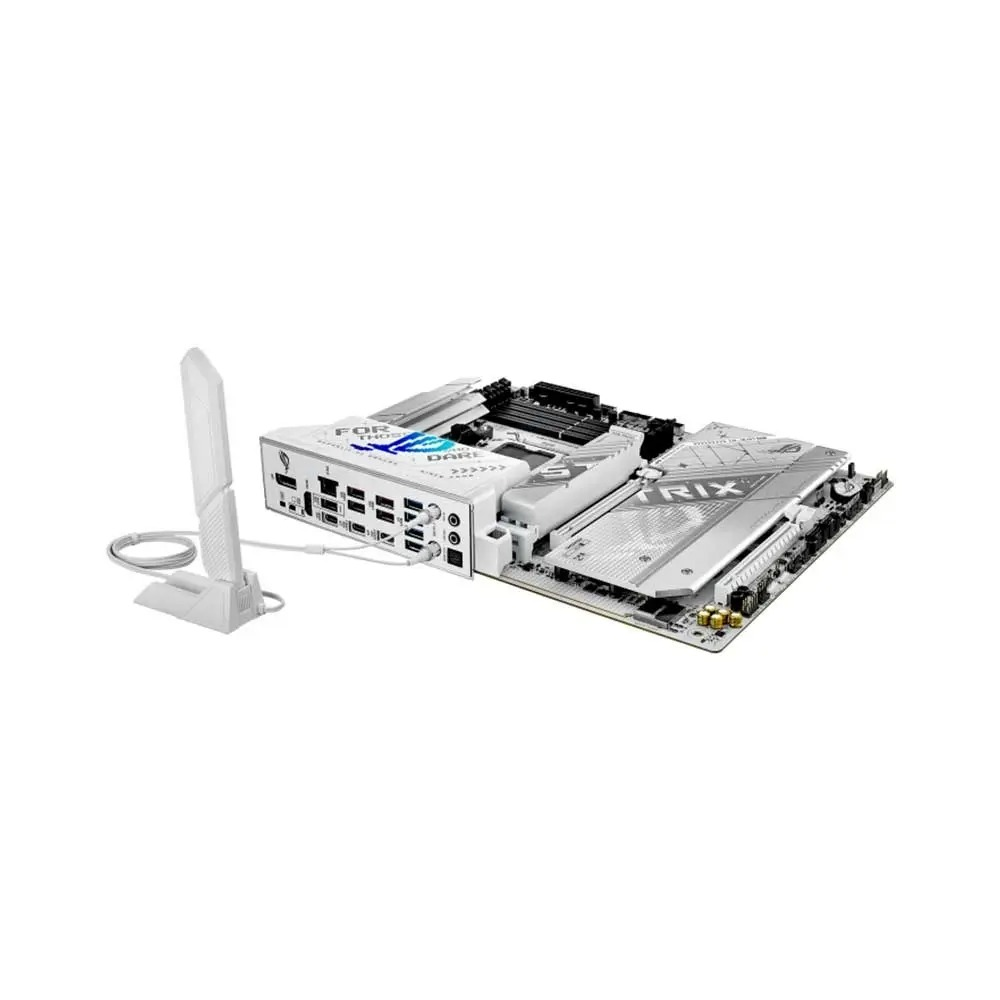

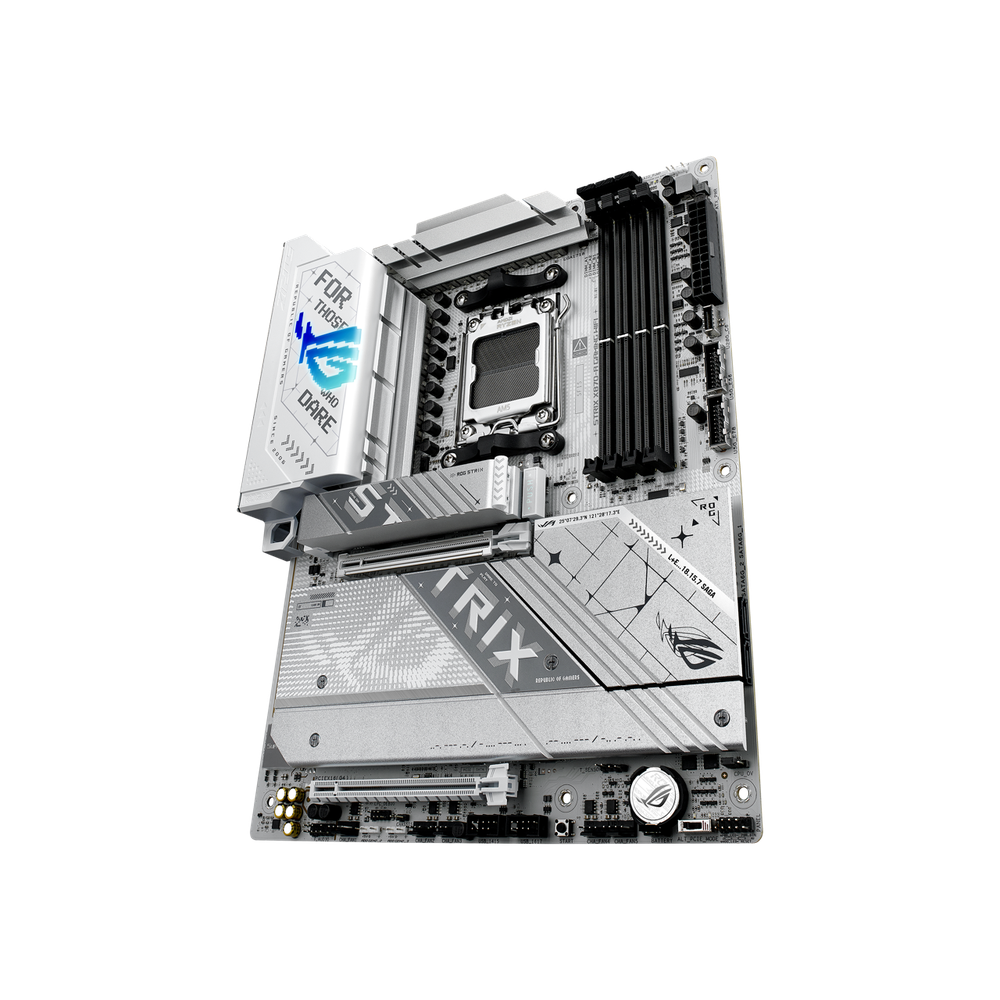

ASUS ROG STRIX X870-A GAMING WIFI ATX Motherboard
ASUS ROG STRIX X870-A GAMING WIFI ATX Motherboard
Vendor:
AsusSub total
Rs. 37,400.00Couldn't load pickup availability
Estimated deliver 5-7 days
Description
ASUS ROG STRIX X870-A GAMING WIFI is a high-end AMD X870 ATX motherboard for Ryzen 7000, 8000 and 9000 Series desktop processors on the AM5 socket. With 16+2+2 90A power stages, DDR5 support up to 8000+ MT/s, PCIe 5.0 graphics and storage, four M.2 slots, dual USB4 40Gbps ports, Intel 2.5Gb Ethernet and Wi‑Fi 7, it is built for serious gaming, streaming, content creation and Advanced AI PC builds.
Key Features:
- AMD X870 ATX gaming motherboard with AM5 socket for Ryzen 9000 / 8000 / 7000 Series processors.
- 16+2+2 90A power stage design with large VRM heatsinks, Dynamic OC Switcher and Core Flex for stable overclocking.
- 4 x DDR5 DIMM slots, up to 192–256GB dual‑channel, supports up to 8000+ MT/s (OC) with AMD EXPO and ASUS AEMP.
- 1 x PCIe 5.0 x16 SafeSlot for next‑gen GPUs, plus PCIe 4.0 expansion slot for additional cards.
- Four M.2 slots total: PCIe 5.0 x4 and PCIe 4.0 x4 M.2 for ultra‑fast NVMe SSD arrays.
- Intel 2.5Gb Ethernet with ASUS LANGuard and on‑board Wi‑Fi 7 (2x2) with ASUS WiFi Q‑Antenna for cutting-edge networking.
- Two USB4 40Gbps Type‑C ports on the rear I/O, plus USB 10Gbps and 5Gbps Type‑A/Type‑C, and front USB‑C up to 20Gbps with Power Delivery support.
- DisplayPort and HDMI outputs for Ryzen APUs with integrated graphics, plus USB‑C display output via USB4.
- ROG SupremeFX 7.1 surround audio with ALC4080 codec, optical S/PDIF out and premium audio capacitors.
- Striking white ROG Strix design with Aura Sync RGB lighting and multiple Addressable Gen 2 headers.
Specifications:
| Model | ROG STRIX X870-A GAMING WIFI |
| Chipset | AMD X870 |
| CPU Support | AMD Socket AM5 for Ryzen 9000, 8000 and 7000 Series desktop processors (see ASUS CPU support list). |
| Form Factor | ATX |
| Power Design | 16+2+2 power stages rated 90A, large VRM heatsinks, Dynamic OC Switcher, Core Flex. |
| Memory | 4 x DDR5 DIMM slots, max. 192GB (or 256GB with 64GB DIMMs), dual-channel, up to 8000+ MT/s (OC), ECC & non‑ECC unbuffered DIMMs, AMD EXPO, ASUS AEMP. |
| Expansion Slots |
AMD Ryzen 9000 & 7000: - 1 x PCIe 5.0 x16 slot (x16 mode) AMD Ryzen 8000: - 1 x PCIe 4.0 x16 slot (x8/x4 mode) AMD X870 chipset: - 1 x PCIe 4.0 x16 slot (x4 mode) |
| Storage |
Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports* CPU lanes: - M.2_1: PCIe 5.0 x4 (NVMe) - M.2_2: PCIe 5.0 x4 (NVMe) X870 chipset lanes: - M.2_3: PCIe 4.0 x4 (NVMe) - M.2_4: PCIe 4.0 x4 (NVMe) 2 x SATA 6Gb/s ports, AMD RAIDXpert2 for PCIe/SATA RAID 0/1/10 (RAID 5 on Ryzen 9000 only). |
| Graphics Output |
1 x DisplayPort 1.4 1 x HDMI 2.1 2 x USB4 (40Gbps) Type‑C ports that also support display output (Alt Mode), depending on GPU/CPU. |
| Networking | 1 x Intel 2.5Gb Ethernet (RJ‑45) with ASUS LANGuard 2x2 Wi‑Fi 7 (802.11be) on 2.4/5/6GHz bands, up to 2.9Gbps; Bluetooth 5.4. |

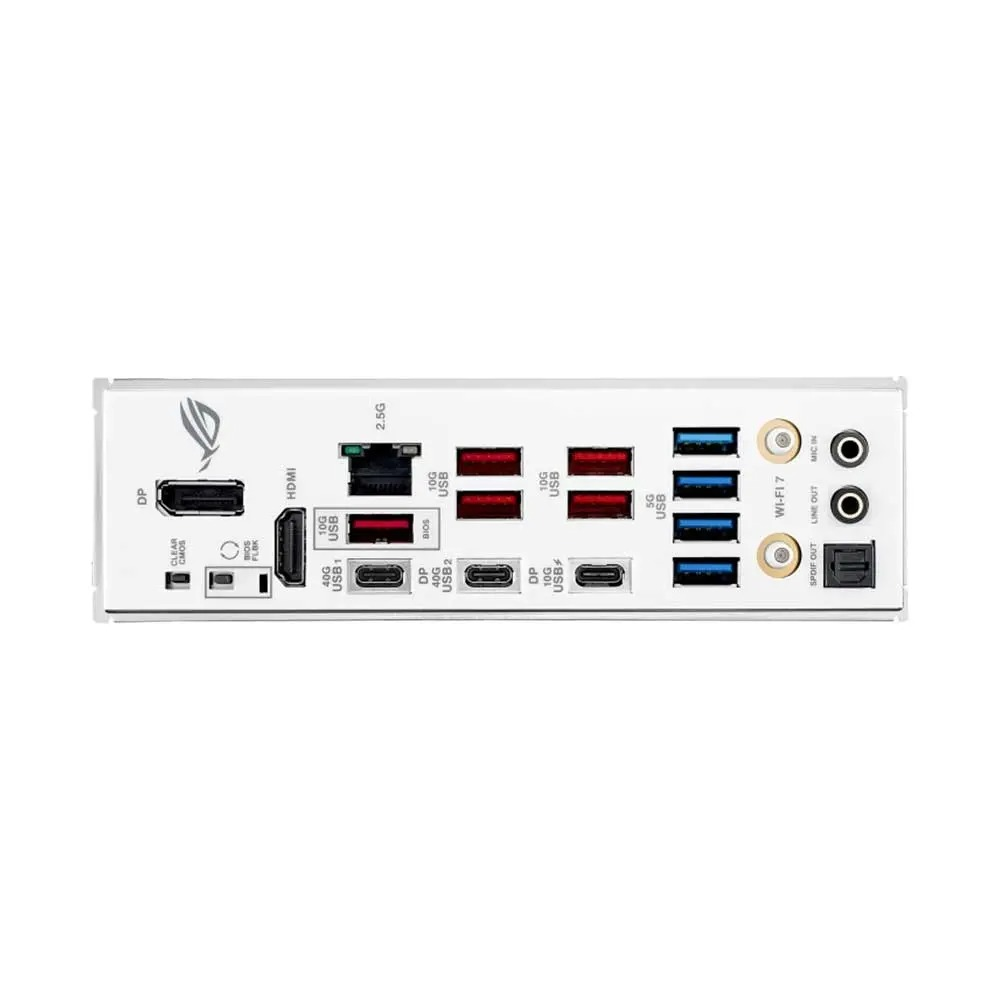

| Rear USB Ports |
2 x USB4 40Gbps Type‑C 6 x USB 10Gbps (5 x Type‑A + 1 x Type‑C) 4 x USB 5Gbps Type‑A |
| Front USB Headers |
1 x USB 20Gbps Type‑C header (with PD 3.0 up to 30W) 2 x USB 5Gbps headers 2 x USB 2.0 headers |
| Audio | ROG SupremeFX 7.1 Surround HD Audio (ALC4080), optical S/PDIF out, premium capacitors and isolated audio PCB. |
| Cooling & Fan Headers | Large VRM, chipset and M.2 heatsinks; 1 x AIO pump header, 1 x CPU fan, 1 x CPU_OPT, multiple chassis fan headers with Fan Xpert 4 and AI Cooling II. |
| Lighting | Aura Sync RGB, integrated I/O RGB, 3 x Addressable Gen 2 headers, 1 x RGB header. |
| Operating System | Windows 11 / Windows 10 64‑bit. |
| Warranty | 3 years (ASUS India warranty, typical). |
Ideal For:
Perfect for white-themed high-end AM5 gaming rigs, streaming and content creation systems that need DDR5, PCIe 5.0 GPUs and SSDs, four M.2 slots, dual USB4, Wi‑Fi 7 and 2.5Gb LAN, with ROG Strix styling and advanced AI tuning features.
