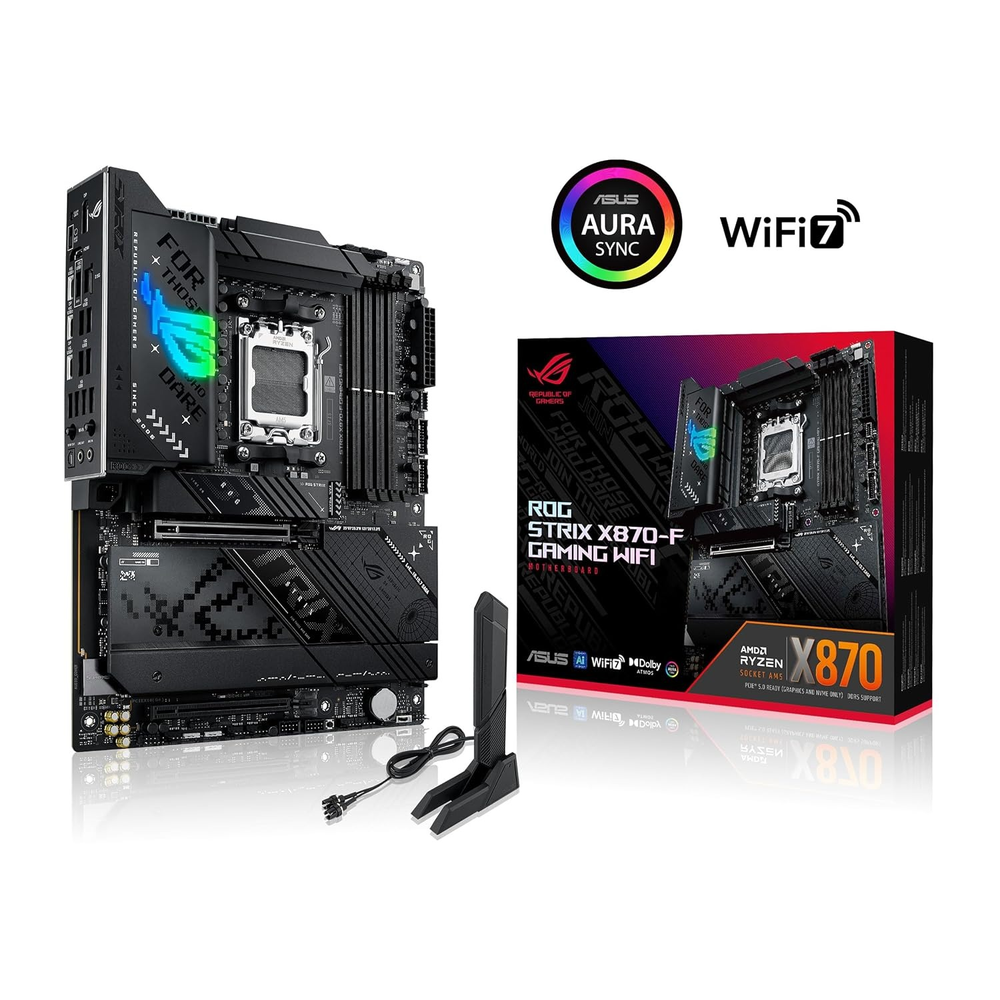

ASUS ROG STRIX X870-F GAMING WIFI ATX Motherboard
ASUS ROG STRIX X870-F GAMING WIFI ATX Motherboard
Vendor:
AsusSub total
Rs. 41,300.00Couldn't load pickup availability
Estimated deliver 5-7 days
Description
ASUS ROG STRIX X870-F GAMING WIFI is a premium AMD X870 ATX gaming motherboard for Ryzen 7000, 8000 and 9000 Series desktop processors on the AM5 socket. It combines a powerful 16+2+2 power stage design, DDR5 support up to 8000+ MT/s, PCIe 5.0 x16 for GPUs, dual PCIe 5.0 M.2 slots, dual USB4 40Gbps ports, Intel 2.5Gb Ethernet and Wi‑Fi 7, making it a top choice for high-end gaming, streaming, content creation and Advanced AI PC builds.
Key Features:
- AMD X870 ATX gaming motherboard with AM5 socket for Ryzen 9000 / 8000 / 7000 Series processors.

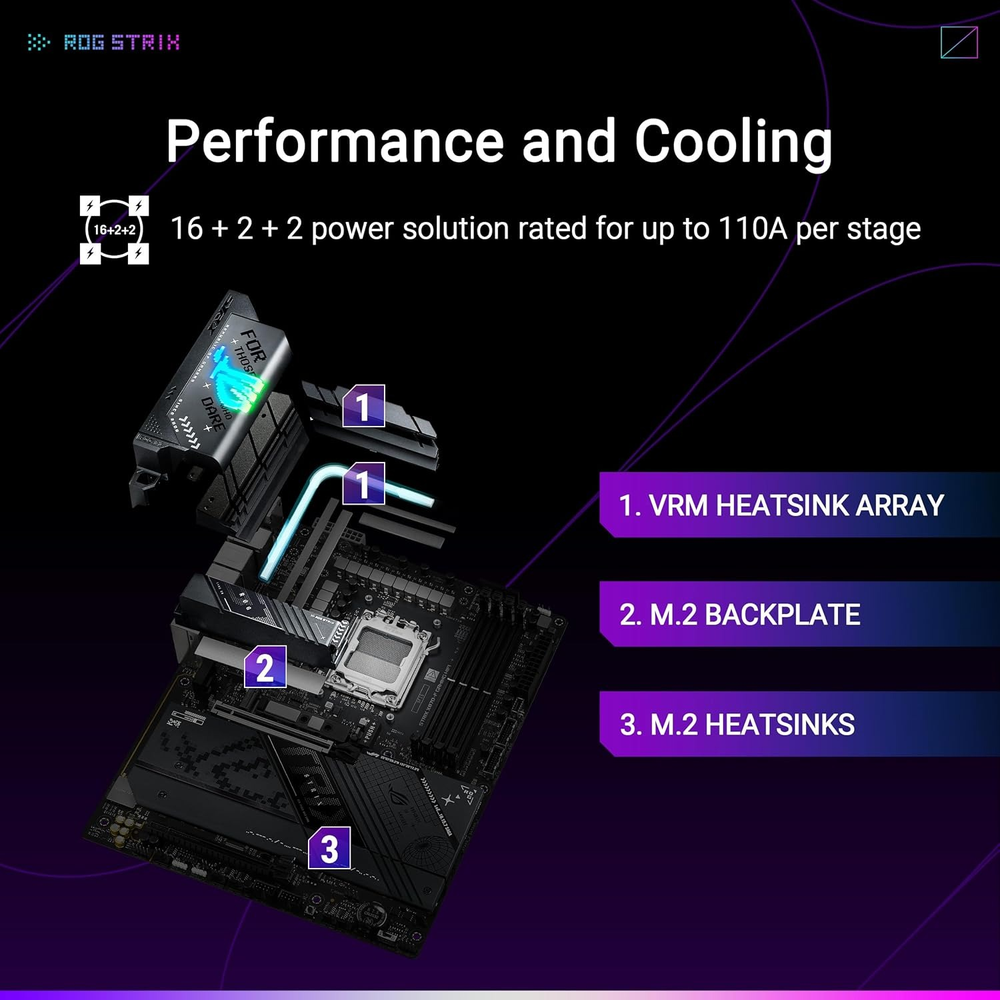

- 16+2+2 power stages with large VRM heatsinks for stable high-core-count CPU overclocks.
- 4 x DDR5 DIMM slots, up to 192–256GB dual-channel, supports up to 8000+ MT/s (OC), AMD EXPO and ASUS AEMP.
- 1 x PCIe 5.0 x16 SafeSlot for next-gen graphics cards plus an additional PCIe 4.0 x16 (x4) slot.

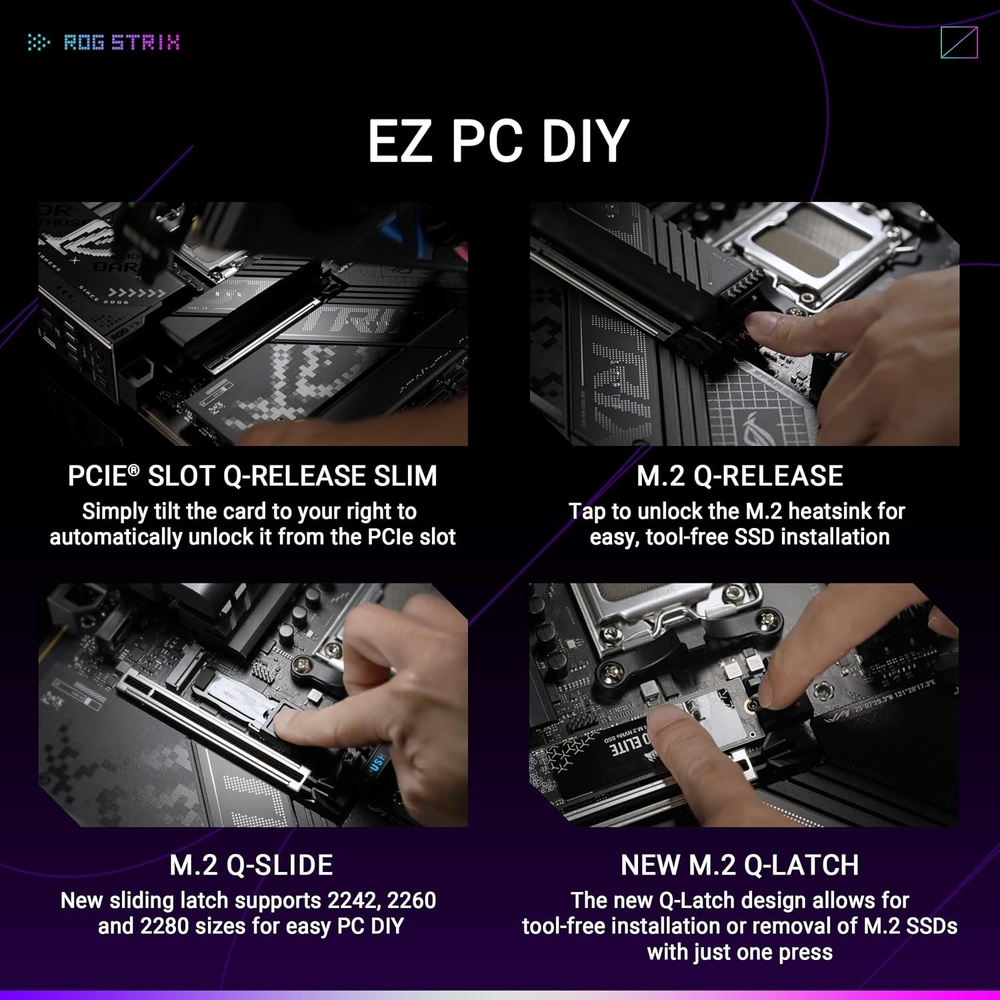

- Four M.2 slots total: two PCIe 5.0 x4 NVMe slots and two PCIe 4.0 x4 NVMe slots, plus 2 x SATA 6Gb/s ports for extra storage.
- Intel 2.5Gb Ethernet with ASUS LANGuard and 2x2 Wi‑Fi 7 (802.11be) with Bluetooth 5.4 for cutting-edge networking.
- Two USB4 40Gbps Type‑C ports on the rear I/O for high-speed storage and display output.
- Additional rear USB 10Gbps and 5Gbps ports, plus front USB 20Gbps/10Gbps Type‑C via internal headers.
- DisplayPort and HDMI outputs for Ryzen APUs with integrated graphics, plus USB‑C display via USB4.
- ROG SupremeFX 7.1 HD audio (ALC4080), optical S/PDIF and premium capacitors for immersive sound.
- ROG Strix black aesthetic with Aura Sync RGB and multiple Addressable Gen 2 headers.
Specifications:
| Model | ROG STRIX X870-F GAMING WIFI |
| Chipset | AMD X870 |
| CPU Support | AMD Socket AM5 for Ryzen 9000, 8000 and 7000 Series desktop processors (see ASUS CPU support list). |
| Form Factor | ATX (30.5 cm x 24.4 cm) |
| Power Design | 16+2+2 power stages, large VRM heatsinks, optimized power delivery for high-core CPUs. |
| Memory | 4 x DDR5 DIMM slots, max. 192GB (up to 256GB with 64GB DIMMs), dual-channel, up to 8000+ MT/s (OC); ECC & non‑ECC unbuffered DIMMs, AMD EXPO, ASUS AEMP. |
| Expansion Slots |
AMD Ryzen 9000 & 7000: - 1 x PCIe 5.0 x16 slot (x16 mode) AMD Ryzen 8000: - 1 x PCIe 4.0 x16 slot (x8/x4 mode) AMD X870 chipset: - 1 x PCIe 4.0 x16 slot (x4 mode) |
| Storage |
Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports* CPU lanes (Ryzen 9000 & 7000): - M.2_1: PCIe 5.0 x4 (2242/2260/2280 NVMe) - M.2_2: PCIe 5.0 x4 (2242/2260/2280 NVMe) X870 chipset lanes: - M.2_3: PCIe 4.0 x4 (2280 NVMe) - M.2_4: PCIe 4.0 x4 (2280 NVMe) 2 x SATA 6Gb/s ports; AMD RAIDXpert2 for PCIe/SATA RAID 0/1/10 (RAID 5 with Ryzen 9000 only). |
| Graphics Output |
1 x DisplayPort 1.4 1 x HDMI 2.1 2 x USB4 40Gbps Type‑C ports that also support display output (Alt Mode), depending on CPU/GPU. |
| Networking | 1 x Intel 2.5Gb Ethernet (RJ‑45) with ASUS LANGuard 2x2 Wi‑Fi 7 (802.11be) with ASUS WiFi Q‑Antenna, up to 6.5Gbps; Bluetooth 5.4. |
| Rear USB Ports |
2 x USB4 40Gbps Type‑C Multiple USB 10Gbps Type‑A/Type‑C USB 5Gbps Type‑A ports (exact mix per ASUS spec and region). |
| Front USB Headers |
1 x USB 20Gbps Type‑C header (USB 3.2 Gen 2x2, with PD 3.0 up to 30W) 2 x USB 5Gbps headers 2 x USB 2.0 headers |
| Audio | ROG SupremeFX 7.1 HD audio (ALC4080 codec), optical S/PDIF out, premium capacitors and separated audio PCB. |
| Cooling & Fan Headers | Large VRM, chipset and M.2 heatsinks; multiple hybrid fan headers, AIO pump header; AI Cooling II and Fan Xpert 4 control. |
| Lighting | Aura Sync RGB lighting, integrated I/O RGB, Addressable Gen 2 headers and RGB header. |
| Operating System | Windows 11 / Windows 10 64‑bit. |
| Warranty | 3 years (ASUS India warranty, typical). |
Ideal For:

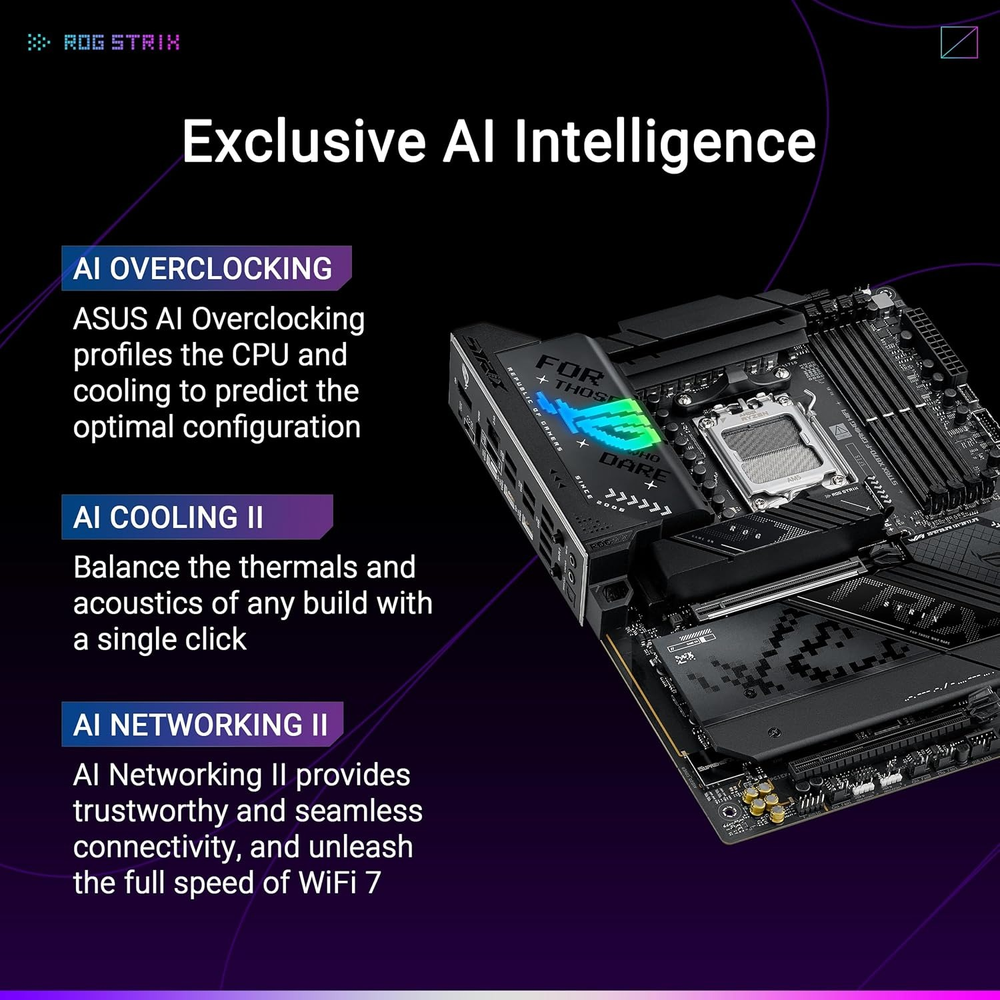

Perfect for high-end AM5 gaming rigs, streaming and content creation systems that need DDR5, PCIe 5.0 GPUs and SSDs, four NVMe slots, dual USB4, Wi‑Fi 7, 2.5Gb LAN and full ROG Strix RGB styling with advanced AI overclocking and cooling features.
