Liquid Cooler // Fractal Design

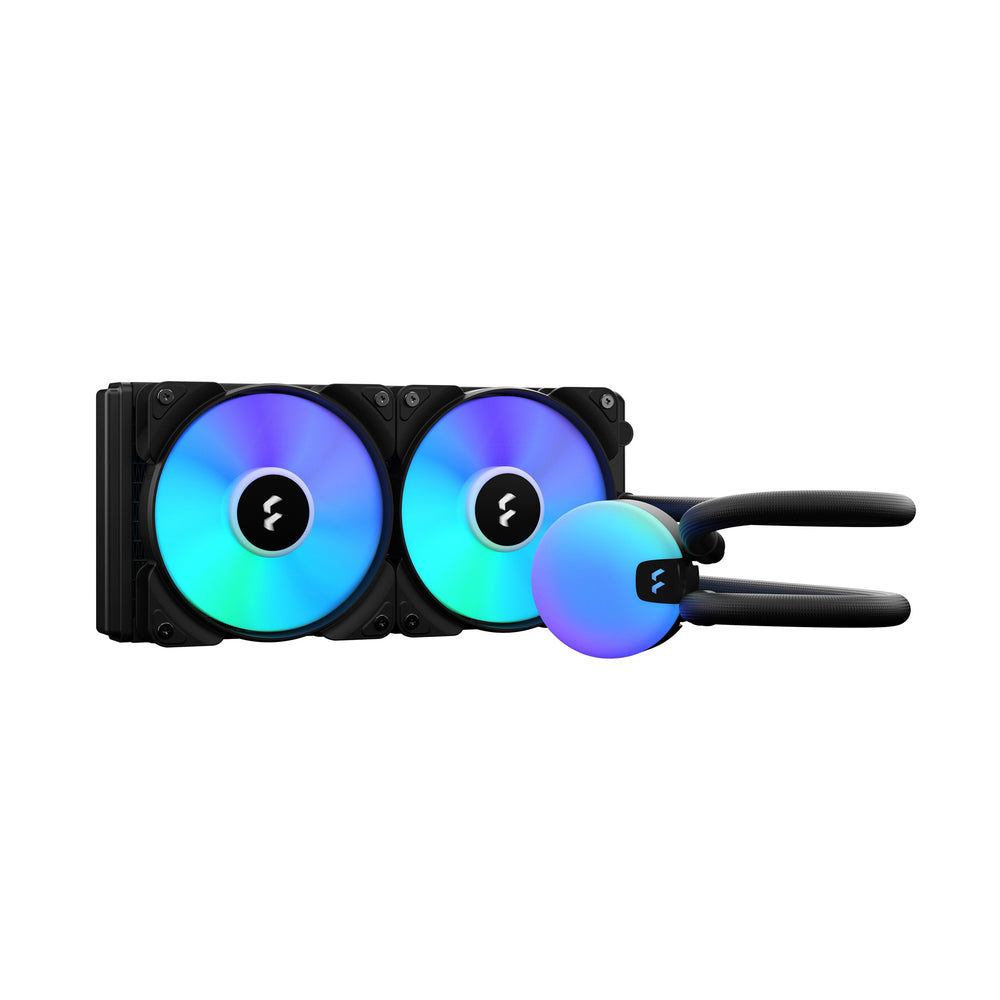

Fractal Design Lumen S24 RGB V2 240mm AIO Liquid CPU Cooler (Black)
Technical specification
240mm AIO Liquid CPU Cooler — Duality Design ARGB Pump Head, 6 x Addressable ARGB LEDs, 2x Aspect 12 RGB PWM Fans with Full ARGB (500–2000 RPM), Pre-Applied Thermal Paste, Articulating 90° Elbow Fitting, Intel & AMD Compatibility, Certified with ASUS AURA / Gigabyte Fusion / MSI Mystic Light / ASRock Polychrome / Razer Chroma.
The Fractal Design Lumen S24 RGB V2 is a 240mm all‑in‑one liquid CPU cooler combining a duality design ARGB pump head with two fully addressable RGB PWM fans for end‑to‑end RGB lighting across both the cold plate and radiator.[web:1221][web:1239] Six addressable LEDs on the pump head and RGB lighting on each Aspect 12 RGB PWM fan are all controllable from your motherboard's 5V ARGB header, with certified compatibility for ASUS AURA, Gigabyte Fusion, MSI Mystic Light, ASRock Polychrome and Razer Chroma.[web:1221][web:1239][web:1240]
Underneath the lighting, the hardware is identically robust: a fixed 4000 RPM ceramic‑bearing pump, copper cold plate with pre‑applied thermal paste, 272 x 120 x 27 mm aluminum radiator and 400 mm low‑permeability nylon‑braided tubes, with an articulating 90° elbow fitting for flexible routing.[web:1221][web:1238][web:1240] Full Intel LGA 1851/1700 and AMD AM5/AM4 socket support, removable/rotatable pump head top and PWM fan control complete the package for effortless high‑end RGB builds.[web:1221][web:1239][web:1240]
- Duality design ARGB pump head — Stealthy or stunning — six ARGB LEDs on the pump head are yours to control from your motherboard or a compatible RGB controller.[web:1221][web:1239]
- 2 x Aspect 12 RGB PWM fans — Dual 120 mm Aspect 12 RGB PWM fans add ARGB lighting to the radiator in addition to the head, delivering a full‑system RGB effect with 500–2000 RPM fan speed and up to 56 CFM airflow.[web:1221][web:1238][web:1239]
- Rotatable pump head top — Removable top panel can be turned in 90° increments to keep the Fractal logo upright regardless of mounting orientation.[web:1221][web:1239][web:1240]
- Motherboard RGB ecosystem certified — Compatible with ASUS AURA Sync, Gigabyte Fusion, MSI Mystic Light, ASRock Polychrome Sync and Razer Chroma.[web:1221][web:1239][web:1240]
- Copper cold plate with pre‑applied thermal paste — Copper base for maximum thermal conductivity, with thermal paste already applied for a quick, clean install.[web:1221][web:1238][web:1239]
- Ceramic pump bearing at 4000 RPM — Fixed 4000 RPM pump with ceramic bearing, 22 dBA acoustics and 50,000 hours MTTF for silent, long‑life operation.[web:1221][web:1238][web:1240]
- Articulating 90° elbow fitting — Block‑side rotating elbow makes tube routing easier and reduces tension on the cold plate housing.[web:1221][web:1238][web:1239]
- Low-permeability braided tubes — 400 mm tubes with braided nylon sleeve and low‑permeability rubber prevent fluid evaporation for long‑term maintenance‑free use.[web:1221][web:1238][web:1239]
- Slim 27 mm aluminum radiator — 272 x 120 x 27 mm aluminum radiator fits any mid‑tower or full‑tower case with 240 mm AIO support.[web:1221][web:1238][web:1240]
- Broad socket compatibility — Intel LGA 1851/1700/1200/115x/1366/2011/2011-3/2066 and AMD AM5/AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2.[web:1221][web:1239][web:1240]
- Full PWM fan control — Fan speed regulated by motherboard PWM for quiet idle and full‑performance under load.[web:1221][web:1240]
- All mounting hardware included — Box includes cooler assembly, 2x Aspect 12 RGB PWM fans, Intel mount kit, AMD mount kit, 5V ARGB cable and user manual.[web:1221][web:1239]
| Spec | Detail |
|---|---|
| Model | Fractal Design Lumen S24 RGB V2 |
| Product code (SKU) | FD-W-L1-S2412[web:1221][web:1239][web:1240] |
| Type | 240mm All-In-One Liquid CPU Cooler |
| Color | Black |
| Cold plate material | Copper[web:1221][web:1238] |
| Thermal paste | Pre-applied[web:1221][web:1239] |
| Pump RPM | 4000 ± 10% RPM (fixed)[web:1221][web:1238] |
| Pump bearing | Ceramic[web:1221][web:1238] |
| Pump noise | 22 dBA[web:1221][web:1238] |
| Pump MTTF | 50,000 hours[web:1221][web:1238] |
| Tube length | 400 mm[web:1221][web:1238][web:1240] |
| Tube material | Low-permeability rubber, braided nylon sleeve[web:1221][web:1238] |
| Block-side fitting | Articulating 90° elbow[web:1221][web:1238][web:1240] |
| Block dimensions | 79 x 67 mm (with fittings); 67 mm diameter (body); 43 mm height[web:1221][web:1238] |
| Radiator dimensions | 272 x 120 x 27 mm[web:1221][web:1238][web:1240] |
| Radiator material | Aluminum housing and fins[web:1221][web:1238] |
| Fan model | Fractal Aspect 12 RGB PWM (x2)[web:1221][web:1238] |
| Fan size | 120 mm |
| Fan RPM | 500–2000 RPM[web:1221][web:1239] |
| Fan airflow | 13–56 CFM[web:1221][web:1239] |
| Fan static pressure | 0.230–2.34 mm H₂O[web:1221][web:1239] |
| Fan noise | <10–33.2 dBA[web:1221][web:1239] |
| Fan bearing | Rifle[web:1221][web:1238] |
| Fan MTTF | 90,000 hours[web:1221][web:1238] |
| Fan PWM control | Yes[web:1221][web:1239] |
| ARGB LEDs | 6 addressable ARGB LEDs on pump head (5V 3-pin) + RGB on fans[web:1221][web:1238][web:1239] |
| RGB ecosystem | ASUS AURA, Gigabyte Fusion, MSI Mystic Light, ASRock Polychrome, Razer Chroma[web:1221][web:1239][web:1240] |
| Intel socket support | LGA 1851/1700/1200/1150/1151/1155/1156/1366/2011/2011-3/2066[web:1221][web:1239] |
| AMD socket support | AM5/AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2[web:1221][web:1239] |
| Package contents | Cooler assembly, 2x Aspect 12 RGB PWM fans, Intel kit, AMD kit, 5V ARGB cable, user manual[web:1221][web:1239] |
| Package dimensions | 332 x 205 x 137 mm[web:1221][web:1240] |
| Package weight | 1.77 kg[web:1221][web:1240] |
| EAN | 7340172705932[web:1221][web:1240] |
| UPC | 843276105938[web:1221][web:1240] |
