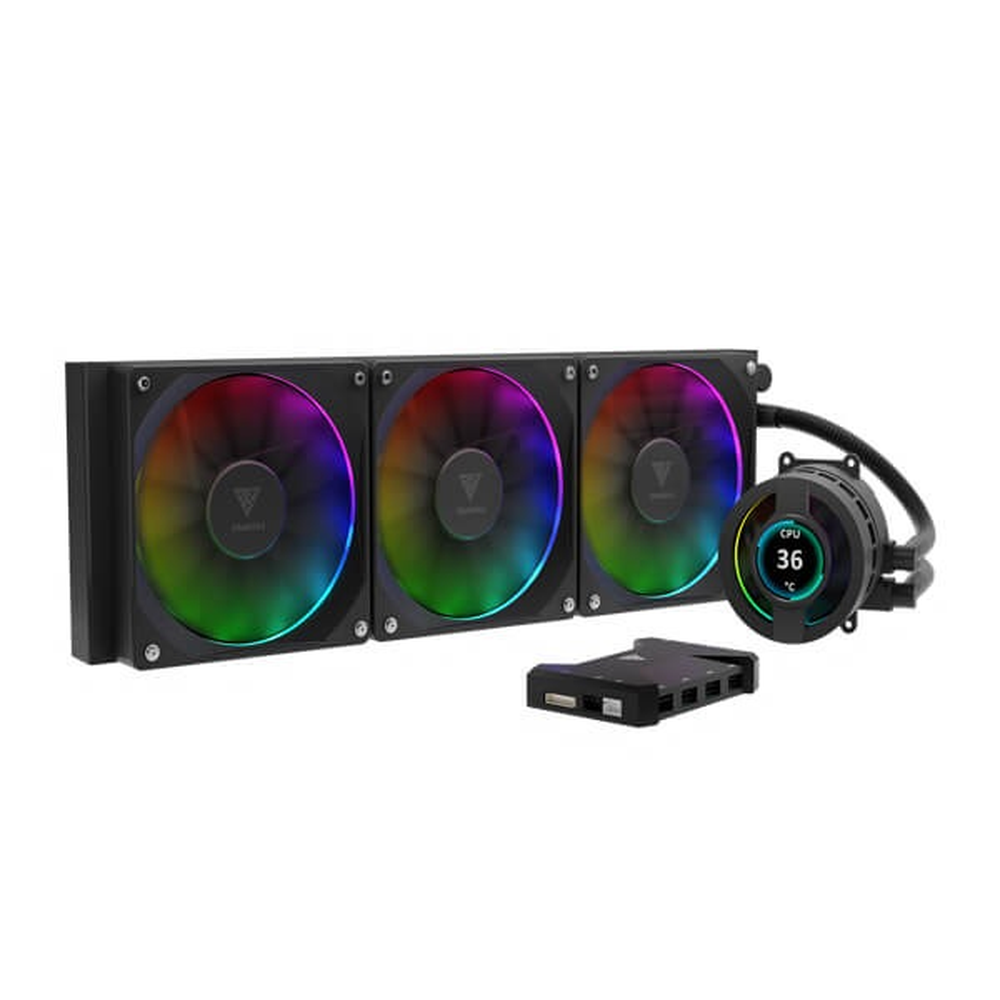

GAMDIAS CHIONE P3-360U ARGB 360mm CPU Liquid Cooler (LCD)

Rs. 24,999.00

360mm liquid cooler

aio cpu cooler

am5 compatible

argb cpu cooler

Genuine & warrantedAuthorised stock, brand warranty

83560 26438Contact for querries

Secure checkoutUPI · cards · EMI

Fast shippingTracked · 5–7 days

01 — Datasheet

Technical specification

The GAMDIAS CHIONE P3-360U is a next-generation 360 mm AIO CPU liquid cooler featuring a customizable IPS LCD display, three high static pressure AEOLUS M3 ARGB PWM fans and a premium three-phase motor pump. With a thick 394 mm aluminum radiator, durable Teflon tubing and a 290 W ±10% TDP rating, it delivers top-tier cooling performance, rich ARGB lighting and deep LCD customization for high-end Intel and AMD platforms. [web:2060][web:2061][web:2063][web:2065]

Custom IPS LCD display: The pump head integrates a bright IPS LCD that can show real-time system statistics (CPU temperature, load, etc.) and custom PNG/JPG/GIF backgrounds using CHIONE CAST software, surrounded by an ARGB ring. [web:2060][web:2061][web:2063][web:2065]
S-tier three-phase pump with VRM micro-fan: High-performance three-phase drive pump runs up to about 2800 RPM and includes a micro-embedded fan in the pump housing to cool motherboard VRMs and surrounding components. [web:2061][web:2063][web:2058]
Triple AEOLUS M3 ARGB PWM fans: Three 120 mm hydraulic bearing fans operate at 800–2000 RPM ±10%, providing up to 69.01 CFM airflow, 2.37 mmH2O static pressure and 10–31 dBA noise each for strong yet quiet airflow. [web:2061][web:2063][web:2065][web:2070]
Thick 360 mm radiator & Teflon tubing: 394 × 119 × 27 mm aluminum radiator with high-density fins, copper cold plate and nylon-braided Teflon tubes increases cooling capacity and durability while keeping the loop tidy. [web:2061][web:2063][web:2065]
USB AEOLUS Box & ARGB sync: Included USB AEOLUS Box lets you control three fans and a LED strip (and daisy-chain more) for lighting, LCD effects, brightness, speed and direction, or sync via 5 V 3‑pin ARGB motherboard headers. [web:2061][web:2065][web:2058]

Specification	Detail
Brand	GAMDIAS [web:2060][web:2061]
Model	CHIONE P3-360U [web:2060][web:2061][web:2069]
Cooler Type	360 mm AIO CPU liquid cooler with IPS LCD & ARGB [web:2060][web:2063]
Color	Black (ARGB) [web:2061][web:2065]
Fan Dimensions	120 × 120 × 25 mm (× 3) [web:2061][web:2065]
Fan Speed	800–2000 RPM ±10% (PWM) [web:2061][web:2063][web:2065]
Air Flow	69.01 CFM (per fan) [web:2061][web:2063][web:2065]
Static Pressure	2.37 mmH2O [web:2061][web:2063][web:2065]
Noise Level	10–31 dBA [web:2061][web:2063][web:2065][web:2070]
Bearing	Hydraulic [web:2061][web:2065][web:2070]
Fan Connector	8‑pin proprietary (via USB AEOLUS Box), PWM supported [web:2061][web:2065][web:2070]
Radiator Dimensions	394 × 119 × 27 mm [web:2061][web:2063][web:2065]
Radiator Material	Aluminum [web:2061][web:2065]
Tubing	Teflon tube with nylon-braided sleeve [web:2061][web:2063][web:2065]
Base Plate	Copper [web:2061][web:2065]
Pump Rated Voltage	12 V (pump) / 5 V (LCD & LEDs) [web:2061][web:2065]
Pump Connector	3‑pin (pump) + USB/AEOLUS connection for LCD/control [web:2061][web:2065][web:2058]
TDP Rating	290 W ±10% [web:2063][web:2065]
LCD Features	IPS screen, custom images/GIFs, system monitoring, orientation control via CHIONE CAST [web:2060][web:2063][web:2065]
Intel Compatibility	LGA2066 / 2011‑v3 / 2011 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156 / 1366 [web:2061][web:2065][web:2068]
AMD Compatibility	AM5 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1 / TR4 [web:2061][web:2065][web:2063]
Package Contents	360 mm radiator & LCD pump, 3 × 120 mm ARGB fans, USB AEOLUS Box, SATA power cable, Intel & AMD mounting kits, thermal paste, manual [web:2061][web:2065][web:2068]

Ideal For: High-end Intel/AMD gaming and creator rigs that want a 360 mm AIO with a customizable IPS LCD, strong 69 CFM triple fans, 290 W TDP headroom and fully addressable ARGB lighting via software or motherboard sync. [web:2060][web:2061][web:2063]
