Motherboard // MSI

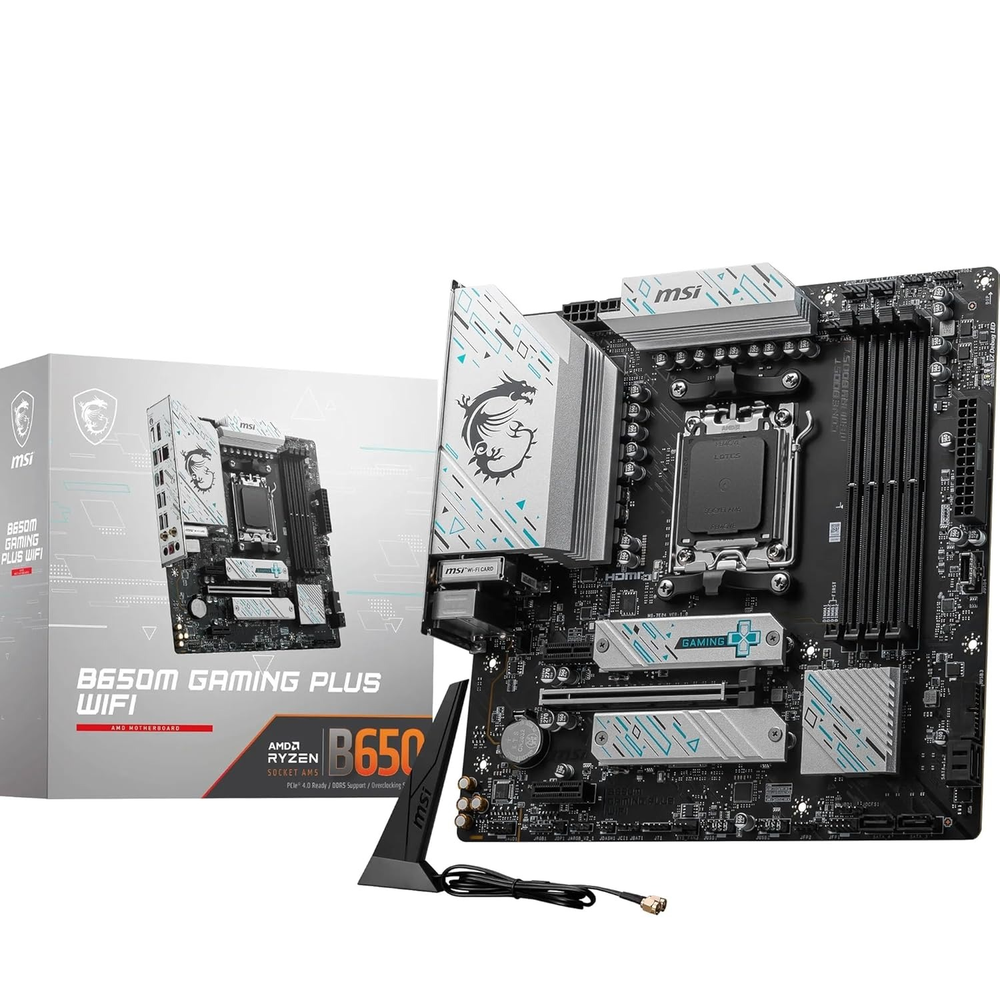

MSI B650M GAMING PLUS WIFI Motherboard
Technical specification
AMD B650 mATX Motherboard for AM5 — 10+2+1 Duet Rail Power System, Dual 8-pin CPU, 6-layer 2oz copper PCB, Wi-Fi 6E (160MHz), 2.5G LAN, USB 10Gbps Front Type-C, Dual PCIe 4.0 M.2, DDR5 7200+ OC, Steel Armor PCIe, Ryzen 9000 / 8000 / 7000 Ready.
The MSI B650M GAMING PLUS WIFI is the mid-tier gaming mATX on AMD B650 — balancing strong VRM, excellent connectivity, and gaming aesthetics in a compact 243mm footprint. A 10+2+1 Duet Rail Power System with dual 8-pin CPU connectors on a 6-layer 2oz copper PCB, AMD Wi-Fi 6E (160MHz, BT 5.3), Realtek 2.5G LAN, dual PCIe 4.0 x4 CPU M.2 with M.2 Shield Frozr, Steel Armor PCIe, HDMI 2.1 + DisplayPort 1.4, and USB 10Gbps on both rear and front Type-C make this a comprehensively equipped B650 mATX for Ryzen 9000 gaming.
-
>CPU Support: AMD Ryzen 9000 / 8000 / 7000 Series, Socket AM5
>Power Delivery: 10+2+1 Duet Rail Power System, dual 8-pin CPU connectors, Core Boost, Memory Boost, 6-layer 2oz copper PCB, SMT welding, Extended Heatsink Design
>Storage: 2x M.2 — M.2_1: PCIe 4.0 x4 (CPU, 2280/2260); M.2_2: PCIe 4.0 x4 (CPU, 2280/2260; PCIe 4.0 x2 Ryzen 8500/8300); 4x SATA 6G — M.2 Shield Frozr
>Connectivity: AMD Wi-Fi 6E (2.4/5/6GHz, 160MHz, MU-MIMO, 802.11ax), Bluetooth 5.3, Realtek RTL8125BG 2.5G LAN
>USB: Rear — 2x USB 10Gbps Type-A, 1x USB 10Gbps Type-C, 1x USB 5Gbps Type-A; Front — 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C
>PCIe: PCI_E1: PCIe 3.0 x1 (Chipset); PCI_E2: PCIe 4.0 x16 (CPU, x8 Ryzen 8700/8600/8400, x4 Ryzen 8500/8300); PCI_E3: PCIe 3.0 x1 (Chipset)
>Audio: Realtek ALC897, 7.1-CH, Audio Boost, up to 192kHz
| Specification | Details |
|---|---|
| Chipset | AMD B650 |
| Socket | AM5 |
| Form Factor | mATX (243.84 x 243.84 mm), 6-layer 2oz copper PCB |
| Memory | 4x DDR5 UDIMM, up to 256GB; DDR5 7200+(OC) / 4800(JEDEC) MHz; 1DPC 1R max 7200+ MHz / 1DPC 2R max 6000+ MHz / 2DPC 1R max 6000+ MHz / 2DPC 2R max 5400+ MHz OC |
| Memory Standard | AMD EXPO, Dual Channel, Non-ECC Unbuffered |
| PCIe Slots | PCI_E1: PCIe 3.0 x1 (Chipset); PCI_E2: PCIe 4.0 x16 (CPU, Steel Armor); PCI_E3: PCIe 3.0 x1 (Chipset) |
| M.2 Slots | M.2_1: PCIe 4.0 x4 (CPU, 2280/2260); M.2_2: PCIe 4.0 x4 (CPU, 2280/2260) — M.2 Shield Frozr; No PCIe 5.0 M.2 |
| SATA | 4x SATA 6G | RAID 0, 1, 10 |
| LAN | Realtek RTL8125BG 2.5G LAN |
| Wireless | AMD Wi-Fi 6E (2.4/5/6GHz, 160MHz, MU-MIMO, 802.11ax), Bluetooth 5.3, M.2 Key-E slot |
| Rear USB | 1x USB 5Gbps Type-A, 2x USB 10Gbps Type-A, 1x USB 10Gbps Type-C |
| Front USB Headers | 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C |
| Video Output | 1x HDMI 2.1 (4K@60Hz) + 1x DisplayPort 1.4 — iGPU only |
| Audio | Realtek ALC897, Audio Boost, 7.1-CH, up to 192kHz |
| Fan Headers | 1x CPU Fan, 1x Pump Fan, 3x System Fan, Smart Fan 6 |
| RGB | 2x ARGB V2 headers, 2x RGB headers, 4x EZ Debug LED, EZ LED Control |
| Extras | M.2 Shield Frozr (both slots), Steel Armor PCIe, EZ M.2 Clips, EZ Antenna, Flash BIOS Button, Click BIOS 6, Tuning Controller (JDASH), TPM 2.0, metal backplate |
| OS Support | Windows 11 64-bit, Windows 10 64-bit |
