Motherboard // MSI

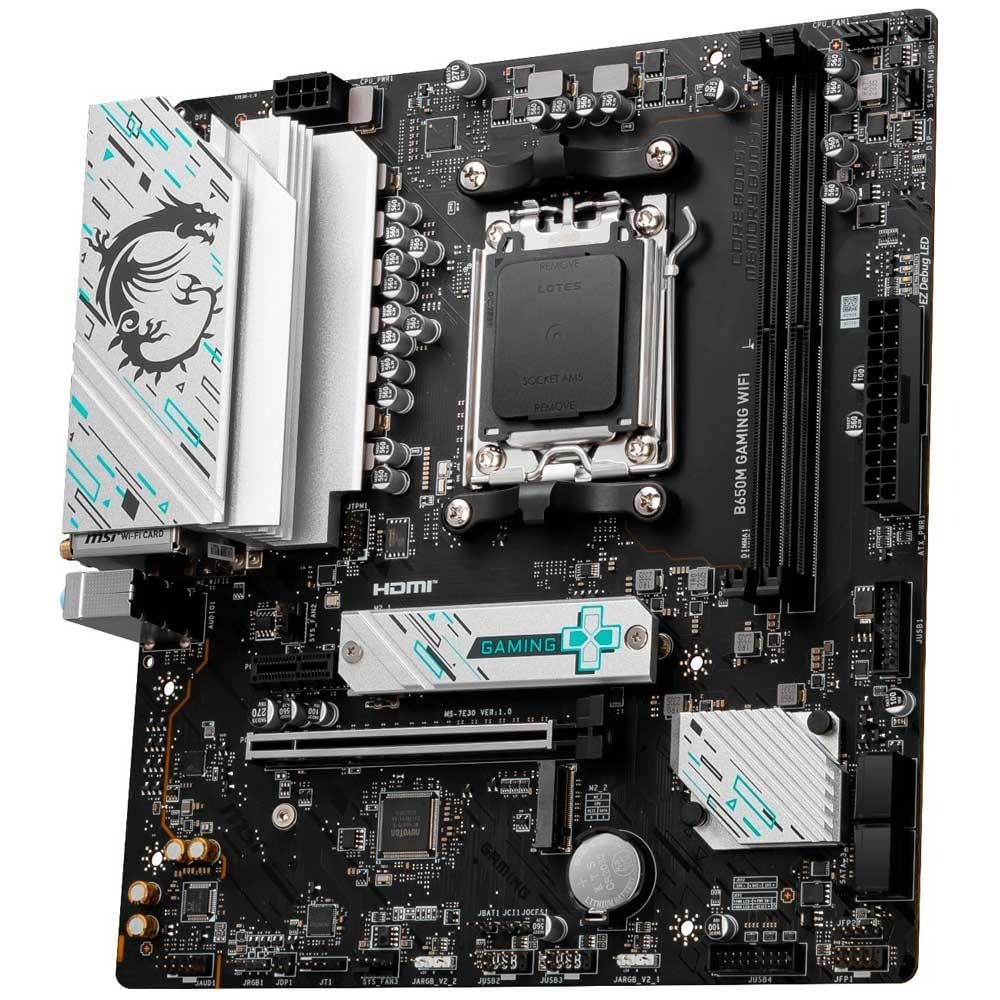

MSI B650M GAMING WIFI Motherboard
Technical specification
AMD B650 mATX Motherboard for AM5 — 2x DDR5 up to 128GB, DDR5 7800+ OC, Wi-Fi 6E (160MHz), 2.5G LAN, USB 5Gbps Front Type-C, Dual PCIe 4.0 M.2, Steel Armor PCIe, Audio Boost, 6-layer 2oz copper PCB, Ryzen 9000 / 8000 / 7000 Ready.
The MSI B650M GAMING WIFI is a compact 2-DIMM mATX on AMD B650 — ideal for space-efficient gaming builds that still want Wi-Fi and solid DDR5 OC headroom. It features Core Boost VRM on a 6-layer 2oz copper PCB, AMD Wi-Fi 6E (160MHz, BT 5.3), Realtek 2.5G LAN, dual PCIe 4.0 x4 CPU M.2 slots, Steel Armor PCIe, HDMI 2.1 + DisplayPort 1.4, Audio Boost 7.1-CH, Flash BIOS Button, and EZ Debug LED — a clean, Wi-Fi ready gaming mATX at the right price.
-
>CPU Support: AMD Ryzen 9000 / 8000 / 7000 Series, Socket AM5
>Power Delivery: Core Boost, Memory Boost, 1x 8-pin CPU connector, 6-layer 2oz copper PCB, SMT welding
>Storage: 2x M.2 — M.2_1: PCIe 4.0 x4 (CPU, 2280); M.2_2: PCIe 4.0 x4 (CPU, 2280; unavailable with Ryzen 8500/8300); 4x SATA 6G | RAID 0, 1, 10
>Connectivity: Wi-Fi 6E (2.4/5/6GHz, 160MHz, MU-MIMO, 802.11ax), Bluetooth 5.3, Realtek RTL8125BG 2.5G LAN
>USB: Rear — 2x USB 2.0, 3x USB 5Gbps Type-A, 1x USB 5Gbps Type-C; Front — 4x USB 2.0, 4x USB 5Gbps Type-A
>PCIe: PCI_E1: PCIe 3.0 x1 (Chipset); PCI_E2: PCIe 4.0 x16 (CPU, Steel Armor, x8 for Ryzen 8700/8600/8400, x4 for Ryzen 8500/8300)
>Audio: Realtek ALC897, Audio Boost, 7.1-CH, up to 192kHz
| Specification | Details |
|---|---|
| Chipset | AMD B650 |
| Socket | AM5 |
| Form Factor | mATX (243.84 x 243.84 mm), 6-layer 2oz copper PCB |
| Memory | 2x DDR5 UDIMM, up to 128GB; DDR5 7800+(OC) / 4800(JEDEC) MHz; 1DPC 1R max 7800+ MHz / 1DPC 2R max 6400+ MHz |
| Memory Standard | AMD EXPO, Dual Channel, Non-ECC Unbuffered |
| PCIe Slots | PCI_E1: PCIe 3.0 x1 (Chipset); PCI_E2: PCIe 4.0 x16 (CPU, Steel Armor) |
| M.2 Slots | M.2_1: PCIe 4.0 x4 (CPU, 2280); M.2_2: PCIe 4.0 x4 (CPU, 2280) — Note: M.2_2 unavailable on Ryzen 8500/8300 |
| SATA | 4x SATA 6G | RAID 0, 1, 10; M.2 NVMe RAID 0, 1, 10 |
| LAN | Realtek RTL8125BG 2.5G LAN |
| Wireless | Wi-Fi 6E (2.4/5/6GHz, 160MHz, MU-MIMO, 802.11ax), Bluetooth 5.3, M.2 Key-E slot |
| Rear USB | 2x USB 2.0, 3x USB 5Gbps Type-A, 1x USB 5Gbps Type-C |
| Front USB Headers | 4x USB 2.0, 4x USB 5Gbps Type-A |
| Video Output | 1x HDMI 2.1 (4K@60Hz) + 1x DisplayPort 1.4 — iGPU only |
| Audio | Realtek ALC897, Audio Boost, 7.1-CH, up to 192kHz |
| Fan Headers | 1x CPU Fan, 3x System Fan, Smart Fan 6 |
| RGB | 2x ARGB V2 headers, 1x RGB header, 4x EZ Debug LED |
| Extras | Steel Armor PCIe, Flash BIOS Button, Click BIOS 5, EZ M.2 Clips, EZ Antenna, TPM 2.0, metal backplate |
| OS Support | Windows 11 64-bit, Windows 10 64-bit |
