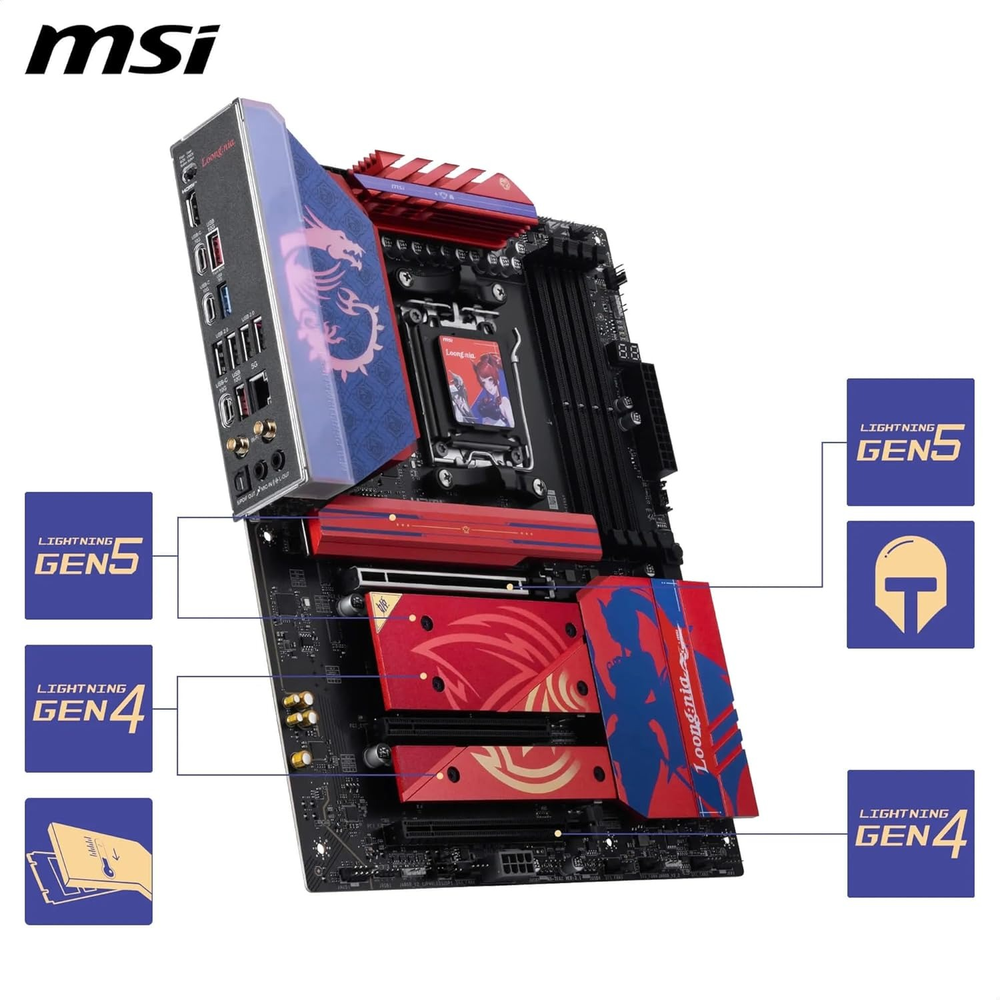

MSI B850 MLG EDITION Motherboard

AMD B850 ATX Flagship — 14+2+1 Phase VRM, 80A SPS, Full-Speed Wi-Fi 7, 5G LAN, USB 20Gbps, Dual PCIe 5.0 M.2 Gen5, DDR5 8400+ OC, Supplemental PCIe Power, Ryzen 9000 / 8000 / 7000 Ready.

The MSI B850 MLG EDITION is the boldest B850 board MSI has ever made — featuring a full flagship-grade 14+2+1 Duet Rail Power System with 80A Smart Power Stages, dual 8-pin CPU connectors, and an 8-layer 2oz copper server-grade PCB typically reserved for X-series boards. Dressed in the iconic Major League Gaming red-and-black aesthetic, it packs dual CPU-direct PCIe 5.0 x4 M.2 Gen5 slots, two PCIe 4.0 M.2 slots, an EZ Digit Debug LED, USB 20Gbps front Type-C, full-speed Wi-Fi 7 (320MHz, 5.8Gbps, MLO), 5G LAN, Supplemental PCIe Power, and Realtek ALC4080 Audio Boost 5 — delivering a true flagship build experience on the B850 chipset.

• CPU Support: AMD Ryzen 9000 / 8000 / 7000 Series, Socket AM5

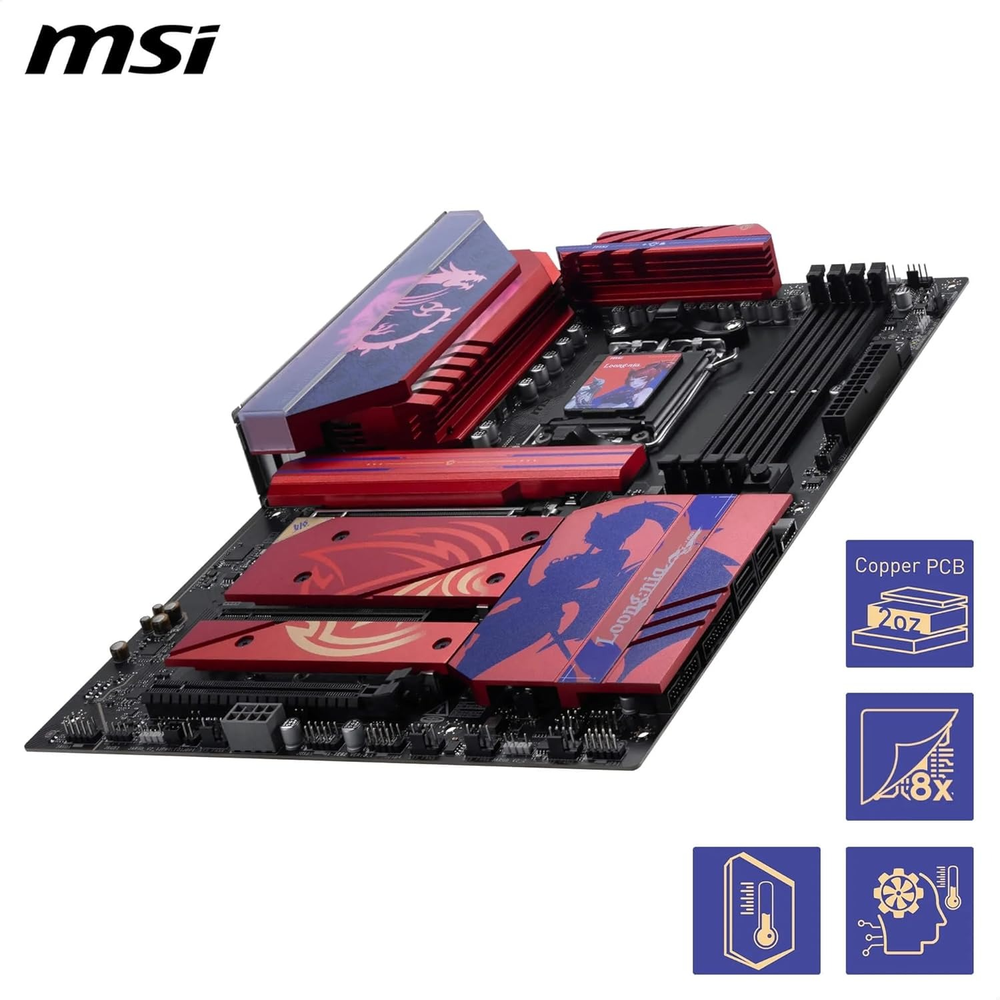

• Power Delivery: 14+2+1 Duet Rail Power System, 80A Smart Power Stages, dual 8-pin CPU connectors, Supplemental PCIe Power (8-pin), Core Boost, Memory Boost, 8-layer 2oz copper server-grade PCB, 7W/mK MOSFET Thermal Pads
• Storage: 4x M.2 — M.2_1 & M.2_2: PCIe 5.0 x4 (CPU direct, Ryzen 9000/7000; PCIe 4.0 x4/x2 for Ryzen 8000); M.2_3 & M.2_4: PCIe 4.0 x4 (Chipset); 4x SATA 6G — EZ M.2 Shield Frozr II, EZ M.2 Clip II (*PCI_E3 runs x2 when M.2_3 installed)

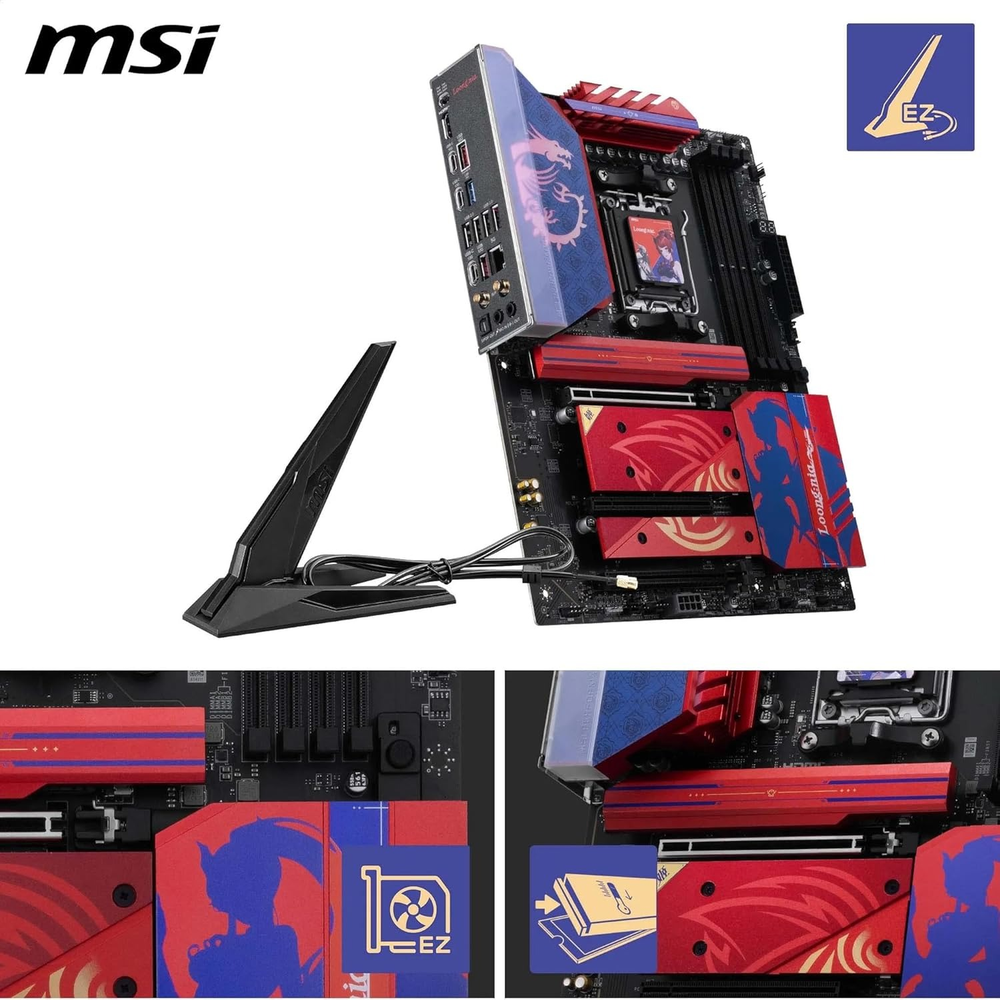

• Connectivity: Wi-Fi 7 (2.4/5/6GHz, 320MHz, up to 5.8Gbps, MU-MIMO, MLO, 4KQAM), Bluetooth 5.4, Realtek RTL8126 5G LAN, EZ Antenna with Magnetic Stand
• USB: Rear — 1x USB 20Gbps Type-C, 2x USB 10Gbps Type-A, 2x USB 5Gbps Type-A, 4x USB 2.0 (no USB4 on rear); Front — 4x USB 5Gbps Type-A, 1x USB 20Gbps Type-C, 4x USB 2.0
• PCIe: PCI_E1: PCIe 5.0 x16 (CPU); PCI_E2: PCIe 3.0 x1 (Chipset); PCI_E3: PCIe 4.0 x4 (Chipset, x2 when M.2_3 installed) — Steel Armor II, EZ PCIe Release
• Audio: Realtek ALC4080, Audio Boost 5, 7.1-CH, S/PDIF, up to 32-bit/384kHz
