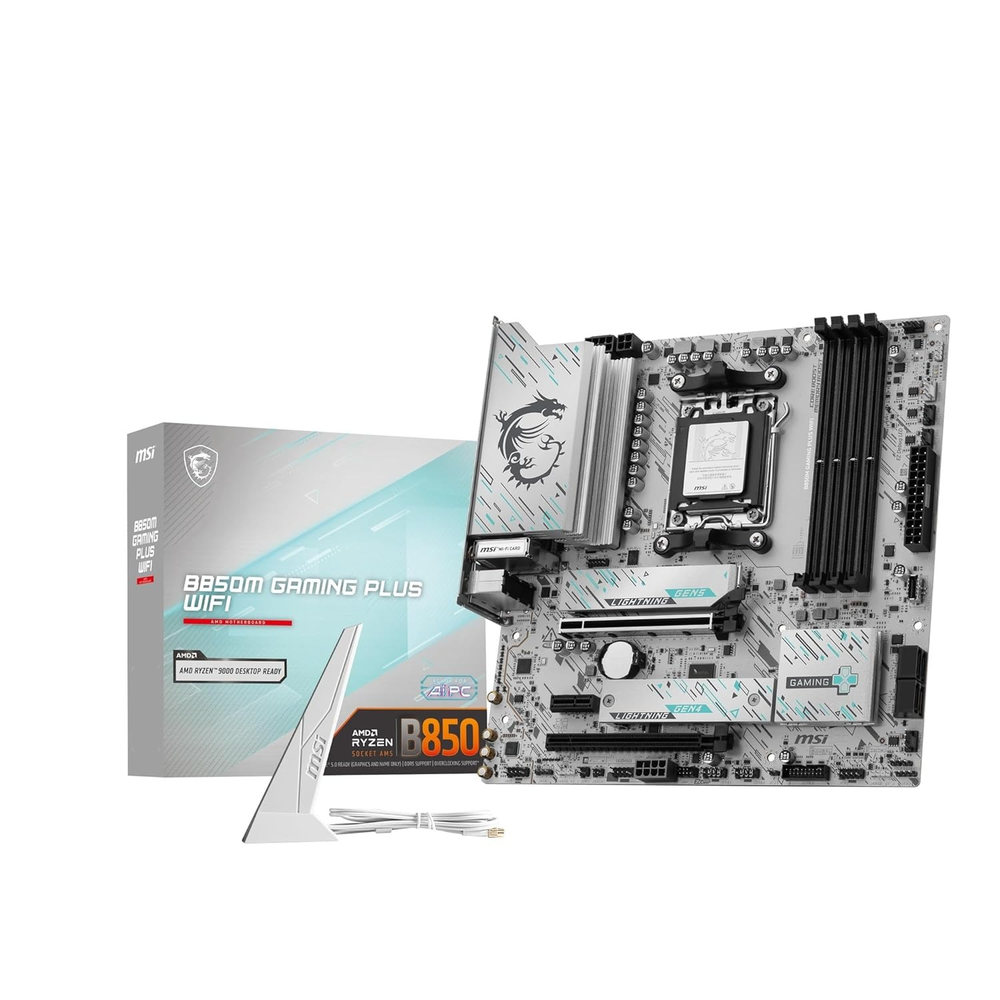

MSI B850M GAMING PLUS WIFI Motherboard
MSI B850M GAMING PLUS WIFI Motherboard
AMD B850 mATX Motherboard for AM5 — 8+2+1 Phase VRM, 60A SPS, Wi-Fi 7 (160MHz), 5G LAN, PCIe 5.0 M.2 Gen5, DDR5 8200+ OC, Supplemental PCIe Power, Ryzen 9000 /...
Vendor:
MSIType:
MotherboardCouldn't load pickup availability
Estimated deliver 5-7 days
People are viewing this right now
Description
AMD B850 mATX Motherboard for AM5 — 8+2+1 Phase VRM, 60A SPS, Wi-Fi 7 (160MHz), 5G LAN, PCIe 5.0 M.2 Gen5, DDR5 8200+ OC, Supplemental PCIe Power, Ryzen 9000 / 8000 / 7000 Ready.

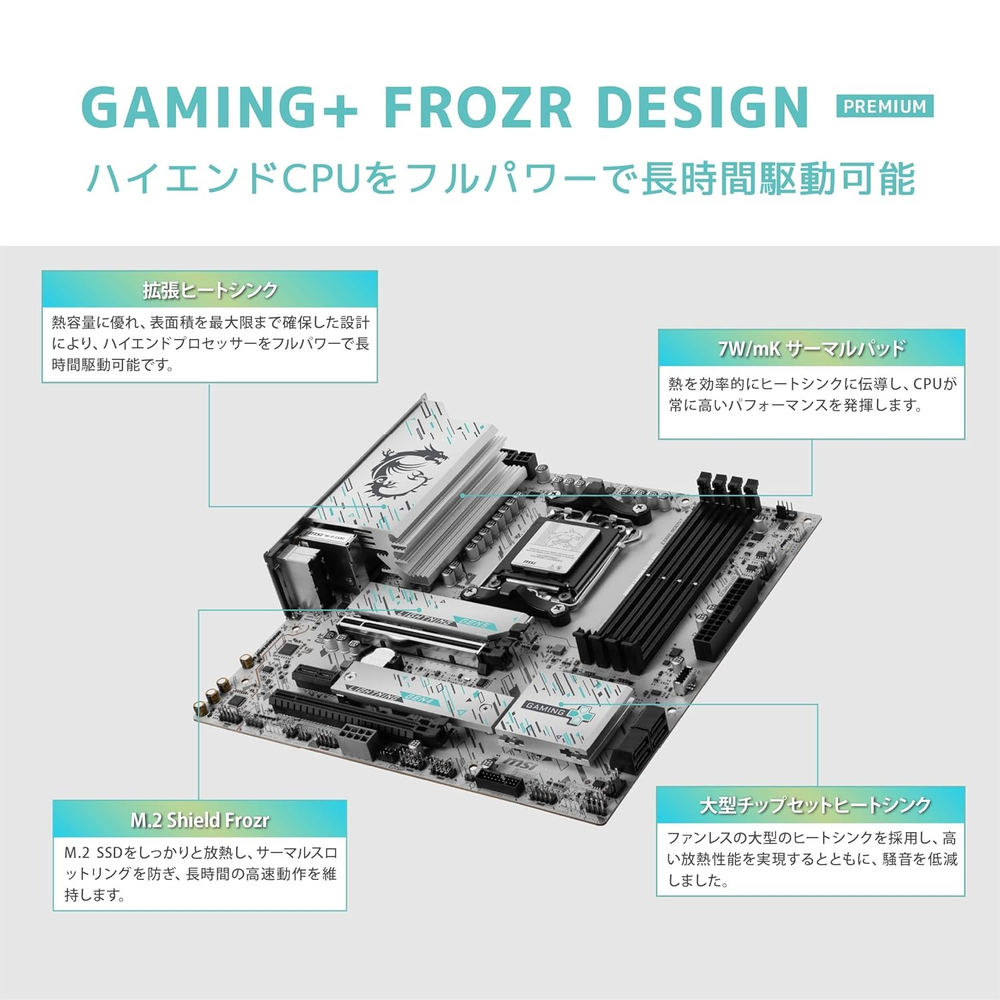

The MSI B850M GAMING PLUS WIFI brings the Gaming Plus formula to a compact mATX footprint — perfect for mid-tower and small builds that don't compromise on connectivity. Featuring an 8+2+1 Direct Power System with 60A Smart Power Stages, Wi-Fi 7 (160MHz, 2.9Gbps, MLO, 4KQAM), 5G LAN, one CPU-direct PCIe 5.0 x4 M.2 Gen5, one PCIe 4.0 x4 M.2 (CPU), Supplemental PCIe Power 8-pin, front USB 10Gbps Type-C, and Realtek ALC897 audio — all at an accessible price point.
-
>CPU Support: AMD Ryzen 9000 / 8000 / 7000 Series, Socket AM5

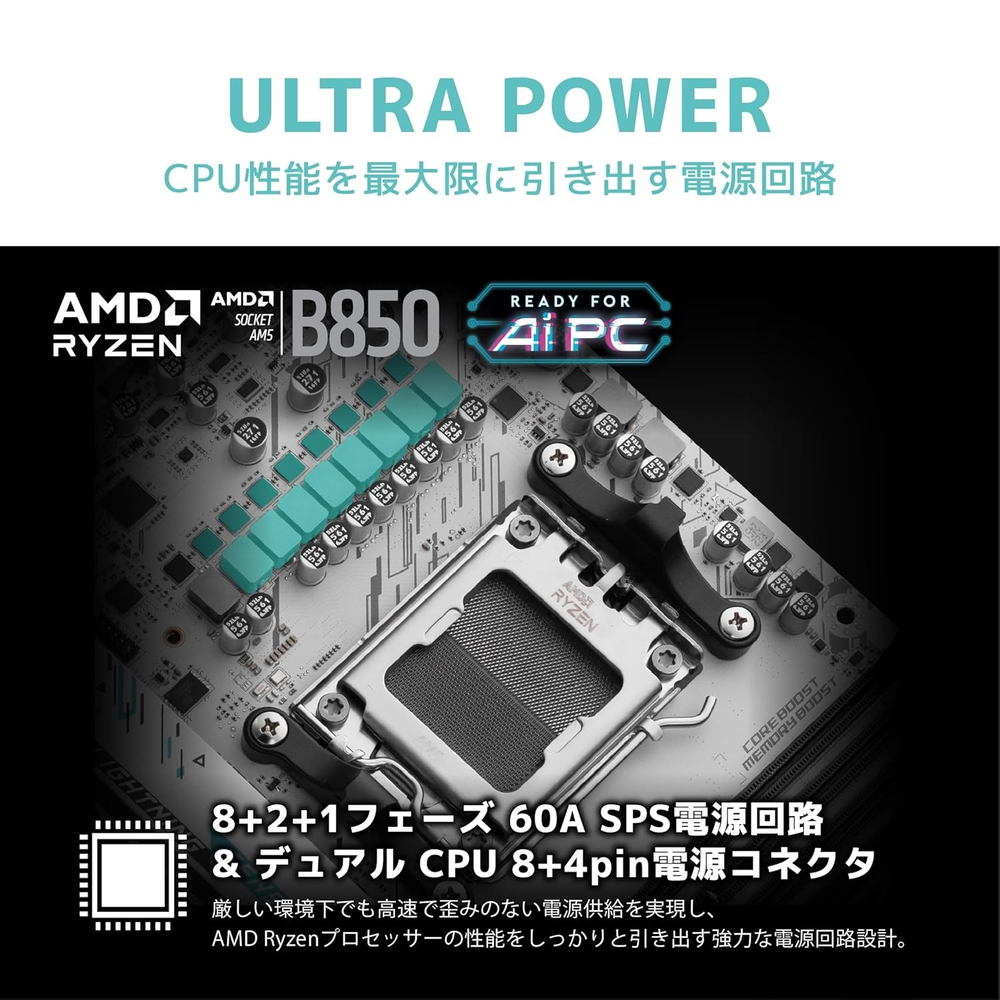

>Power Delivery: 8+2+1 Direct Power System, 60A Smart Power Stages, dual 8-pin CPU connectors (8+4-pin), Supplemental PCIe Power (8-pin), Core Boost, Memory Boost, 6-layer 2oz copper PCB
>Storage: 2x M.2 — M.2_1: PCIe 5.0 x4 (CPU, 2280/2260, Ryzen 9000/7000; PCIe 4.0 x4 Ryzen 8000); M.2_2: PCIe 4.0 x4 (CPU, 2280/2260, Ryzen 9000/8700/8600/8400/7000; PCIe 4.0 x2 Ryzen 8500/8300); 4x SATA 6G

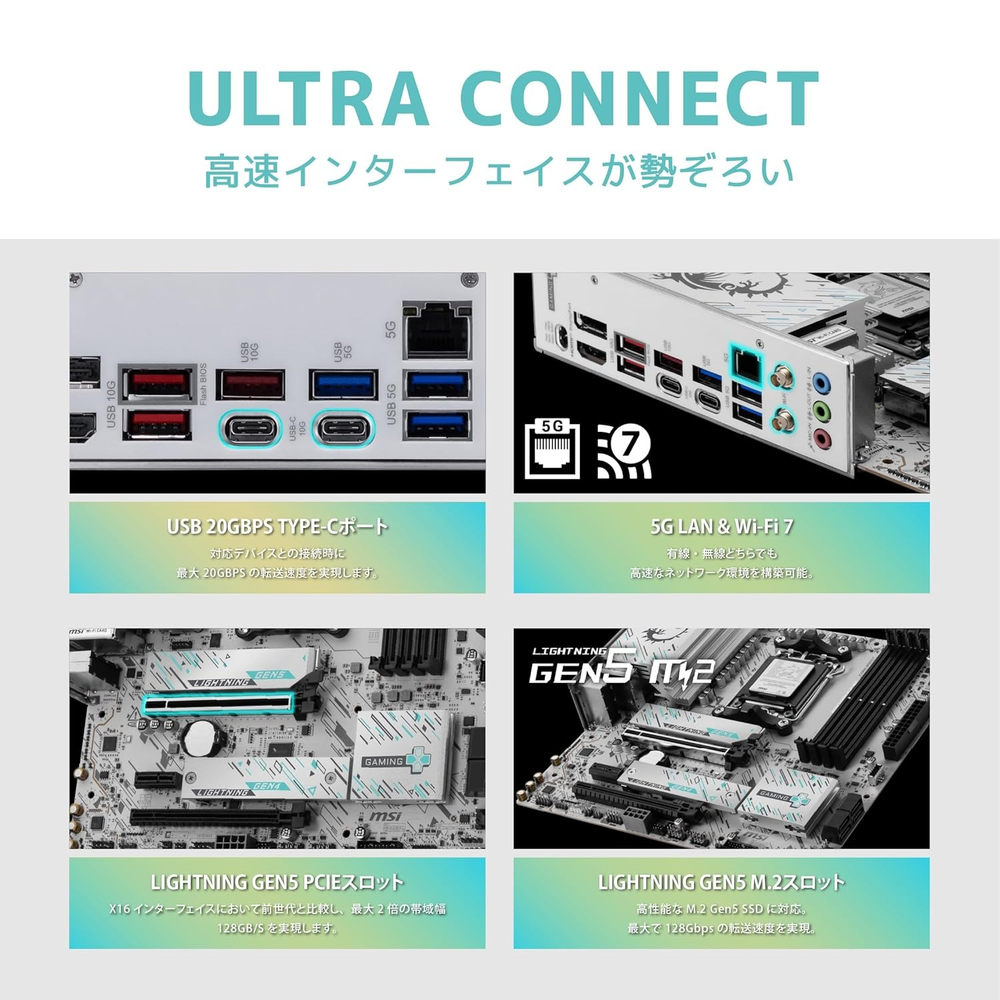

>Connectivity: Wi-Fi 7 (2.4/5/6GHz, 160MHz, up to 2.9Gbps, MU-MIMO, MLO, 4KQAM), Bluetooth 5.4, Realtek 8126 5G LAN
>USB: Rear — 3x USB 10Gbps Type-A, 2x USB 10Gbps Type-C, 3x USB 5Gbps Type-A; Front — 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C, 4x USB 2.0
>PCIe: PCI_E1: PCIe 5.0 x16 (CPU); PCI_E2: PCIe 4.0 x4 (Chipset); PCI_E3: PCIe 3.0 x1 (Chipset)
>Audio: Realtek ALC897, 7.1-CH, Audio Boost, up to 192kHz
| Specification | Details |
|---|---|
| Chipset | AMD B850 |
| Socket | AM5 |

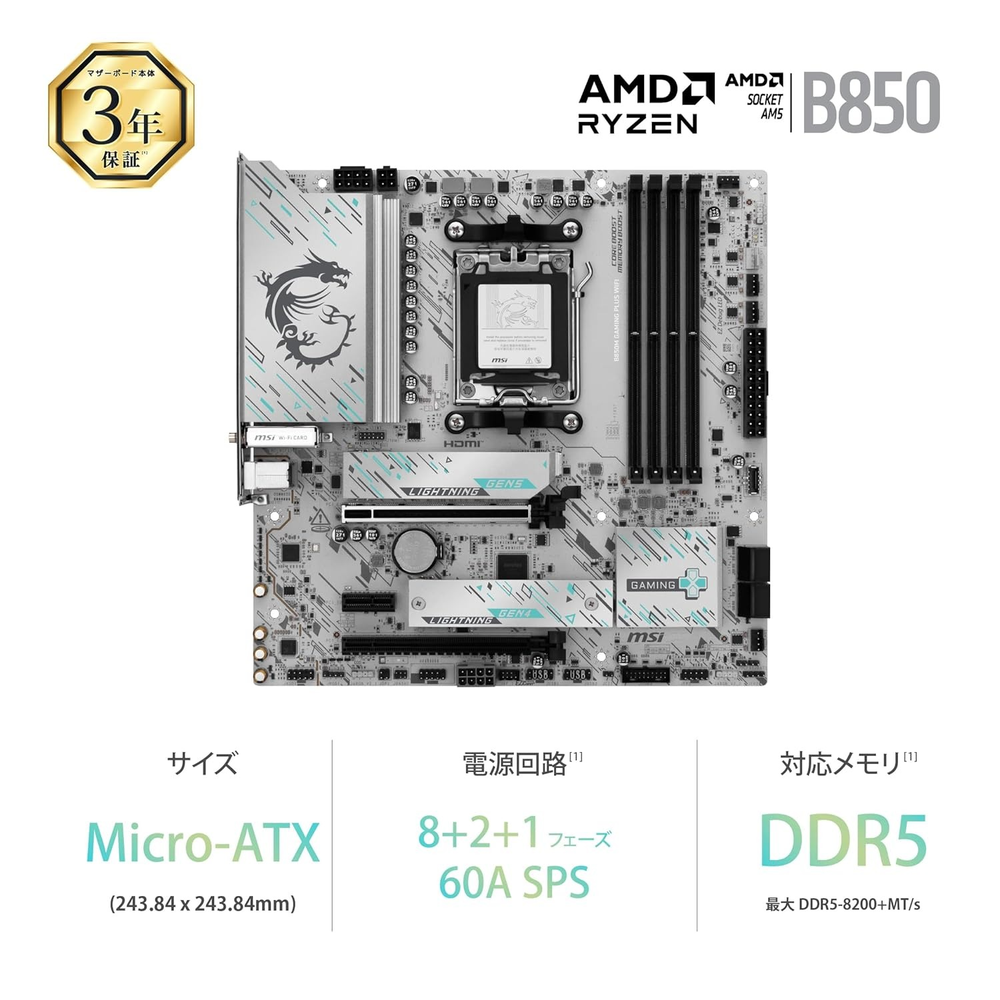

| Form Factor | mATX (243.84 x 243.84 mm), 6-layer 2oz copper PCB |
| Memory | 4x DDR5 UDIMM, up to 256GB; DDR5 8200–5600 (OC) / 5600–4800 (JEDEC) MT/s; 1DPC 1R max 8200+ MT/s / 1DPC 2R max 6400+ MT/s / 2DPC max 6000–6400+ MT/s OC |
| Memory Standard | AMD EXPO, XMP, CUDIMM (bypass mode), Dual Channel, Non-ECC Unbuffered, High-Efficiency Mode |
| PCIe Slots | PCI_E1: PCIe 5.0 x16 (CPU); PCI_E2: PCIe 4.0 x4 (Chipset); PCI_E3: PCIe 3.0 x1 (Chipset) |
| M.2 Slots | M.2_1: PCIe 5.0 x4 (CPU, 2280/2260); M.2_2: PCIe 4.0 x4 (CPU, 2280/2260) |
| SATA | 4x SATA 6G | RAID 0, 1, 10; M.2 NVMe RAID 0, 1 |
| LAN | Realtek 8126 5G LAN |
| Wireless | Wi-Fi 7 (2.4/5/6GHz, 160MHz, up to 2.9Gbps, MU-MIMO, MLO, 4KQAM), Bluetooth 5.4 |

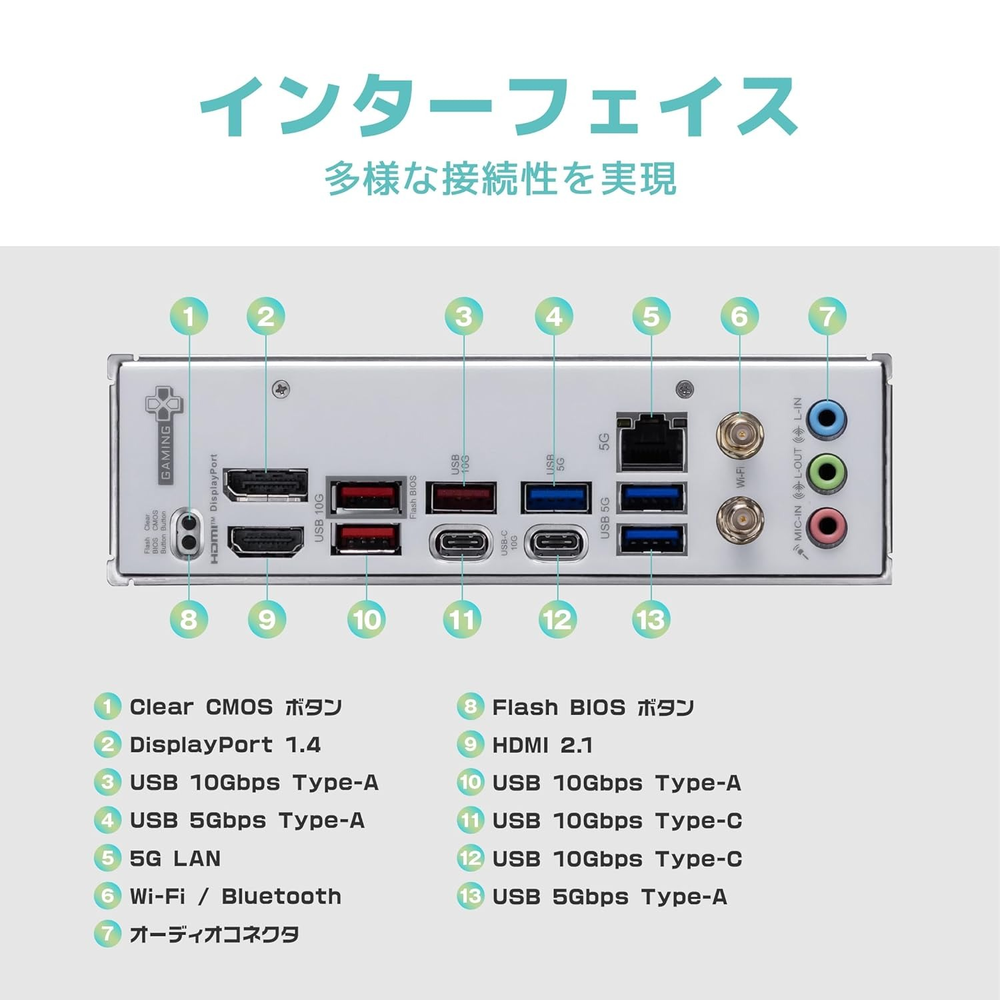

| Rear USB | 3x USB 10Gbps Type-A, 2x USB 10Gbps Type-C, 3x USB 5Gbps Type-A |
| Front USB Headers | 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C, 4x USB 2.0 |
| Video Output | 1x HDMI 2.1 (4K@60Hz) — iGPU only |
| Audio | Realtek ALC897, Audio Boost, 7.1-CH, up to 192kHz |
| Fan Headers | 1x CPU Fan, 1x Combo Fan (Pump/Sys), 4x System Fan, Smart Fan 6 |
| RGB | 3x ARGB V2 headers, 1x RGB header, 4x EZ Debug LED |

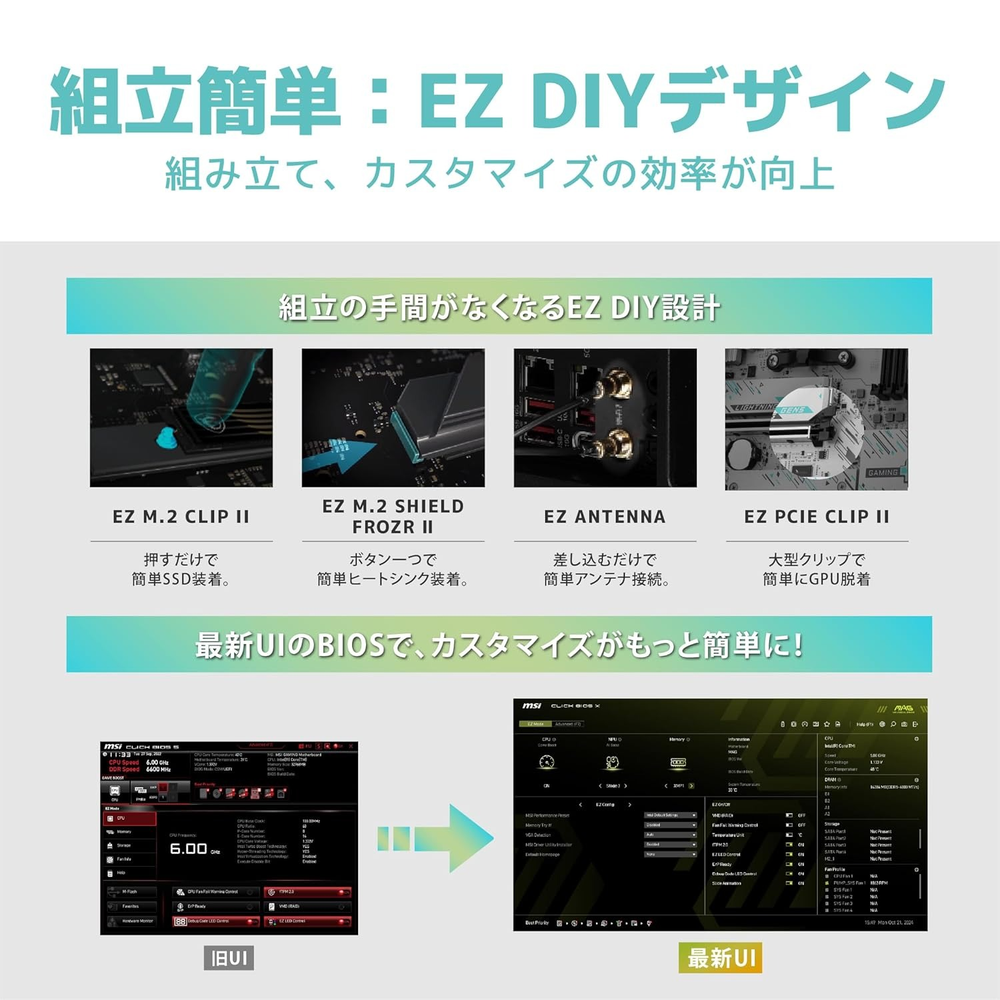

| Extras | EZ M.2 Clip, EZ PCIe Release, EZ Conn header, EZ Antenna, Supplemental PCIe Power (8-pin), Flash BIOS Button, Click BIOS 5, metal backplate |
| OS Support | Windows 11 64-bit |
