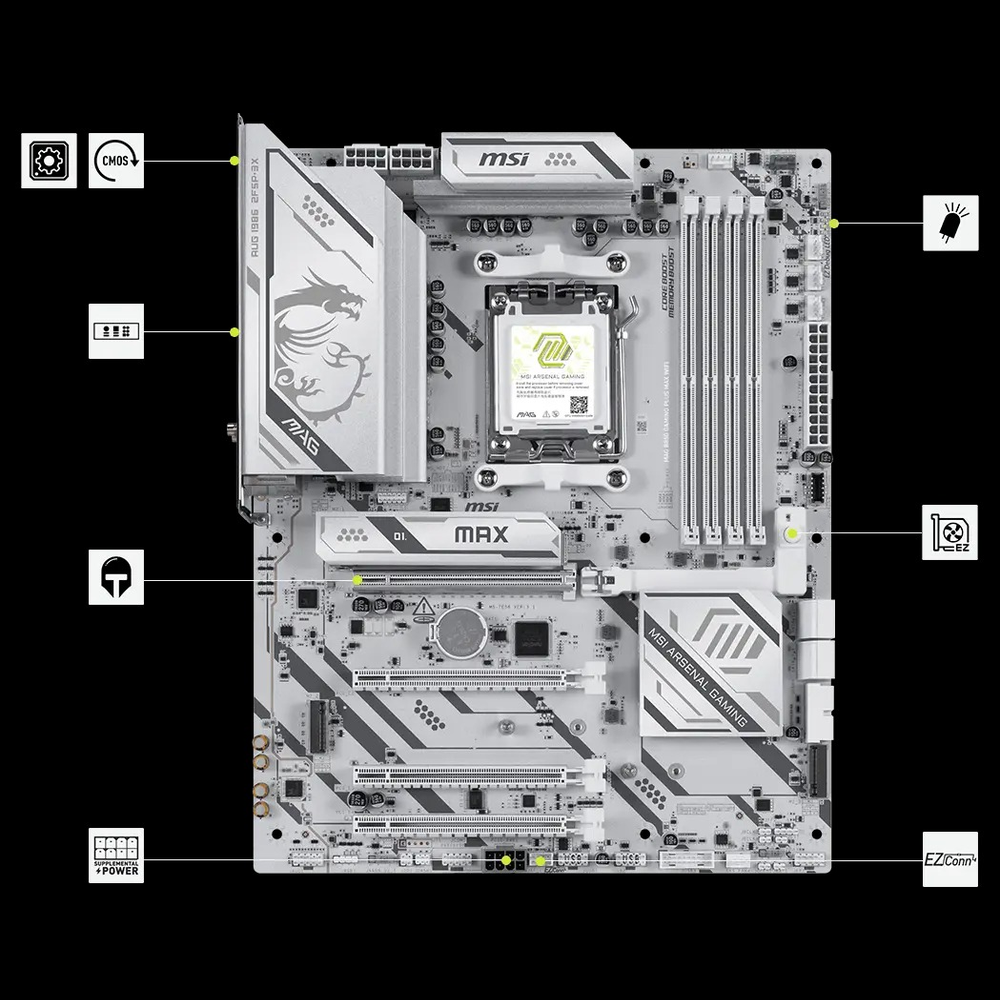

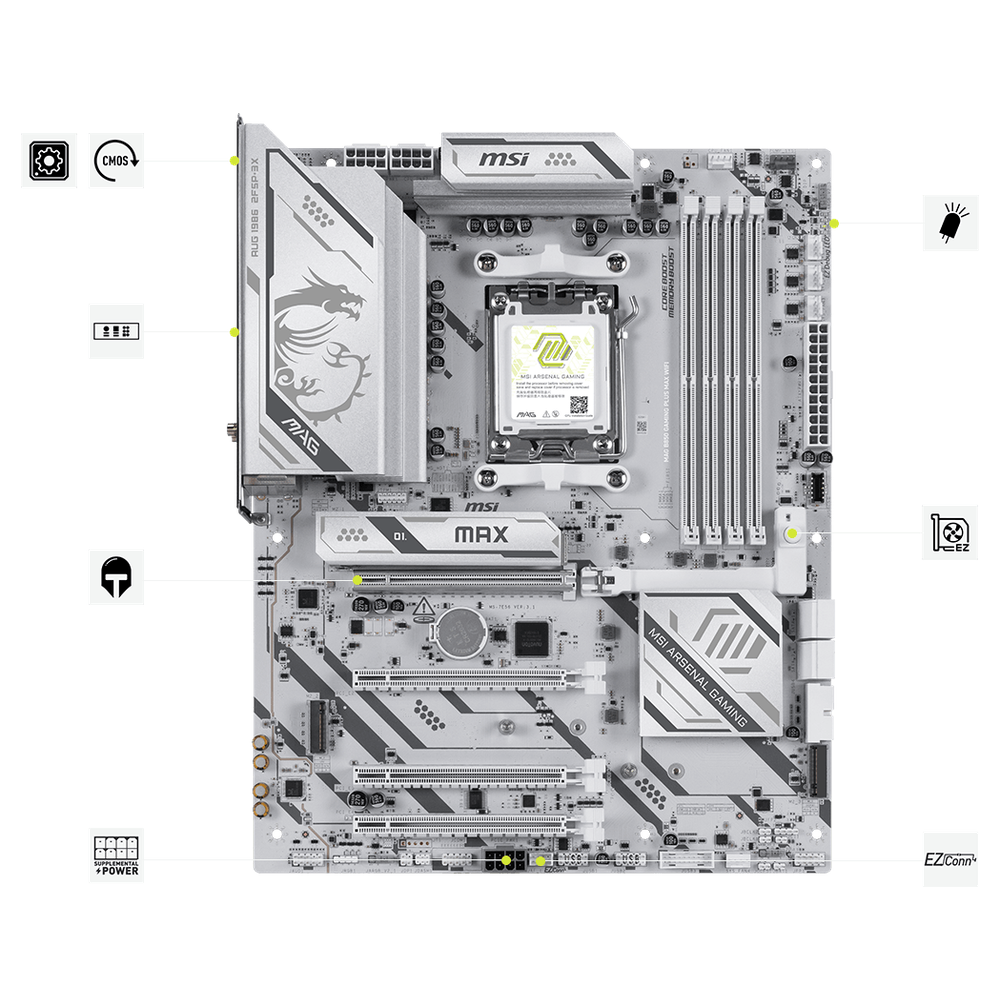

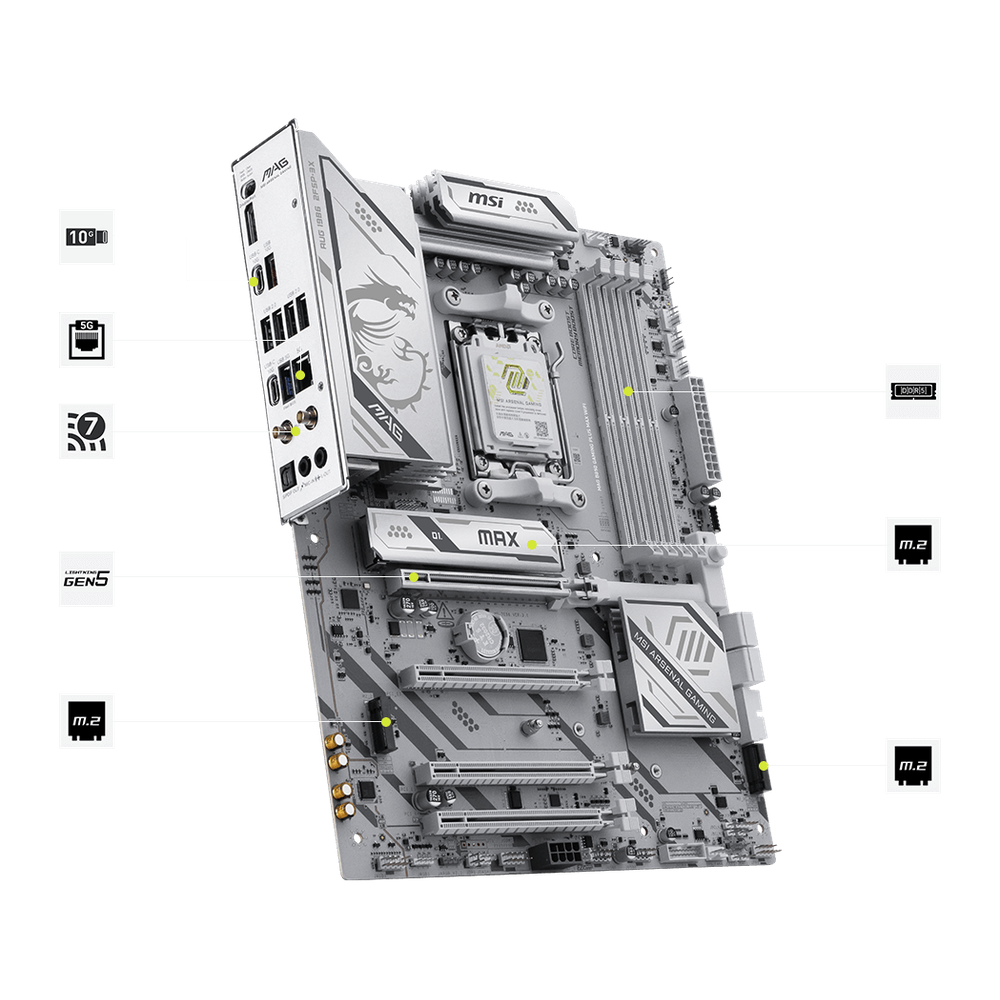

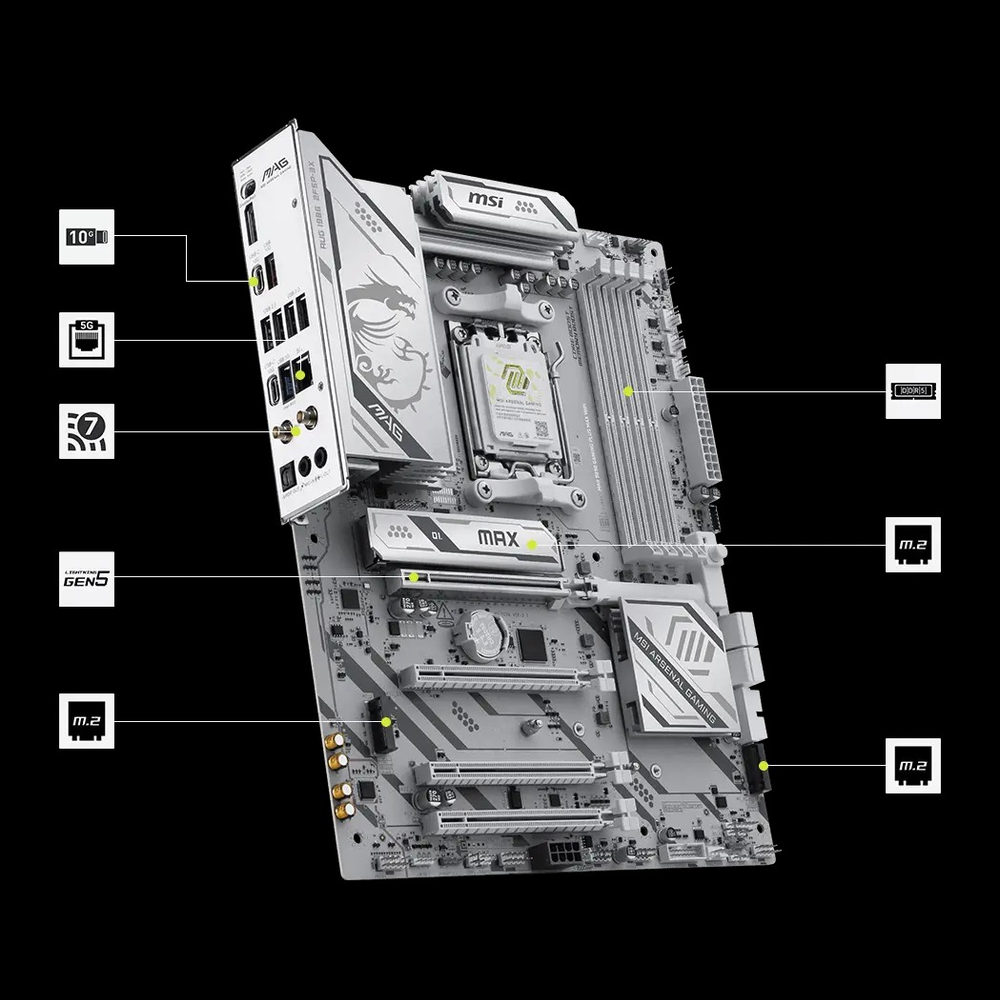

MSI MAG B850 GAMING PLUS MAX WIFI Motherboard
Technical specification
AMD B850 ATX Motherboard for AM5 — 12+2+1 Phase VRM, 60A SPS, Wi-Fi 7 (160MHz), 5G LAN, USB 10Gbps, PCIe 5.0 M.2 Gen5, DDR5 8200+ OC, Supplemental PCIe Power, Ryzen 9000 / 8000 / 7000 Ready.
The MSI MAG B850 GAMING PLUS MAX WIFI is the MAX-tier variant of the Gaming Plus lineup — stepping up with a 12+2+1 Duet Rail Power System on a 6-layer 2oz copper PCB for improved VRM stability. It delivers Wi-Fi 7 (160MHz, up to 2.9Gbps, MLO, 4KQAM), 5G LAN via Realtek 8126, USB 10Gbps dual rear Type-C, one CPU-direct PCIe 5.0 x4 M.2 Gen5, one PCIe 4.0 x4 M.2 (CPU), one PCIe 4.0 x2 M.2 (Chipset), Supplemental PCIe Power 8-pin, and a full EZ DIY suite — making it the best value step-up over the base Gaming Plus for enthusiast AMD builds.
-
>CPU Support: AMD Ryzen 9000 / 8000 / 7000 Series, Socket AM5

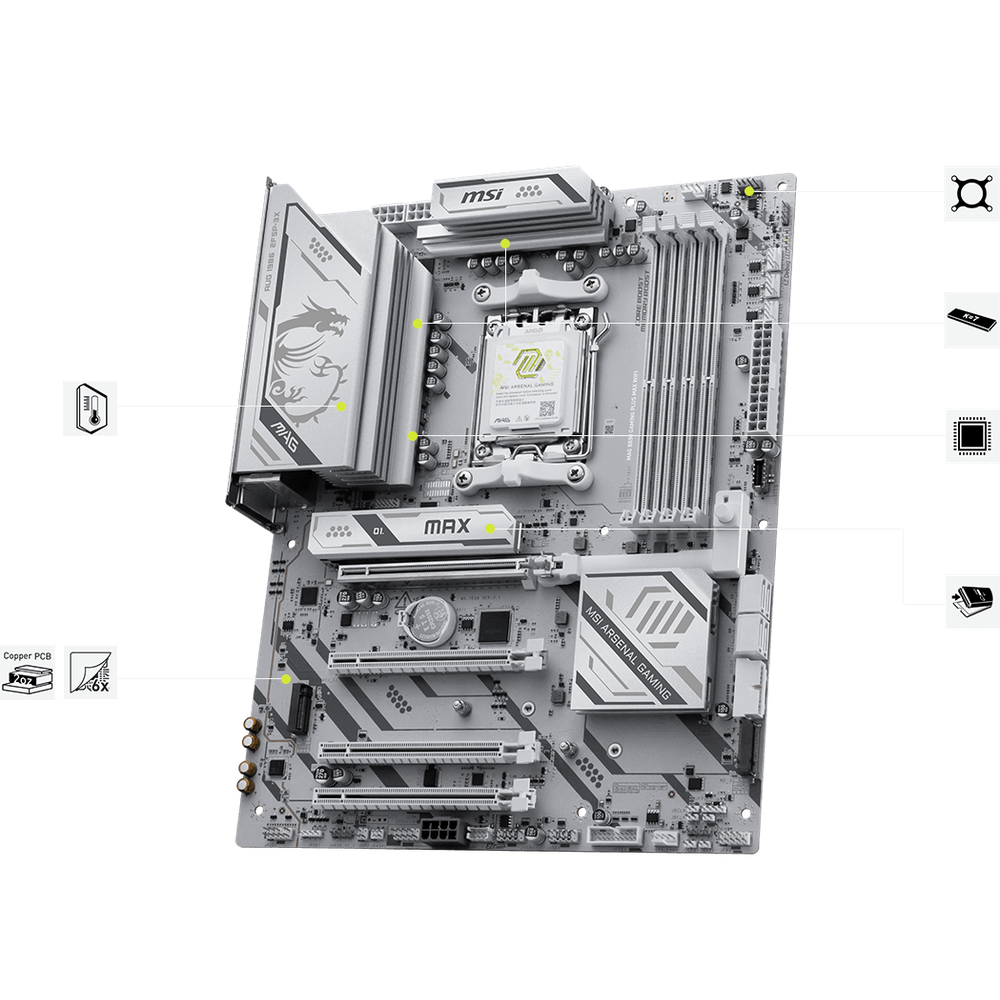

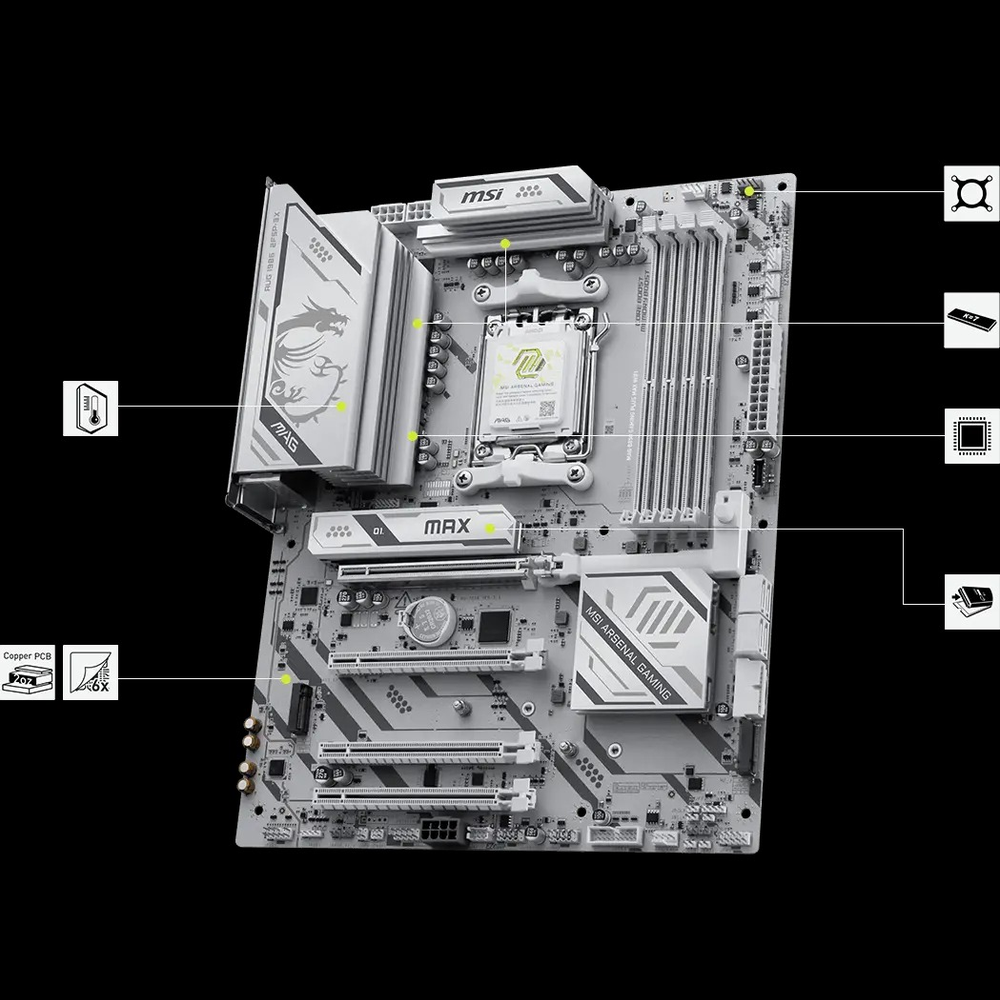

>Power Delivery: 12+2+1 Duet Rail Power System, 60A Smart Power Stages, dual 8-pin CPU connectors, Supplemental PCIe Power (8-pin), Core Boost, Memory Boost, 6-layer 2oz copper PCB
>Storage: 3x M.2 — M.2_1: PCIe 5.0 x4 (CPU, 2280/2260, Ryzen 9000/7000; PCIe 4.0 x4 Ryzen 8000); M.2_2: PCIe 4.0 x4 (CPU, 22110/2280, Ryzen 9000/7000; PCIe 3.0 x4 Ryzen 8500/8300); M.2_3: PCIe 4.0 x2 (Chipset, 2280/2260); 4x SATA 6G
>Connectivity: Wi-Fi 7 (2.4/5/6GHz, 160MHz, up to 2.9Gbps, MU-MIMO, MLO, 4KQAM), Bluetooth 5.4, Realtek 8126 5G LAN
>USB: Rear — 1x USB 10Gbps Type-A, 2x USB 10Gbps Type-C, 1x USB 5Gbps Type-A, 4x USB 2.0; Front — 4x USB 5Gbps Type-A, 1x USB 5Gbps Type-C, 4x USB 2.0
>PCIe: PCI_E1: PCIe 5.0 x16 (CPU); PCI_E2: PCIe 3.0 x1 (Chipset); PCI_E3: PCIe 4.0 x4 (Chipset, x2 w/ PCI_E2/PCI_E4); PCI_E4: PCIe 3.0 x1 (Chipset)
>Audio: Realtek ALC897, Audio Boost, 7.1-CH, up to 192kHz
| Specification | Details |
|---|---|
| Chipset | AMD B850 |
| Socket | AM5 |
| Form Factor | ATX (304.8 x 243.84 mm), 6-layer 2oz copper PCB |
| Memory | 4x DDR5 UDIMM, up to 256GB; DDR5 8200–5600 (OC) / 5600–4800 (JEDEC) MT/s; 1DPC 1R max 8200+ MT/s / 1DPC 2R max 6400+ MT/s / 2DPC 1R max 6400+ MT/s / 2DPC 2R max 6000+ MT/s OC |
| Memory Standard | AMD EXPO, A-XMP, CUDIMM (bypass mode), Dual Channel, Non-ECC Unbuffered, High-Efficiency Mode |
| PCIe Slots | PCI_E1: PCIe 5.0 x16 (CPU); PCI_E2: PCIe 3.0 x1 (Chipset); PCI_E3: PCIe 4.0 x4 (Chipset, x2 w/ PCI_E2/PCI_E4); PCI_E4: PCIe 3.0 x1 (Chipset) |
| M.2 Slots | M.2_1: PCIe 5.0 x4 (CPU, 2280/2260); M.2_2: PCIe 4.0 x4 (CPU, 22110/2280); M.2_3: PCIe 4.0 x2 (Chipset, 2280/2260) |
| SATA | 4x SATA 6G | RAID 0, 1, 10 |
| LAN | Realtek 8126 5G LAN |
| Wireless | Wi-Fi 7 (2.4/5/6GHz, 160MHz, up to 2.9Gbps, MU-MIMO, MLO, 4KQAM), Bluetooth 5.4 |
| Rear USB | 1x USB 10Gbps Type-A, 2x USB 10Gbps Type-C, 1x USB 5Gbps Type-A, 4x USB 2.0 |
| Front USB Headers | 4x USB 5Gbps Type-A, 1x USB 5Gbps Type-C, 4x USB 2.0 |
| Video Output | 1x HDMI 2.1 (4K@60Hz) — iGPU only |
| Audio | Realtek ALC897, Audio Boost, 7.1-CH, up to 192kHz |
| Fan Headers | 1x CPU Fan, 1x Combo Fan (Pump/Sys), 6x System Fan, Smart Fan 6 |
| RGB | 3x ARGB V2 headers, 1x RGB header, 4x EZ Debug LED, 1x EZ Memory Detection LED |
| Extras | EZ M.2 Clip, EZ PCIe Release, EZ Conn header, EZ Antenna, Supplemental PCIe Power (8-pin), Flash BIOS Button, Click BIOS 5, metal backplate |
| OS Support | Windows 11 64-bit |
