MSI MAG B850 TOMAHAWK WIFI Motherboard

AMD B850 ATX Motherboard for AM5 — 14+2+1 Phase VRM, 80A SPS, Wi-Fi 7 (160MHz), 5G LAN, USB 20Gbps, PCIe 5.0 M.2 Gen5, DDR5 8200+ OC, Supplemental PCIe Power, Ryzen 9000 / 8000 / 7000 Ready.

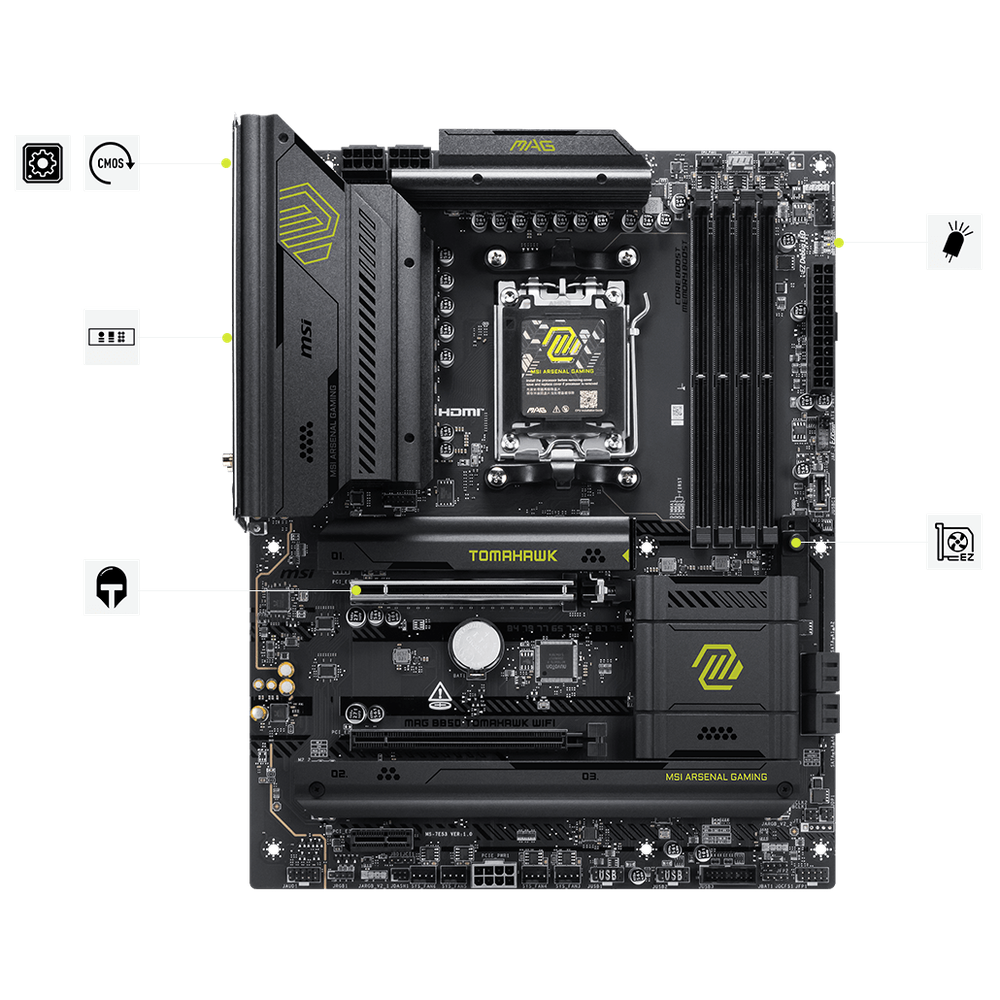

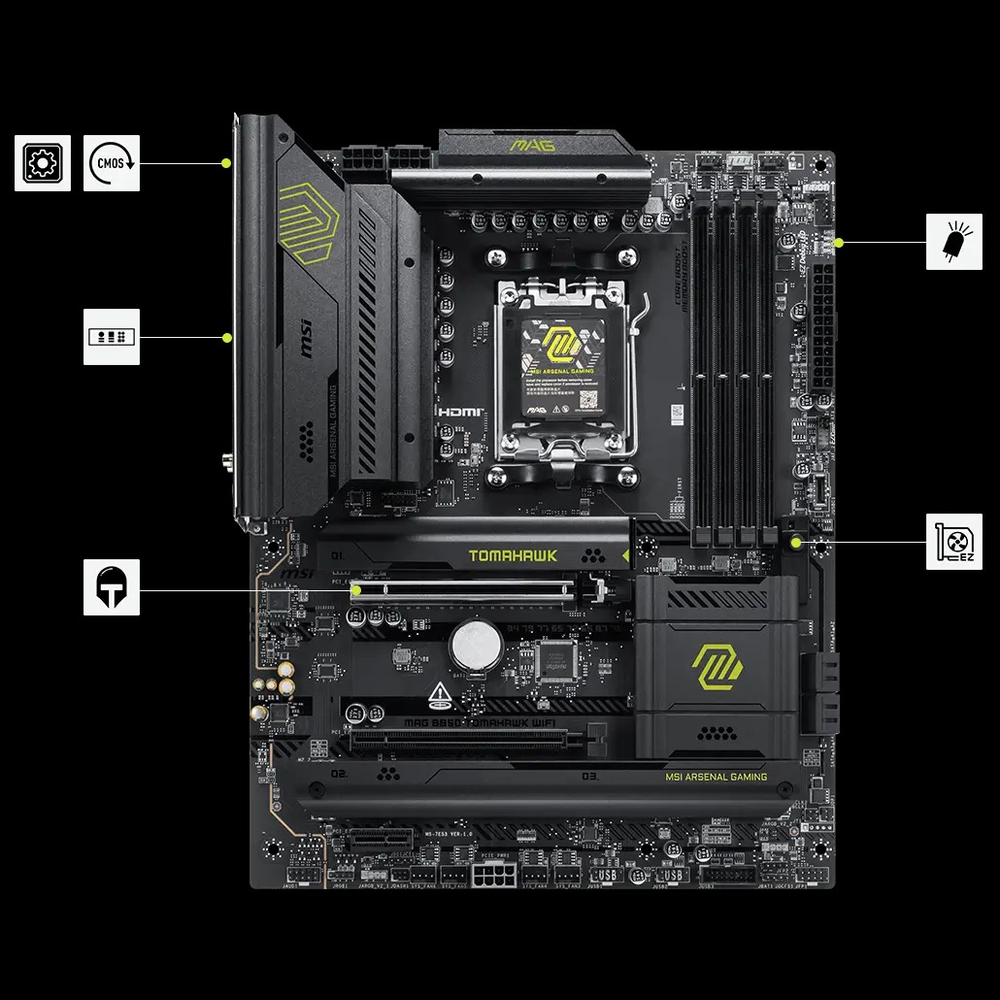

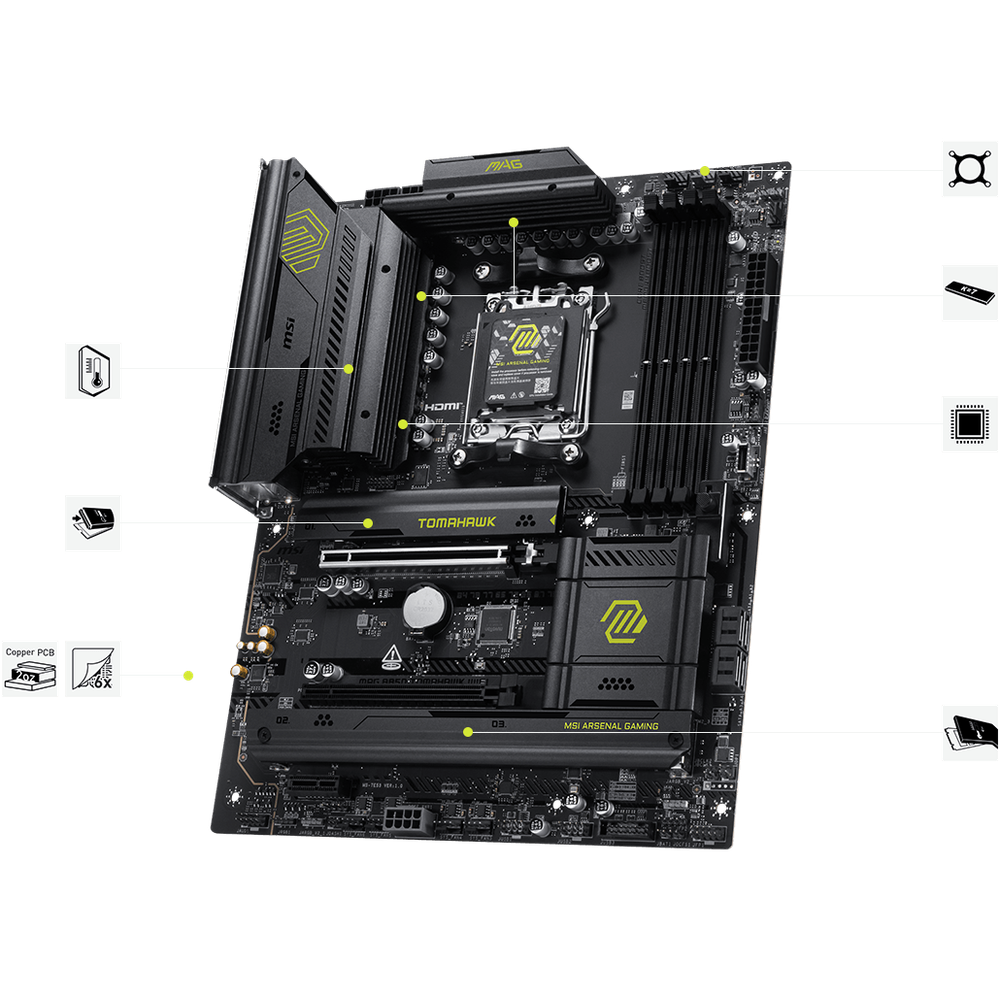

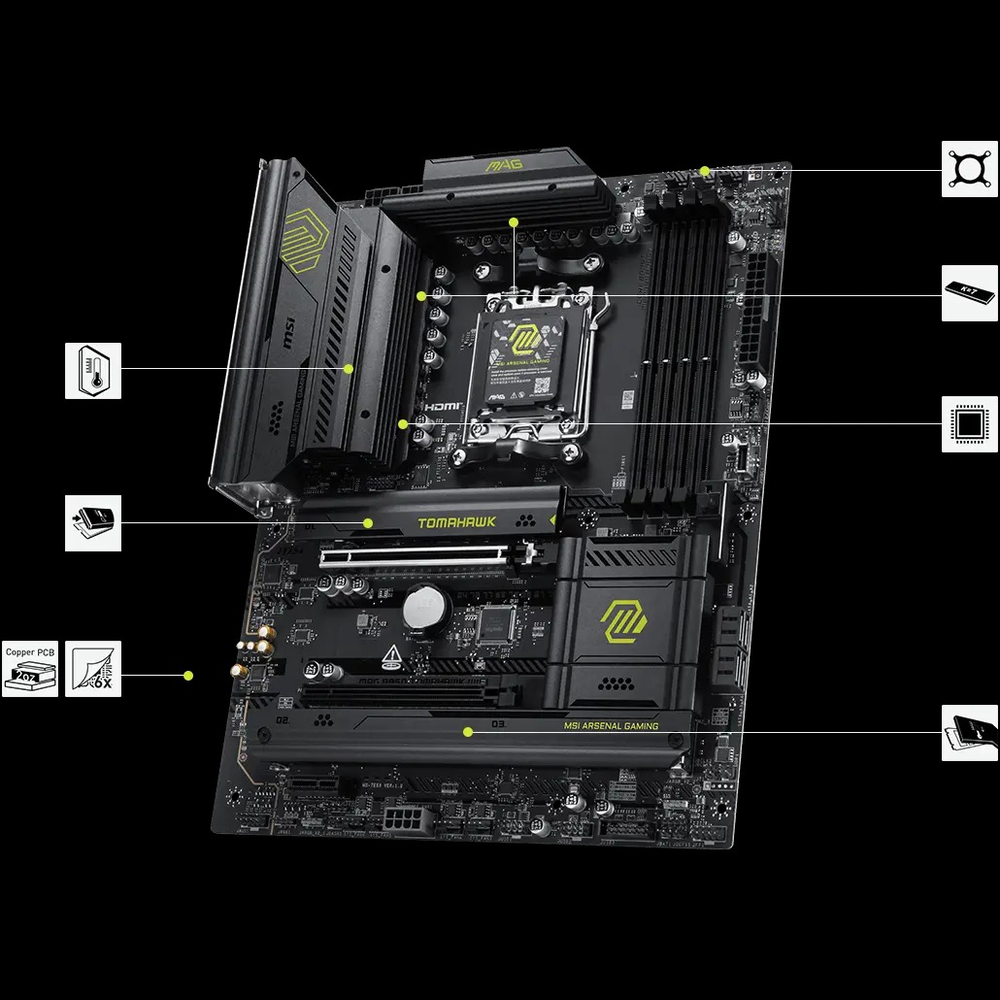

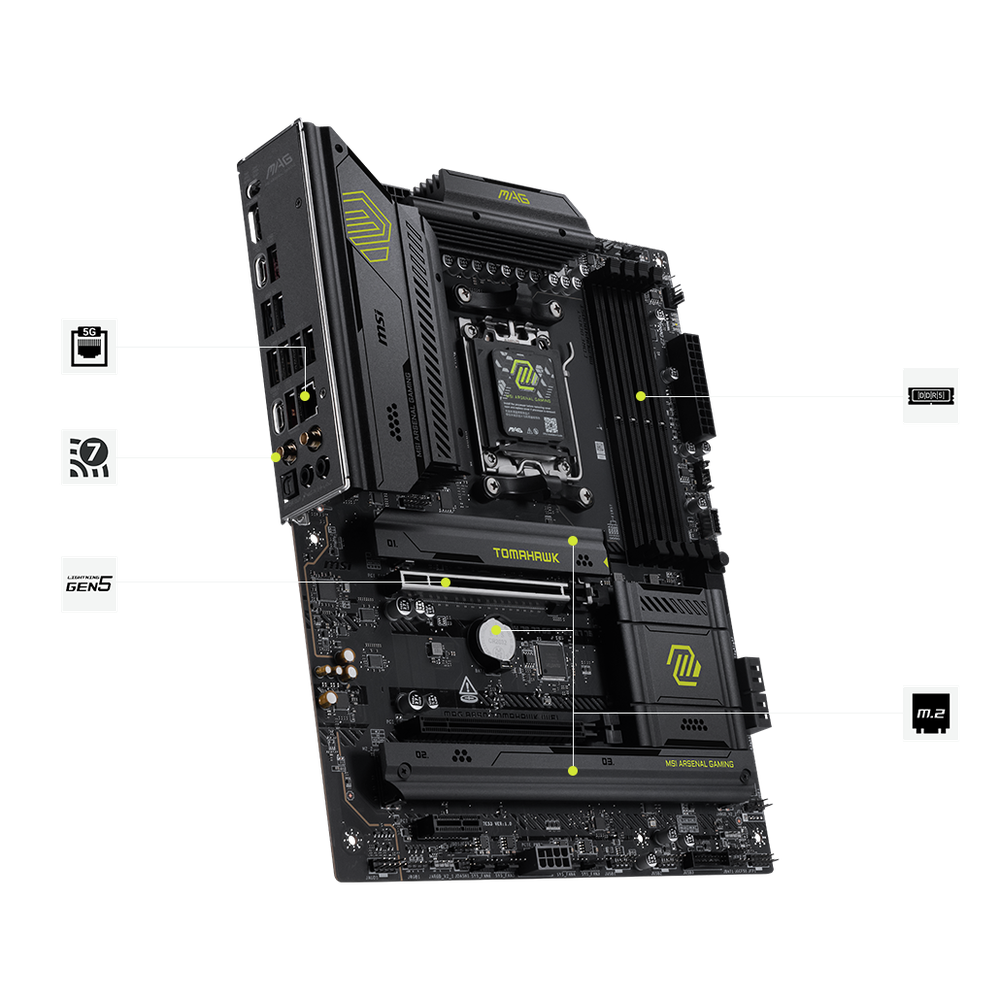

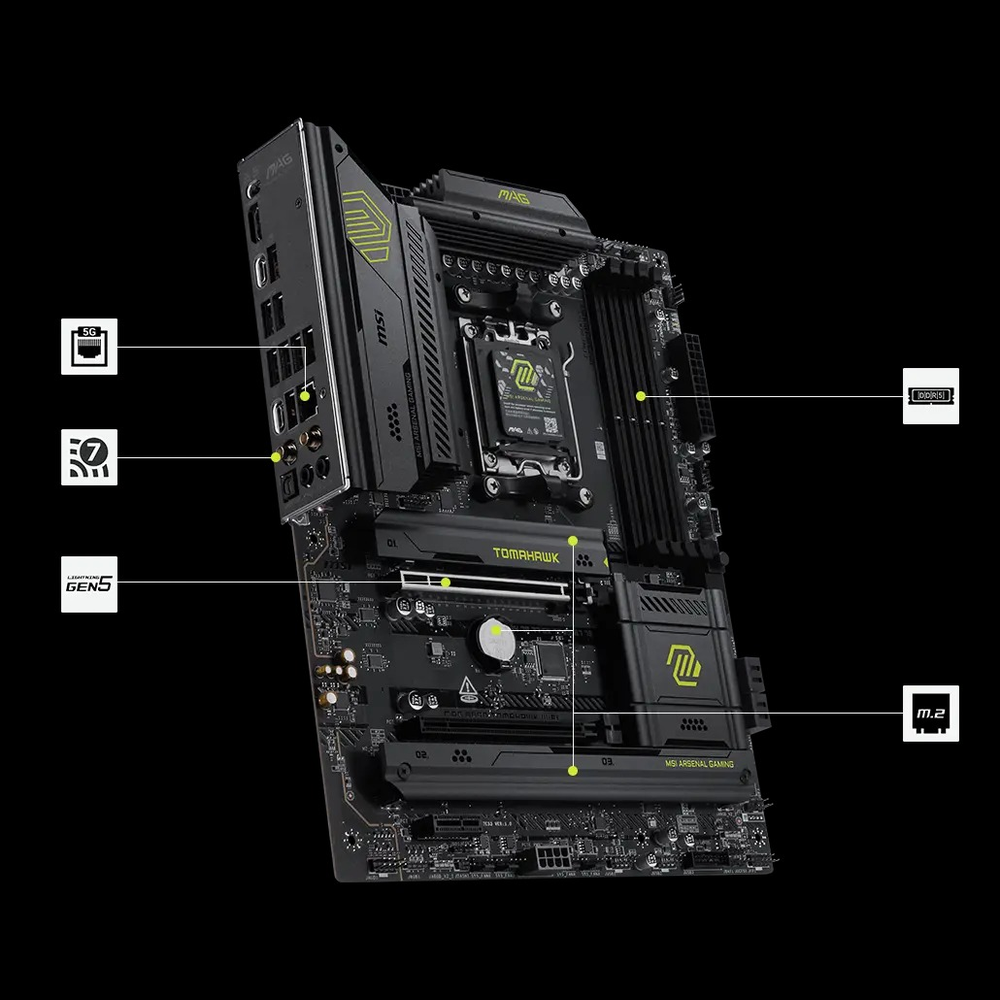

The MSI MAG B850 TOMAHAWK WIFI is the standard Tomahawk on B850 — delivering the iconic MAG build quality with a 14+2+1 Duet Rail Power System and 80A Smart Power Stages on a 6-layer 2oz copper PCB. It includes Wi-Fi 7 (160MHz, up to 2.9Gbps, MLO, 4KQAM), 5G LAN, USB 20Gbps front Type-C, one CPU-direct PCIe 5.0 M.2, one PCIe 4.0 M.2 (CPU), one PCIe 4.0 M.2 (Chipset), Supplemental PCIe Power, and Realtek ALC4080 Audio Boost 5. Note: the MAX variant upgrades to 320MHz Wi-Fi 7 (5.8Gbps), higher DDR5 OC (8400+), and 4x M.2 slots — choose the MAX for more headroom.

>CPU Support: AMD Ryzen 9000 / 8000 / 7000 Series, Socket AM5 >Power Delivery: 14+2+1 Duet Rail Power System, 80A Smart Power Stages, dual 8-pin CPU connectors, Supplemental PCIe Power (8-pin), Core Boost, Memory Boost, 6-layer 2oz copper PCB >Storage: 3x M.2 — M.2_1: PCIe 5.0 x4 (CPU, 2280/2260, Ryzen 9000/7000; PCIe 4.0 x4 Ryzen 8000); M.2_2: PCIe 4.0 x4 (CPU, 22110/2280/2260); M.2_3: PCIe 4.0 x4 (Chipset, 2280/2260); 4x SATA 6G >Connectivity: Wi-Fi 7 (2.4/5/6GHz, 160MHz, up to 2.9Gbps, MU-MIMO, MLO, 4KQAM), Bluetooth 5.4, 5G LAN >USB: Rear — 3x USB 10Gbps Type-C, 2x USB 10Gbps Type-A, 1x USB 5Gbps Type-A, 4x USB 2.0; Front — 4x USB 5Gbps Type-A, 1x USB 20Gbps Type-C, 4x USB 2.0 >PCIe: PCI_E1: PCIe 5.0 x16 (CPU); PCI_E2: PCIe 4.0 x4 (Chipset); PCI_E3: PCIe 3.0 x1 (Chipset) >Audio: Realtek ALC4080, Audio Boost 5, 7.1-CH, S/PDIF, up to 32-bit/384kHz
